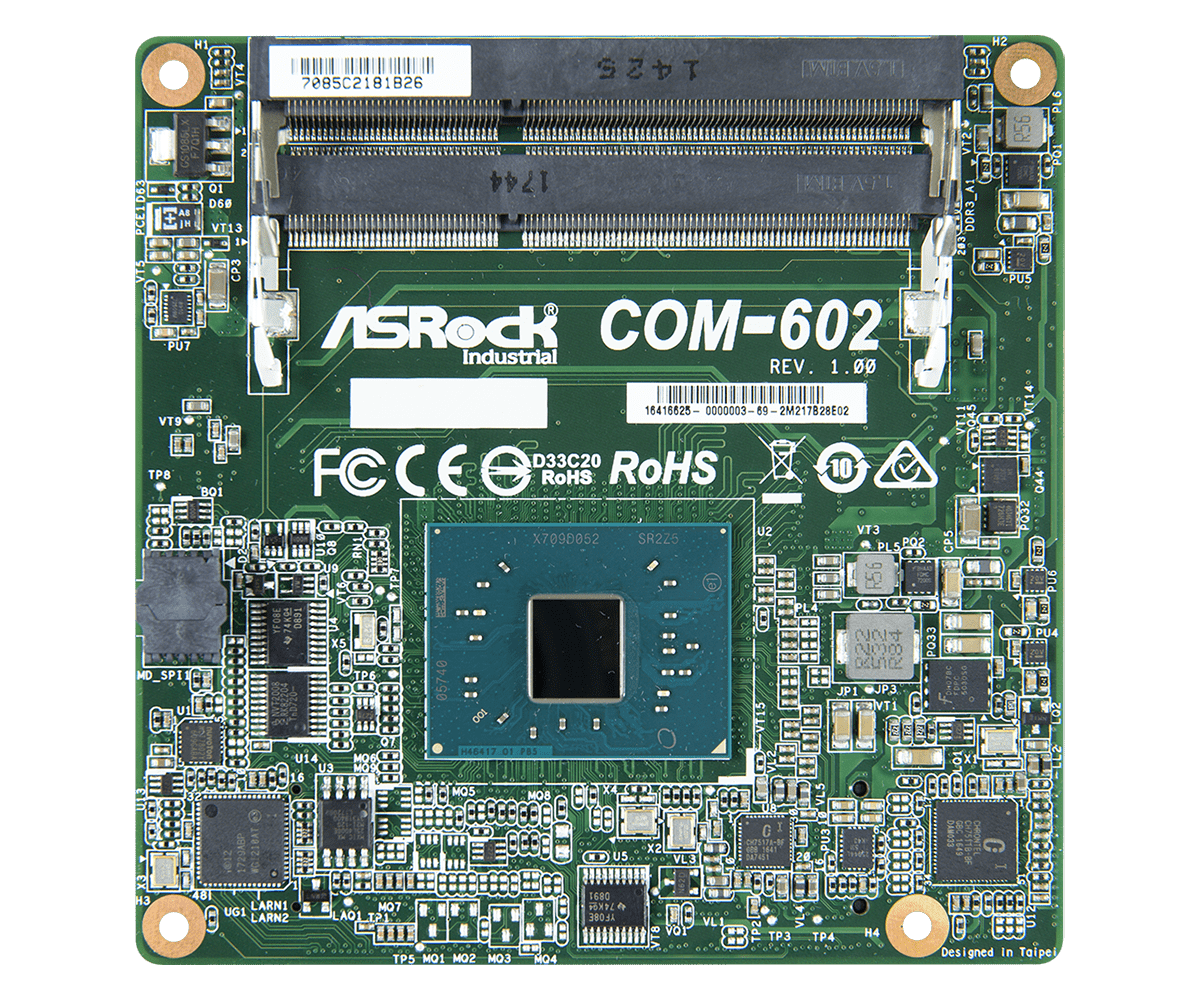

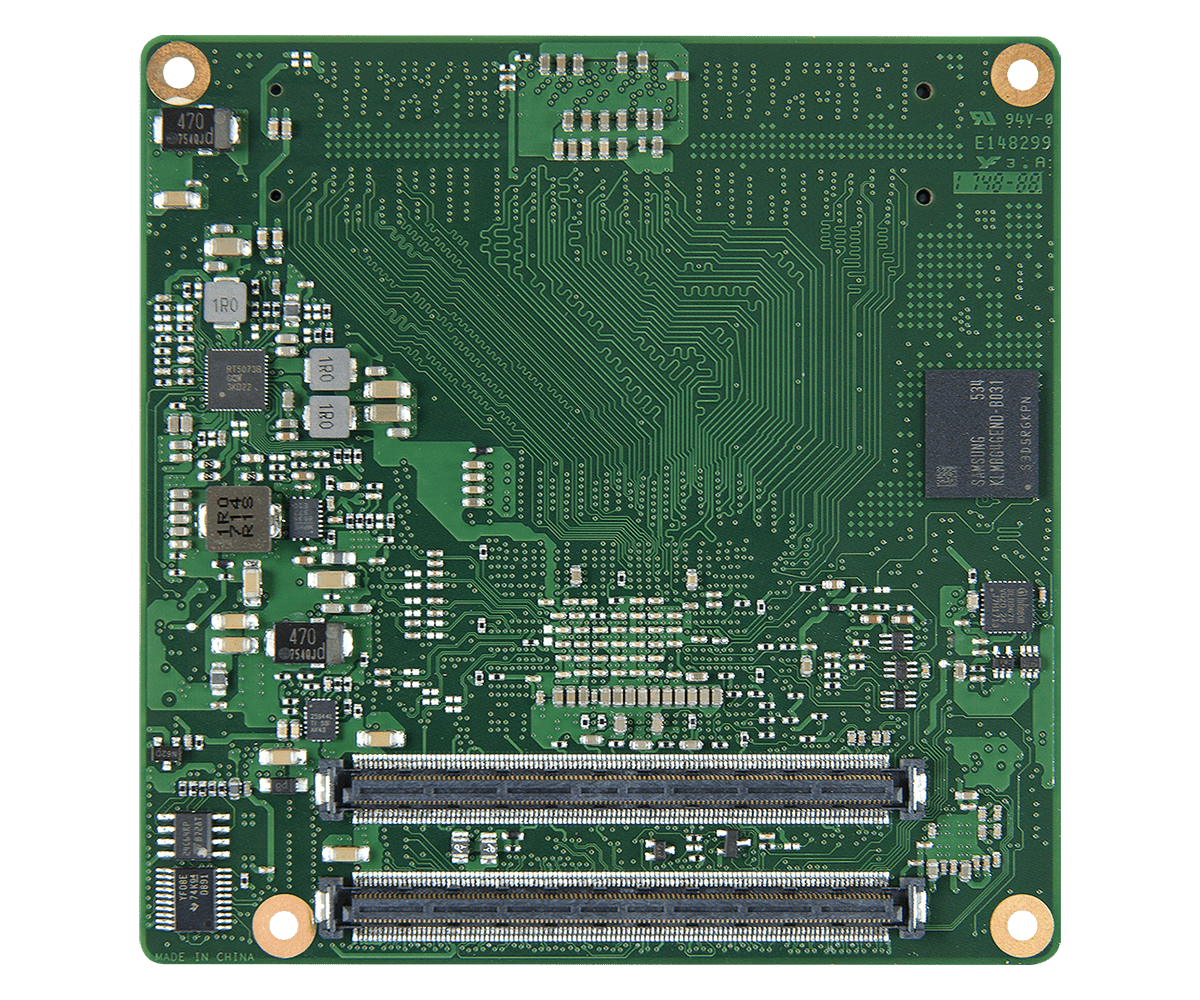

COM-602 COM Express Motherboard

Processor System

CPU	BGA1296 for Intel® Apollo Lake SoC

Form Factor

Dimensions	COM Express Compact Size (3.74-in x 3.74-in)

Memory

Technology	Dual Channel DDR3L 1866 MHz
Capacity	8 GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4, support 2 x DDI, 1 x eDP
MultiDisplay	Triple Display

Expansion Slot

PCIe	6 x PCIe x1 Lane

Ethernet

Controller/ Speed	LAN1: 1 x Intel I210IT with 10/100/1000 Mbps LAN2: 1 x Intel® I210AT with 10/100/1000 Mbps

Internal Connector

USB	2 x USB 3.0/ 8 x USB2.0
GPIO	4 x GPI + 4 x GPO
COM	2(RX/TX only)
TPM	Optional TPM2.0

Storage

SATA	2 x SATA3 (6.0 Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX (Vin 4.75-20V, Vsb 4.75-5.25V)
Power On	AT (Vin 4.75-20V)

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%
