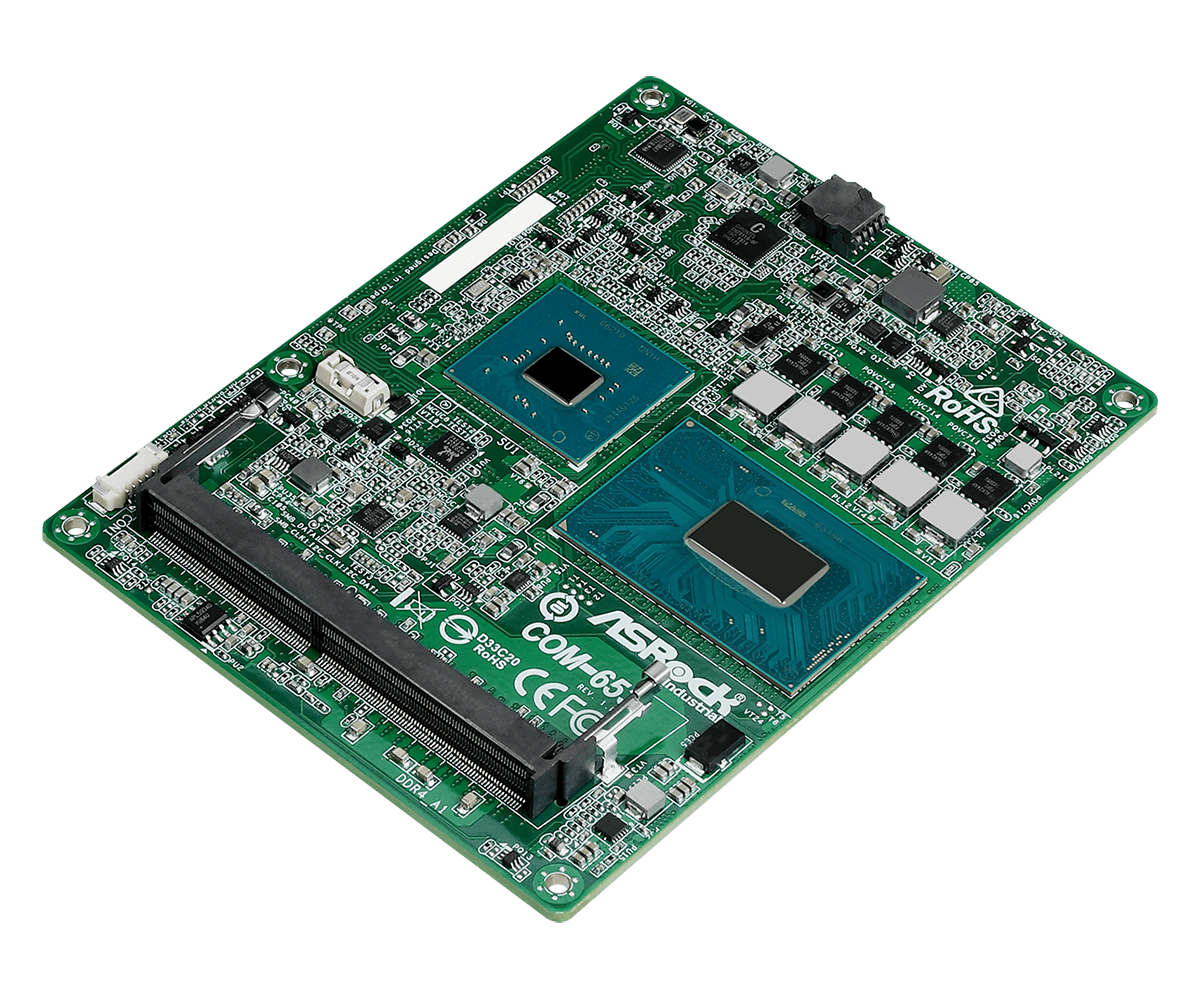

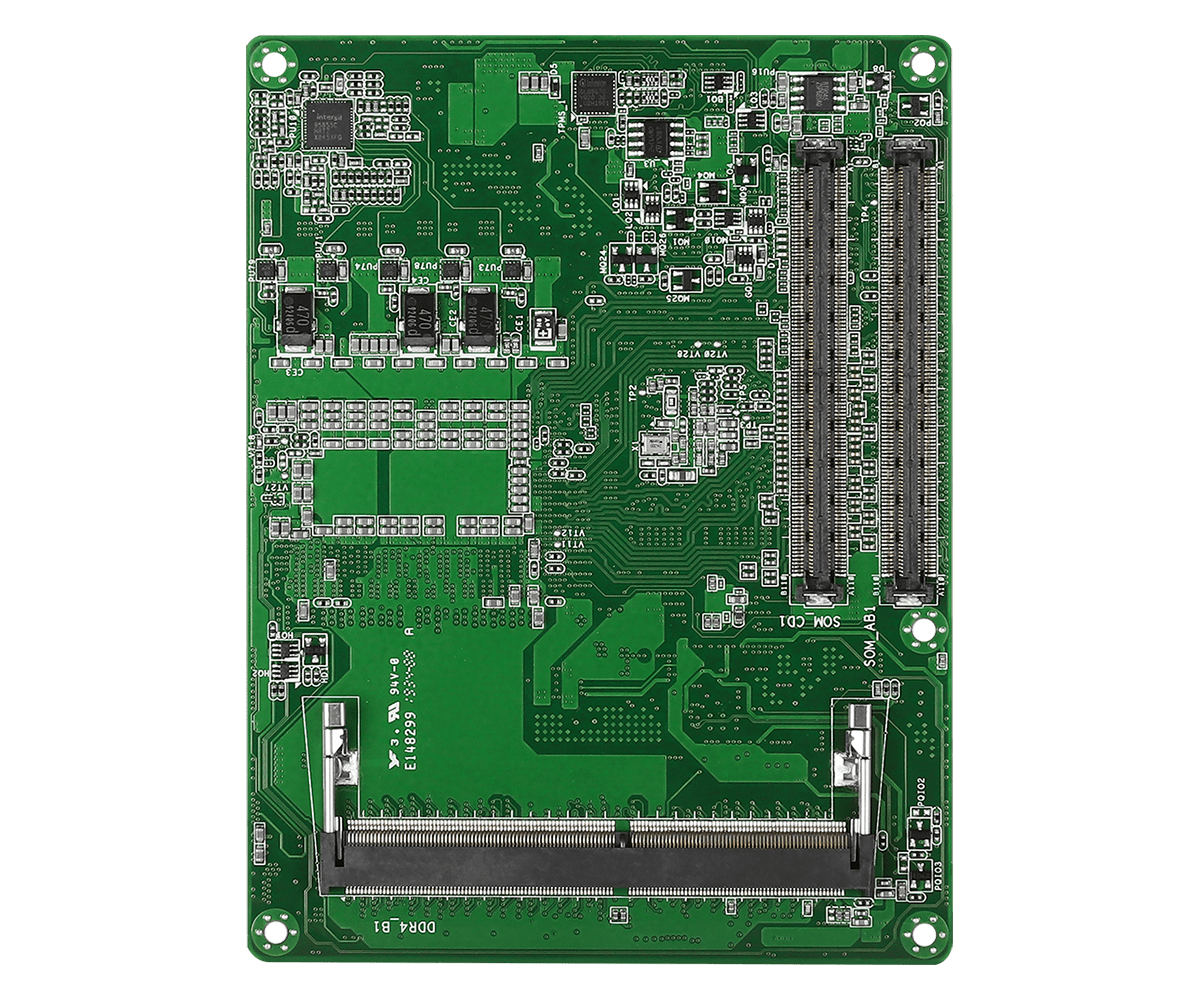

COM-653 COM Express Motherboard

Processor System

CPU	COM Express Type 6 Module with Intel® 8th Generation Intel® Core™ Processor -COM-653P ( i7-8850H, 6C, 2.6G, 45W ) -COM-653M ( i5-8400H, QC, 2.5G, 45W ) -COM-653V ( i3-8100H, QC, 3G, 45W ) -COM-653VR (i3-9100HL, QC, 1.6G, 25W)
Chipset	Intel® QM370
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	COM Express Basic Size (4.92-in x 3.74-in)

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® UHD Graphics 630
HDMI	HDMI 1.4b Max resolution up to 4096 x 2160@ 24Hz
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096 x 2304@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
eDP	eDP 1.4 Max resolution up to 3840 x 2160@60Hz
DVI	Max resolution up to 4096 x 2304@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x16 (Gen3) 1 x PCIe x8 (Gen3)

Ethernet

Controller/ Speed	COM-653P/ COM-653M: 1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro COM-653V: 1 x Intel® I219V with 10/100/1000/Mbps

Front I/O

HDMI	3 DDI ports support DVI/HDMI/DP
VGA	1 (optional)
DisplayPort	3 DDI ports support DVI/HDMI/DP
USB	4 x USB 3.1 (Gen1), 8 x USB2.0
DVI	3 DDI ports support DVI/HDMI/DP
LVDS	1 (shared with eDP)
eDP	1 (shared with LVDS)
GPIO(Phoenix)	4 x GPI, 4 x GPO

I/O

Serial Port	Two UART Ports (SoC)

Storage

SATA	4 x SATA3 (6Gb/s)
RAID	Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX: 12V±5%/5Vsb±5% AT: 12V±5%
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Others

TPM	TPM 2.0 onboard IC

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
