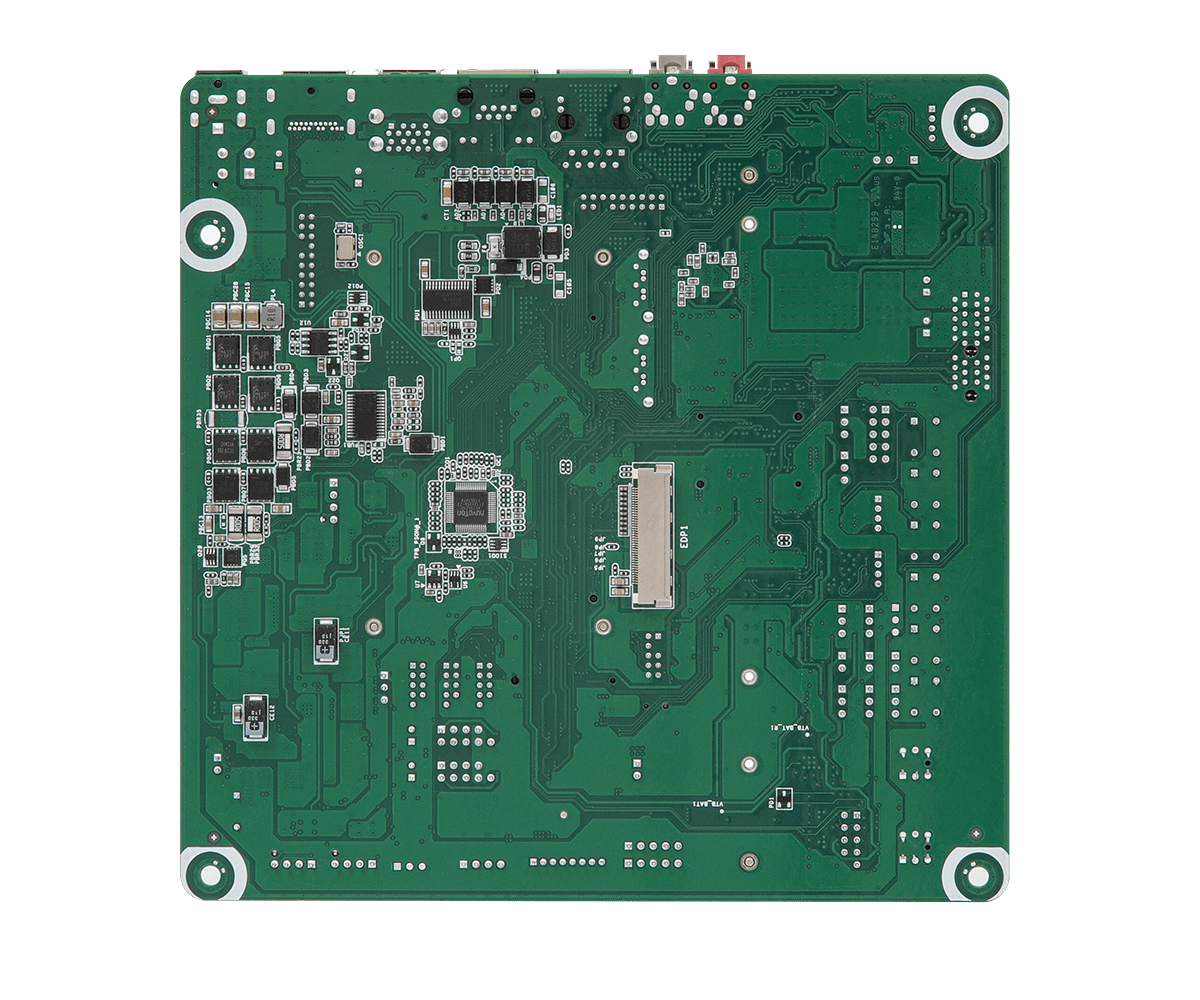

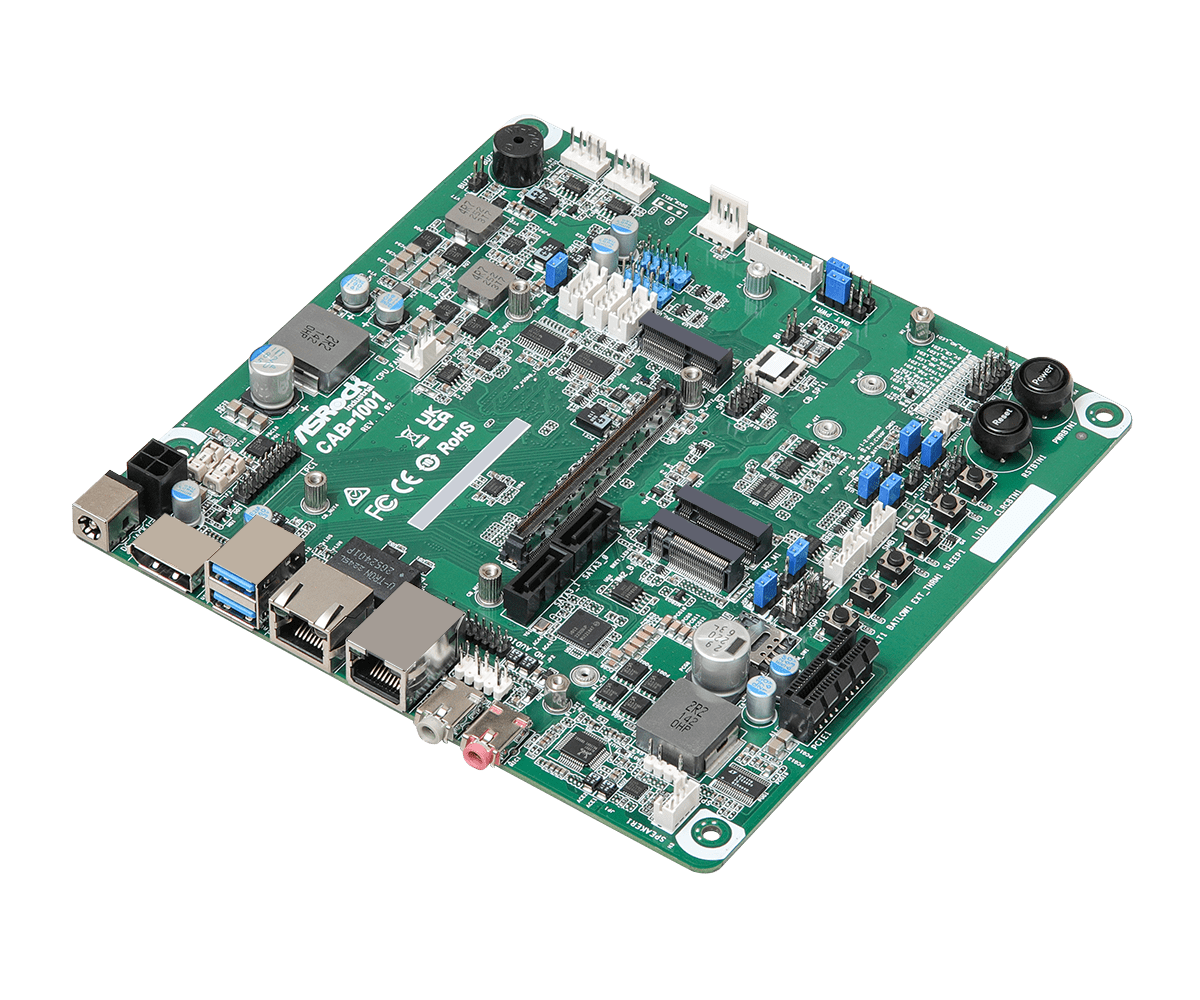

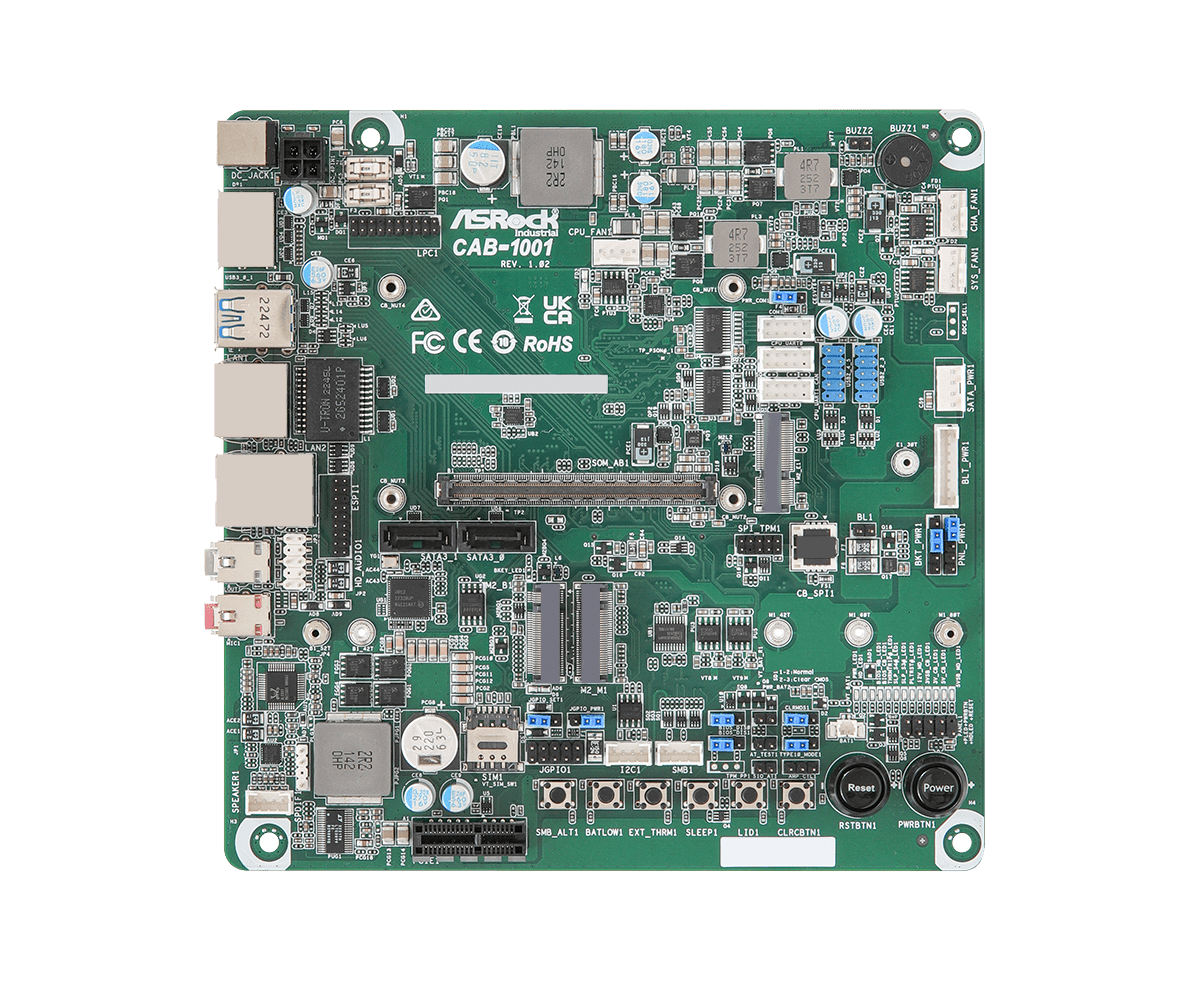

Form Factor
| Dimensions |
mini-ITX (6.7-in x 6.7-in x 0.82-in, 17.0 cm x 17.0 cm x 2.1 cm) |
Expansion Slot
| PCIe |
1 x PCIex1 (Option) |
| M.2 |
1 x M.2 (Key B, 3042/3052) with PCIex1 and USB 2.0
1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 |
| SIM Socket |
1x SIM socket |
Audio
| Interface |
Realtek ALC897 HD, High Definition Audio. Mic-In, Line-Out |
Ethernet
| Controller/ Speed |
LAN1: 1 x slot 10/100/1000/2500 Mbps
LAN2: Intel® I210AT with 10/100/1000 Mbps |
| Connector |
2 x RJ-45 |

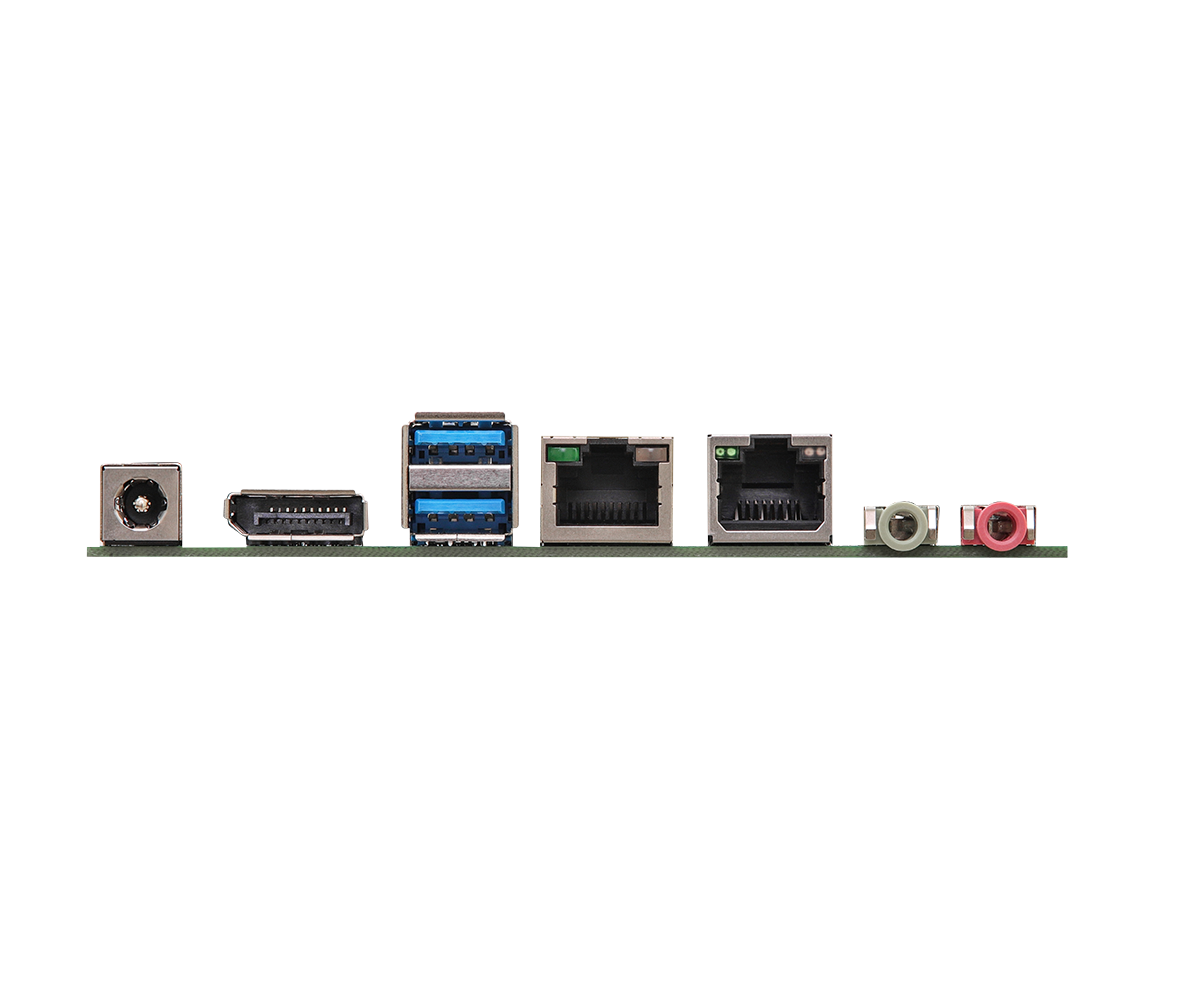

Rear I/O
| DisplayPort |
1 x DP 1.4 |
| Ethernet |
1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN |
| USB |
2 x USB 3.2 Gen2 |
| Audio |
2 (Mic-in, Line-out) |
| DC Jack |
1 x DC in |
Internal Connector
| USB |
4 x USB 2.0 (2 x 2.54 pitch header) |
| COM |
1 x COM1(RS-232), 2 x TX / RX / GND |
| GPIO |
4 x GPI, 4 x GPO |
| eDP |
1 |
| SATA PWR Output |
1 |
| Speaker Header |
1 |
| CAN Bus |
1 x CAN Bus (1 x 2.00 pitch header) |
Security
Storage
| M.2 |
1 x M.2 (Key M, 3042/3060/2280) with PCIe x1 |
| SATA |
2 x SATA3 (6Gb/s) |
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR |
9V~20V DC-In (4-pin DC Jack) |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
0ºC ~ 60ºC |
| Storage Temp |
-40° C – 85° C |
| Operating Humidity |
5% ~ 90% |
| Storage Humidity |
5% ~ 90% |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
