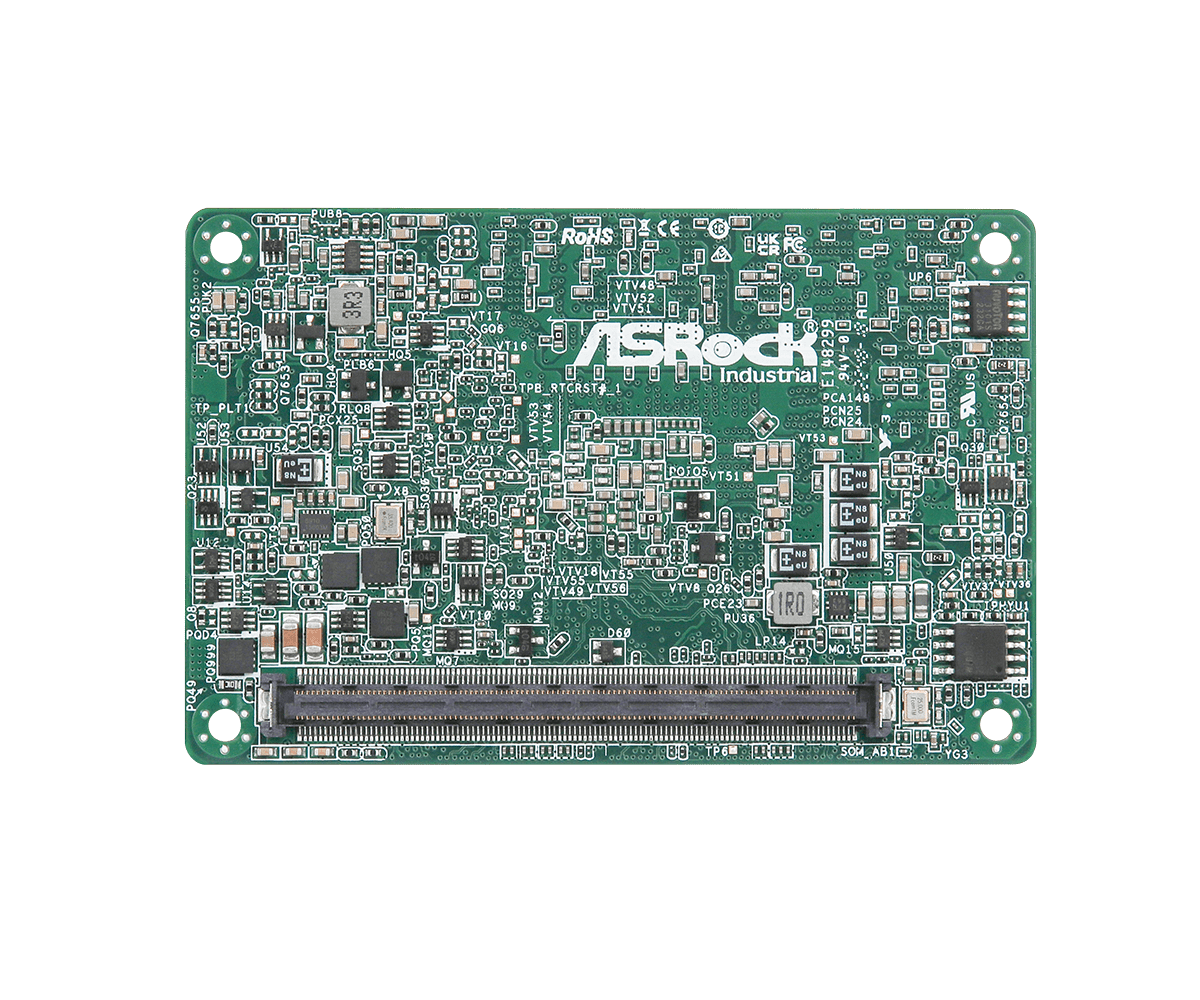

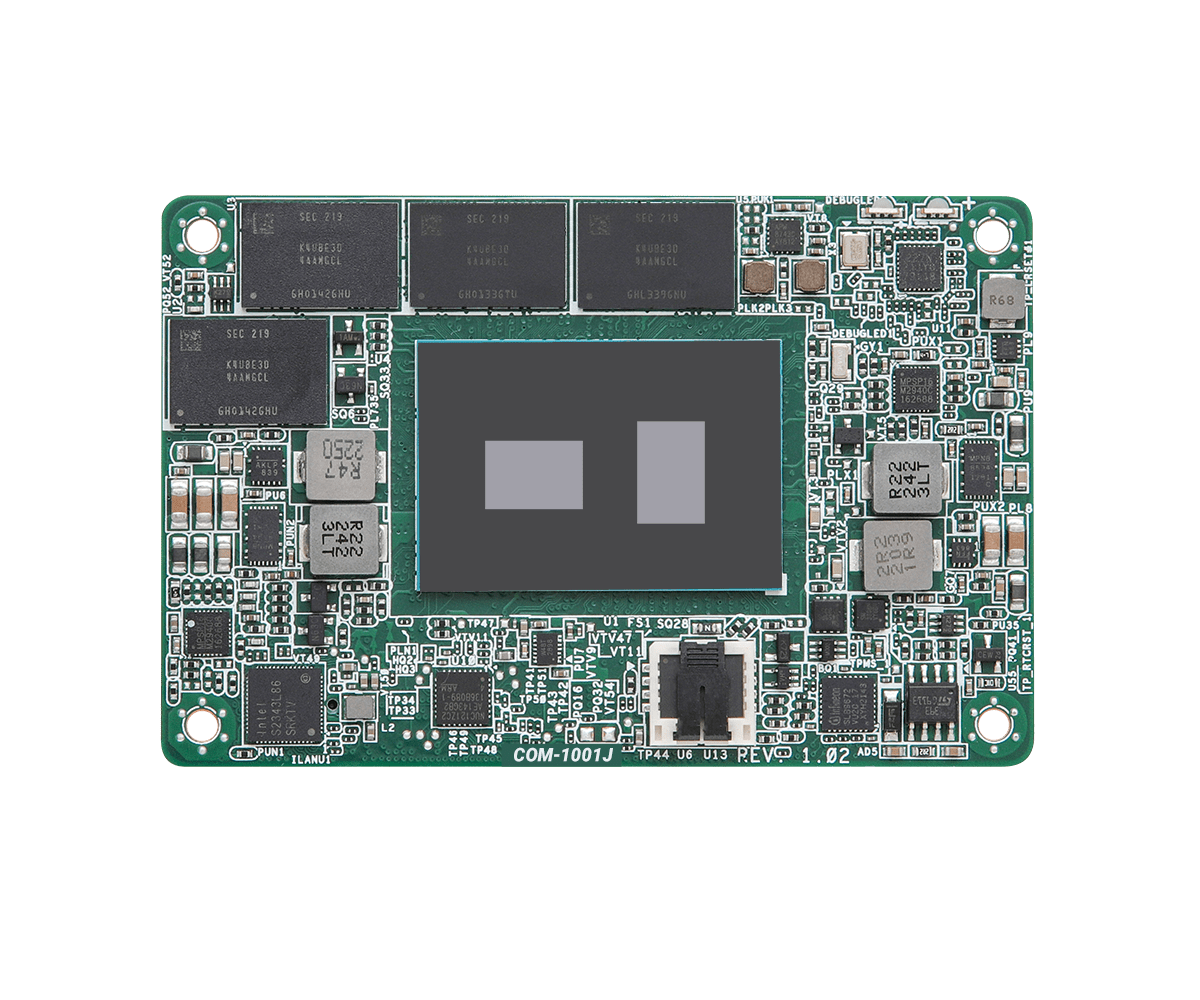

COM-1001J COM Express Type 10

Processor System

CPU	Intel® Elkhart Lake Processors J6412, QC, Max Speed Up to 2.6GHz, 10W
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	COM Express Type 10 (2.2-in x 3.3-in x 0.32-in, 5.50 cm x 8.40 cm x 0.83 cm)

Memory

Technology	IBECC onboard LPDDR4/4x 3200 MHz
Capacity	16GB

Graphics

Controller	Intel® Gen 11 Graphics
HDMI	HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
DisplayPort	DP 1.4 Max resolution up to 4096 x 2160@60Hz
eDP	eDP 1.3 Max resolution up to 4096 x 2160@60Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	4 x PCIex1 (Gen3)

Ethernet

Controller/ Speed	1 x Intel® I226V 10/100/1000/2500 Mbps

Front I/O

USB	2 x USB 3.2 Gen2, 8 x USB 2.0
COM	Two UART Ports (SoC)
eDP	DDI0 support eDP
DisplayPort	DDI1 support DP/HDMI
HDMI	DDI1 support DP/HDMI
Ethernet	1

Internal Connector

GPIO	4 x GPI, 4 x GPO

Security

TPM	TPM 2.0 onboard IC (optional)

Storage

SATA	2 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX: 12V±5%/5Vsb±5% AT: 9~20V±5%
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20°C ~ 70°C
Storage Temp	-40ºC ~ 85ºC
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
