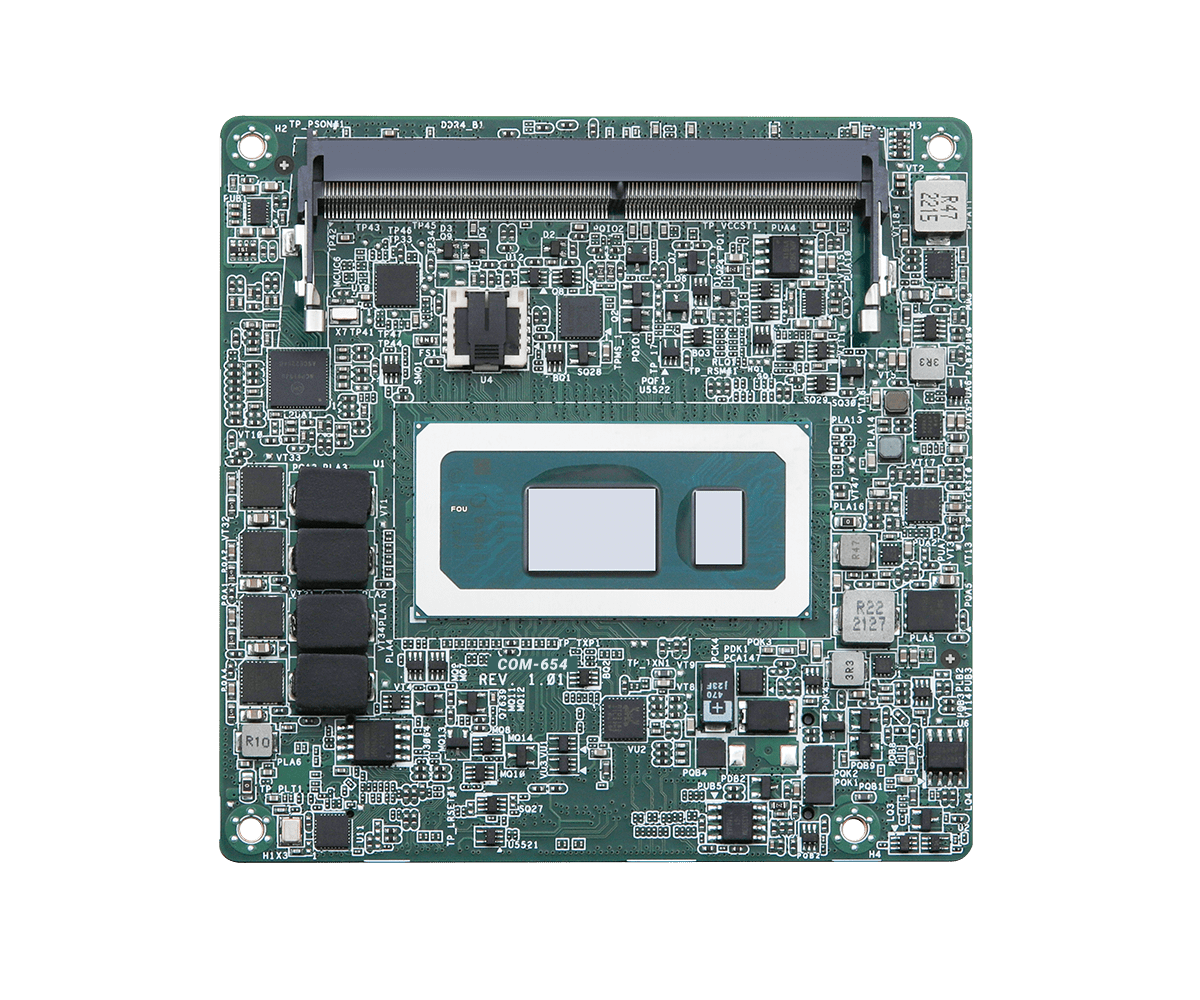

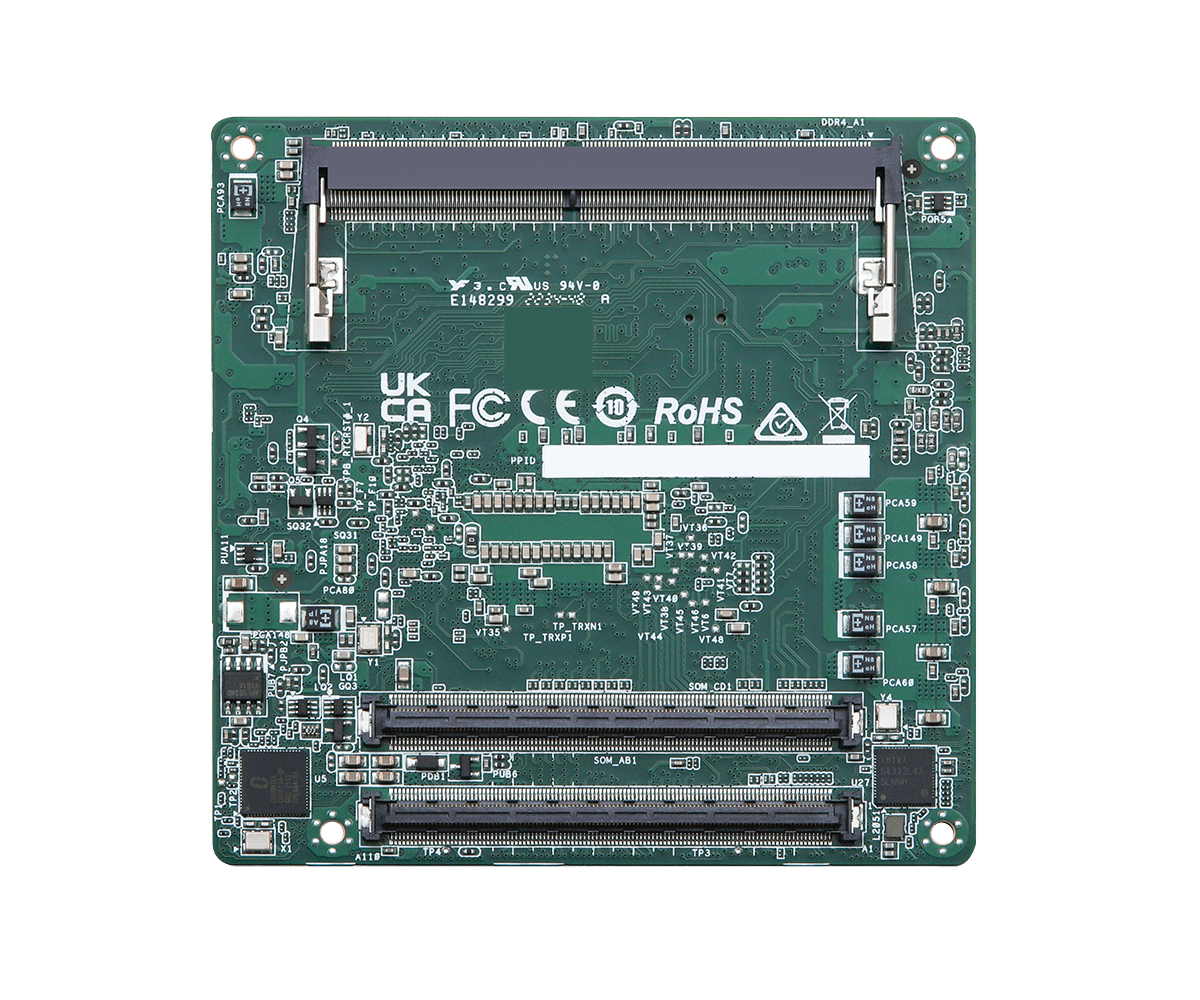

COM-654M COM Express Compact Type 6

Processor System

CPU	Intel® 12th Gen (Alder Lake-P) Core™ Processors i5-1245UE, 2P+8E *45W CPU SKUs are available upon request
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	COM Express Compact Type 6 (3.74-in x 3.74-in x 0.52-in, 9.5 cm x 9.5 cm x 1.3 cm)

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	64 GB (32 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Iris® Xe Graphics
HDMI	HDMI 2.1 Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.4a, DP++ Max resolution up to 4096x2304@60Hz
VGA	Max resolution up to 1920x1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
eDP	eDP 1.4b Max resolution up to 4096 x 2304@60Hz (optional)
MultiDisplay	Quad Display

Expansion Slot

PCIe	1 x PCIe x8 (Gen4) (Support by 45W CPU SKUs) 1 x PCIe x4 (Gen4) 4 x PCIe x1 (Gen3)

Ethernet

Controller/ Speed	COM-654P / COM-654M: 1 x Intel® I225LM with 10/100/1000/2500 Mbps, support AMT/vPro COM-654V: 1 x Intel® I225LM with 10/100/1000/2500 Mbps

Front I/O

HDMI	DDI1 / 2 support HDMI / DP
DisplayPort	DDI1 / 2 support HDMI / DP DDI3 support DP
VGA	1
LVDS	1
eDP	1 (optional)
USB	4 x USB 3.2 (Gen2), 8 x USB 2.0
COM	Two UART Ports
GPIO(Phoenix)	4 x GPI, 4 x GPO

I/O

Ethernet	1 x 2.5 Gigabit LAN

Storage

SATA	2 x SATA3 (6Gb/s)
RAID	SATA: Intel® VMD RAID 0/1 PCIe: Intel® VMD RAID 0/1/5/10

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX: 12V±5%/5Vsb±5% AT: 12V±5%
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Others

TPM	TPM 2.0 onboard IC (optional)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
