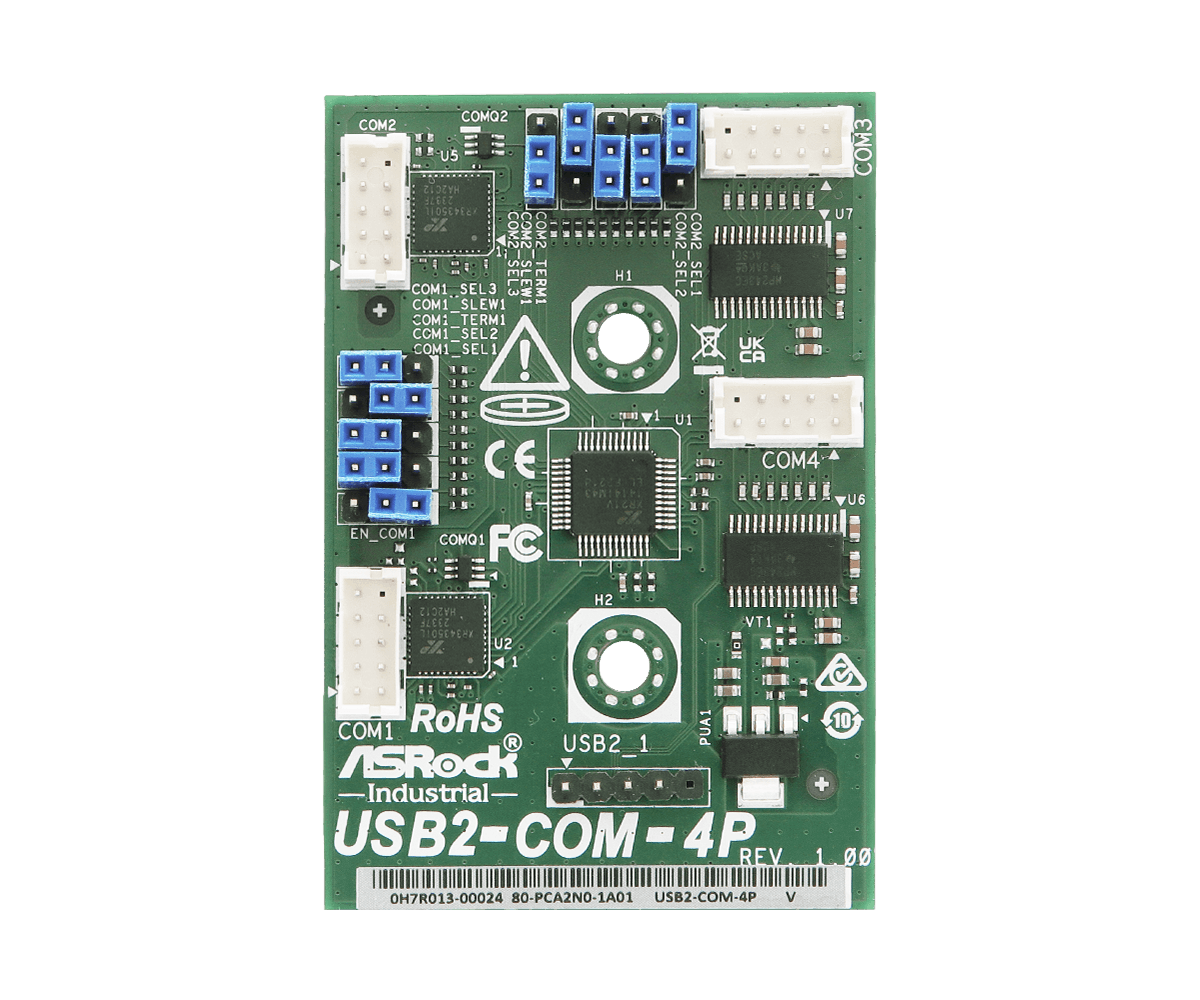

USB2-COM-4P
- USB to 4 COM ports
- COM1,COM2 supports RS-232/422/485
- COM3,COM4 supports RS-232
- Supports CTS/RTS hardware flow control
Specification
Specifications
| Form Factor | Customized |
|---|---|
| Function | USB to COM port |
| Dimensions (W x L x H/mm) | 45.27 x 67.31 x 10.44 |
| Controller / Major IC | XR21V1414IM48TR |
| Input Interface/Power | USB2.0 +5V |
| Output Interface/Power | RS-232/422/485 (Set by jumper cap) |
| Output connector | 2X5P K10 2.00mm Wafer header |
| Operating Temperature | -20ºC ~ 70ºC |
| Storage Temperature | -40ºC ~ 85ºC |

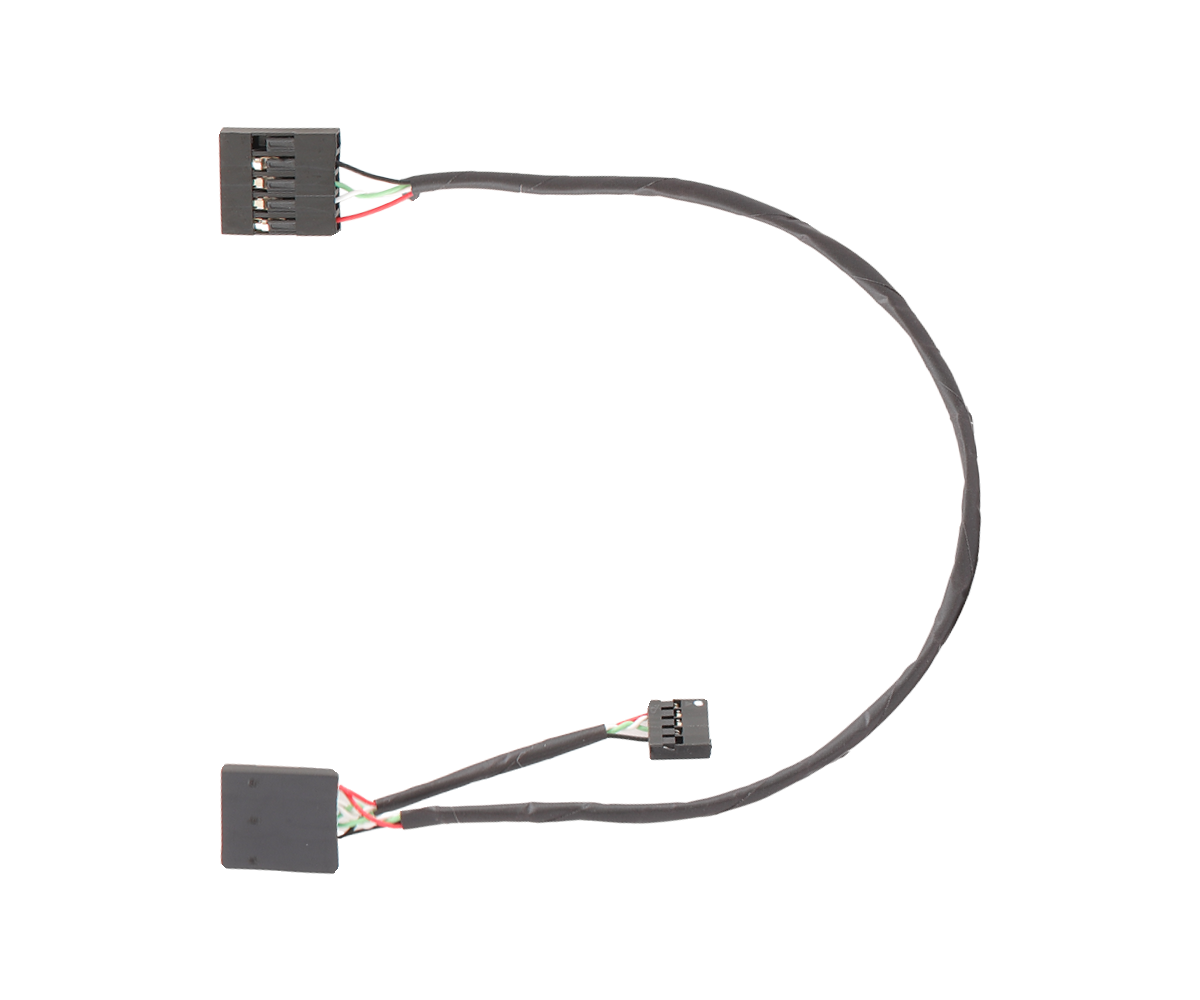

| Package | 1 x USB to COM Cable |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
