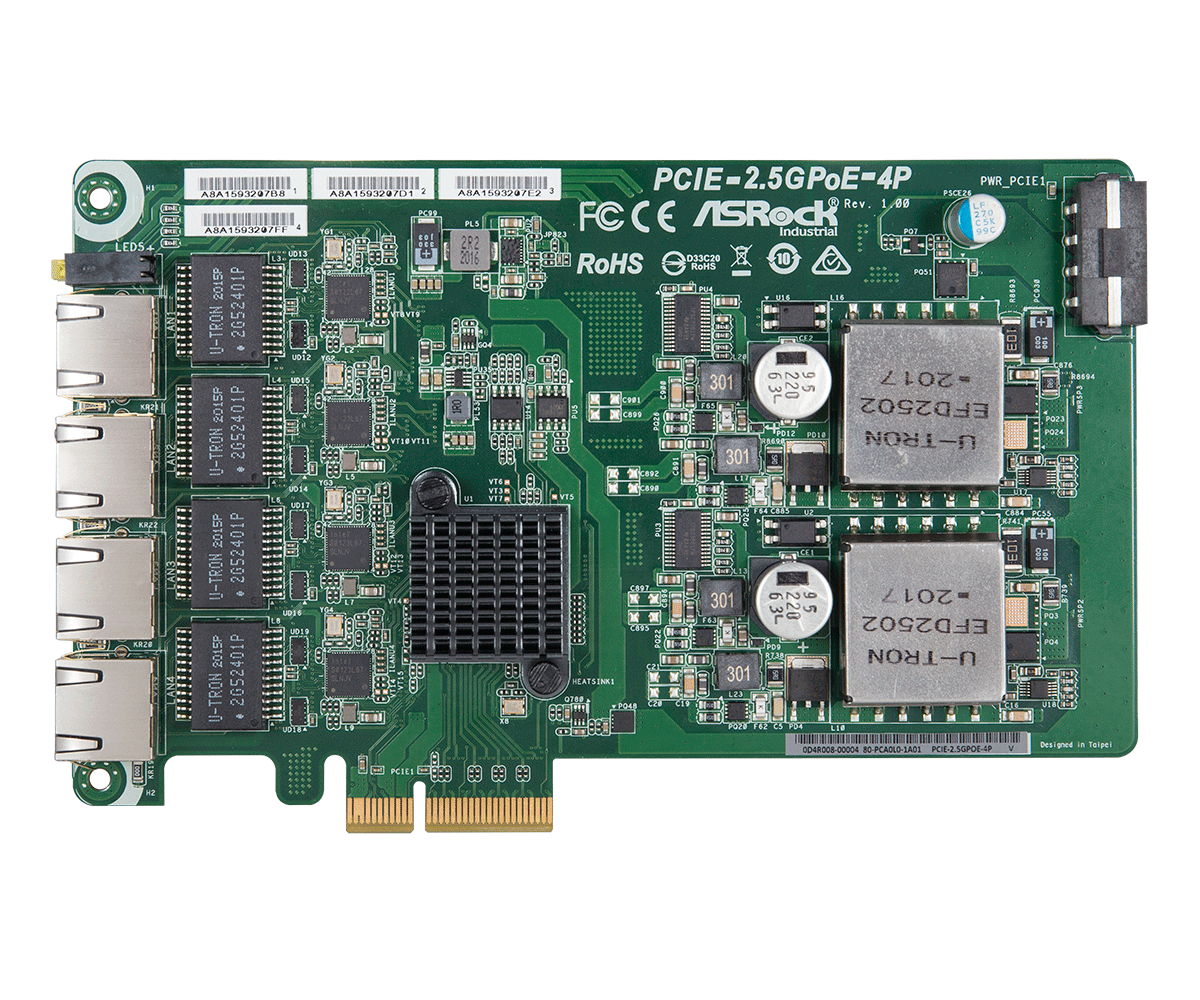

PCIE-2.5GPoE-4P
- PCI Express to 4 ports 2.5G PoE
- 4 x Intel 2.5 Gigabit LAN
- Four independent PSE channels
- Supports 4-pin +12V Power Connector input power boost up to 60W
- Complies with IEEE 802.3af, up to 15W per PoE port from 12V PCIe slot input power
- Complies with IEEE 802.3at, up to 30W (LAN1/LAN2; LAN3/LAN4 shared 30W) from 4-pin power connector
- Supports IEEE 802.3u Auto-Negotiation
- Powered Device (PD) auto detection and classification (PoE)
Specification
Specifications
| Form Factor | PCI Express x4 |
|---|---|
| Function | PCIe to four PoE/PoE+ |
| Dimensions (W x L x H/mm) | 178.8 x 111 x 16.4 |
| Controller / Major IC | Intel I226V ASMedia ASM2812 |
| Input Interface/Power | PCI Express Gen 3 x4 4-pin +12V Power Connector |
| Output Interface/Power | PoE/PoE+ x 4 Supports power up to 30W per port |

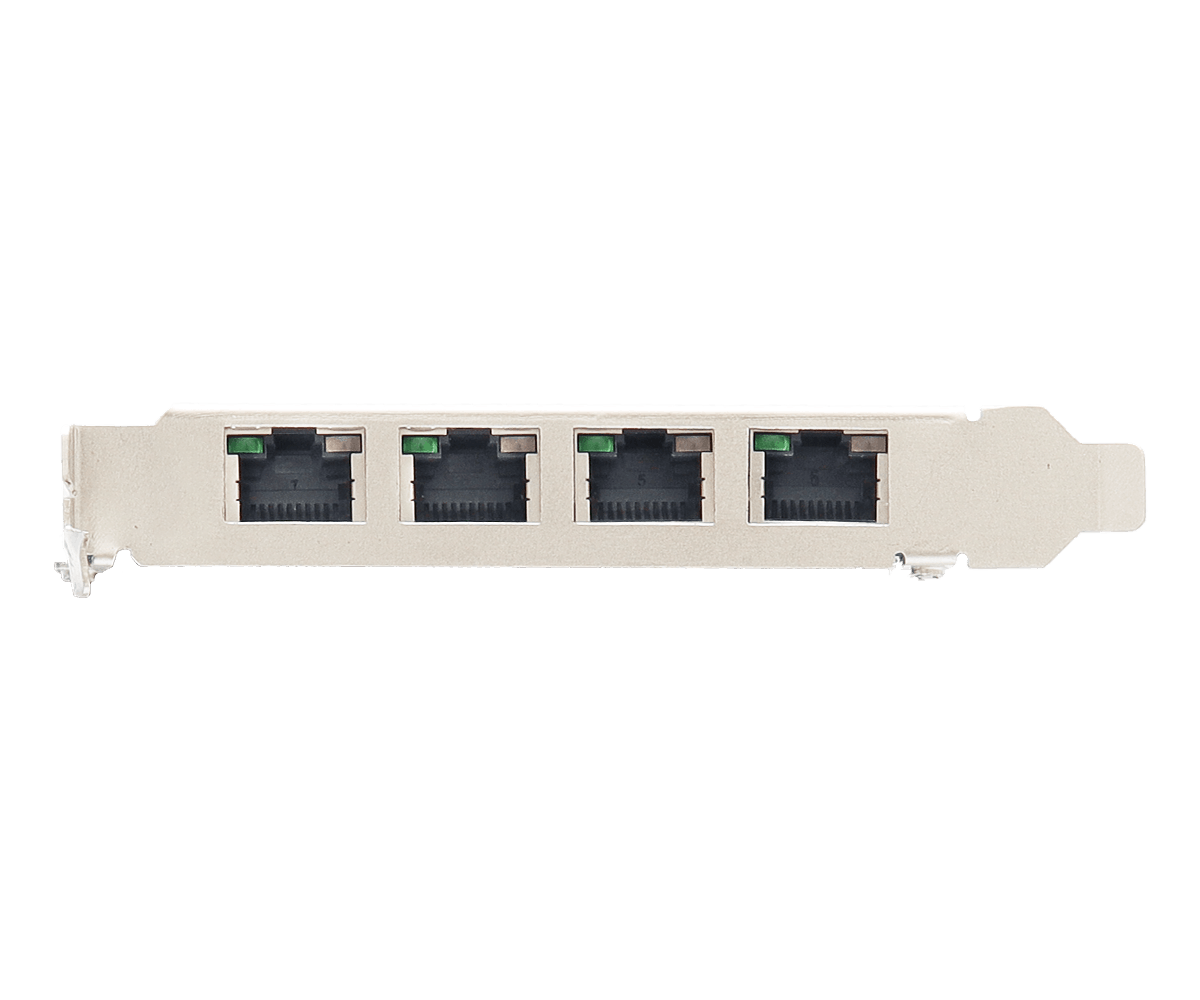

| Output connector | RJ45 x 4 |
| Operating Temperature | -20ºC ~ 70ºC |
| Storage Temperature | -40ºC ~ 85ºC |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
