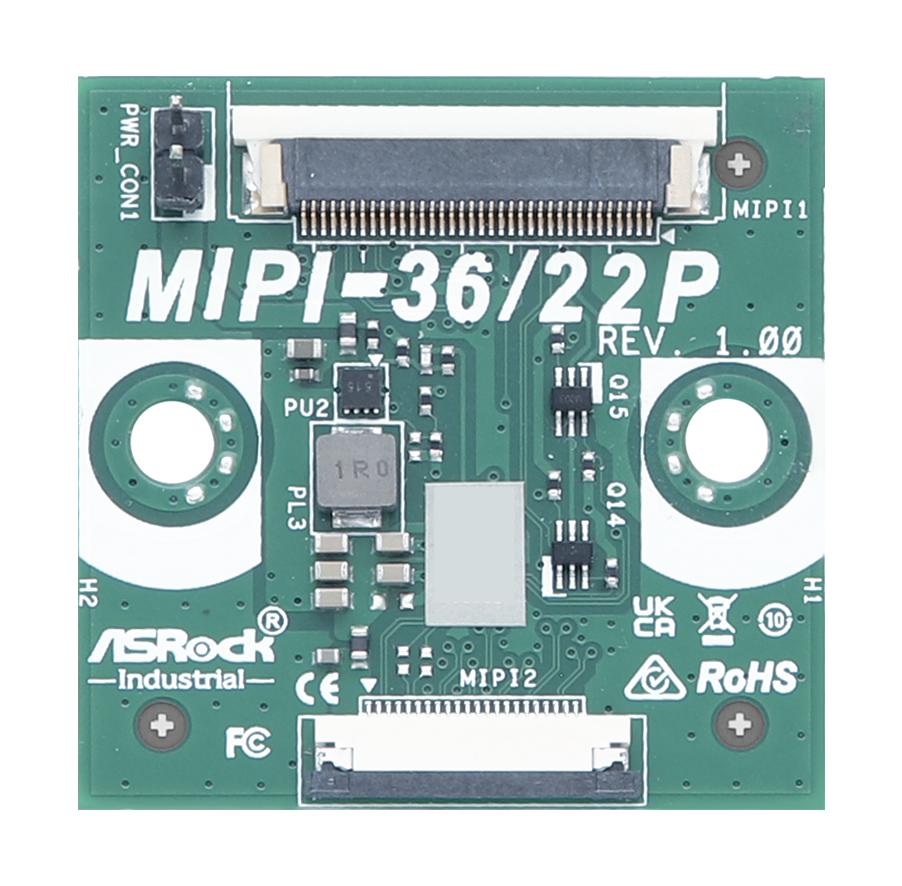

MIPI-36/22P
- [ASRock Industrial Exclusive]
- MIPI CSI 36-pin transfer to 22-pin
- Compliant with MIPI CSI
- Supports Alder Lake-N motherboard (refer to support list)
- Supports Innodisk EV2M-GOM1 camera
Specification
Specifications
| Form Factor | Customized |
|---|---|
| Function | MIPI CSI 36 pin to 22 pin |
| Dimensions (W x L x H/mm) | 38.1 x 38.1 x 1.5 |
| Input Interface/Power | MIPI CSI 36 pin I²C |
| Output Interface/Power | MIPI CSI 22 pin +3V |
| Output connector | MIPI connector |
| Operating Temperature | -20ºC ~ 70ºC |
| Storage Temperature | -40ºC ~ 85ºC |

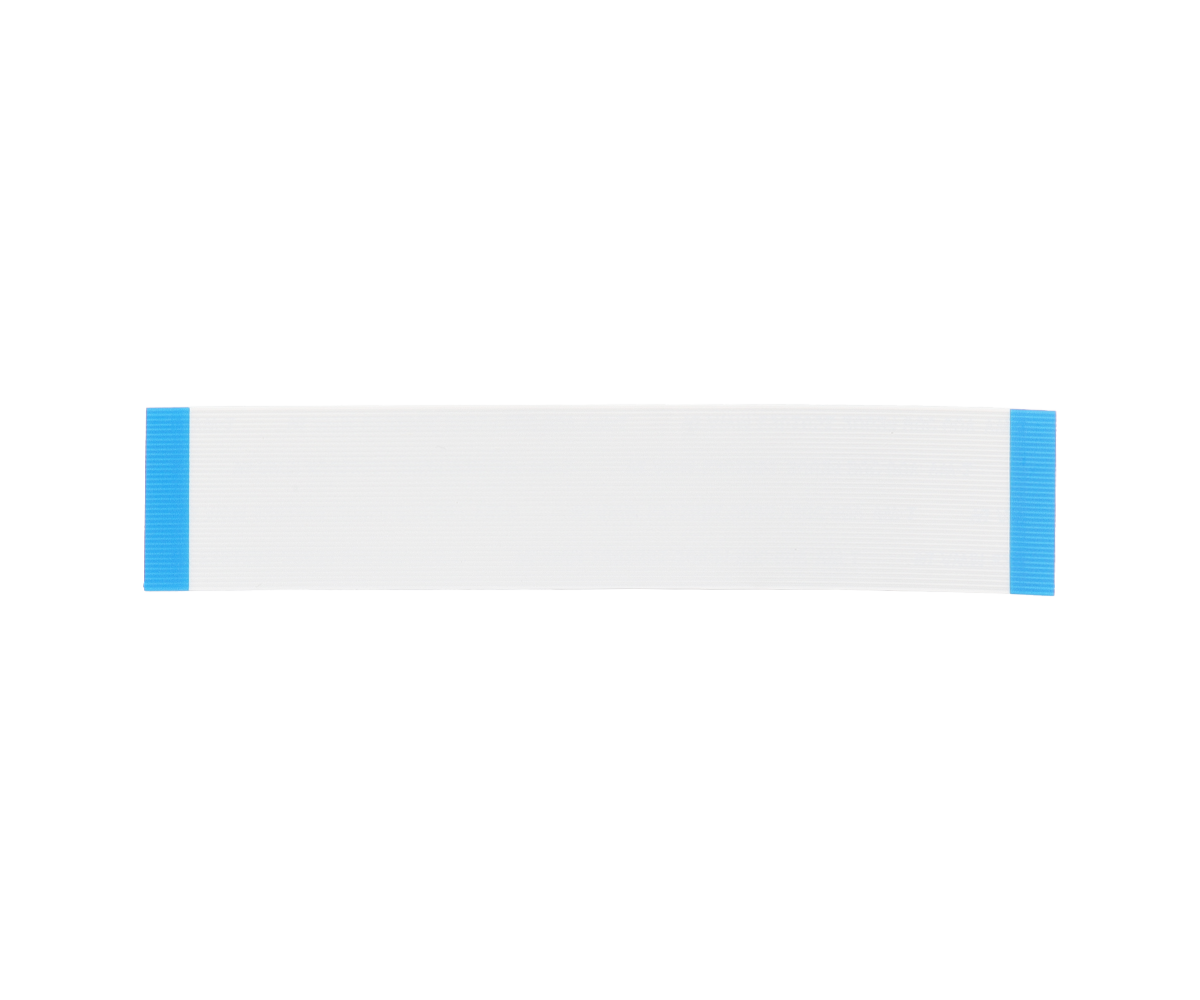

| Package | 1 x 36 pin MIPI cable |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
| Description | Date | Download | |||
|---|---|---|---|---|---|
| Download | Motherboard Support list | Date | 2024-07-31 | Download |
