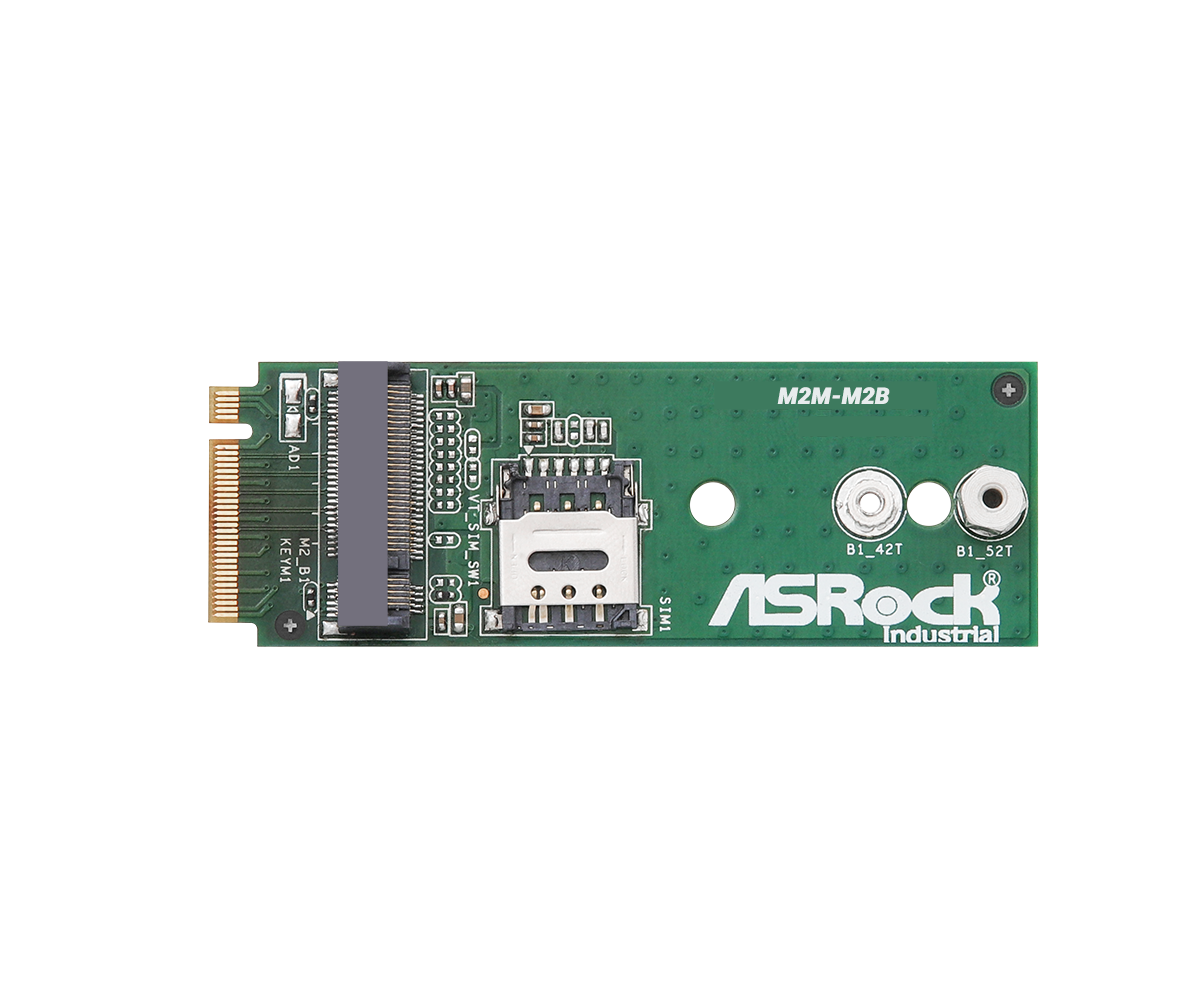

M2M-M2B
- M.2 Key M to Key B with SIM socket
- Compliant with PCI Express M.2 Specification Revision 4.0
- PCI Express x1 and USB 2.0 interface
- Supports M.2 Key B 3042/3052
Specification
Specifications
| Form Factor | M.2 Key M 2242/2260 (Length: 69mm) |
|---|---|
| Function | M.2 Key M to Key B card |
| Dimensions (W x L x H/mm) | 24 x 69 x 9.3 |
| Input Interface/Power | PCI Express Gen4 x1 USB 2.0 x1 +3V |
| Output Interface/Power | PCI Express Gen4 x1 USB 2.0 x1 +3V |
| Output connector | M.2 Key B (3042/3052) and SIM socket |
| Operating Temperature | -20ºC ~ 70ºC |
| Storage Temperature | -40ºC ~ 85ºC |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
