HDMI-MIPI
- [ASRock Industrial Exclusive]
- Supports HDMI IN max resolution up to 4096 x 2160@60Hz
- Supports Audio line out
- HDMI 2.0 and MIPI CSI interface
Specification
Specifications
| Form Factor | Customized |
|---|---|
| Function | HDMI 2.0 to MIPI CSI |
| Dimensions (W x L x H/mm) | 87 x 63 x 11.3 |
| Controller / Major IC | CONVERTER LT6911UXE |
| Input Interface/Power | HDMI 2.0 input +5V |
| Output Interface/Power | MIPI CSI output Audio line out |
| Output connector | MIPI connector |
| Operating Temperature | -20ºC ~ 70ºC |
| Storage Temperature | -40ºC ~ 85ºC |

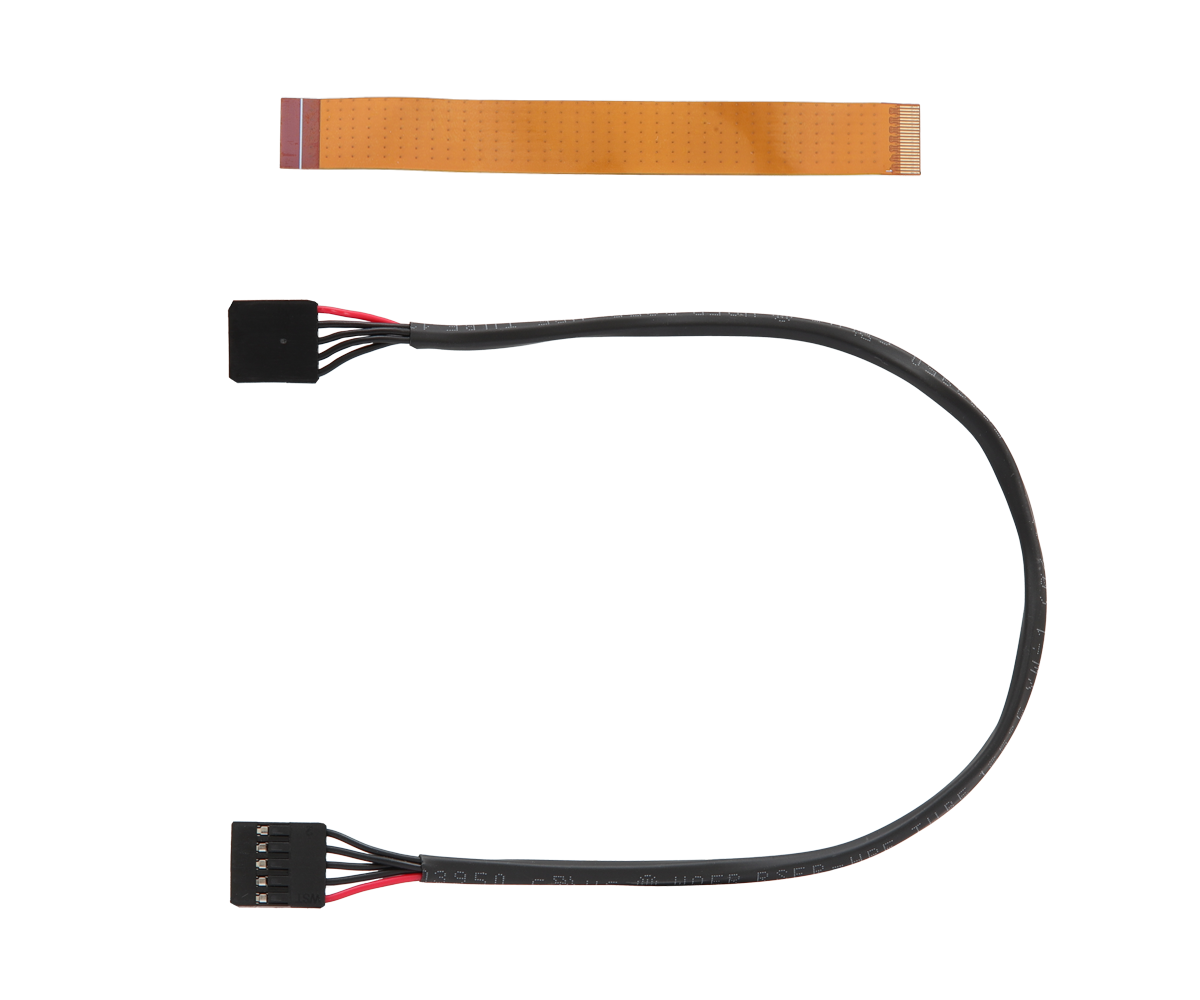

| Package | 1 x MIPI cable 1 x 5V Power cable |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
