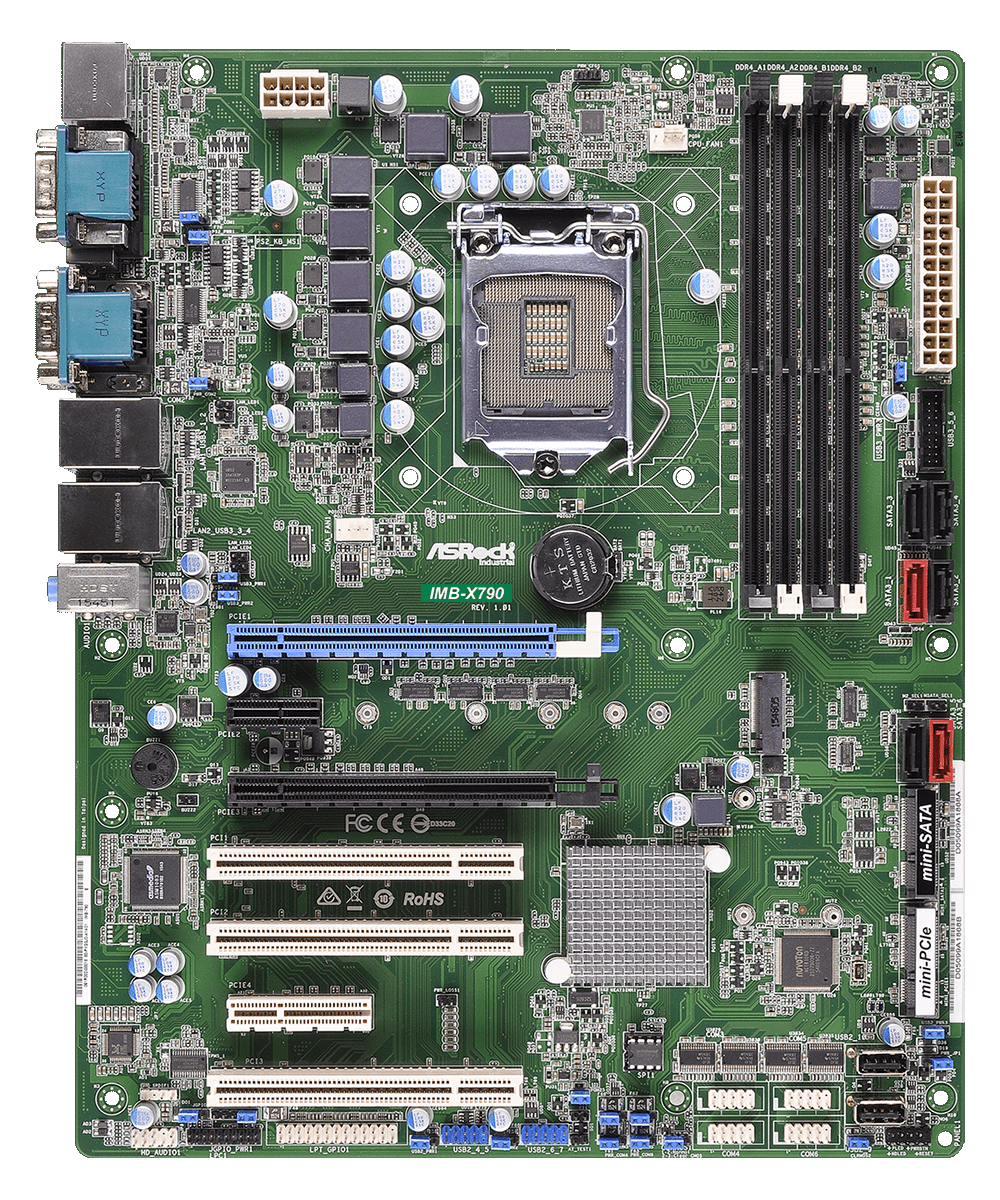

IMB-X790 ATX Motherboard

Processor System

CPU	Supports Intel 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors
Chipset	Intel® C236

Form Factor

Dimensions	ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	64GB
Socket	4 x Long-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
DisplayPort	Supports max resolution up to 4096 x 2160@60Hz
VGA	Supports max resolution up to 1920 x 1200
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x16(Support riser card), 1 x PCIe x8, 1 x PCIe x4, 1 x PCIe x1 **Slot1: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied.
PCI	3
mini-PCIe	1 x Full / Half size with PCIe x1 and USB 2.0

Audio

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed	LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps
Connector	2 x RJ-45

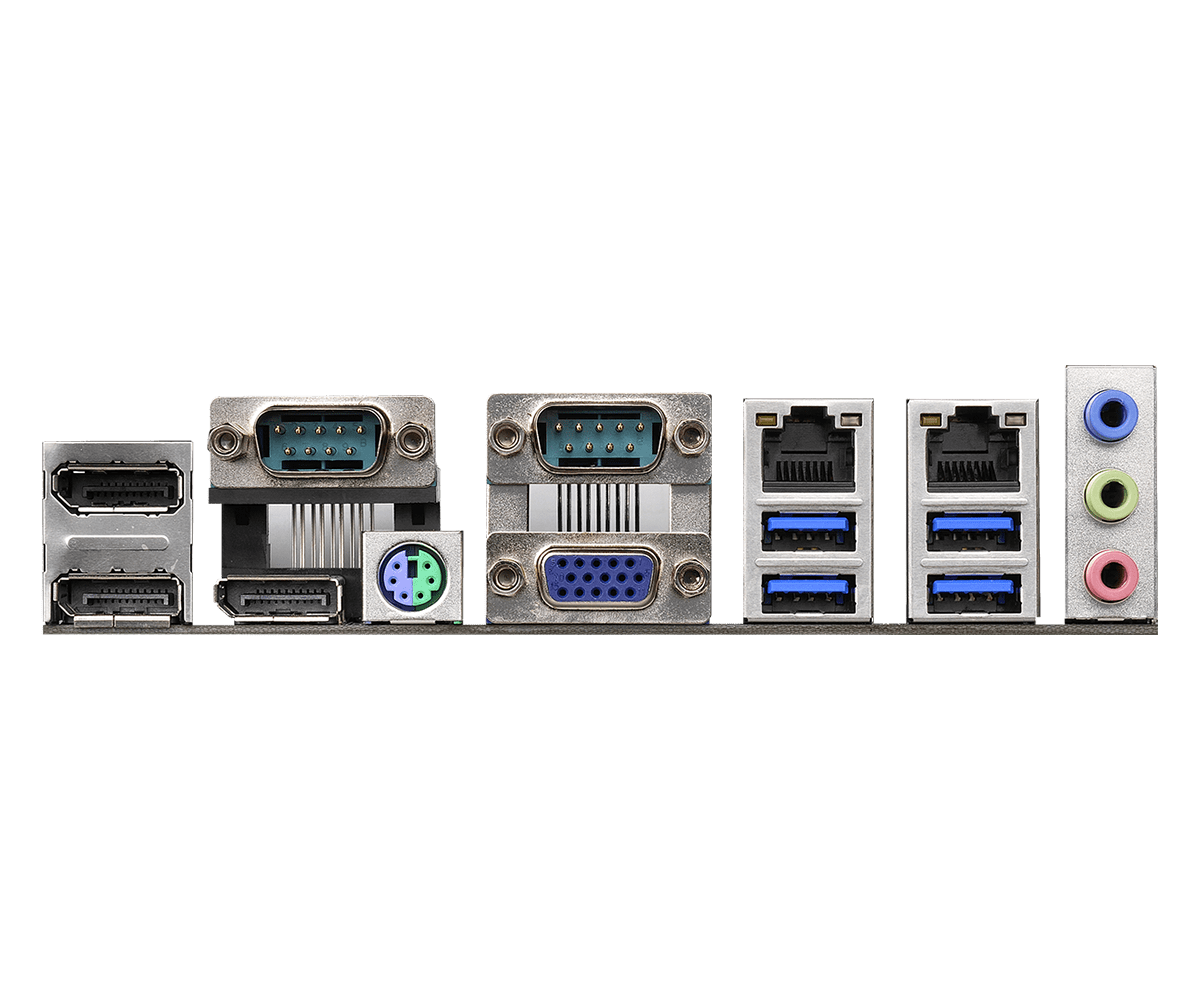

Rear I/O

DisplayPort	3 x DP 1.2a
VGA	1
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.0
Audio	3 (Mic-in, Line-in, Line-out)
COM	2 x COM (RS-232/422/485)
PS2	1 x PS/2 combo

Internal Connector

USB	2 x USB 3.0, 6 x USB 2.0 (2 x header,2 vertical Type-A)
COM	4 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, 2230/2242/2260/2280/22110) with PCIe x4 and shared SATA3 for SSD
mSATA	1 x Full size with shared SATA3 and USB 2.0
SATA	6 (SATA1 shared with MSATA, SATA5 shared with M.2)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x SCREW M2,D=5 (13G020302031AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020341000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	1 x SCREW M2,D=5 (13G020302031AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020341000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
