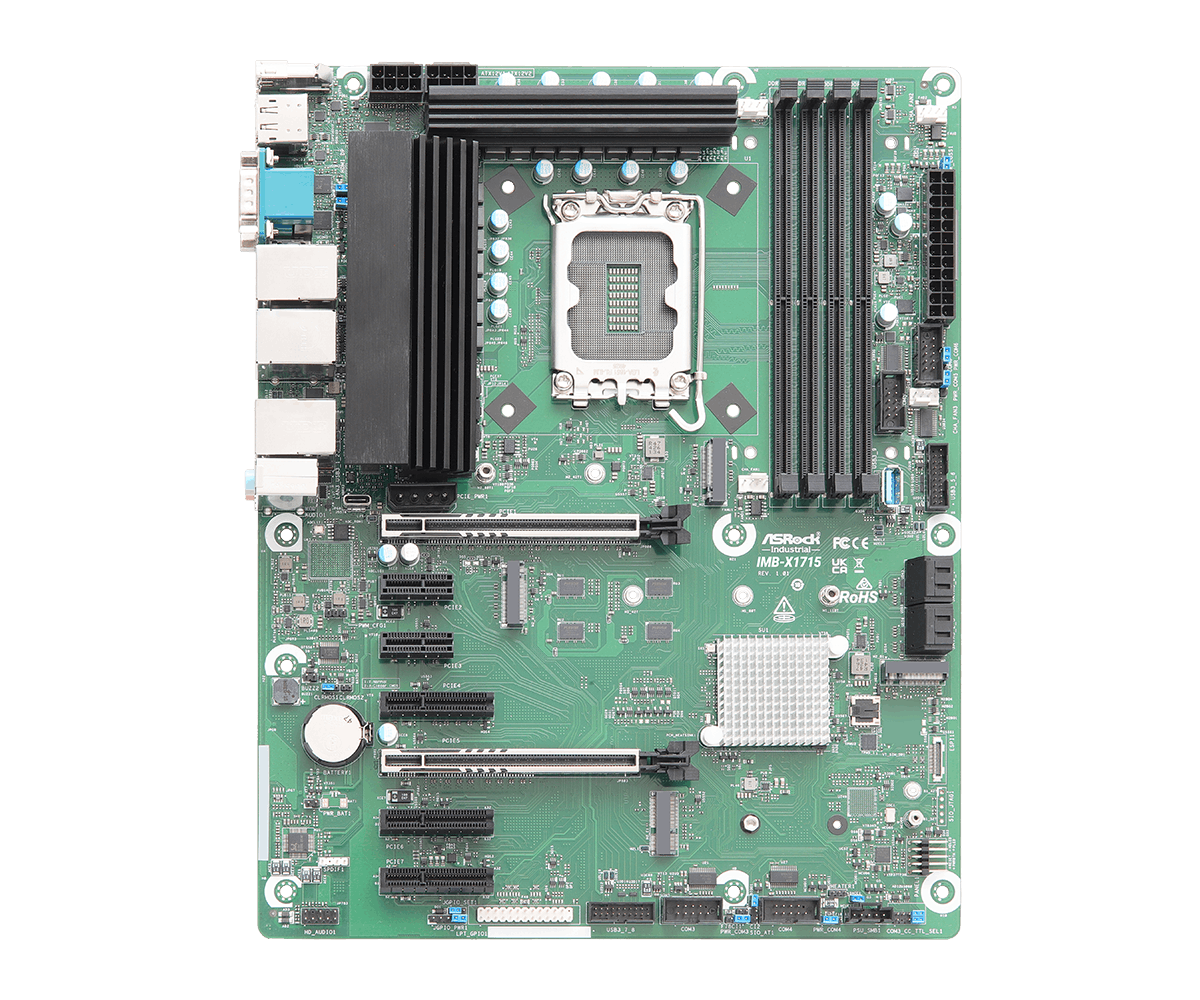

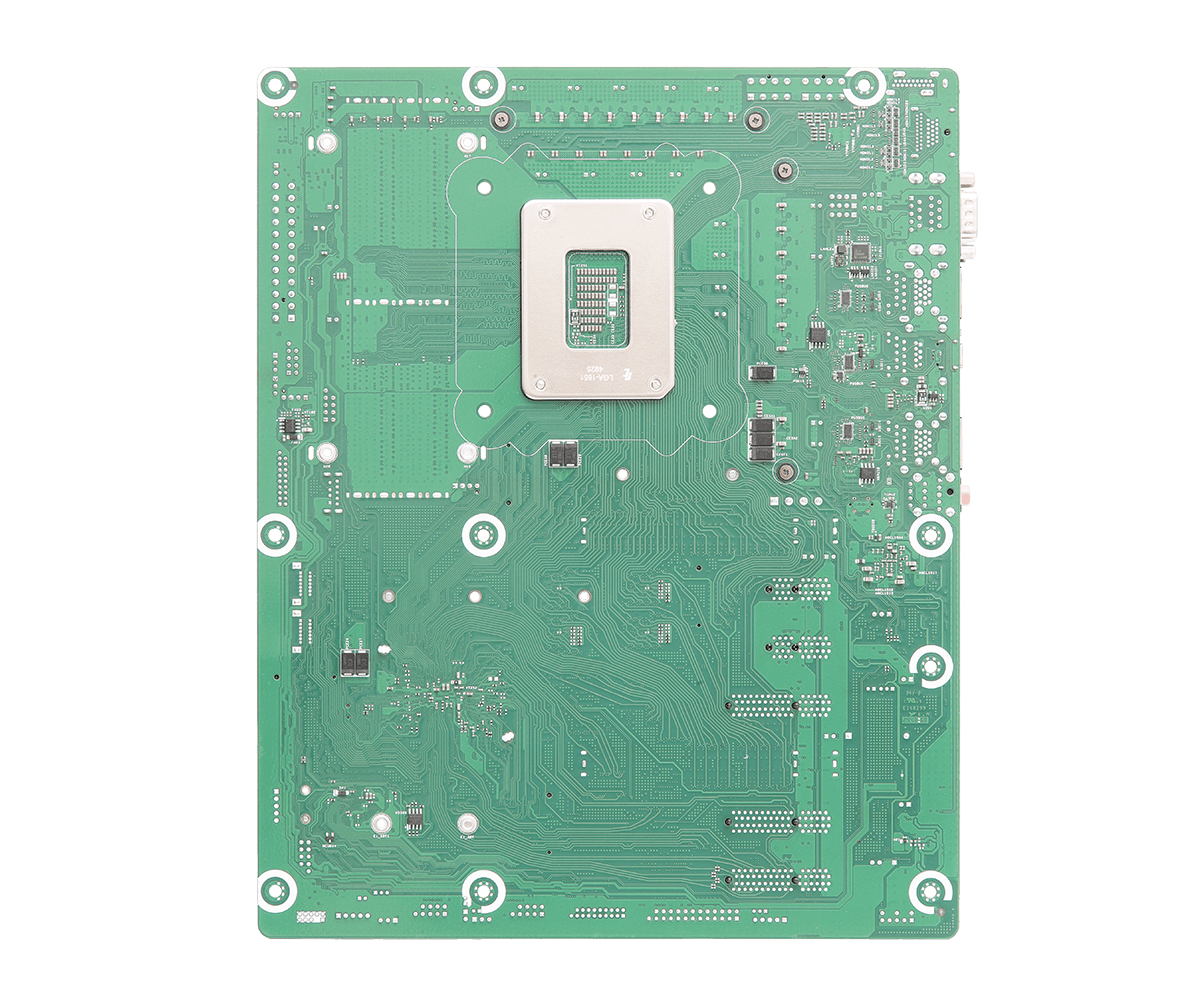

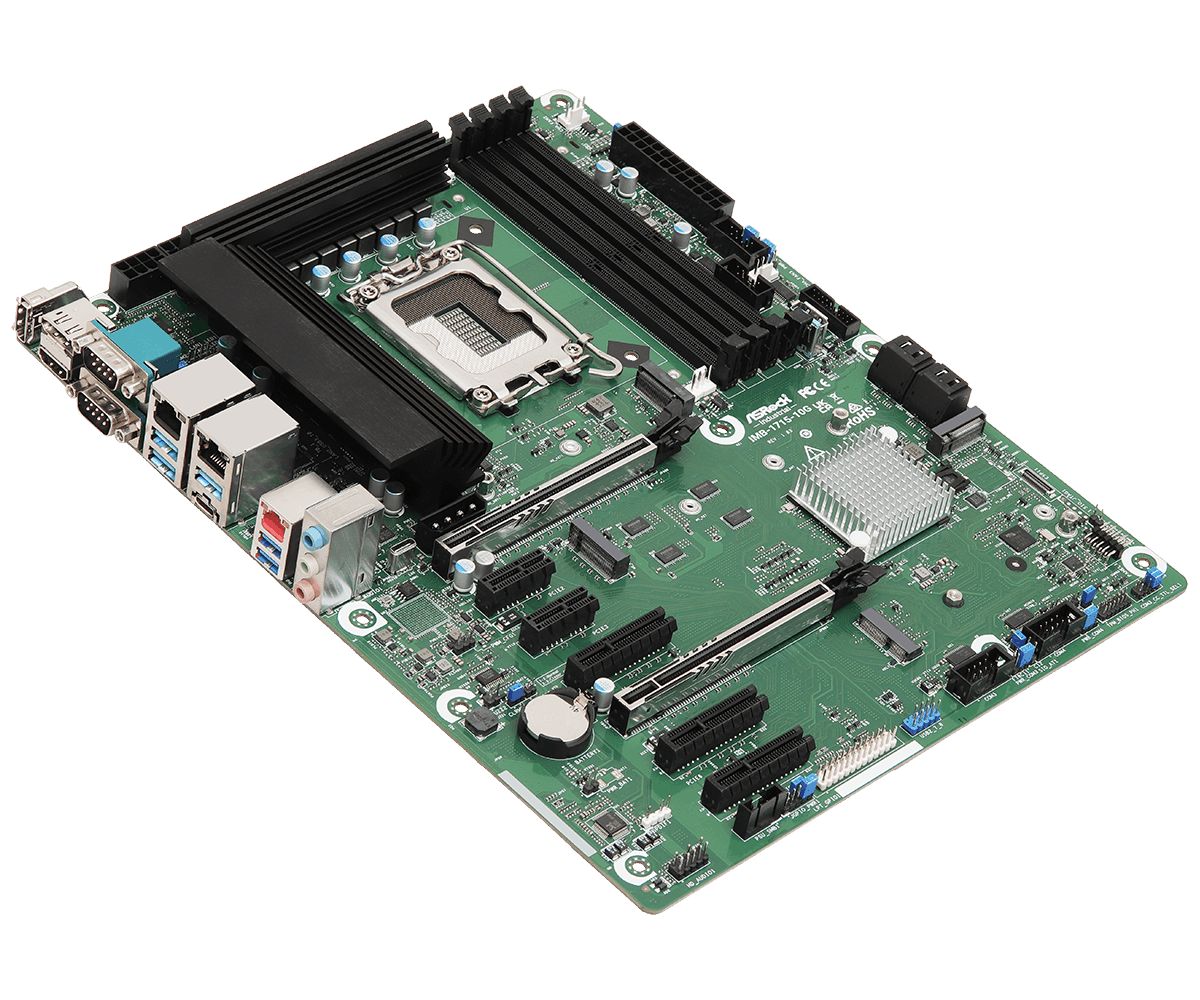

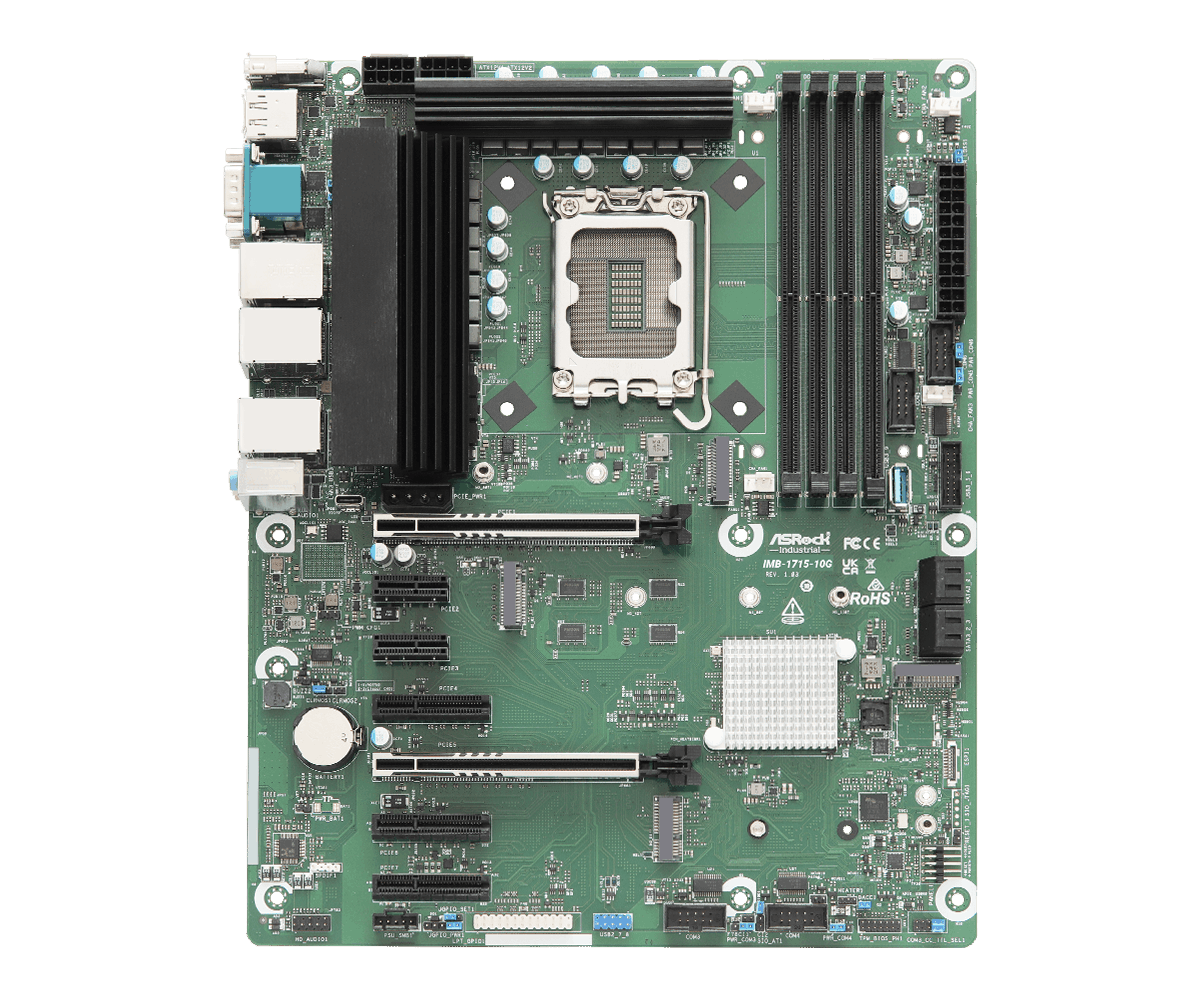

IMB-X1715-10G ATX Motherboard

Intel® Core™ Ultra processors (Arrow Lake-S) with W880 chipset
4 x 288-pin ECC/non-ECC CU-DIMM DDR5 6400 MHz, U-DIMM DDR5 5600 MHz , up to 256GB (64GB per DIMM)
1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 3 x PCIe x4 (Gen4), 2 x PCIe x1 (Gen4)
2 x USB4/Thunderbolt™4, 6 x USB 3.2 Gen2, 4 x USB 3.2 Gen1
1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 6 x COM, 4 x SATA3
2 x Intel 1 Gigabit LAN, 1 x Marvell 10 Gigabit LAN
Supports Quad display, 2 x HDMI 2.1 TMDS, 2 x DP 2.1 (2 from Type-C), 1 x DP 1.4a
TPM 2.0 onboard IC
Supports Intel® vPro, VMD RAID 0/1/5/10
ATX PWR (8+8+24 Pin)

Datasheet

Specification

Processor System

CPU	Intel® Core™ processors (Arrow Lake-S), up to 125W
Chipset	Intel® W880
Socket	LGA1851
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	ATX (12-in x 9.6-in x 1.81-in, 30.5 cm x 24.4 cmx 4.61 cm)

Memory

Technology	Dual Channel ECC/non-ECC DDR5 5600 MHz *1DPC 6400MHz (Ultra 9/7/5K), 5600MHz (Ultra 5 non-K) / 2DPC 1R 5600MHz / 2DPC 2R 4400MHz
Capacity	192GB (48GB per DIMM)
Socket	4 x 288-pin Long-DIMM

Graphics

Controller	Intel® Xe LPG Graphics
HDMI	HDMI 2.1 TMDS Max resolution up to 7680x4320@60Hz
DisplayPort	DisplayPort 2.1/1.4a, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Quad display (Included 2 output from Type-C)

Expansion Slot

PCIe	2 x PCIe Gen5 Slots (PCIE1/PCIE5:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE5)) (PCIE1: Support Riser card x8/x8) 3 x PCIe x4 (Gen4) 2 x PCIe x1 (Gen4)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1 , USB 2.0

Audio

Interface	Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro LAN2: Intel® I210AT with 10/100/1000 Mbps LAN3: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps
Connector	3 x RJ-45

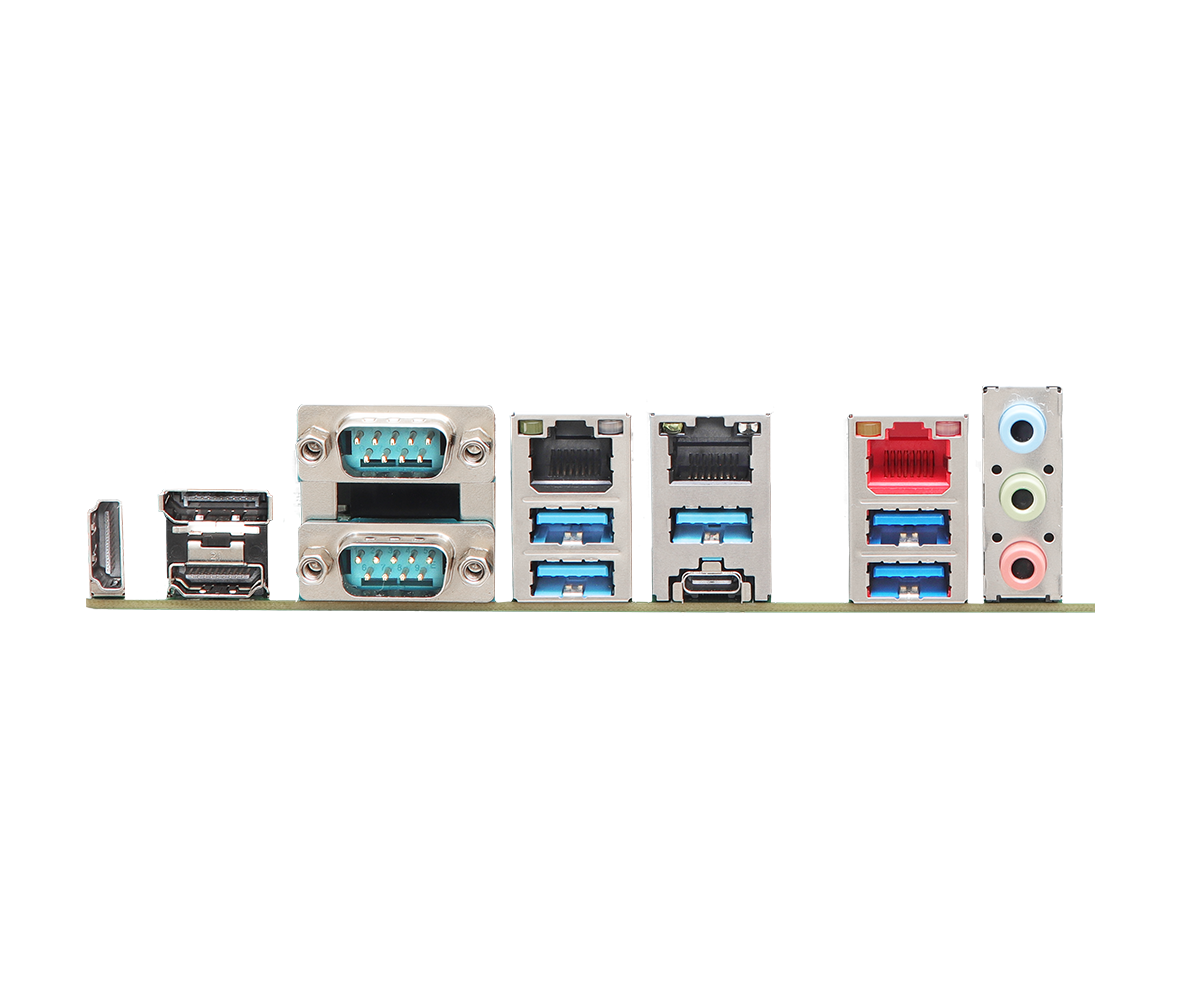

Rear I/O

HDMI	2 x HDMI 2.1 TMDS
DisplayPort	1 x DP 1.4a++
Ethernet	2 x 1 Gigabit LAN
USB	5 x USB 3.2 Gen2 1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list.
Audio	3 (Mic-in, Line-in, Line-out)
COM	COM1, COM2 (RS-232/422/485)

Internal Connector

USB	4 x USB 3.2 Gen1 (2 x USB 3.2 header) 1 x USB 3.2 Gen2 vertical Con 1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list.
COM	COM3 (RS-232/TTL 5V/ccTalk, switch by Jumper setting) COM4, COM5, COM6 (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
Thunderbolt header	1

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, 2242/2280/22110/25110) with PCIe Gen5 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA	4 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIe or SATA) PCIe interface: M.2 Key B + M.2 Key M SATA interface: SATA port

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	ATX PWR (24+8+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P077000AK) 4 x SCREW M3*2.5 (13G02P072010AK)
Bulk Package	1 x I/O Shield (13G02P077000AK) 4 x SCREW M3*2.5 (13G02P072010AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

OS:

Description	Information	OS	Date	Download
Description	[Beta] Marvell Lan driver ver:v3.1.7	Information	Size: 769Kib Version: 3.1.7 SHA1: 1666B8BD5FEF7D1FFA89B887270217DB0D88E7E0 Filename:AQC113_LAN (v3.1.7).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-19	Download	Global China
Description	[Beta] VGA driver ver: 32.0.101.5866	Information	Size: 1052 MiB Version: 32.0.101.5866 SHA1: 9EDEFD665414356B944B558462680A47B3983DAF Filename:VGA(v32.0.101.5866)	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-19	Download	Global China
Description	[Beta] Intel Thunderbolt driver ver1.41.1412.0	Information	Size: 32 MiB Version: 1.41.1412.0 SHA1: 213581000BFA753736D472EEAAB8F3CBB9623E2E Filename:Intel Thunderbolt driver ver1.41.1412.0	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-19	Download	Global China
Description	[Beta] Intel Management Engine driver ver:2425.6.26.0	Information	Size: 712 MiB Version: 2425.6.26.0 SHA1: 44EA58797D8E925AE724E5DA7F8E183E3BBFC150 Filename:ME(v2425.6.26.0_CORP)	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-19	Download	Global China
Description	[Beta] SST driver ver:20.40.11112.16	Information	**Install after VGA driver Size: 236 Mib Version: 20.40.11112.16 SHA1: 0184A3F7744FFF14DF0170229AD9CE706C8A2A7A Filename: Intel_SST(v20.40.11112.16).zip Release Note	OS	Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] Intel I210 Lan driver ver:27.6	Information	Size: 70Mib Version:27.6 SHA1: F0531582526741A08DED9C2F1505B257DBBBCF85 Filename:Intel_LAN(v27.6).zip Release Notec	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] PMT ver: 3.1.2.6c	Information	Size: 2394Kib Version: 3.1.2.6 SHA1: CB29A584170D1E8452D9E963A54D486BD1A49A27 Filename: PMT(v3.1.2.6).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] COM Port driver ver:240524	Information	Size: 3116 KiB Version: 240524 SHA1: 9089FAD87FB0323CB2546A5F3204573B05134F8F Filename: COM(v240524).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] NPU driver ver: 32.0.100.2540	Information	Size: 242Mib Version: 32.0.100.2540 SHA1: B361075DE79DE5D4869227B5D4DCE90EC348CEEB Filename: npudrive(v32.0.100.2540).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] Intel Serial IO driver ver:30.100.2419.23	Information	Size: 1877Kib Version: 30.100.2419.23 SHA1: 8B4028E04D3CA5E97C4AADAC213C1FB5216C1CDA Filename: SerialIO(v30.100.2419.23).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] GNA ver: 03.05.00.1574	Information	Size: 1235 KiB Version: 3.5.0.1578 SHA1: D1F1C2D63803811B4DA738ADB45F55410BA6A2B5 Filename: GNA(v3.5.0.1578).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] Intel HID Event Filter ver: 2.2.2.6 PV	Information	Size: 1172KiB Version: 2.2.2.6 PV SHA1: FEBD1B2BC042F43A5EA01905B5D004F575D77C08 Filename: Intel HID Event Filter ver(v2.2.2.6 PV).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] Intel Rapid Storage Technology driver and utility ver:20.1.0.1015.1	Information	Size: 7107Kib Version: 20.1.0.1015.1 SHA1: 7EDE04371C23BF0DDAE0F373164375E788D69DD0 Filename: RapidStorage(v20.1.0.1015.1).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] Intel WLAN Driver ver:23.70.0.6G	Information	Size: 79 MiB Version: 23.70.0.6G SHA1: D4E76B77DCA32D80CE1996E35F60F8830659D622 Filename: Intel_WLAN(v23.70.0.6G).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] Intel I219 Lan driver ver:12.19.2.50	Information	Size: 1387Kib Version: 12.19.2.50 SHA1: 225A63AD0563C3EF64C17D6323318D595BB315B5 Filename: Intel_LAN(v12.19.2.50).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] Bluetooth driver ver:23.70.0.2G	Information	Size: 49 MiB Version: 23.70.0.2G SHA1: 977BF8B6C8810A7F7EF7D47854702D4B3CAEC33F Filename: Intel_Bluetooth(v23.70.0.2G).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] INF driver ver:10.1.19913.8607-Public-Client	Information	Size: 7218 KiB Version:INF(v10.1.19913.8607-Public-Client) SHA1:BC21194471FA608F4951090DCFD1DADD6CE0926C Filename:INF(v10.1.19913.8607-Public-Client).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China
Description	[Beta] HD Audio Driver and Application ver:9757.1	Information	**Install after SST driver Size: 49Mib Version: 9757.1 SHA1: 30FC5F5BCF2A4B410A318DABB19CB03ED1B1B337 Filename: Realtek_Audio(v9757.1).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	Download	Global China

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description	Language	Date	Download
Description	Jumpers and headers setting guide	Language	English	Date	2025-03-27	Download	Global China
