Preliminary

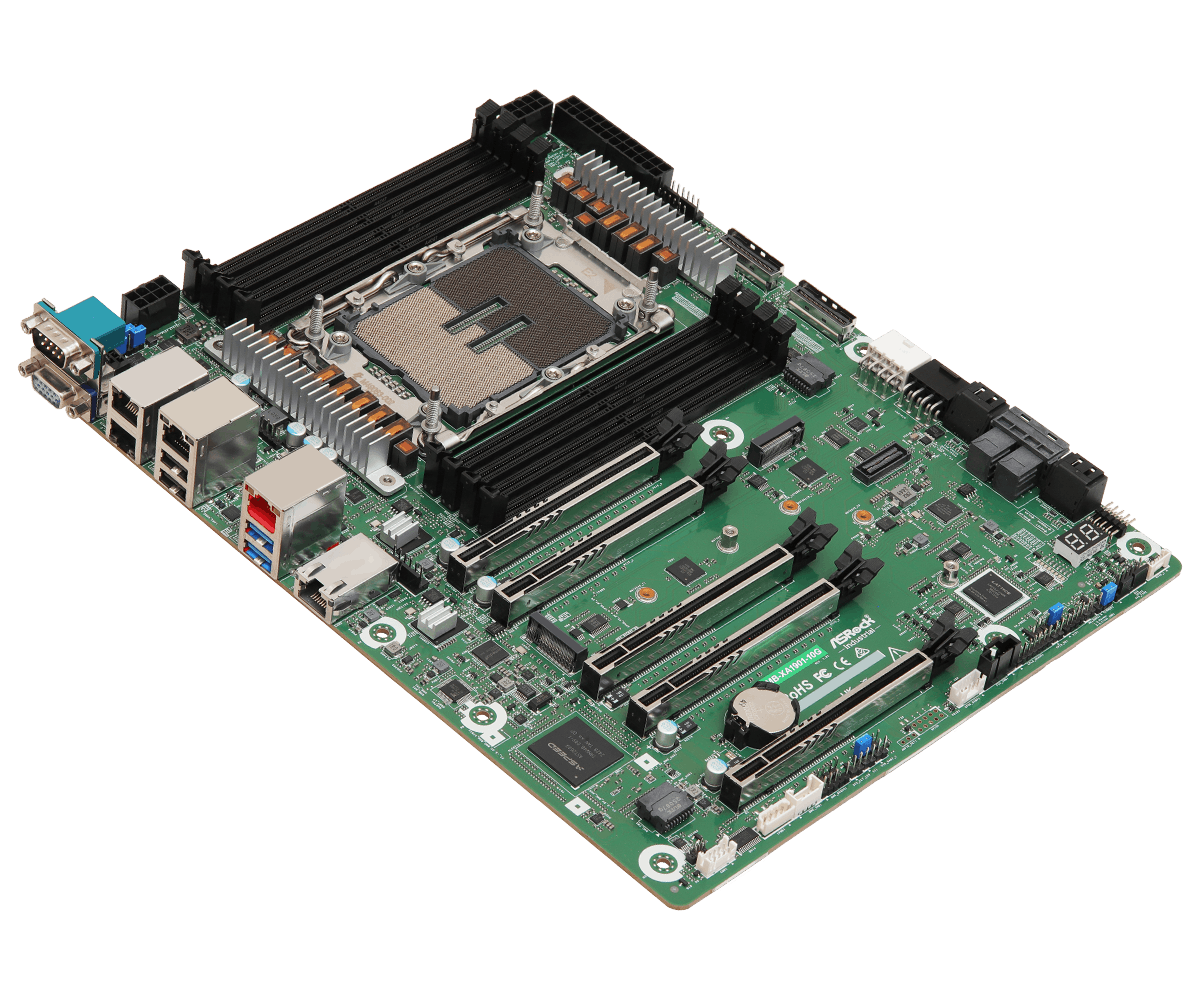

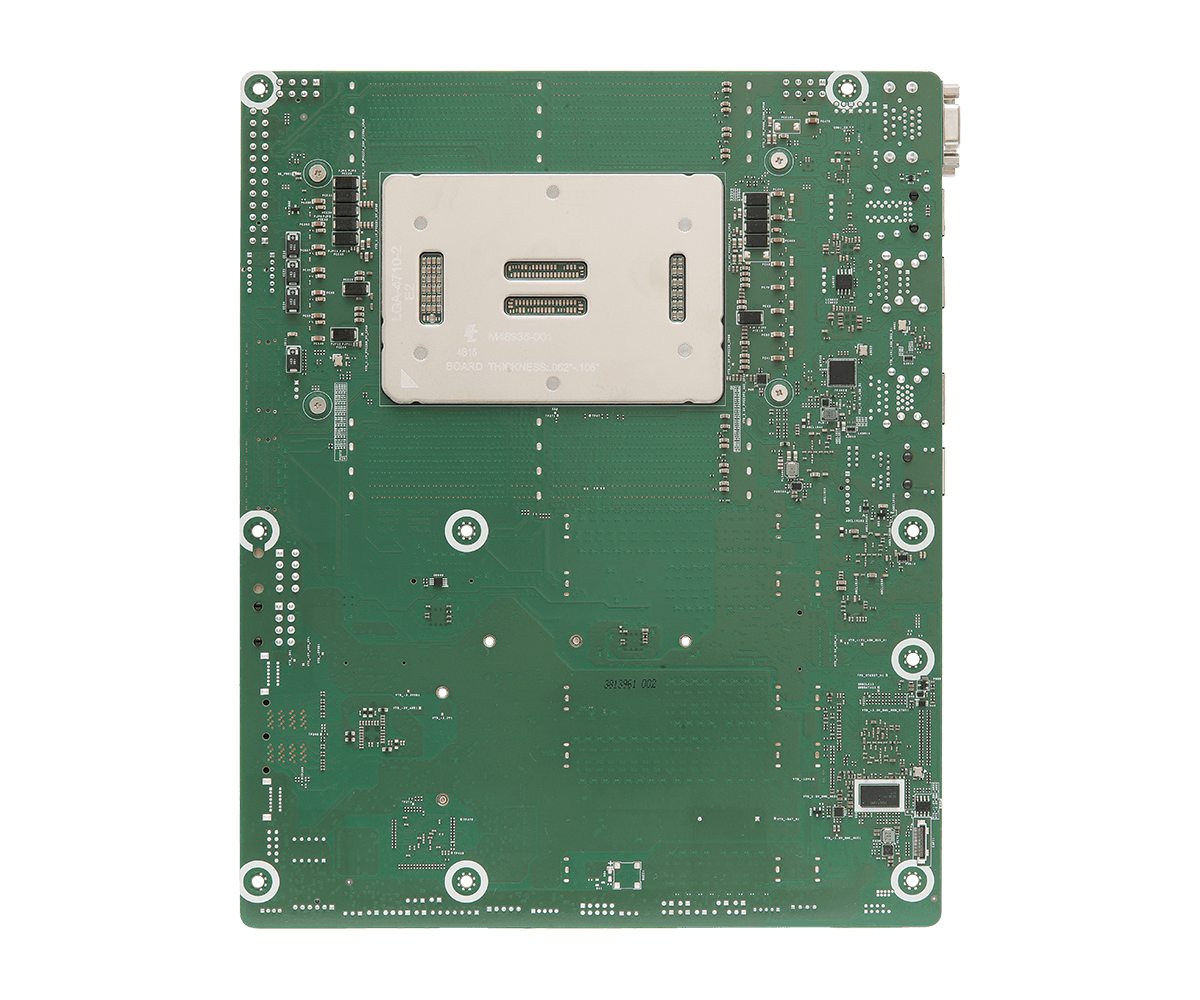

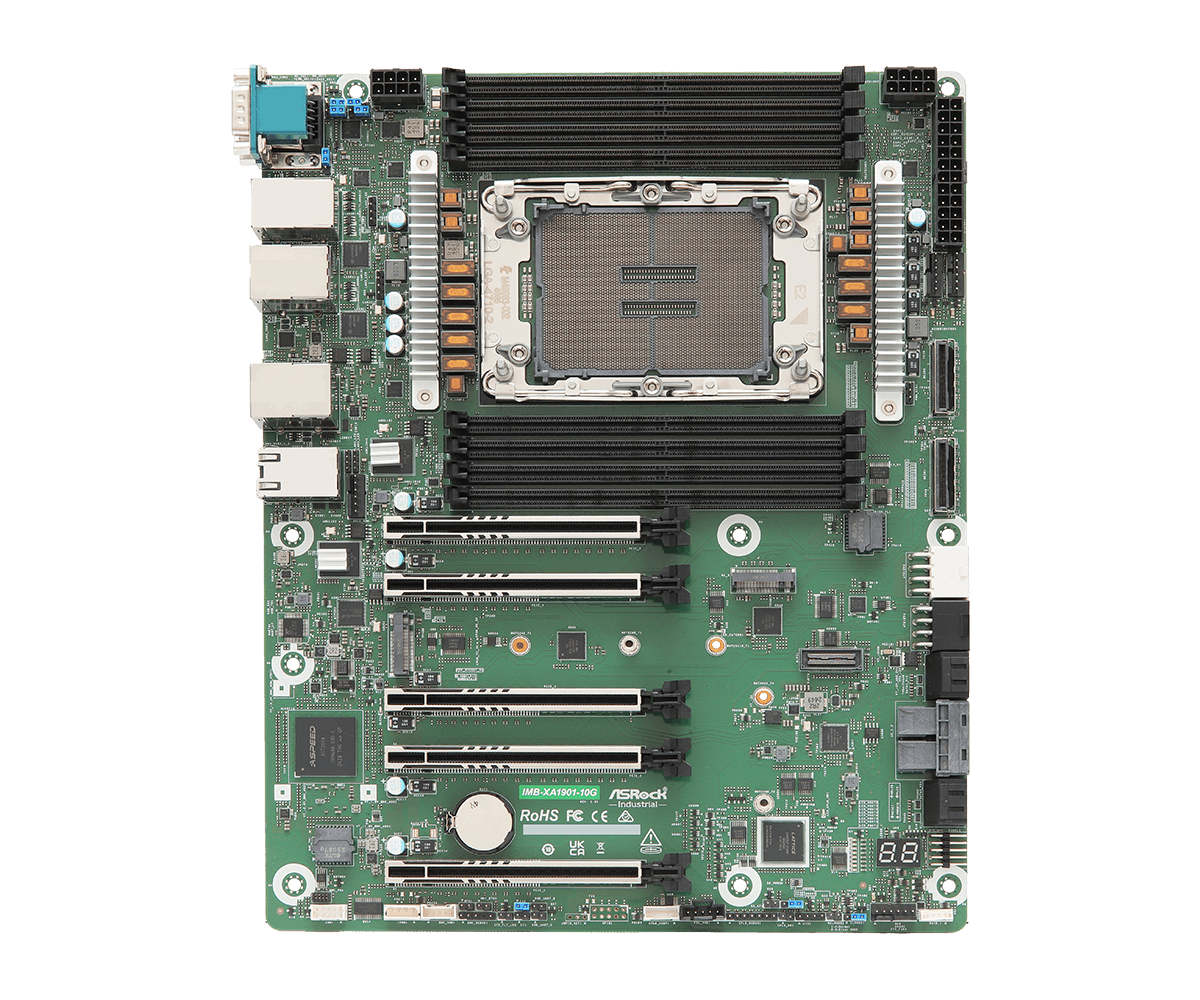

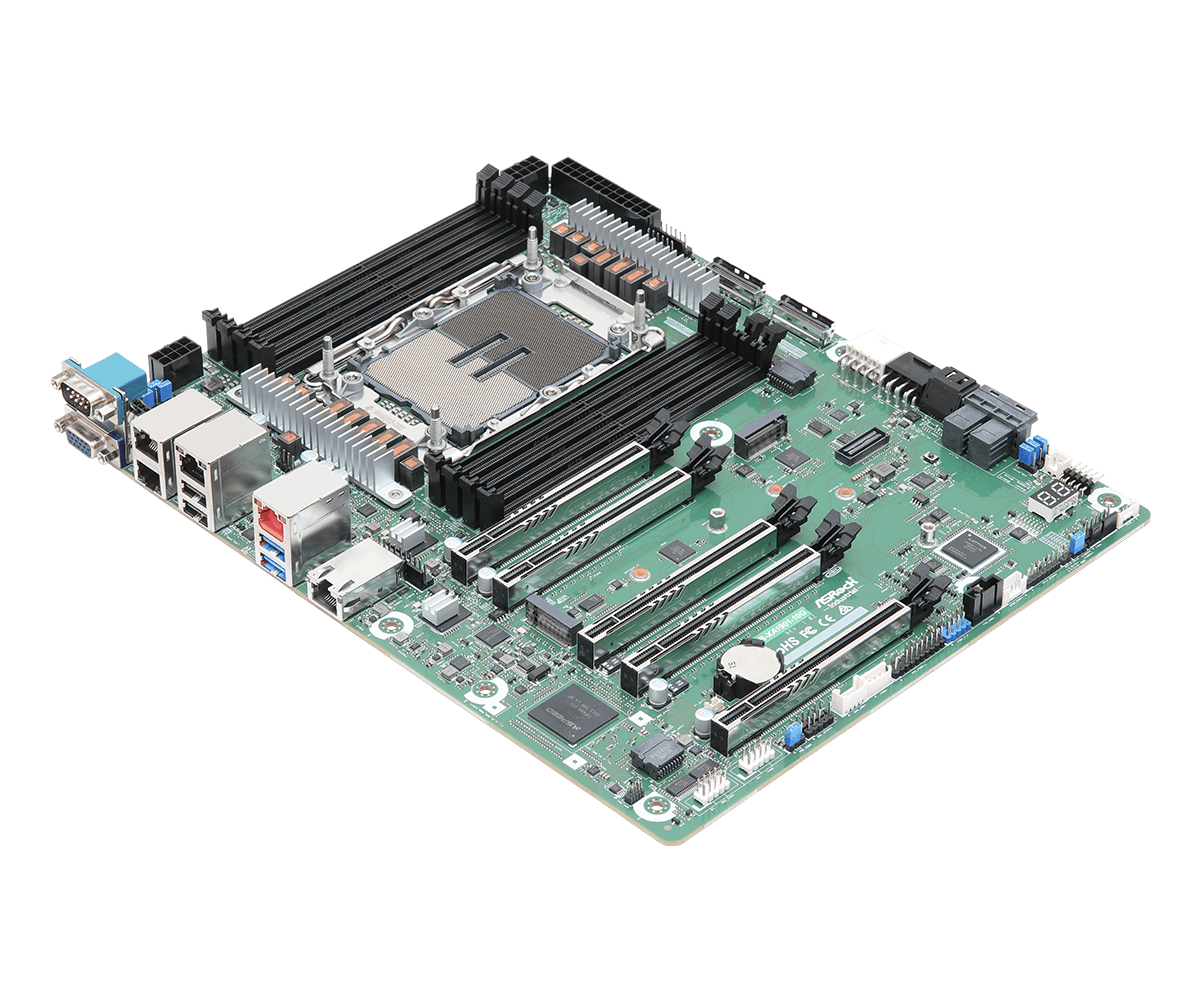

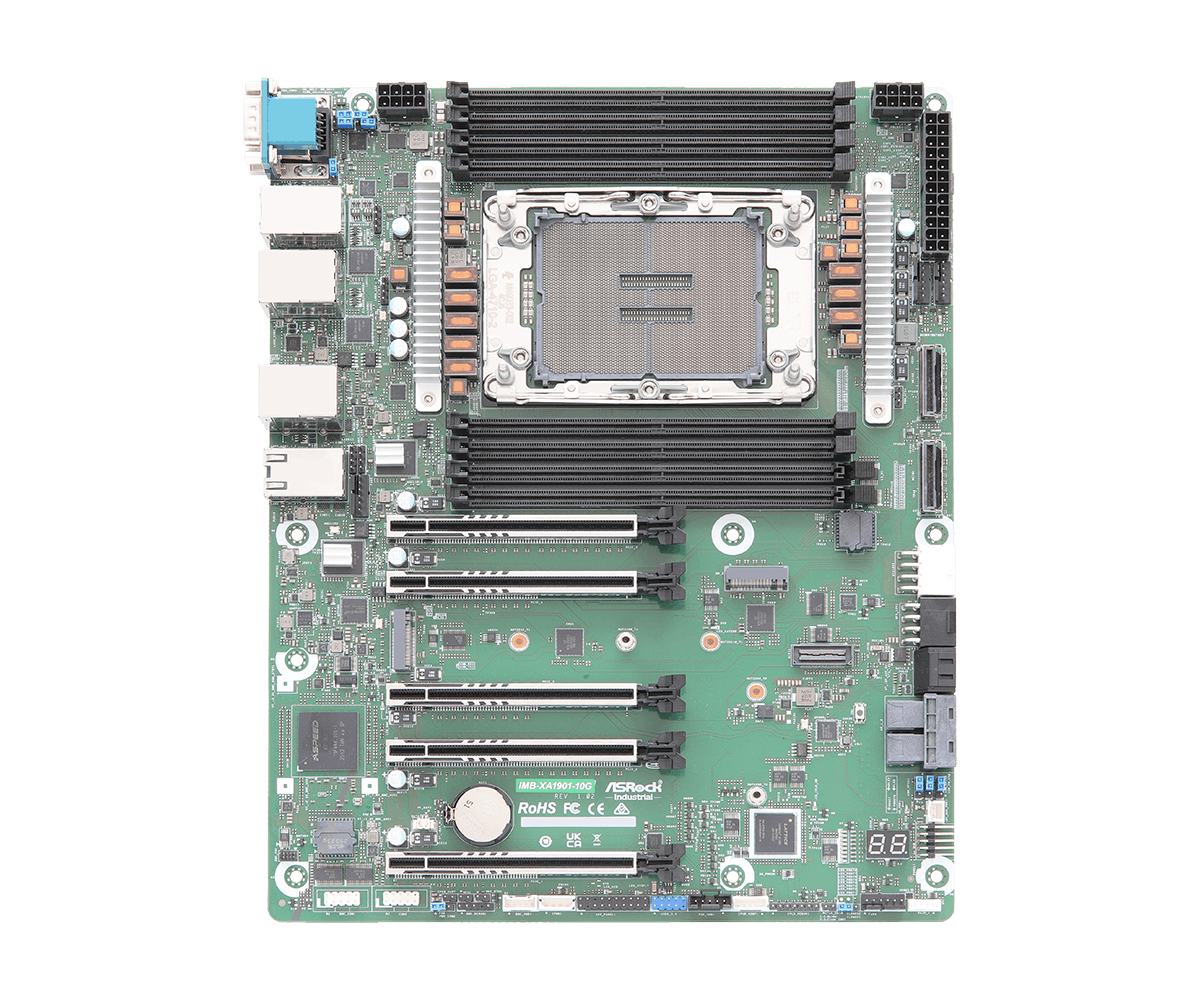

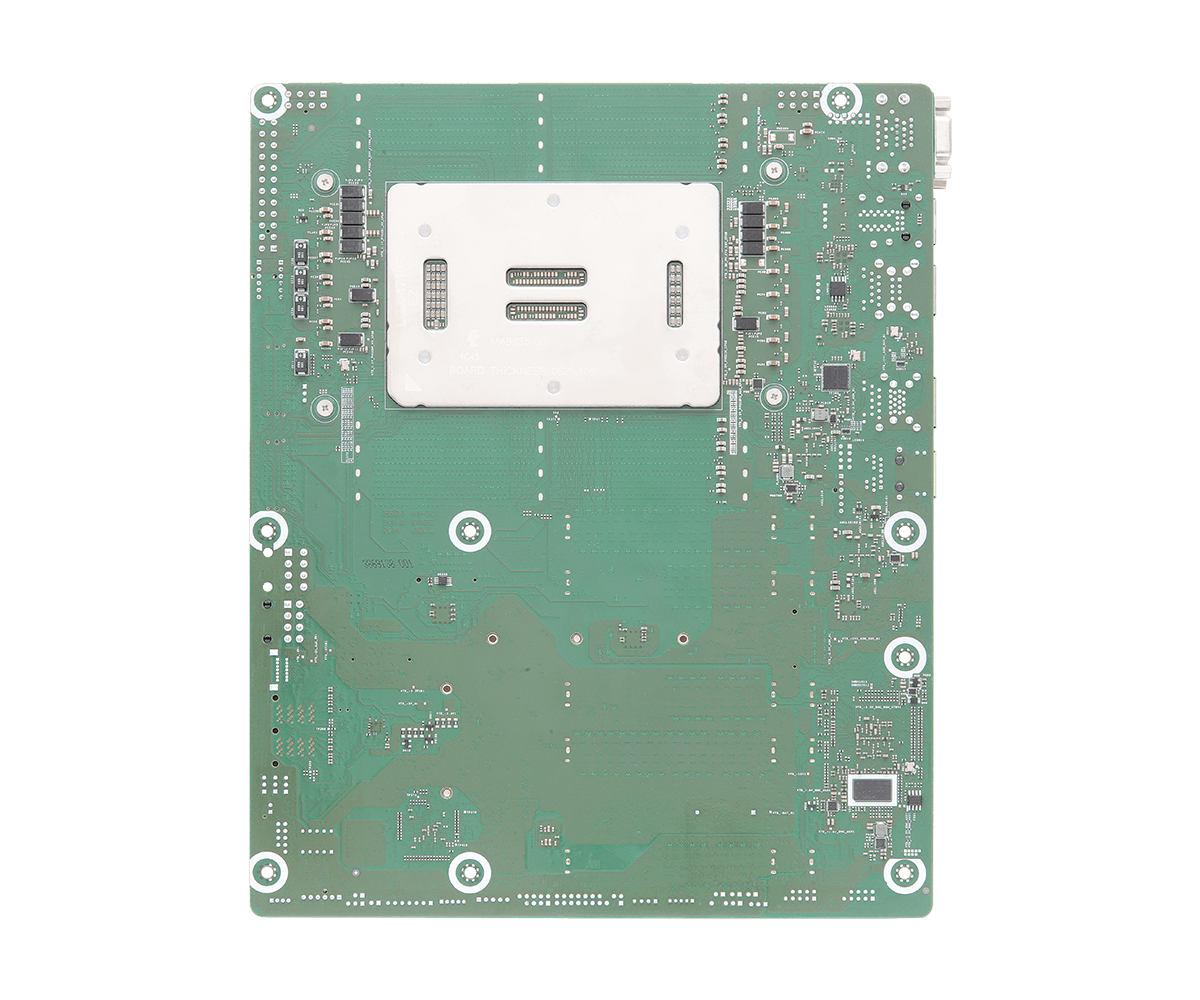

IMB-XA1901-10G ATX Motherboard
- Intel® Xeon® 6700P/6500P/6700E Series processors
- 8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 6400 MHz, up to 1TB
- 2 x PCIe x16 (Gen5), 3 x PCIe x8 (Gen5), 2 x MCIO, 2 x USB 3.2 Gen1, 2 x USB 2.0, 2 x M.2 Key M, 3 x COM, 2 x Mini-SAS, 4 x SATA3
- 2 x Intel 1 Gigabit LAN, 2 x Marvell 10 Gigabit LAN
- Supports 1 x VGA
- Remote management (IPMI)
- TPM 2.0 onboard IC
- Supports Intel® VMD RAID 0/1/10
- ATX PWR (8+8+24 Pin)
Specification
Processor System
| CPU | Intel® Xeon® 6700P/6500P/6700E Series processors |
|---|---|
| Socket | LGA4710 |
| BIOS | AMI SPI 512 Mbit |
Management
| BMC Controller | ASPEED AST2600 |
|---|---|
| IPMI | 1 x Realtek RTL8211 for dedicated management GLAN |
Form Factor
| Dimensions | ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm) |
|---|
Memory
| Technology | Eight Channel ECC DDR5 6400 MHz |
|---|---|
| Capacity | 1TB |
| Socket | 8 x 288-pin RDIMM/RDIMM-3DS |
Graphics
| VGA | 1 x VGA from ASPEED AST2600 Max resolution up to 1920x1200@60Hz |
|---|
Expansion Slot
| PCIe | 5 x PCIe x16 Gen5 slot (PCIE1, 4, 6 supports x8 mode) |
|---|---|
| MCIO | 2 x MCIO with PCIe Gen5 x8 (supported with R1S CPU) |
Ethernet
| Controller/ Speed | 2 x Intel® I210AT with 10/100/1000 Mbps 2 x Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps |
|---|---|
| Connector | 4 x RJ-45 |

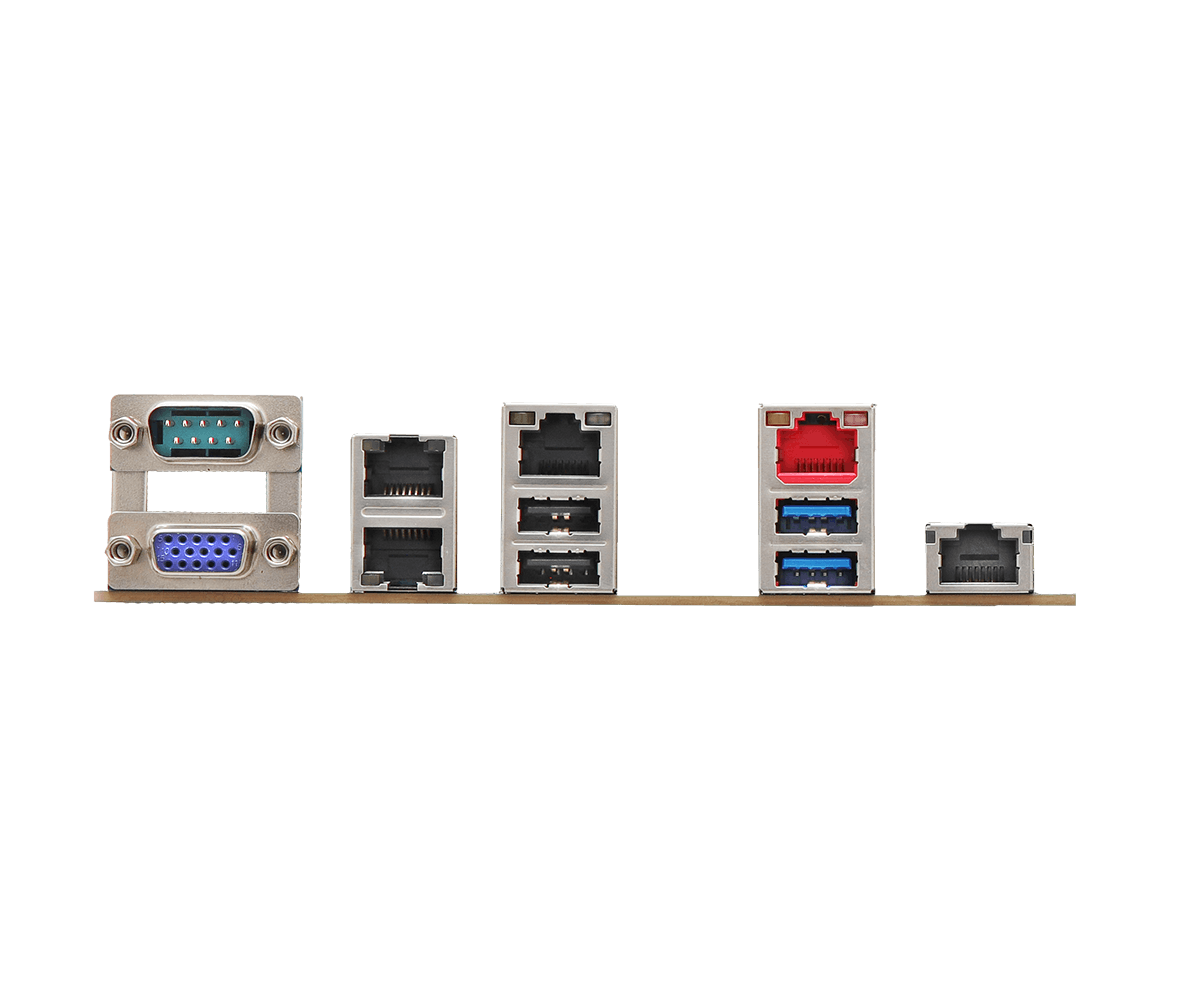

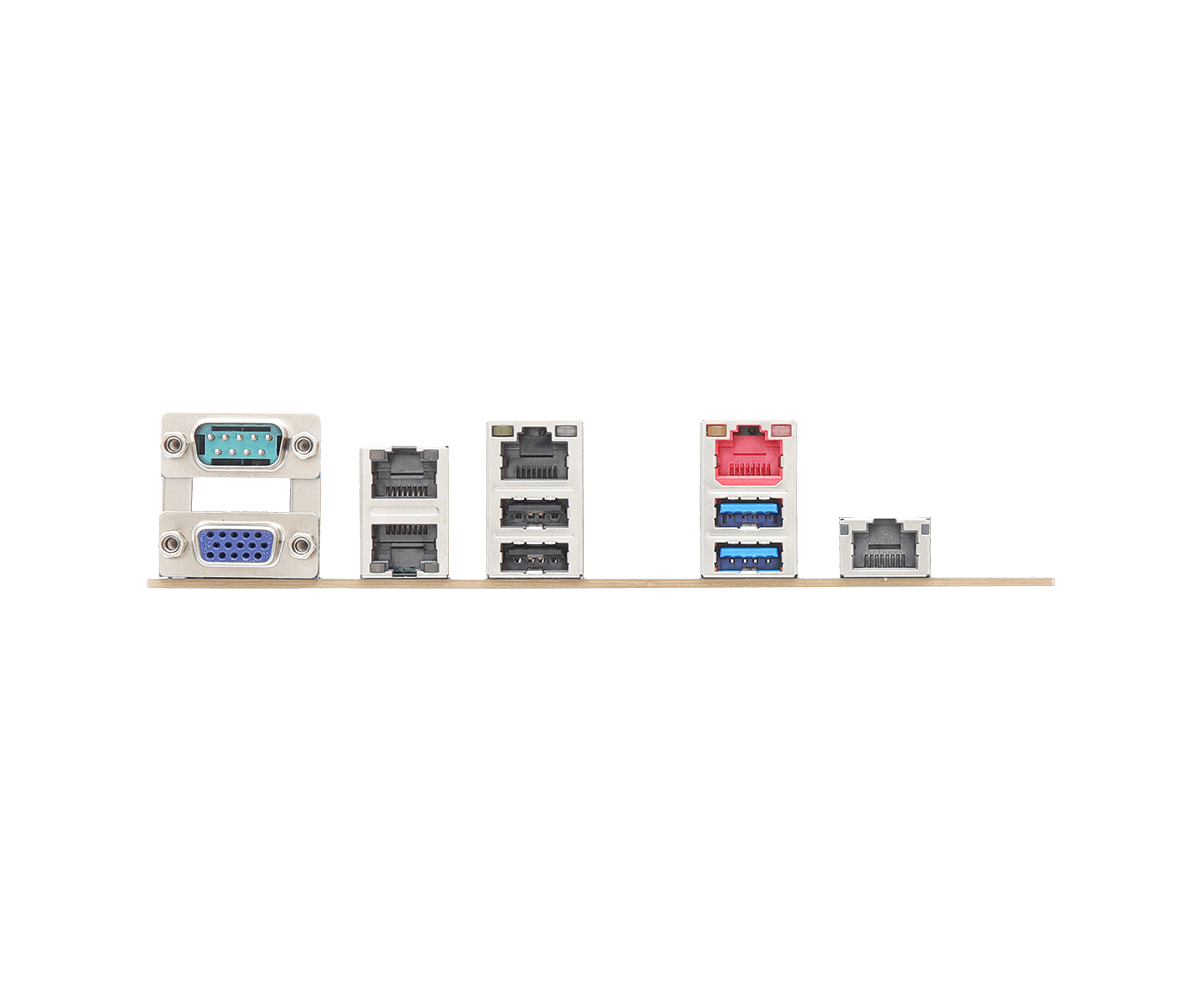

Rear I/O
| VGA | 1 |
|---|---|
| Ethernet | 2 x 10 Gigabit LAN 2 x 1 Gigabit LAN 1 x Dedicated IPMI |
| USB | 2 x USB 3.2 Gen1 2 x USB 2.0 |
| COM | 1 x COM (RS-232/422/485) |
Internal Connector
| COM | 1 x COM (RS-232/422/485) 1 x COM (RS-232) |
|---|---|
| GPIO | 4 x GPI, 4 x GPO |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD |
|---|---|
| Mini-SAS | 2 x Mini-SAS with PCIe Gen4 x4 |
| SATA | 4 x SATA3 |
| RAID | Intel® VMD RAID 0/1/10 **supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key M SATA interface: SATA port |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 segments, 0,1,2…255sec |
Power Requirements
| Input PWR | 1 x 24-pin ATX PWR connector 2 x 8-pin 12V PWR connector 1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
