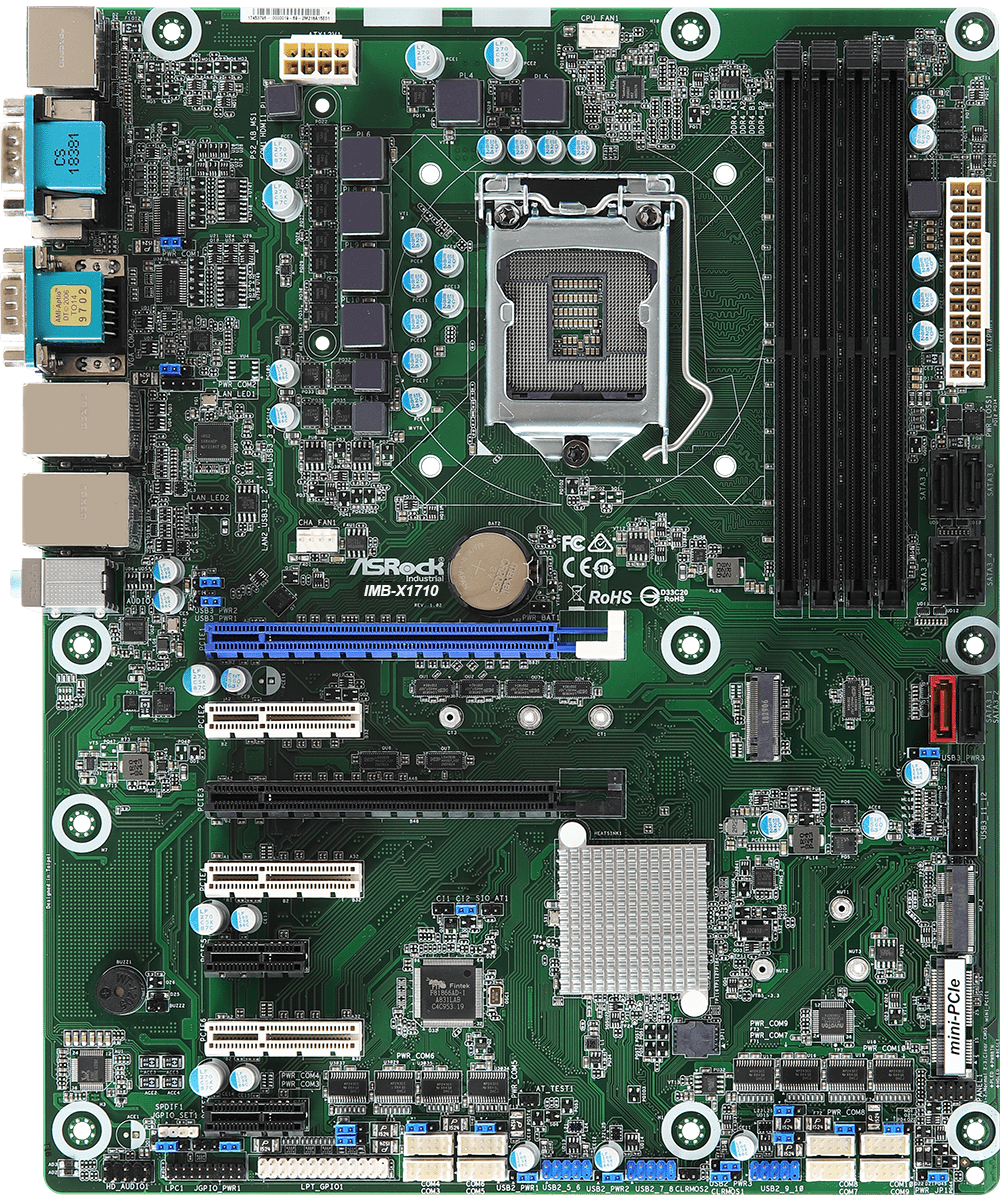

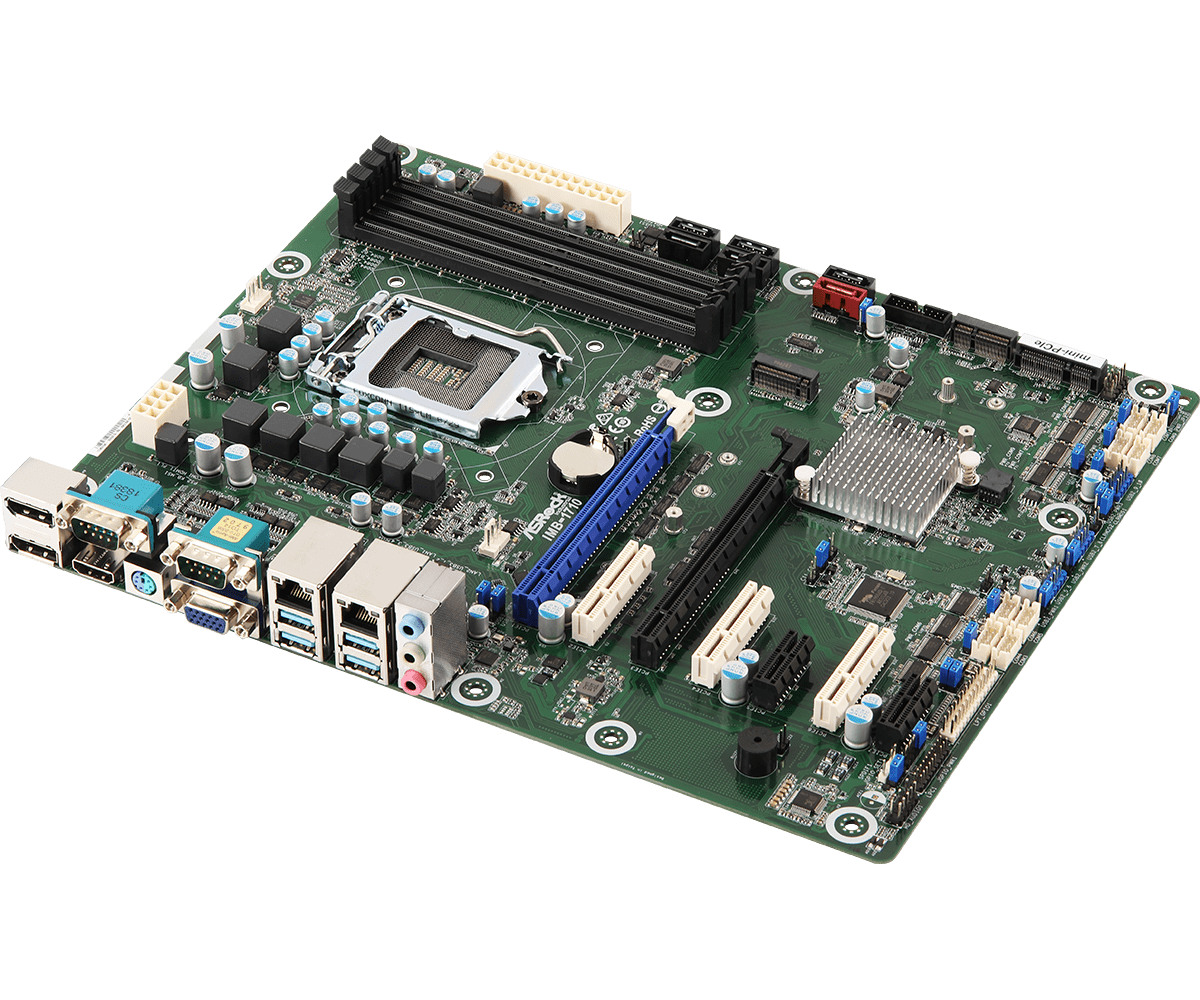

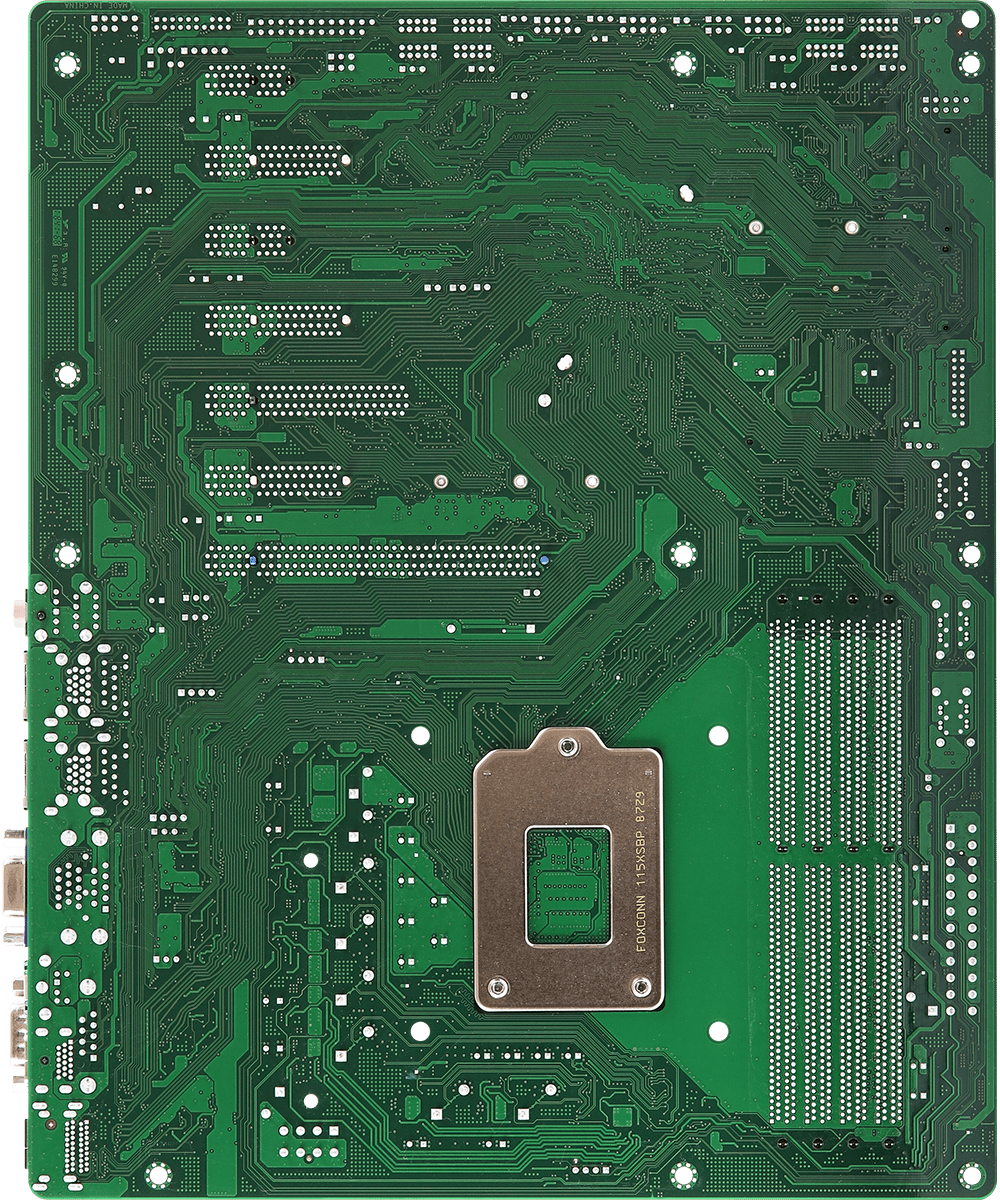

IMB-X1710 ATX Motherboard

Processor System

CPU	Supports Intel® Xeon® E-2100 Processors
Chipset	Intel® C246
Socket	LGA1511
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR4 2400 / 2666 MHz
Capacity	128GB* * Intel Core i9/i7/i5 CPUs support up to 128GB (32GB per DIMM) Intel Core i3/Pentium/Celeron CPUs support up to 64GB (16GB per DIMM))
Socket	4 x Long-DIMM

Graphics

HDMI	HDMI 1.4 Max resolution up to 4096x2160@24Hz
DisplayPort	Max resolution up to 4096 x 2304@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x16, 1 x PCIe x 8, 3 x PCIe x4, 2 x PCIe x1
mini-PCIe	1 x Full / Half size with PCIe x1 and USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB 2.0 for Wireless

Audio

Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed	LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps
Connector	2 x RJ-45

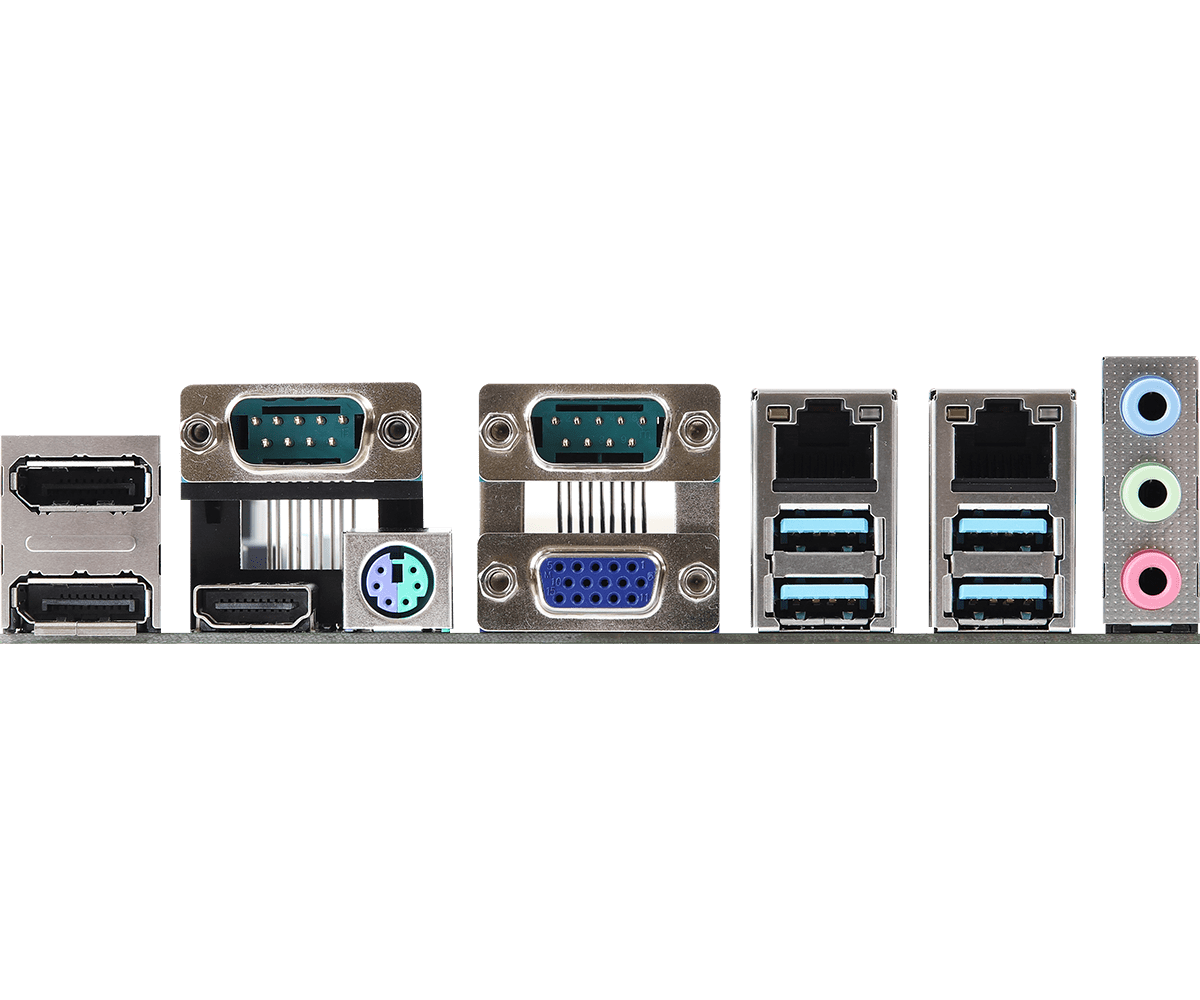

Rear I/O

HDMI	1 x HDMI 1.4
DisplayPort	2 x DP 1.2
VGA	1
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.1
Audio	3 (Mic-in, Line-in, Line-out)
COM	2 x COM (RS-232/422/485)
PS2	1 x PS/2 combo

Internal Connector

USB	2 x USB3.1, 6 x USB 2.0
COM	8 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO
TPM	1 x Onboard IC
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD
SATA	6 x SATA3 (6.0Gb/s), one is shared with M.2 Key M
RAID	Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
