HDMI-MIPI
- [ASRock Industrial Exclusive]
- Supports HDMI IN max resolution up to 4096 x 2160@60Hz
- Supports Audio line out
- HDMI 2.0 and MIPI CSI interface
產品規格
Specifications
| Form Factor | Customized |
|---|---|
| Function | HDMI 2.0 to MIPI CSI |
| Dimensions (W x L x H/mm) | 87 x 63 x 11.3 |
| Controller / Major IC | CONVERTER LT6911UXE |
| Input Interface/Power | HDMI 2.0 input +5V |
| Output Interface/Power | MIPI CSI output Audio line out |
| Output connector | MIPI connector |
| Operating Temperature | -20ºC ~ 70ºC |
| Storage Temperature | -40ºC ~ 85ºC |

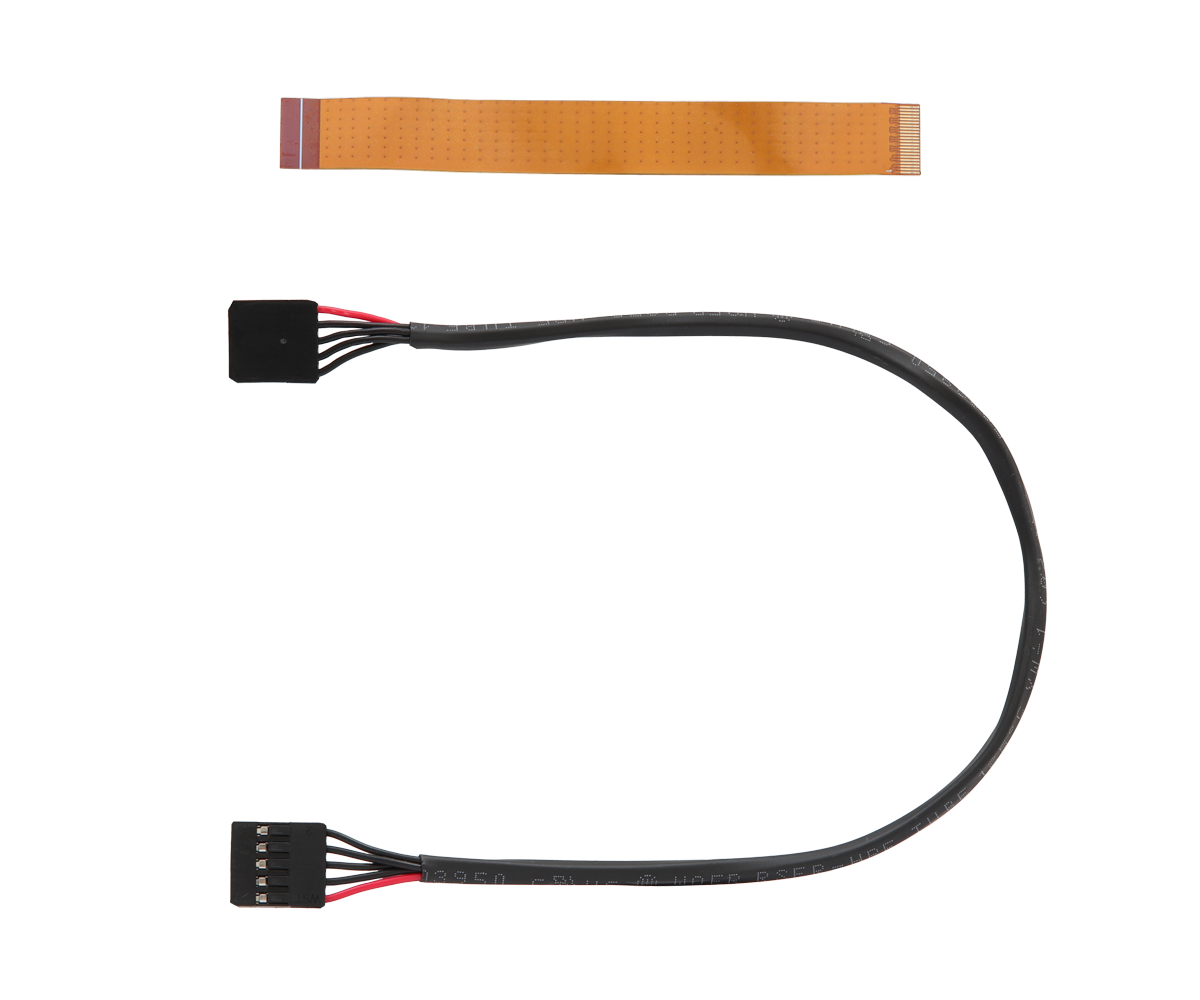

| Package | 1 x MIPI cable (100mm) 1 x 5V Power cable (300mm) |
規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
