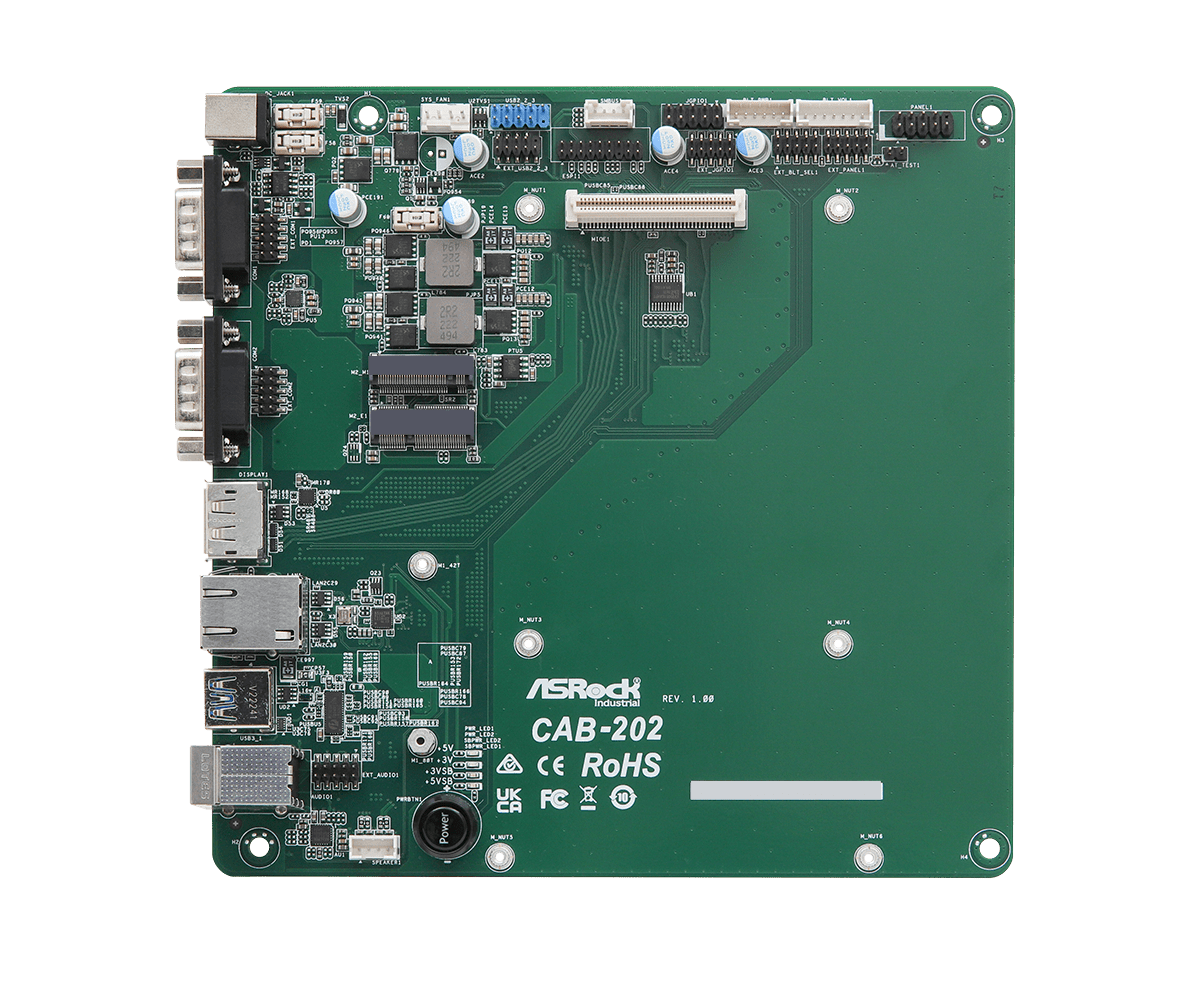

CAB-202 Pico-ITX Motherboard

Form Factor

Dimensions	mini-ITX (6.7-in x 6.7-in x 1.46-in, 17.0 cm x 17.0 cm x 3.71 cm)

Graphics

DisplayPort	Display Port 1.4a, DP++ Max resolution up to 4096x2160@60Hz

Expansion Slot

M.2	1 x M.2 (Key E, 2230) with PCIe x1
MIO	1 (DP++, 1 x USB 3.2 Gen2, 1 x USB 2.0, 3 x PCIe x1, eSPI bus, SBMus)

Audio

Interface	Realtek ALC122 HD, High Definition Audio

Ethernet

Controller/ Speed	1 x slot 10/100/1000 Mbps
Connector	1 x RJ-45

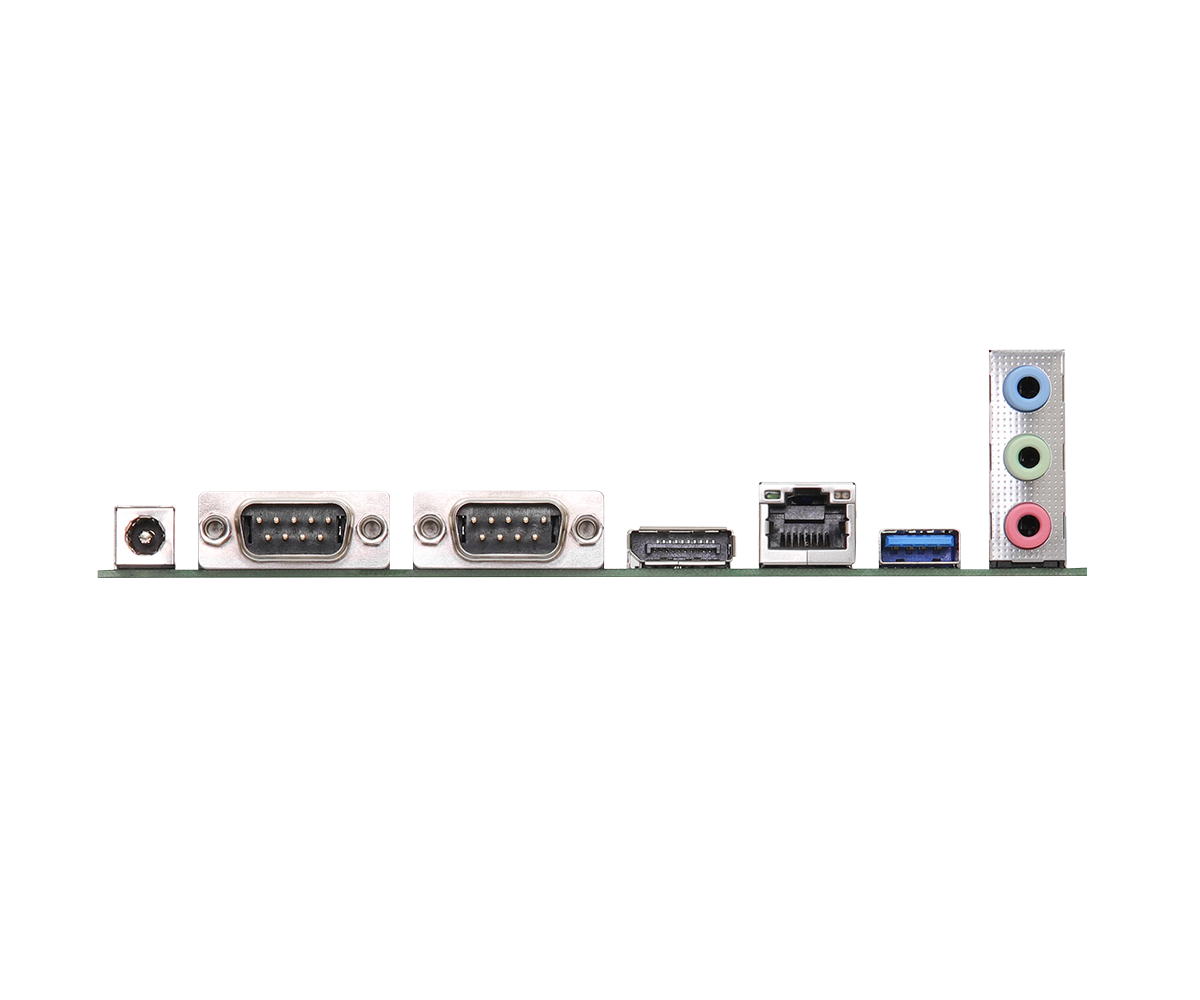

Rear I/O

DisplayPort	1 x DP 1.4a
Ethernet	1 x 1 Gigabit LAN
USB	1 x USB 3.2 Gen2
Audio	3 (Line-in, Line-out, Mic-in)
DC Jack	1 x DC in

Internal Connector

USB	2 x USB 2.0 (1x2.54 pitch header)
GPIO	4 x GPI, 4 x GPO
Speaker Header	1 x 3W Speaker Header

Storage

M.2	1 x M.2 (Key M, 2242/2280) with PCIe x1

Power Requirements

Input PWR	12V DC-in
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 70ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
