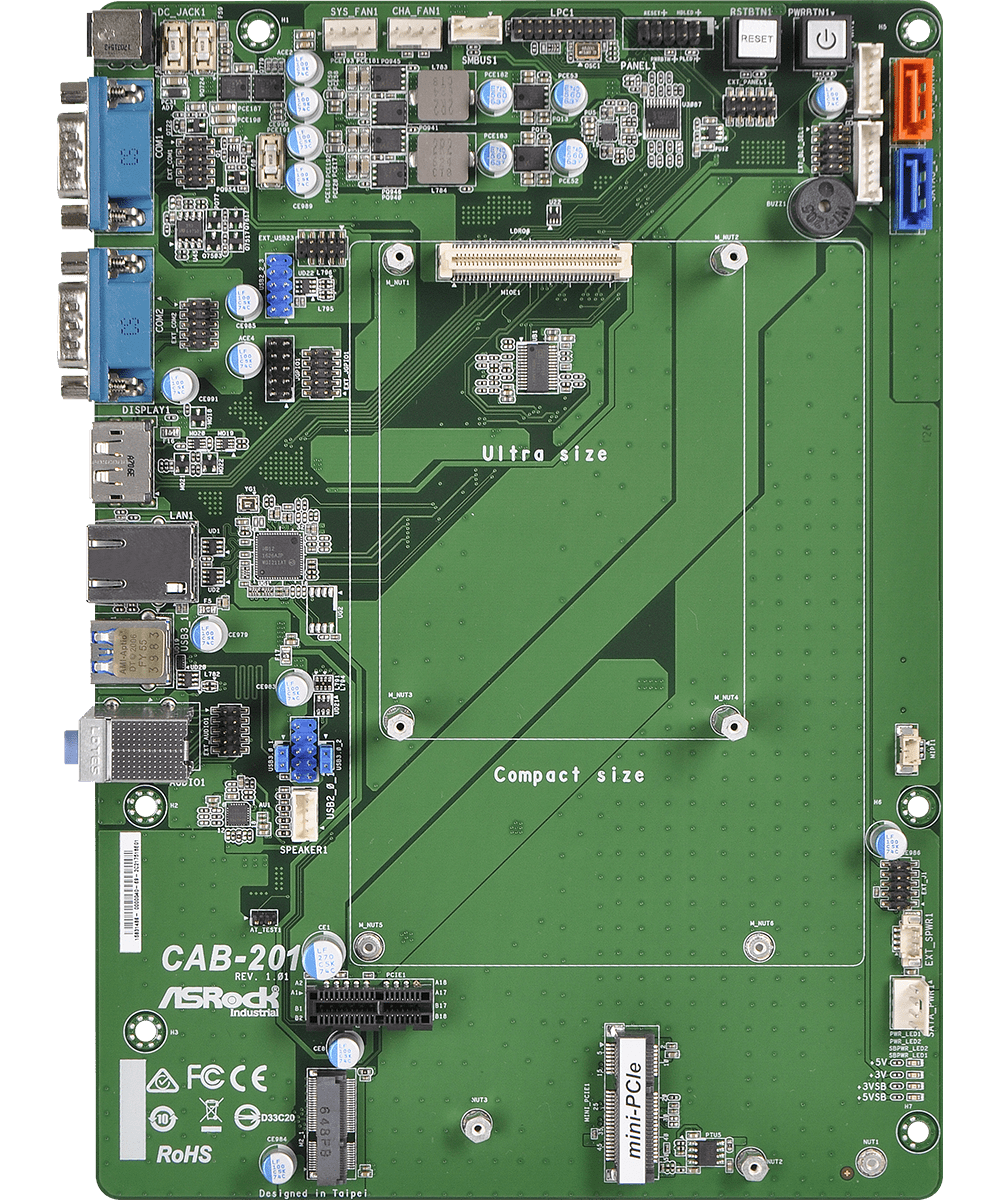

CAB-201 Pico-ITX Motherboard

Form Factor

Dimensions	Micro ATX (9.6-in x 6.7-in, 24.4 cm x 17.0 cm)

Expansion Slot

PCIe	1 x PCIe x1
mini-PCIe	1 x full size(Mini PCIe only)
M.2	1 x M.2 Slot (Key E), supports type 2230 for WiFi + BT Module
MIO	HDMI or DP , 3 x USB 2.0 or 1 x USB 3.0 + 1 x USB 2.0 4 x PCIe x1 , LPC bus , SMBus

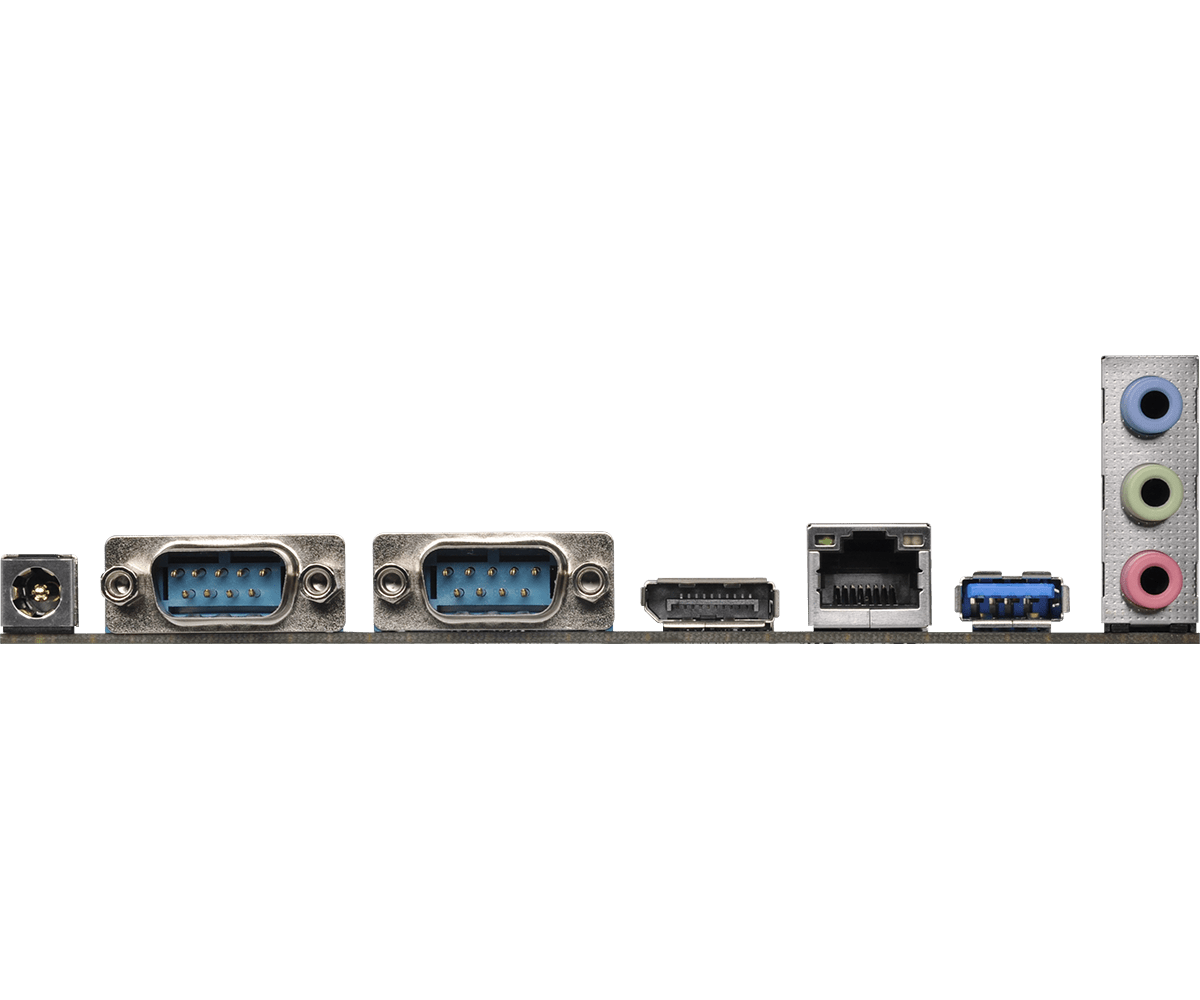

Rear I/O

DisplayPort	1
USB	1 x USB 3.0 , 1 x USB 2.0
DC Jack	1

Internal Connector

USB	1 x USB 2.0
SATA PWR Output	1

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-in
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
