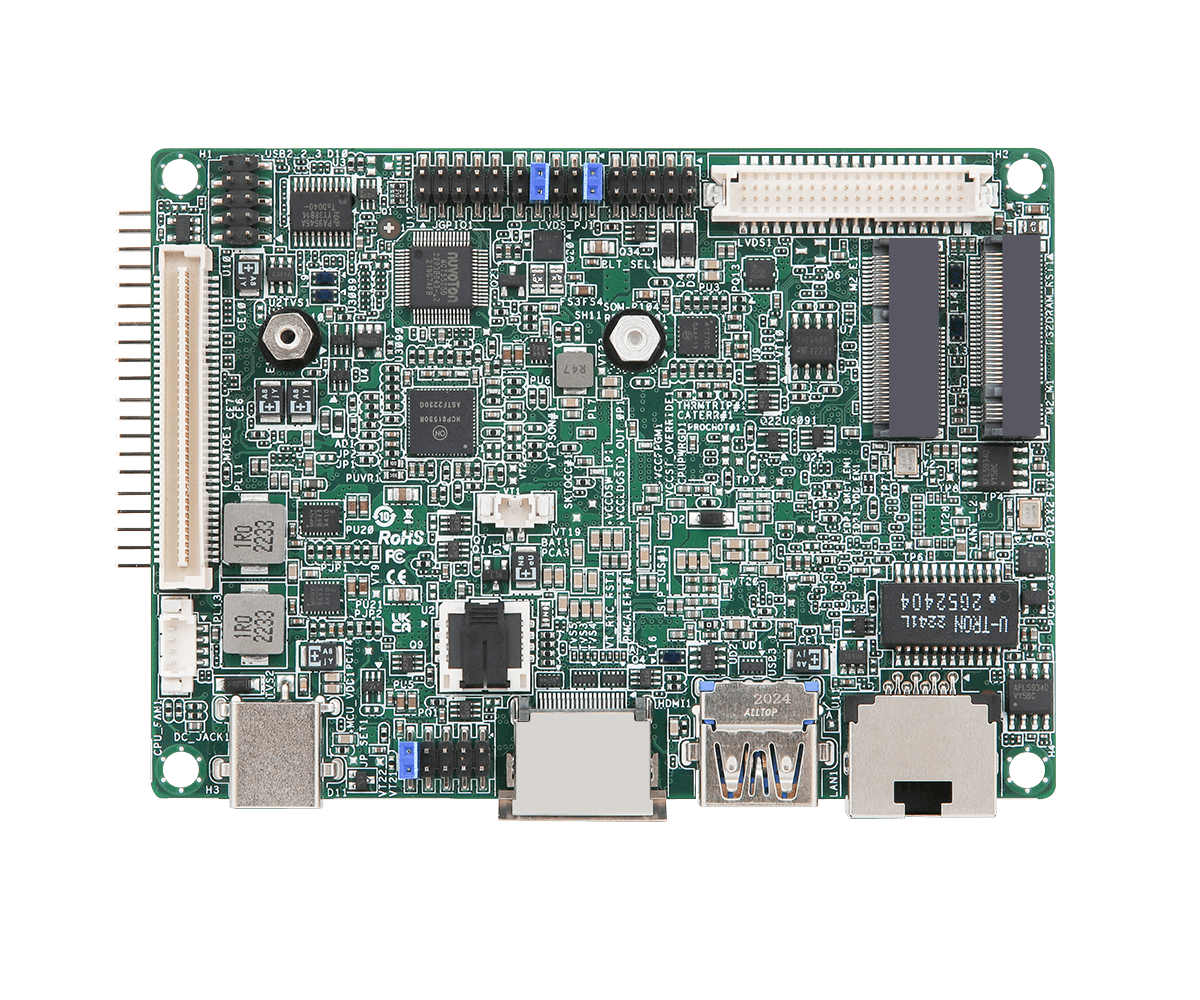

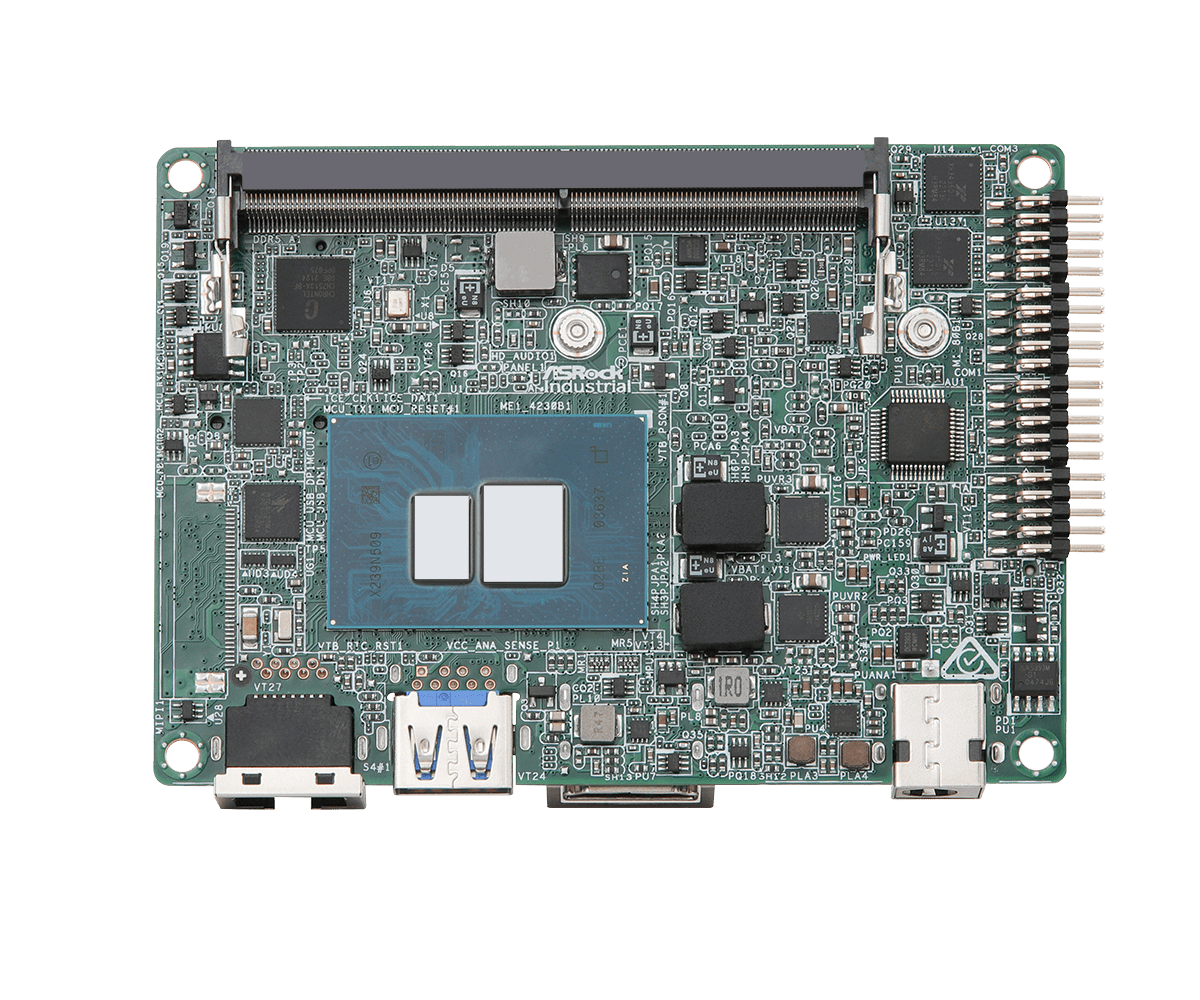

SOM-P104J Pico-ITX Motherboard
- Intel® Alder Lake-N SoC Processors N97
- 1 x 262-pin SO-DIMM DDR5 4800 MHz, up to 32GB
- 1 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 2 x COM
- 1 x MIOe slot
- 1 x Realtek 2.5 Gigabit LAN
- Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDS or eDP
- 12V DC-In
Specification
Processor System
| CPU | Intel® Alder Lake-N SoC Processors SOM-P104J (N97, QC, Max Speed Up to 3.6GHz, 12W) *For other CPU SKUs request, please contact regional Sales for availability |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Pico-ITX (3.9-in x 2.8-in x 0.76-in, 10 cm x 7.2 cm x 1.93 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 4800 MHz |
|---|---|
| Capacity | 32 GB |
| Socket | 1 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| DisplayPort | Display Port 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple display |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless |
|---|---|
| MIOe | 1 (HDMI or DP, 1 x USB 3.2 Gen2, 1 x USB 2.0, 3 x PCIe x1) |
Audio
| Interface | Realtek ALC897 HD, High Definition Audio. Line-in, Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | Realtek RTL8125BG with 10/100/1000/2500 Mbps |
|---|

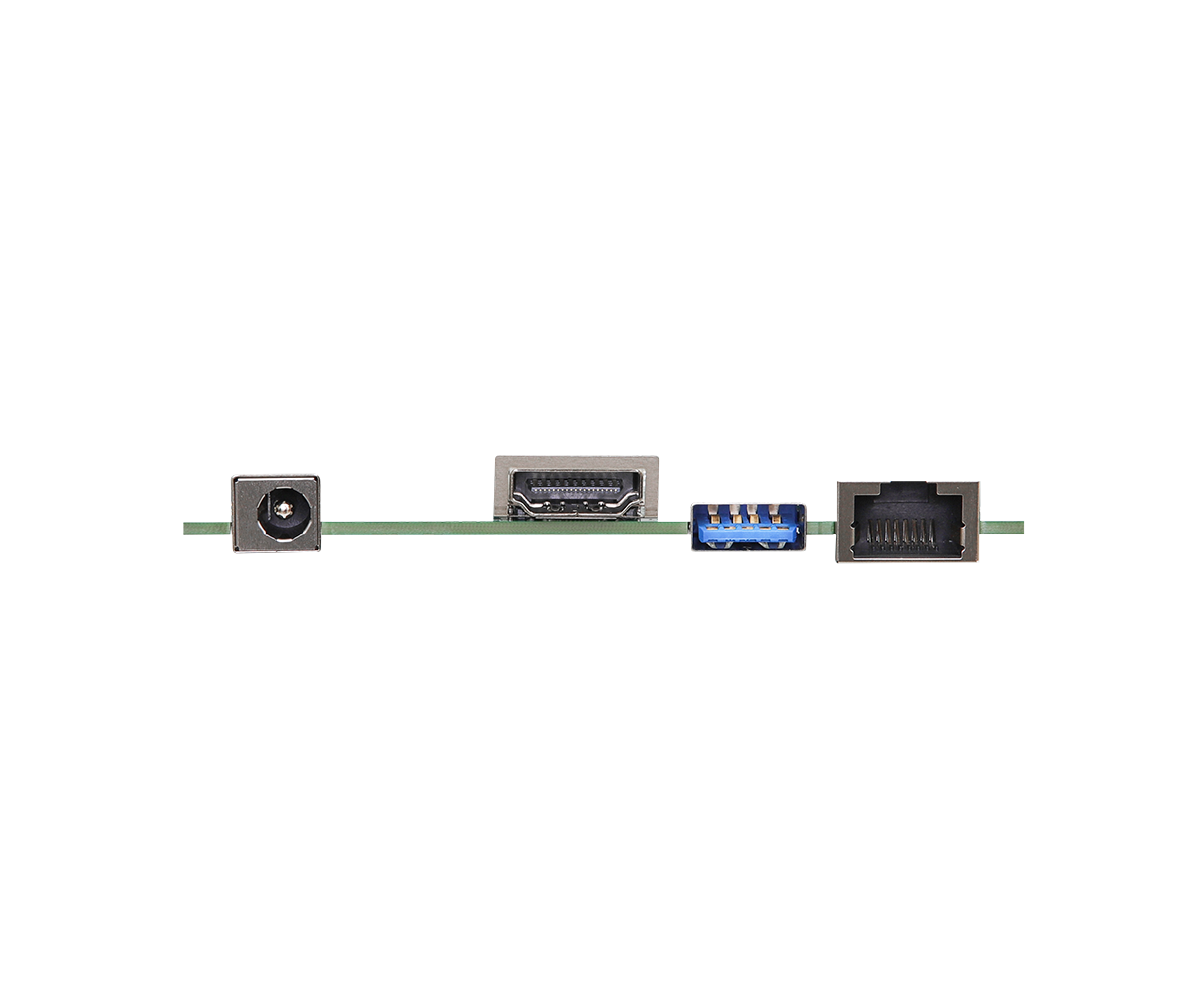

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| Ethernet | 1 x 2.5 Gigabit LAN |
| USB | 1 x USB 3.2 Gen2 (Type A) |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1x2.00 pitch header) |
|---|---|
| COM | COM1, COM3 (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| MIPI Camera Header | 1 (Optional) |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 or SATA3 and USB 2.0 for SSD |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V DC-In |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x Heat Spreader FOR SOM-P104 (13G07P012001AK) 1 x COM Cable (14G000000340AK) |
|---|---|
| Bulk Package | 2 x SCREW M2*2,D=5 (13G020302031AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
