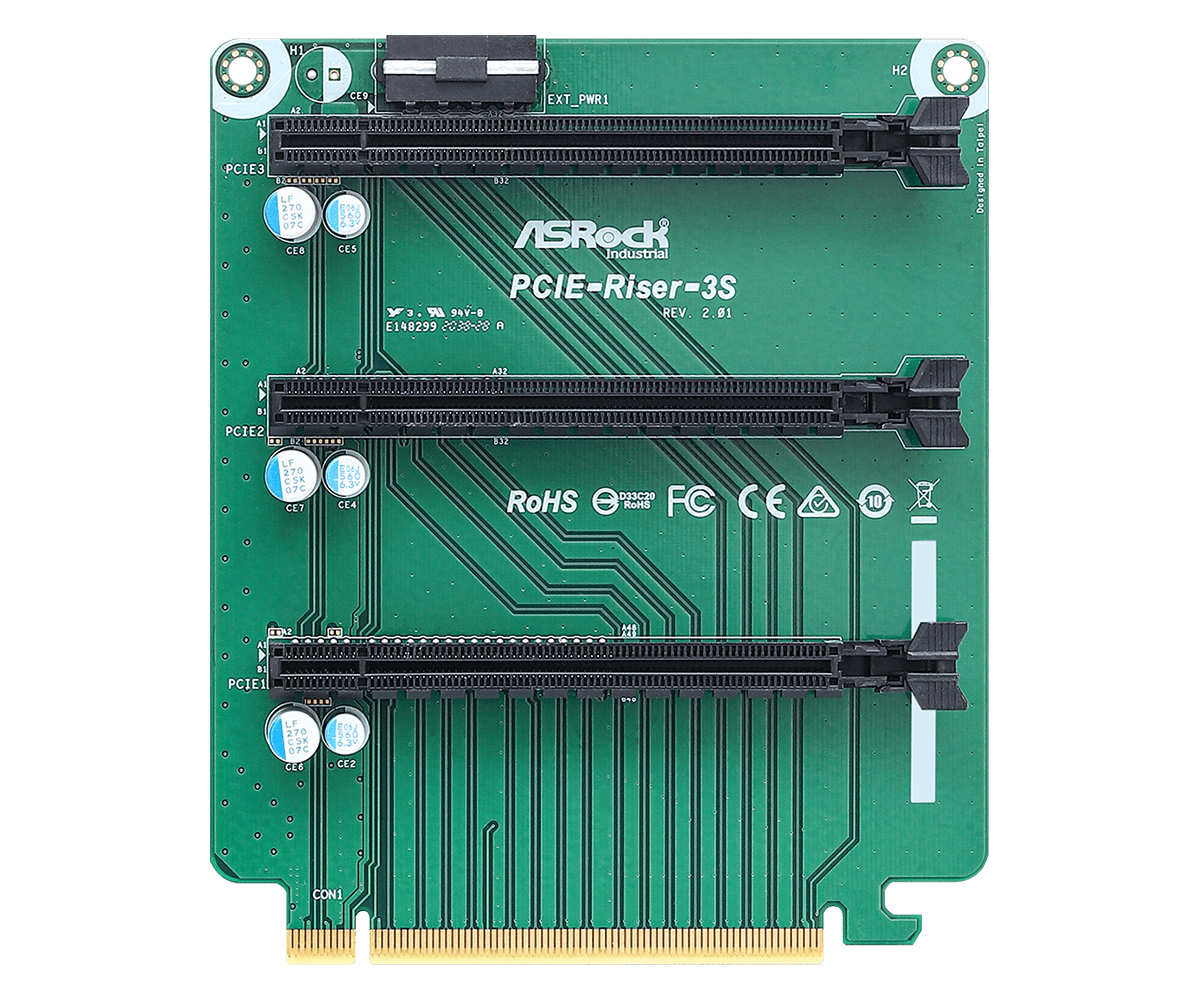

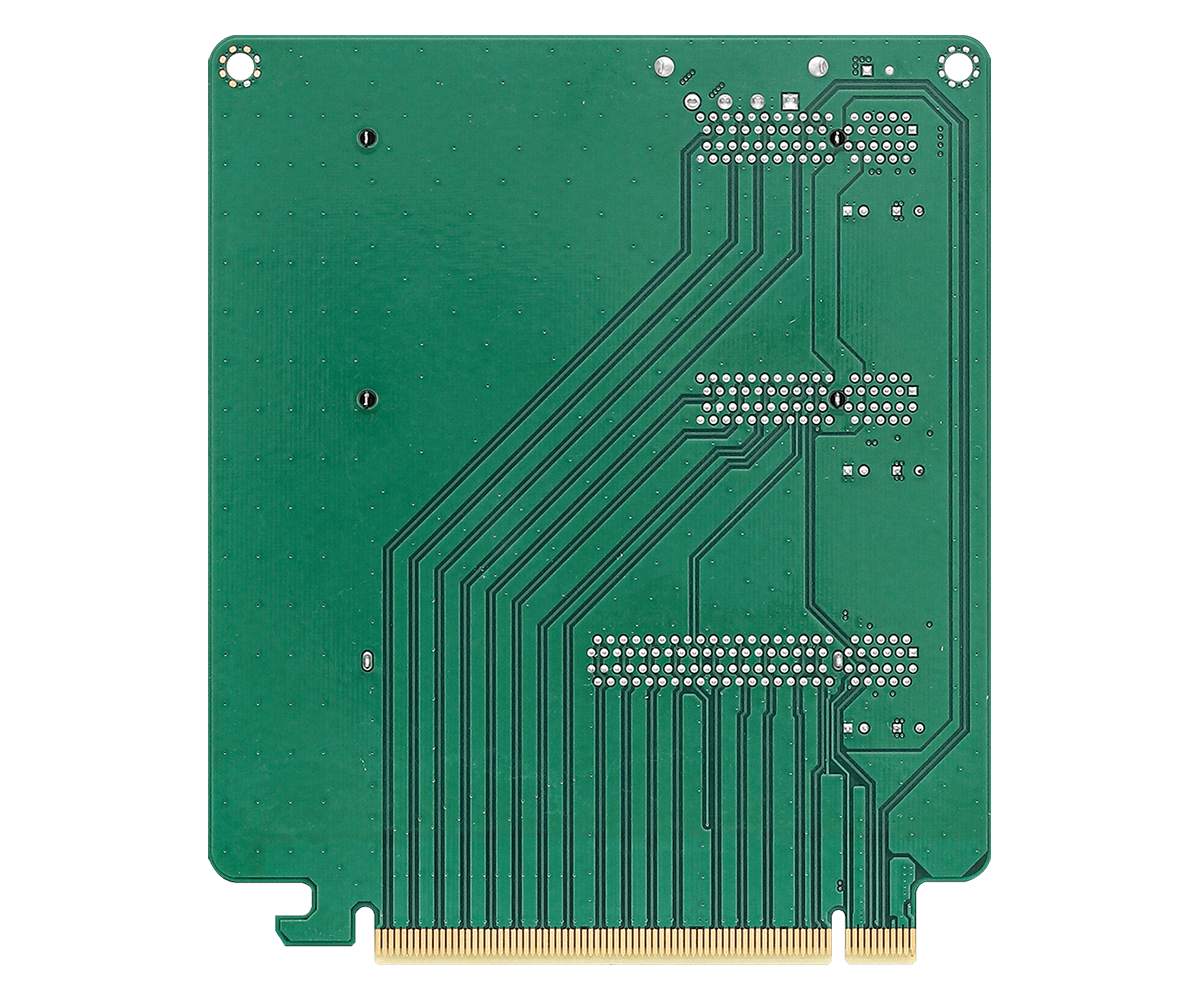

PCIE-Riser-3S
- [ASRock Industrial Exclusive] Only apply on ASRockind motherboards
- PCIe x16 (Gen3) to one PCIe x8 (Gen3) and two PCIe x4 (Gen3)
- Easy to install and use
- Upgradeability, flexibility and serviceability
Specification
Form Factor
| Function | PCIe x16 (Gen3) to 1 x PCIe x8 (Gen3) and 2 x PCIe x4 (Gen3) Expansion Slots |
|---|---|
| Form Factor | PCI Express x16 |
| Dimensions | 123 x 145 x 19.1 (W x L x H/mm) |
Input Interface
| Interface | PCI Express 3.0 x16 |
|---|---|
| Power | Power Con 4 PIN +12V |
Output Interface
| Interface | - One PCI Express 3.0 x8 - Two PCI Express 3.0 x4 |
|---|
Controller
| Major ICs | N/A |
|---|
Output Connector
| Connector | Three PCI Express 3.0 x16 Slots |
|---|
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
