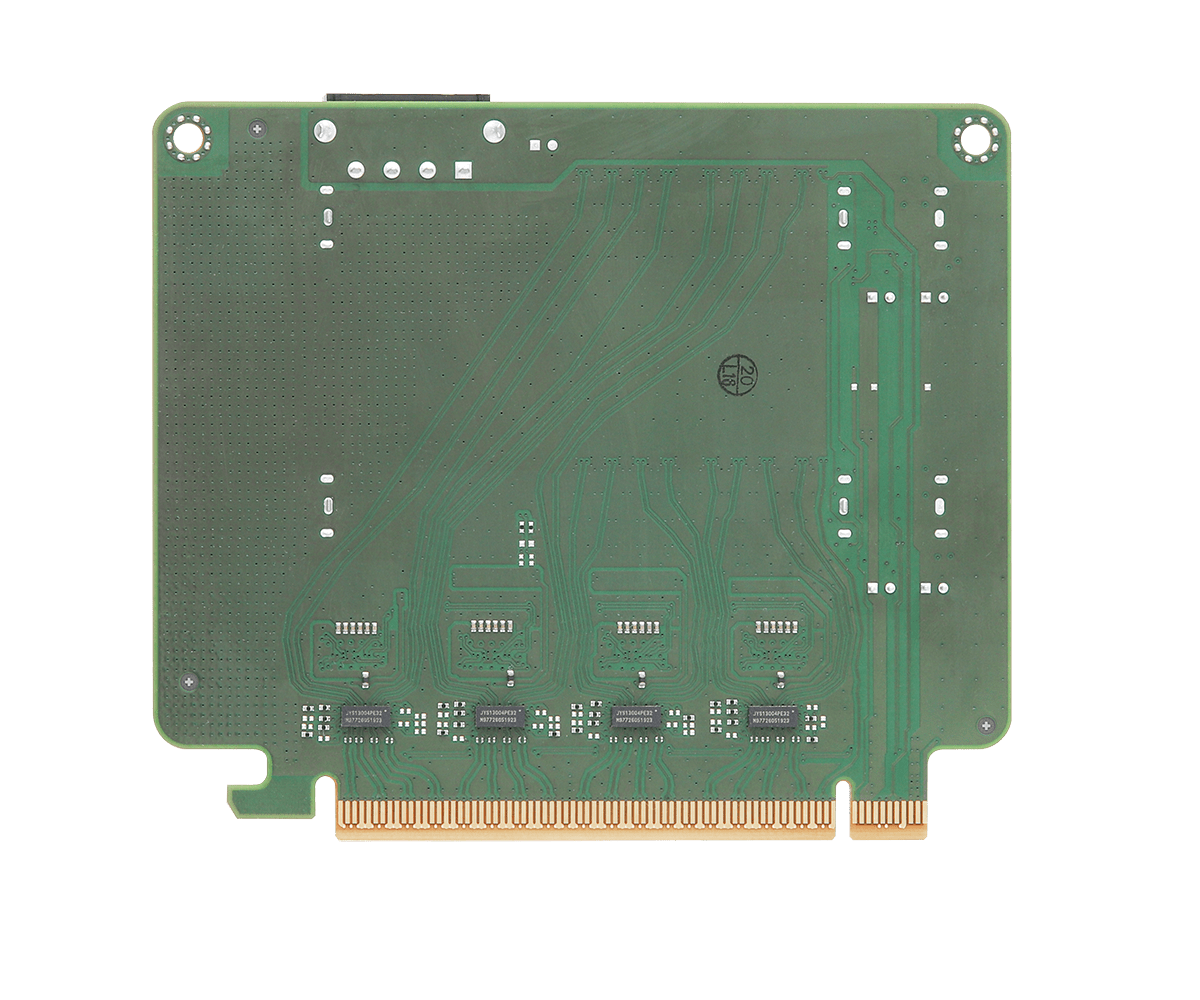

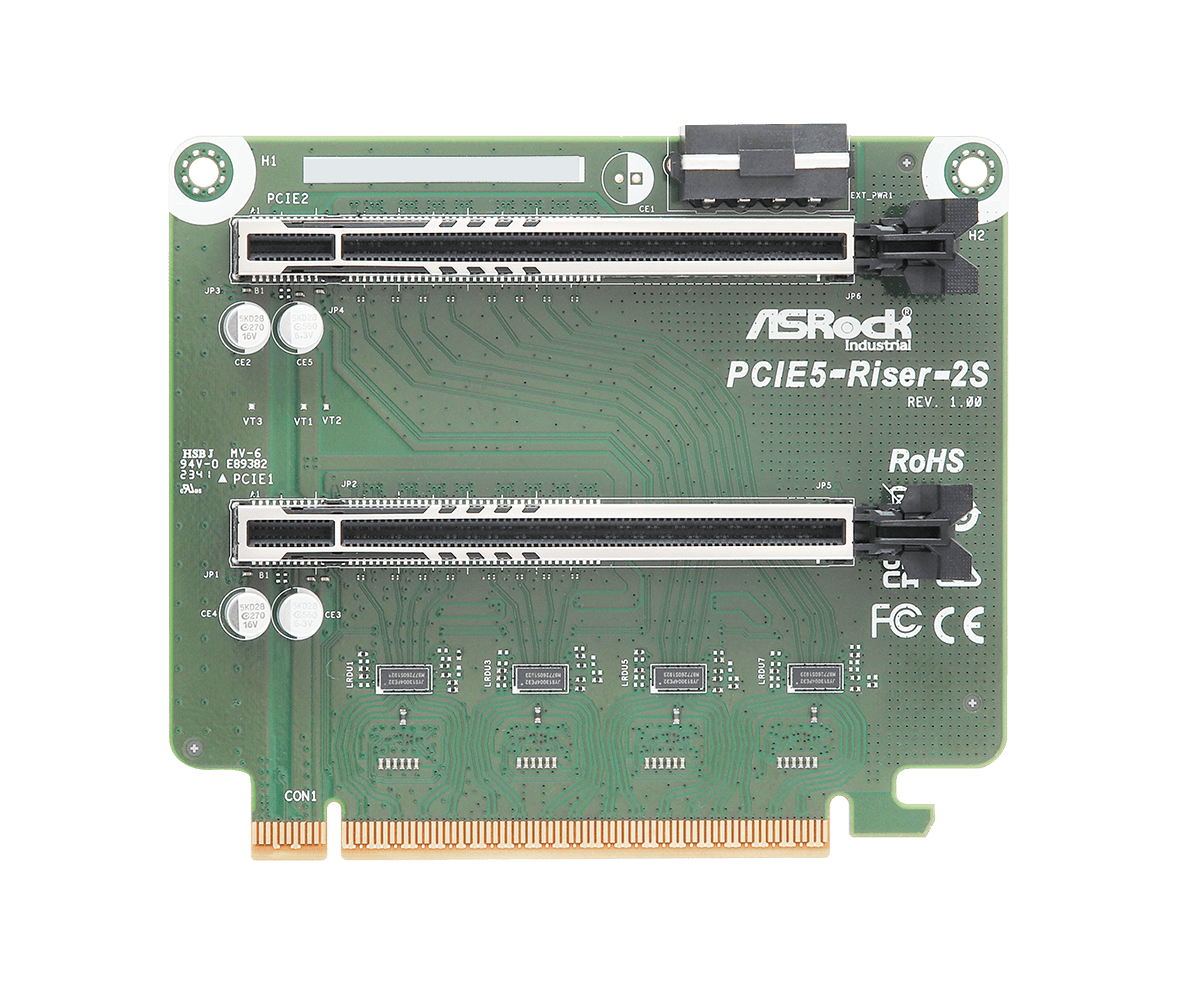

PCIE5-Riser-2S
- [ASRock Industrial Exclusive] Only apply on ASRockind motherboards
- PCIe x16 (Gen5) to two PCIe x8 (Gen5) slots
- Easy to install and use
- Upgradeability, flexibility and serviceability
Specification
Specifications
| Form Factor | PCI Express x16 |
|---|---|
| Dimensions (W x L x H/mm) | 123 x 104 x 19.1 |
| Controller / Major IC | LeRain JYS13004 |
| Input Interface/Power | PCI Express 5.0 x16 Power Con 4 PIN +12V |
| Output Interface/Power | PCI Express 5.0 x8 |
| Output connector | Two PCI Express 5.0 x16 Slots |
| Operating Temperature | -20ºC ~ 70ºC |
| Storage Temperature | -40ºC ~ 85ºC |
Form Factor
| Function | PCIe x16 (Gen4) to 2 x PCIe x8 (Gen4) Expansion Slots |
|---|---|
| Dimensions | 123 x 104 x 19.1 (W x L x H/mm) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
