IMB-XA1901
Preliminary

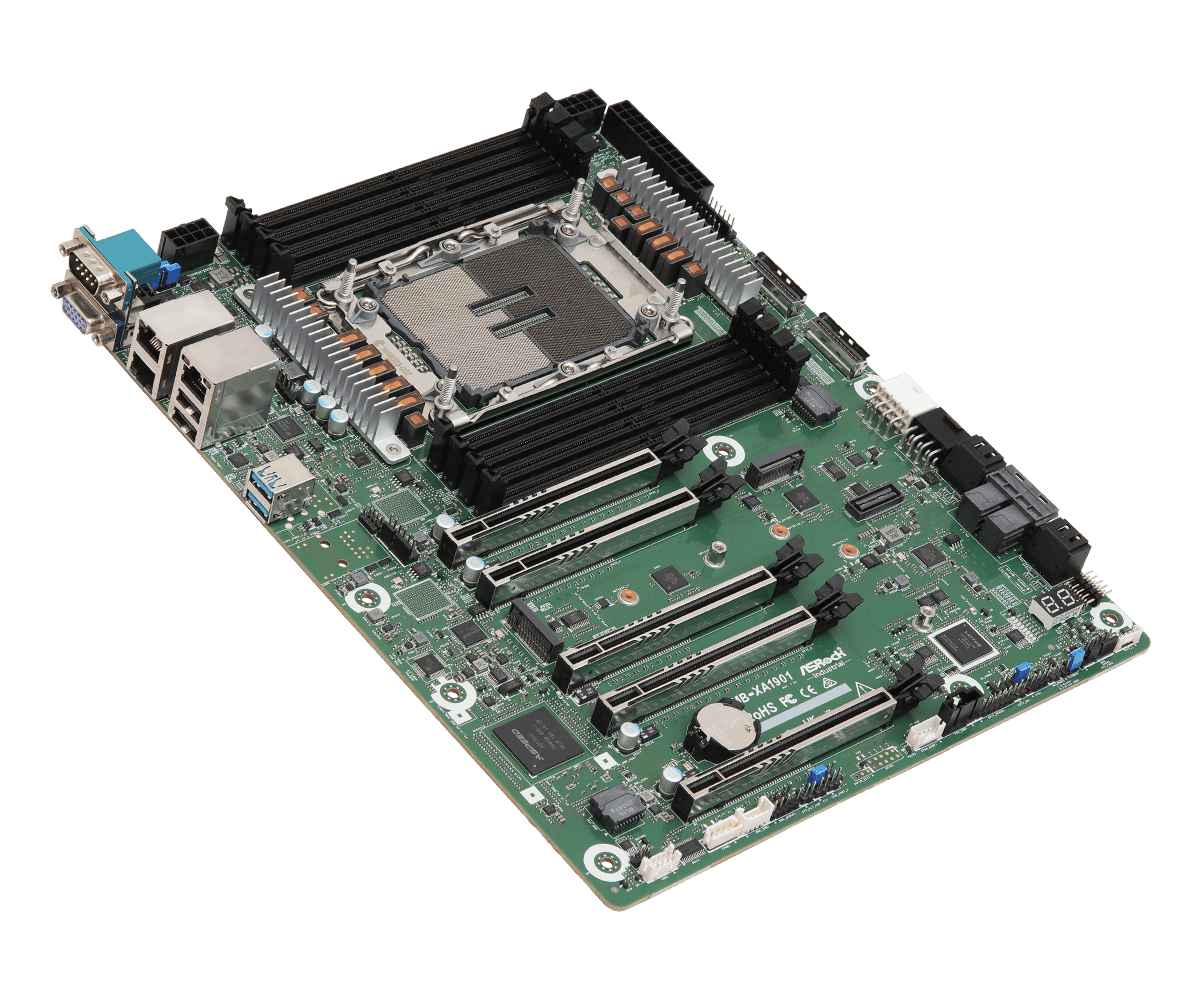

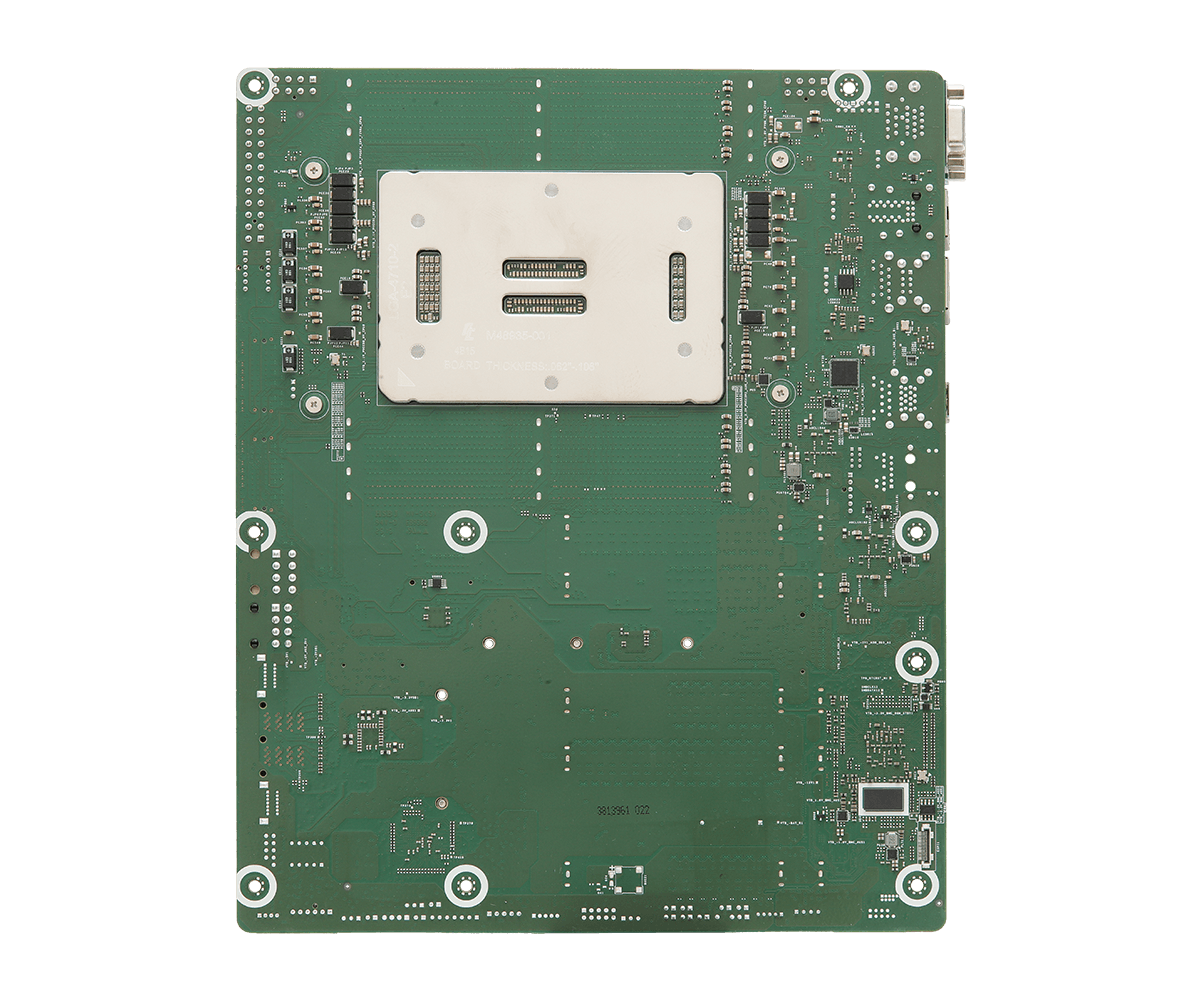

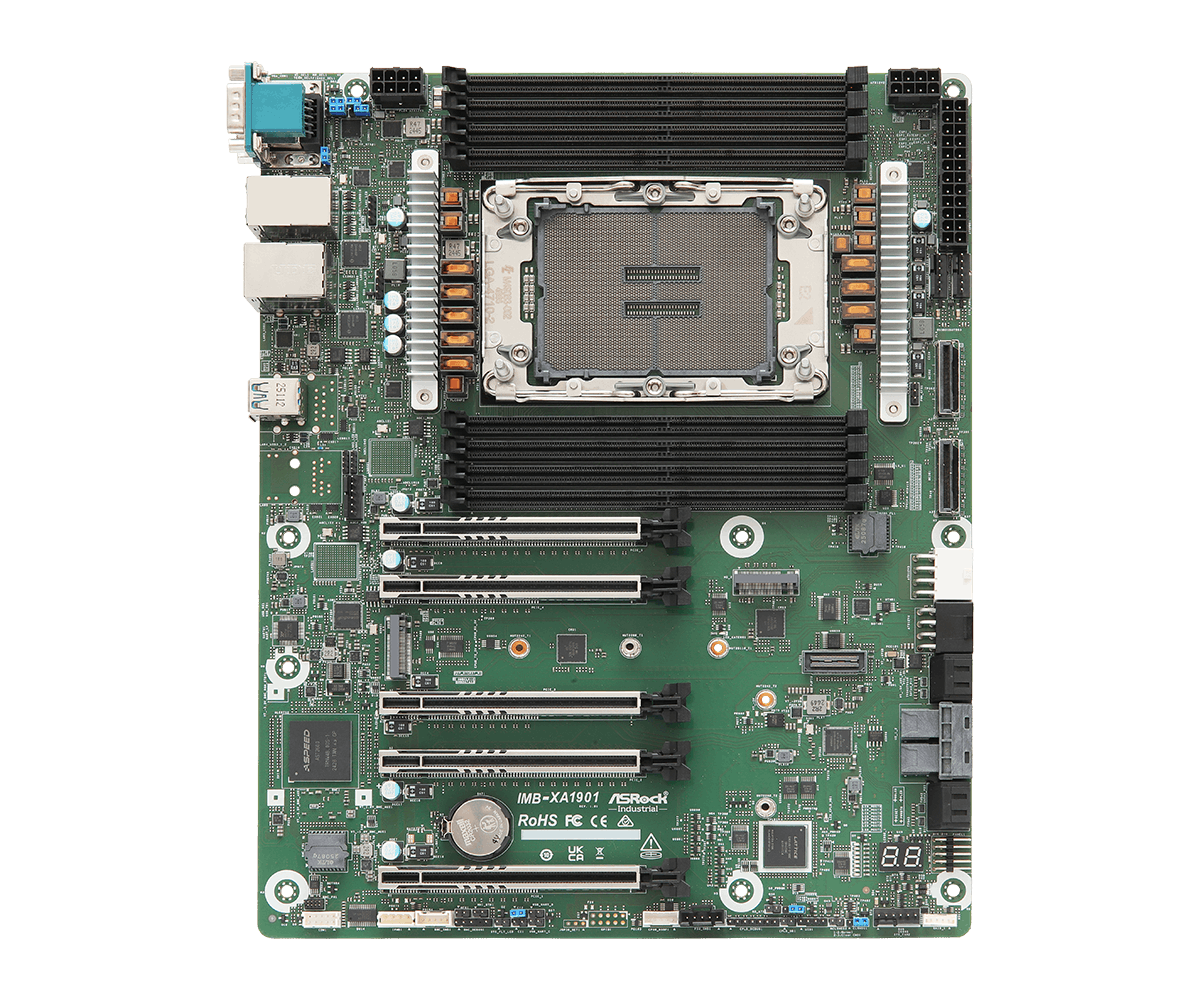

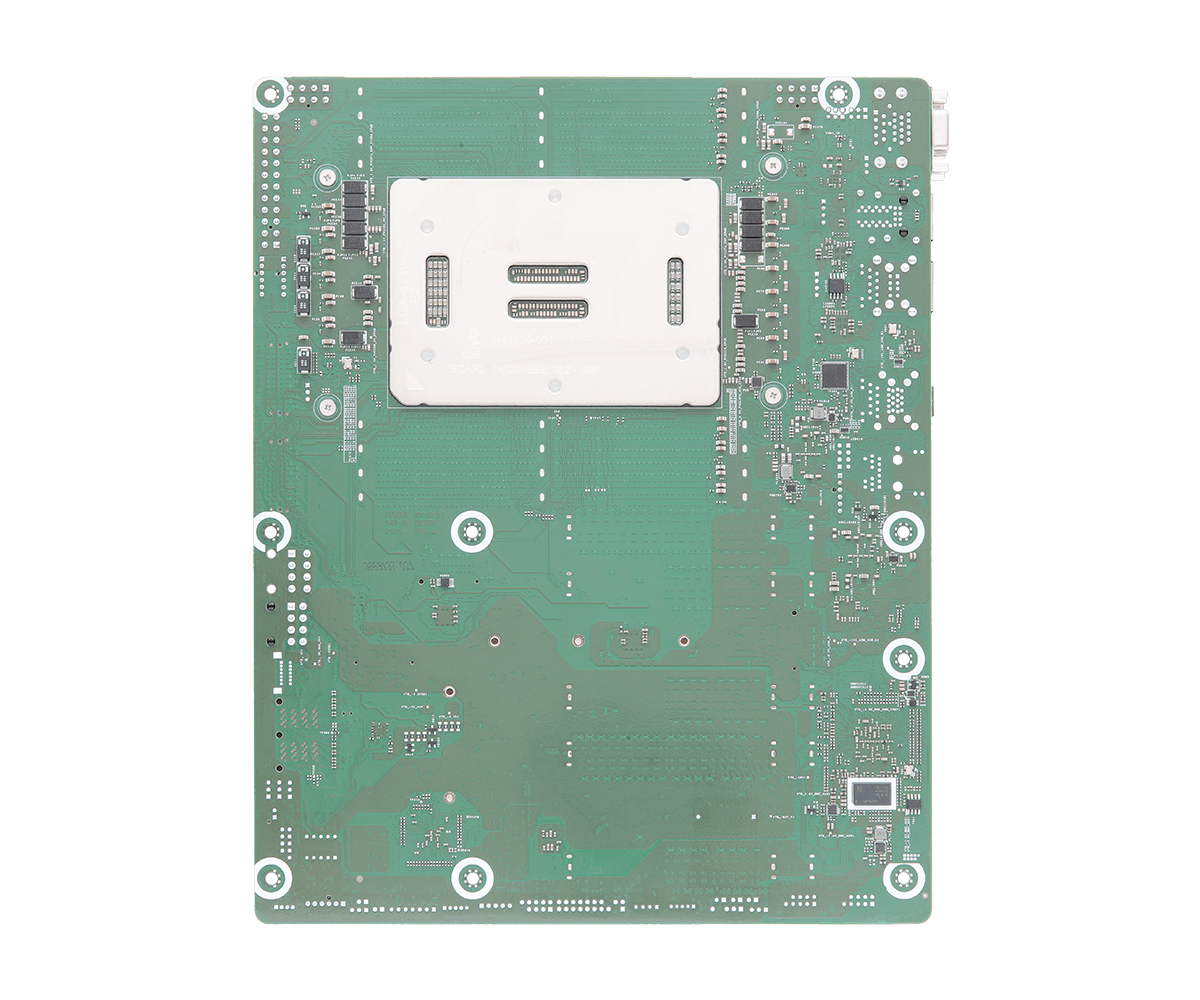

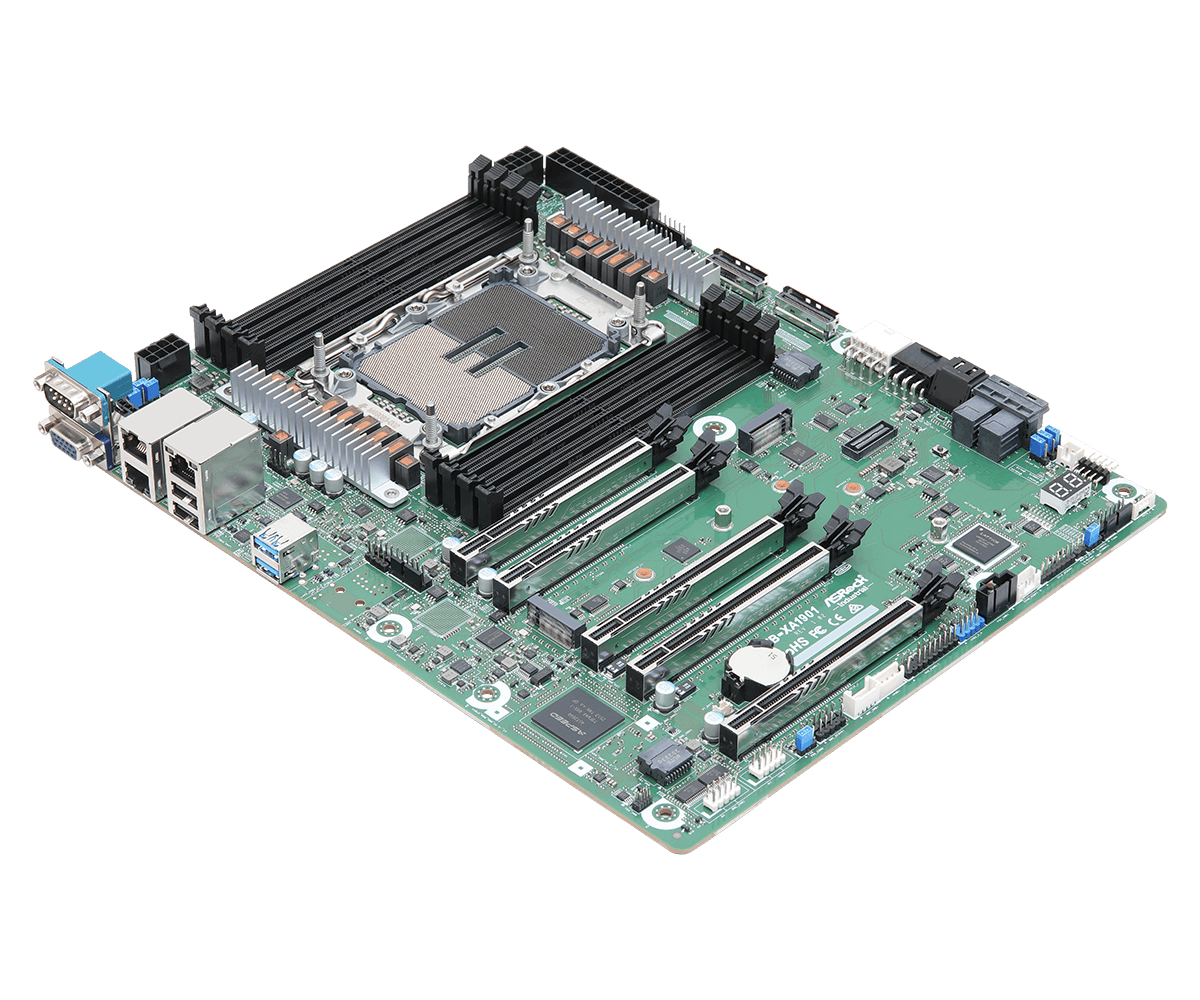

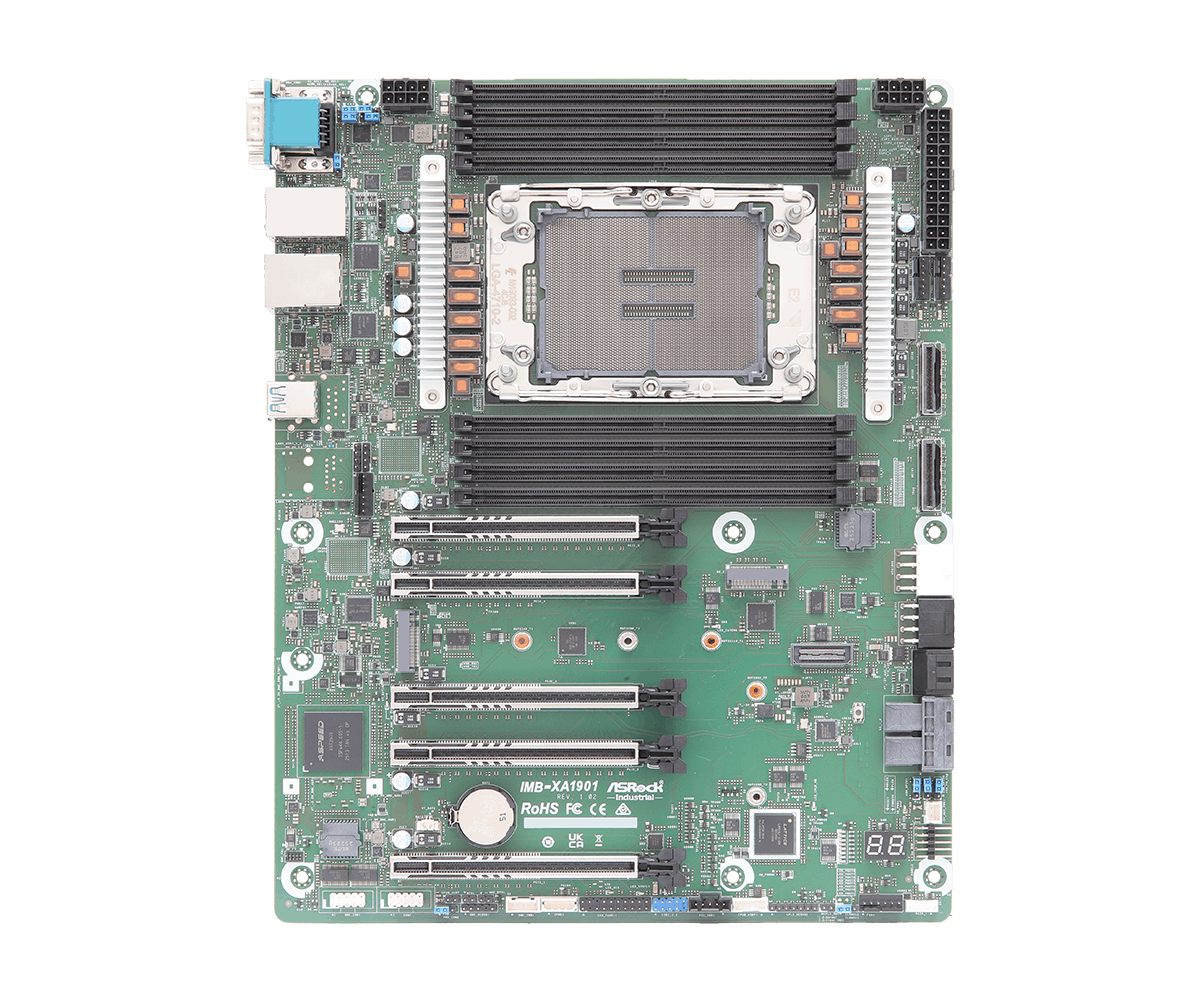

IMB-XA1901 ATX Motherboard

  • Intel® Xeon® 6700P/6500P/6700E Series processors
  • 8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 6400 MHz, up to 1TB
  • 2 x PCIe x16 (Gen5), 3 x PCIe x8 (Gen5), 2 x MCIO, 2 x USB 3.2 Gen1, 2 x USB 2.0, 2 x M.2 Key M, 3 x COM, 2 x Mini-SAS, 4 x SATA3
  • 2 x Intel 1 Gigabit LAN
  • Supports 1 x VGA
  • Remote management (IPMI)
  • TPM 2.0 onboard IC
  • Supports Intel® VMD RAID 0/1/10
  • ATX PWR (8+8+24 Pin)
Datasheet
Specification

Processor System

CPU Intel® Xeon® 6700P/6500P/6700E Series processors
Socket LGA4710
BIOS AMI SPI 512 Mbit

Management

BMC Controller ASPEED AST2600
IPMI 1 x Realtek RTL8211 for dedicated management GLAN

Form Factor

Dimensions ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm)

Memory

Technology Eight Channel ECC DDR5 6400 MHz
Capacity 1TB
Socket 8 x 288-pin RDIMM/RDIMM-3DS

Graphics

VGA 1 x VGA from ASPEED AST2600
Max resolution up to 1920x1200@60Hz

Expansion Slot

PCIe 5 x PCIe x16 Gen5 slot (PCIE1, 4, 6 supports x8 mode)
MCIO 2 x MCIO with PCIe Gen5 x8 (supported with R1S CPU)

Ethernet

Controller/ Speed 2 x Intel® I210AT with 10/100/1000 Mbps
Connector 2 x RJ-45

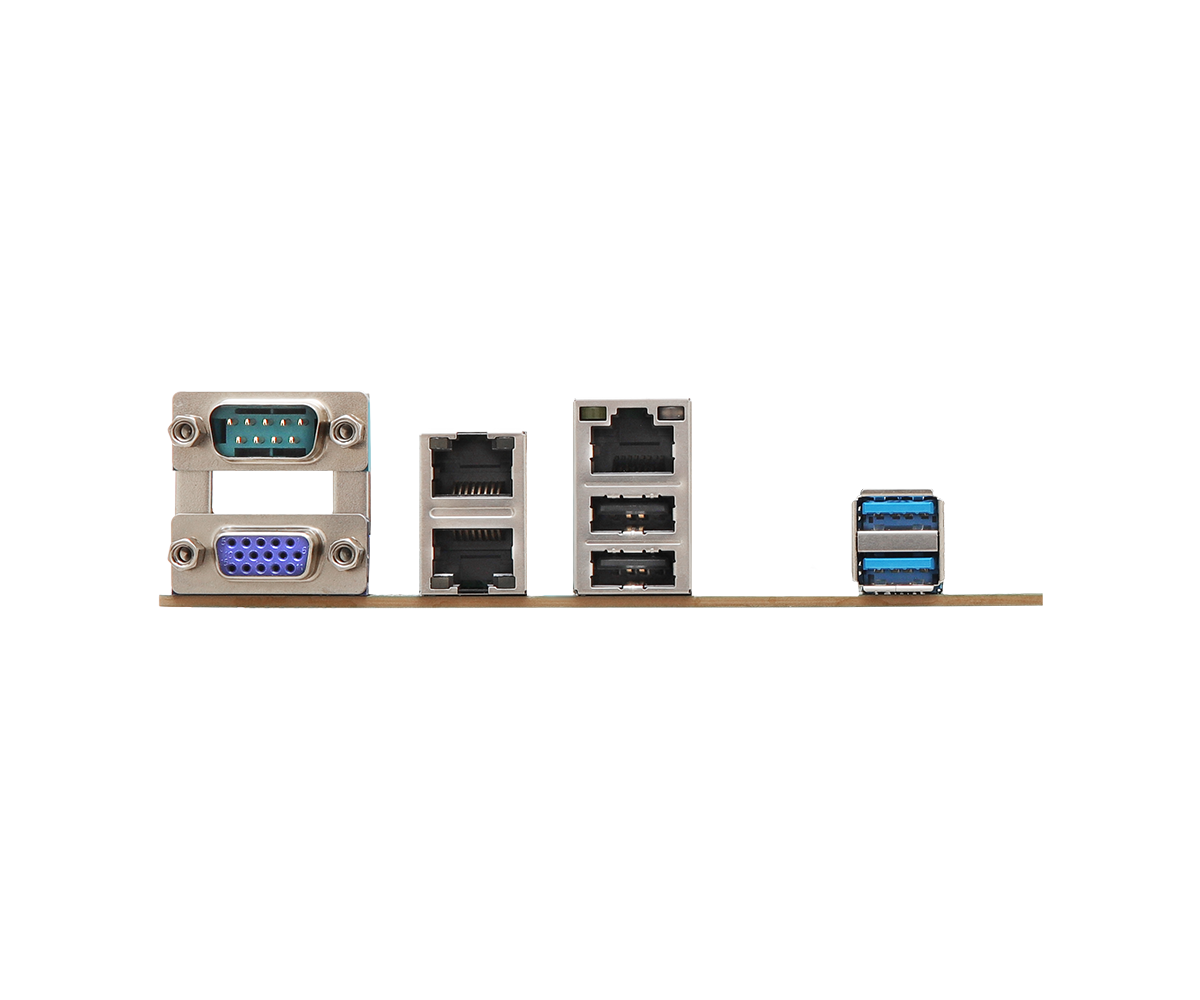

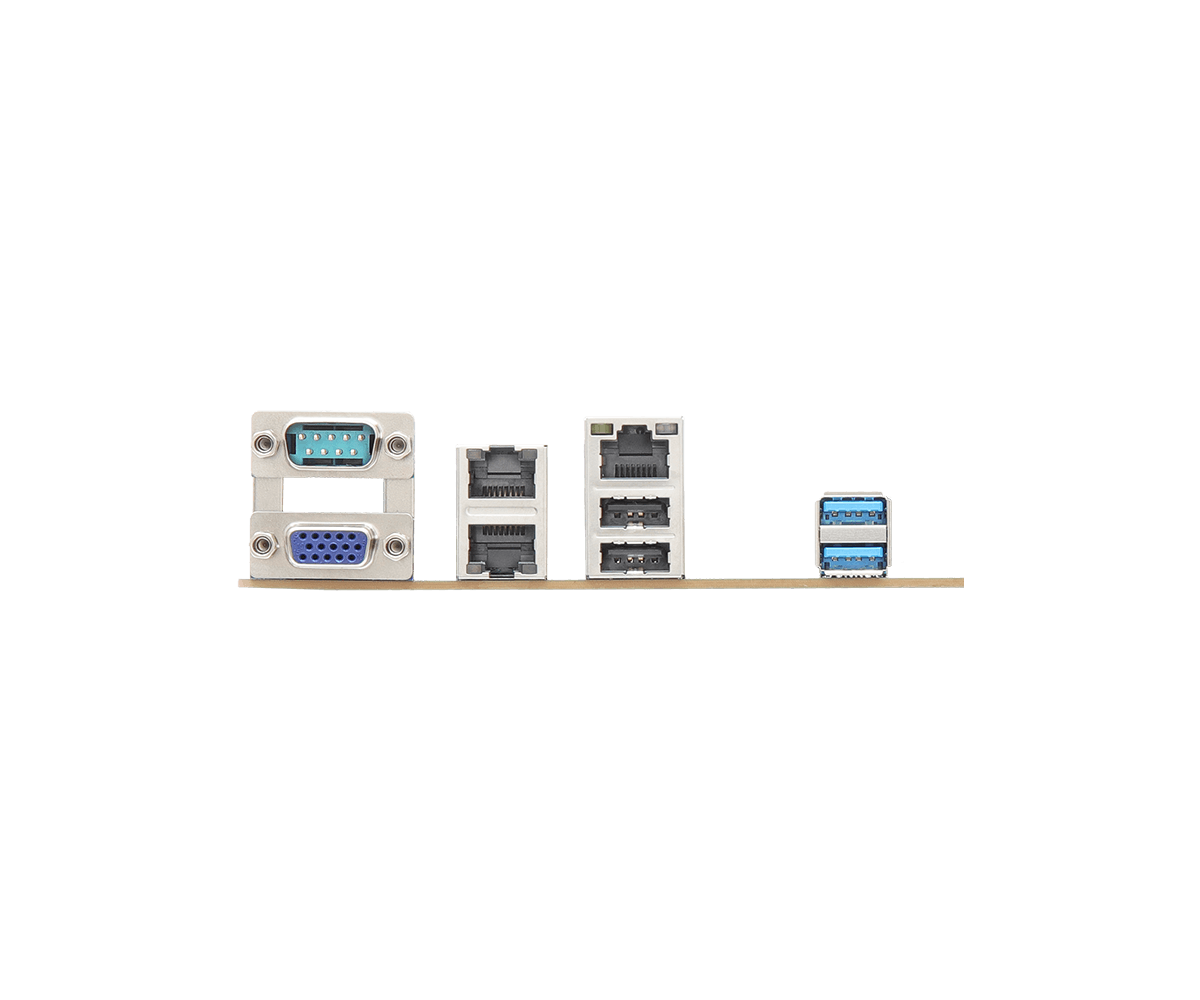

Rear I/O

VGA 1
Ethernet 2 x 1 Gigabit LAN
1 x Dedicated IPMI
USB 2 x USB 3.2 Gen1
2 x USB 2.0
COM 1 x COM (RS-232/422/485)

Internal Connector

COM 1 x COM (RS-232/422/485)
1 x COM (RS-232)
GPIO 4 x GPI, 4 x GPO

Security

TPM TPM 2.0 onboard IC

Storage

M.2 1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 for SSD
1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
Mini-SAS 2 x Mini-SAS with PCIe Gen4 x4
SATA 4 x SATA3
RAID Intel® VMD RAID 0/1/10
**supported by identical interface (PCIE or SATA)
PCIE interface: M.2 Key M
SATA interface: SATA port

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec

Power Requirements

Input PWR 1 x 24-pin ATX PWR connector
2 x 8-pin 12V PWR connector
1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 70ºC
Storage Temp -40°C ~ 85°C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
