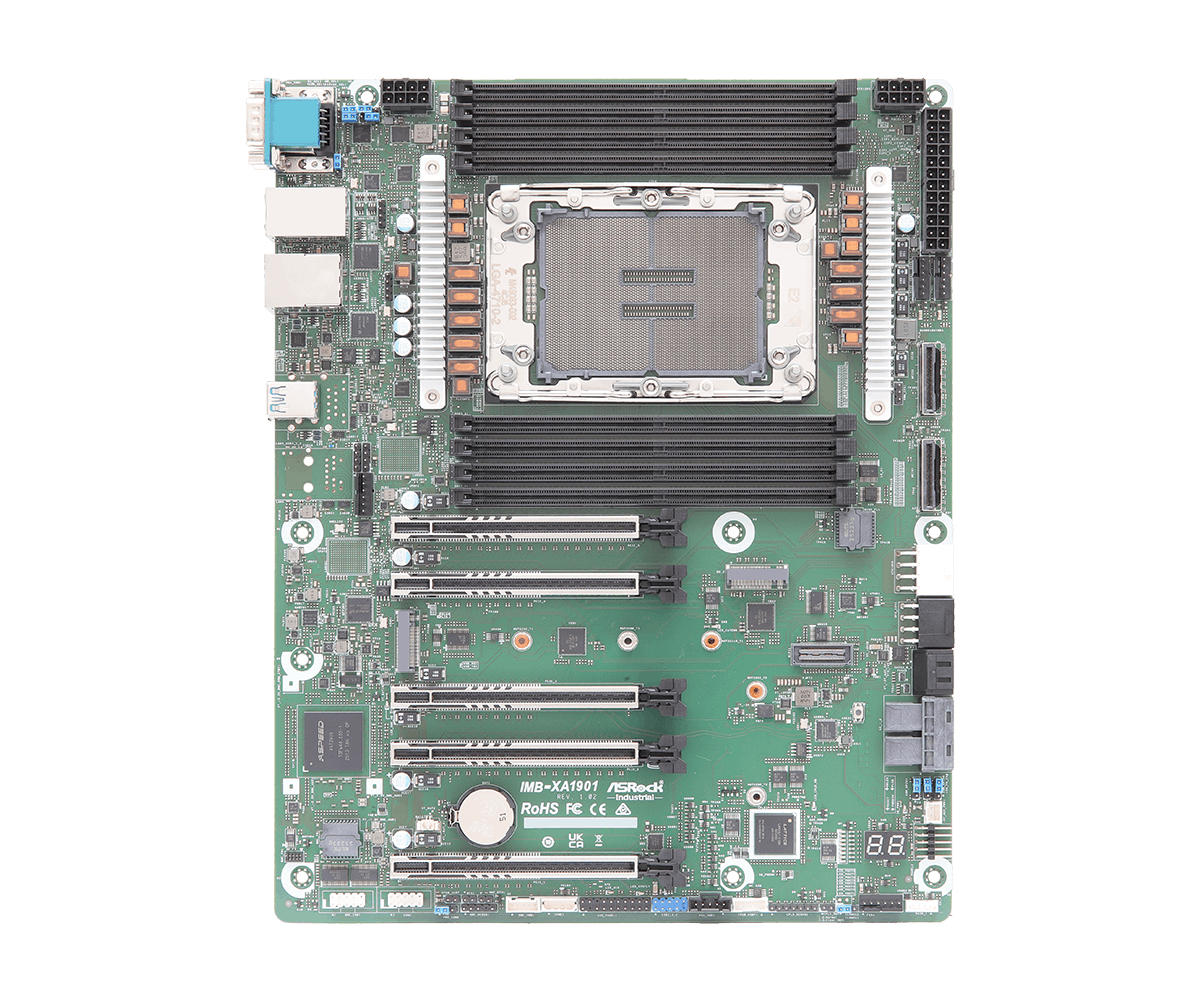

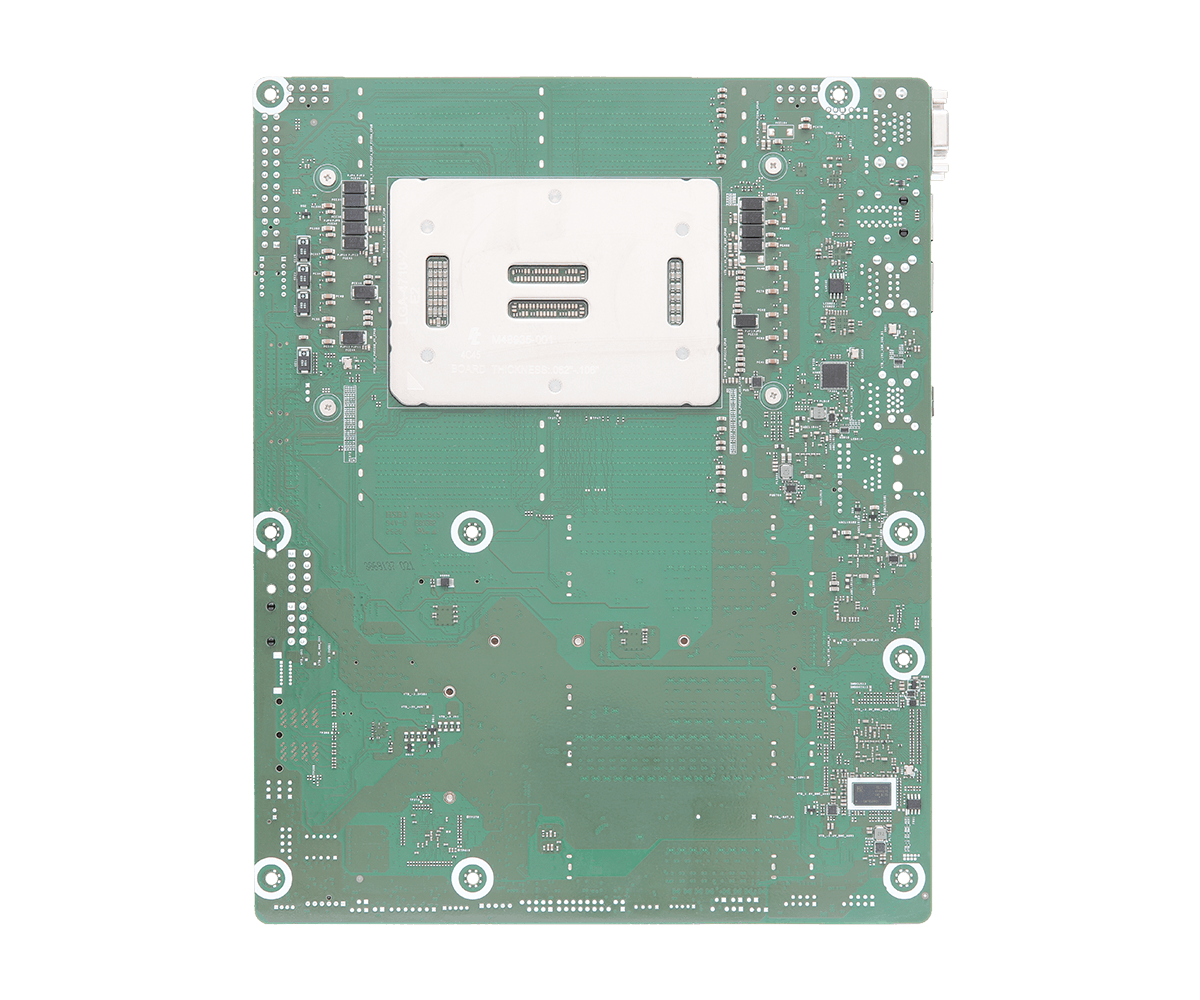

IMB-XA1901 ATX Motherboard

Processor System

CPU	Intel® Xeon® 6700P/6500P/6700E Series processors
Socket	LGA4710
BIOS	AMI SPI 512 Mbit

Management

BMC Controller	ASPEED AST2600
IPMI	1 x Realtek RTL8211 for dedicated management GLAN

Form Factor

Dimensions	ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm)

Memory

Technology	Eight Channel ECC DDR5 6400 MHz
Capacity	1TB
Socket	8 x 288-pin RDIMM/RDIMM-3DS

Graphics

VGA	1 x VGA from ASPEED AST2600 Max resolution up to 1920x1200@60Hz

Expansion Slot

PCIe	PCIE5: PCIe Gen5 x16 PCIE4: PCIe Gen5 x8 PCIE3: PCIe Gen5 x8 PCIE2: PCIe Gen5 x16 PCIE1: PCIe Gen5 x8
MCIO	2 x MCIO with PCIe Gen5 x8 (supported with R1S CPU)

Ethernet

Controller/ Speed	LAN1: Intel® I210AT with 10/100/1000 Mbps LAN2: Intel® I210AT with 10/100/1000 Mbps
Connector	2 x RJ-45

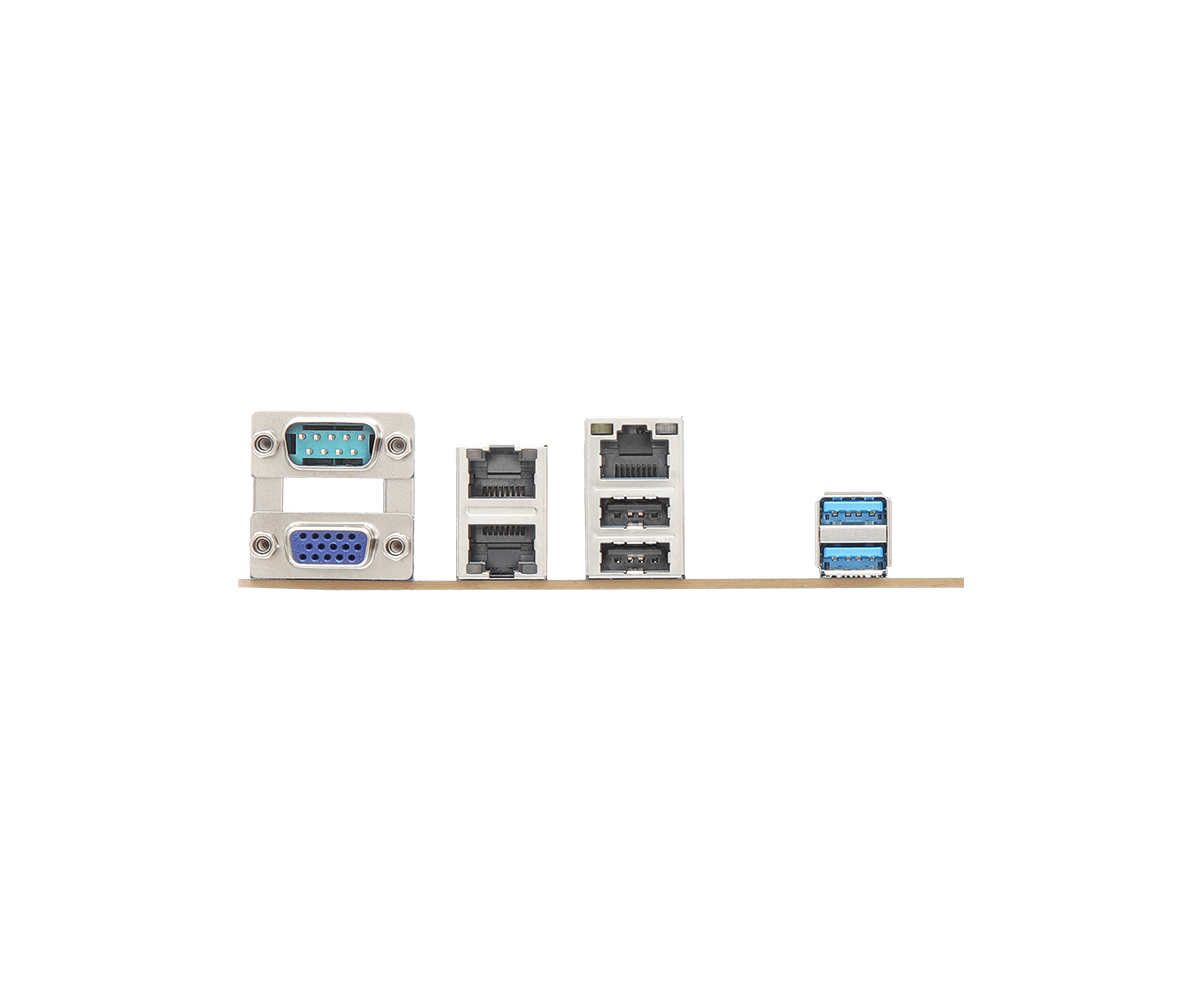

Rear I/O

VGA	1
Ethernet	2 x 1 Gigabit LAN 1 x Dedicated IPMI
USB	2 x USB 3.2 Gen1 2 x USB 2.0
COM	COM1 (RS-232/422/485)

Internal Connector

USB	2 x USB 2.0 (1 x 2.54 pitch header)
COM	COM2 (RS-232)

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen5 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen5 x4 for SSD
U.2	2 x U.2 with PCIe Gen4 x4
SATA	2 x SATA3
RAID	RAID 0/1 PCIE interface: M.2 Key M SATA interface: SATA port

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	1 x 24-pin ATX PWR connector 2 x 8-pin 12V PWR connector 1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40°C ~ 85°C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x COM Cable (14G000000310AK) 2 x SATA Cable (14G00010107DAK) 1 x LGA4710 E2A Carrier (13G014097000AK) 1 x LGA4710 E2B Carrier (13G014097010AK) 1 x I/O Shield (13G02P105000AK) 2 x SCREW M3*2.5 (13G02P072010AK)
Bulk Package	1 x LGA4710 E2A Carrier (13G014097000AK) 1 x LGA4710 E2B Carrier (13G014097010AK) 1 x I/O Shield (13G02P105000AK) 2 x SCREW M3*2.5 (13G02P072010AK)
