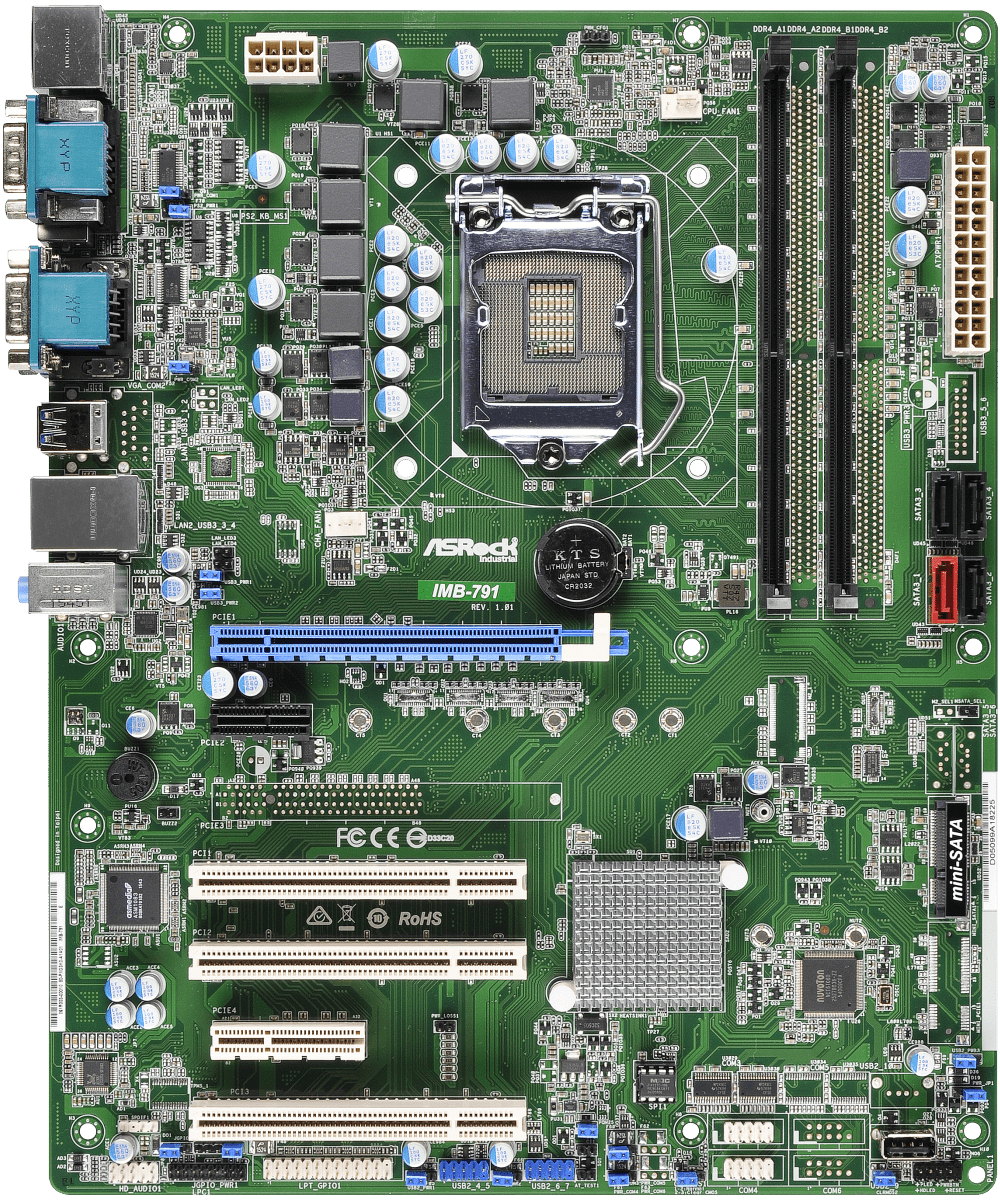

IMB-791 ATX Motherboard

Processor System

CPU	Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors, up to 65W
Chipset	Intel® H110
Socket	LGA1151
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32GB
Socket	4 x Long-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12, OGL4.3/4.4
DisplayPort	Supports max resolution up to 4096 x 2160@60Hz
VGA	Supports max resolution up to 1920 x 1200
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x16, 1 x PCIe x1, 1 x PCIe x4
PCI	3

Audio

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed	Intel® I219V with 10/100/1000 Mbps
Connector	2 x RJ-45

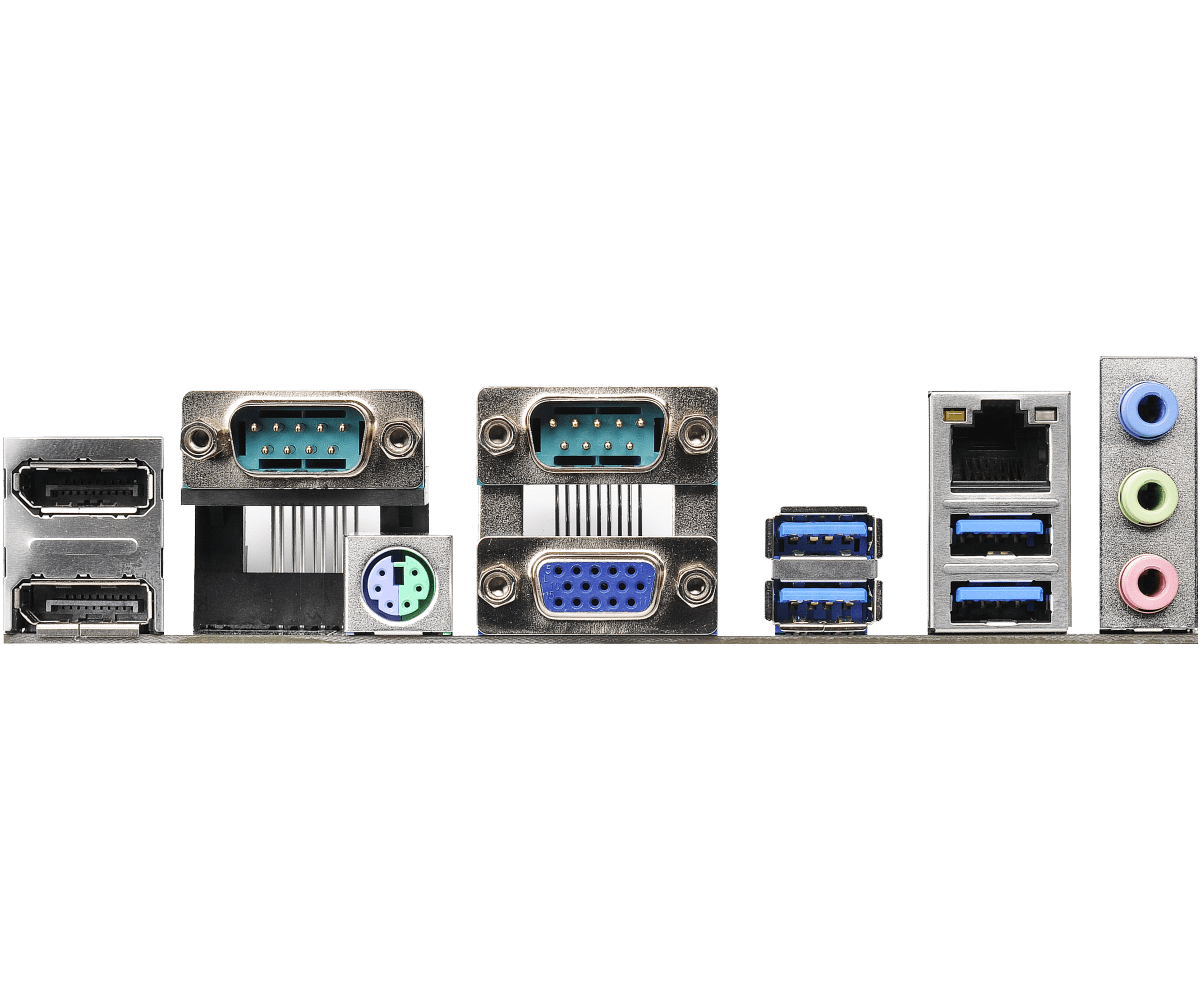

Rear I/O

DisplayPort	2
VGA	1
Ethernet	1
USB	4 x USB 3.0
Audio	3 (Mic-in, Line-in, Line-out)
COM	1 x COM (RS-232/422/485), 1 x COM (RS-232)
PS2	1 x PS/2 combo

Internal Connector

USB	5 x USB 2.0 (2 x 2.54 pitch header,1 x USB 2.0 vertical Type-A)
COM	2 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	1 x Header

Storage

mSATA	1 x Full size with shared SATA3 and USB2.0
SATA	4 (SATA1 shared with mSATA)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x I/O Shield (13G020341000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	1 x I/O Shield (13G020341000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
