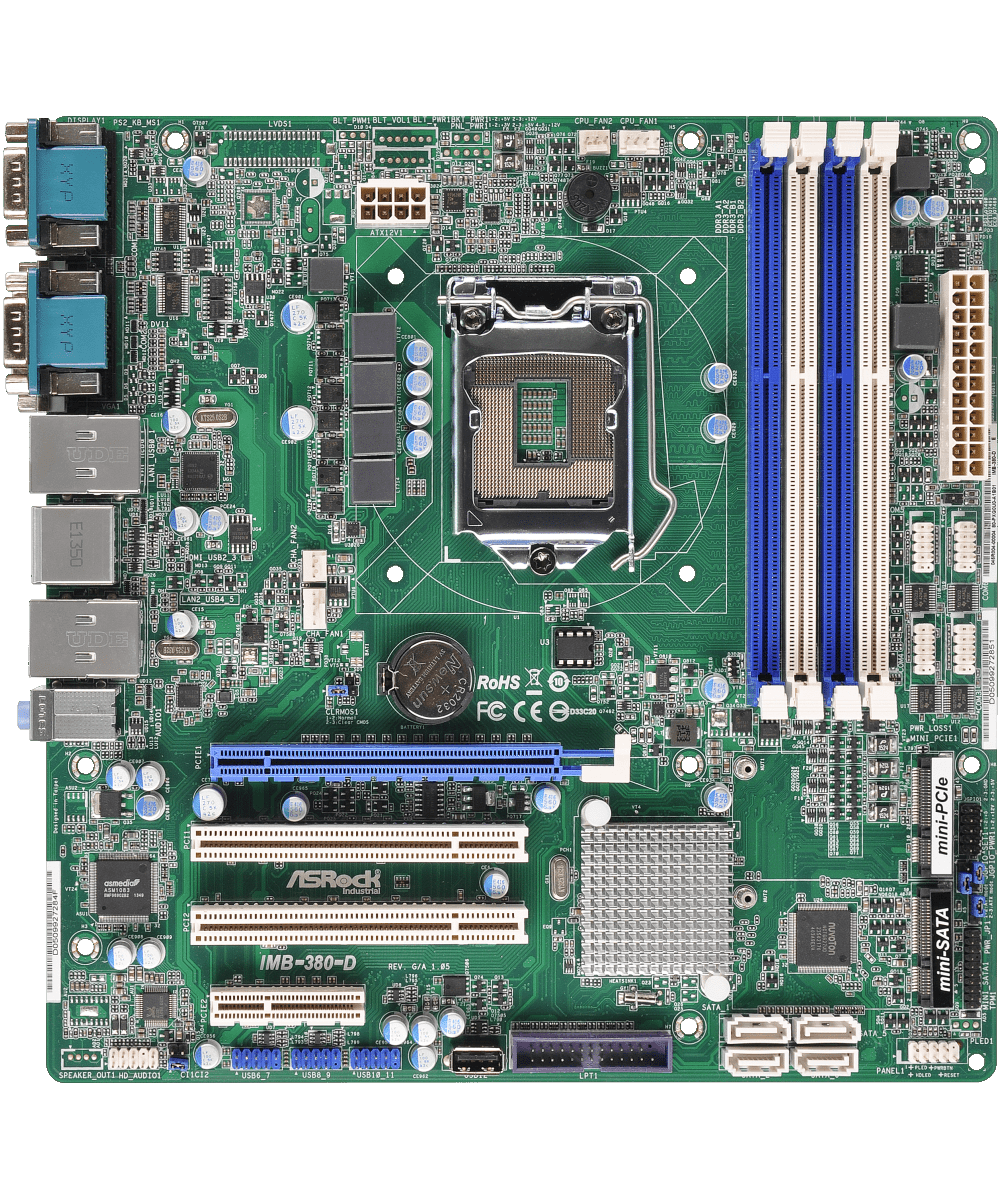

IMB-380-D Micro ATX Motherboard

Processor System

CPU	Socket LGA1150 for Intel Core i7 / i5 / i3 / Celeron (Haswell)
Chipset	Q87
BIOS	UEFI

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Capacity	32GB
Socket	4 x Long DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
DVI	Supports max resolution 1920 x 1200
DisplayPort	Supports max resolution 2560 x 1600
MultiDisplay	Triple Display

Expansion Slot

PCI	2
mini-PCIe	1 x Full size with PCIe x1 and USB 2.0
PCIe	1 (x16) + 1 (x4)

Ethernet

Controller/ Speed	LAN1:Intel I210 with 10/100/1000 Mbps LAN2: Intel I217LM with 10/100/1000 Mbps, support v-Pro
Connector	2 x RJ-45

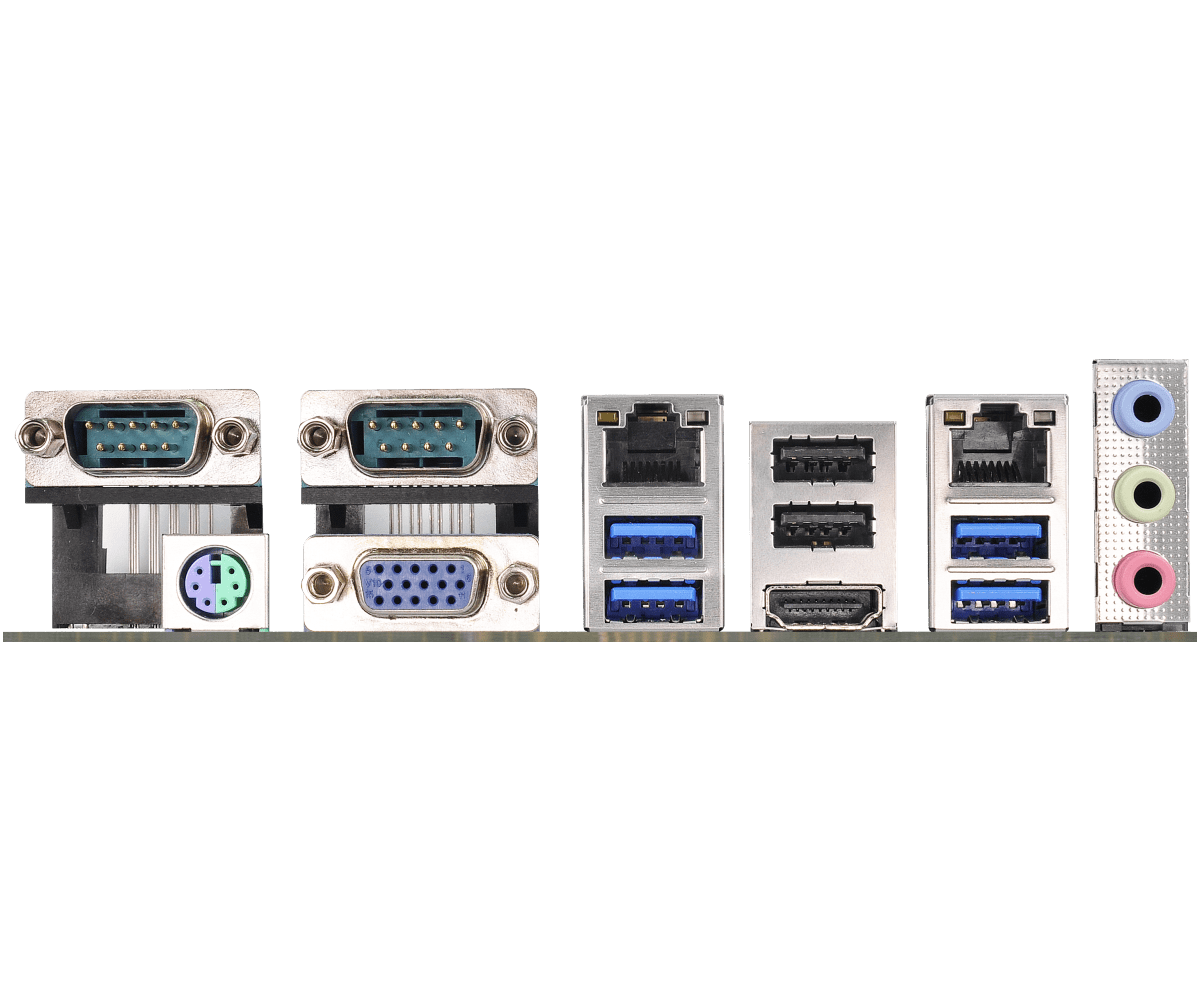

Rear I/O

HDMI	1
DVI	1 (DVI-I)
DisplayPort	1
Ethernet	2
USB	6 (4 x USB 3.0 compliant, 2 x USB 2.0 compliant)
Audio	3 (Mic-In, Line-Out, Line-In)
COM	2 x COM (RS-232/422/485)
PS2	1 (Combo)

Internal Connector

USB	6 (USB 2.0 compliant) 1 Vertical Type A USB Connector
COM	4 x COM (RS-232)
Parallel	1
GPIO	4 x GPI + 4 x GPO
SATA PWR Output	2
Speaker Header	1

Storage

mSATA	1 x Full size with SATA3
SATA	2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	Output from super I/O to drag RESETCON#
Interval	256 Segments, 0,1,2…255 Sec

Power Requirements

Input PWR	ATX PWR (8+24 pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x I/O Shield (13G020198000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	1 x I/O Shield (13G020198000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
