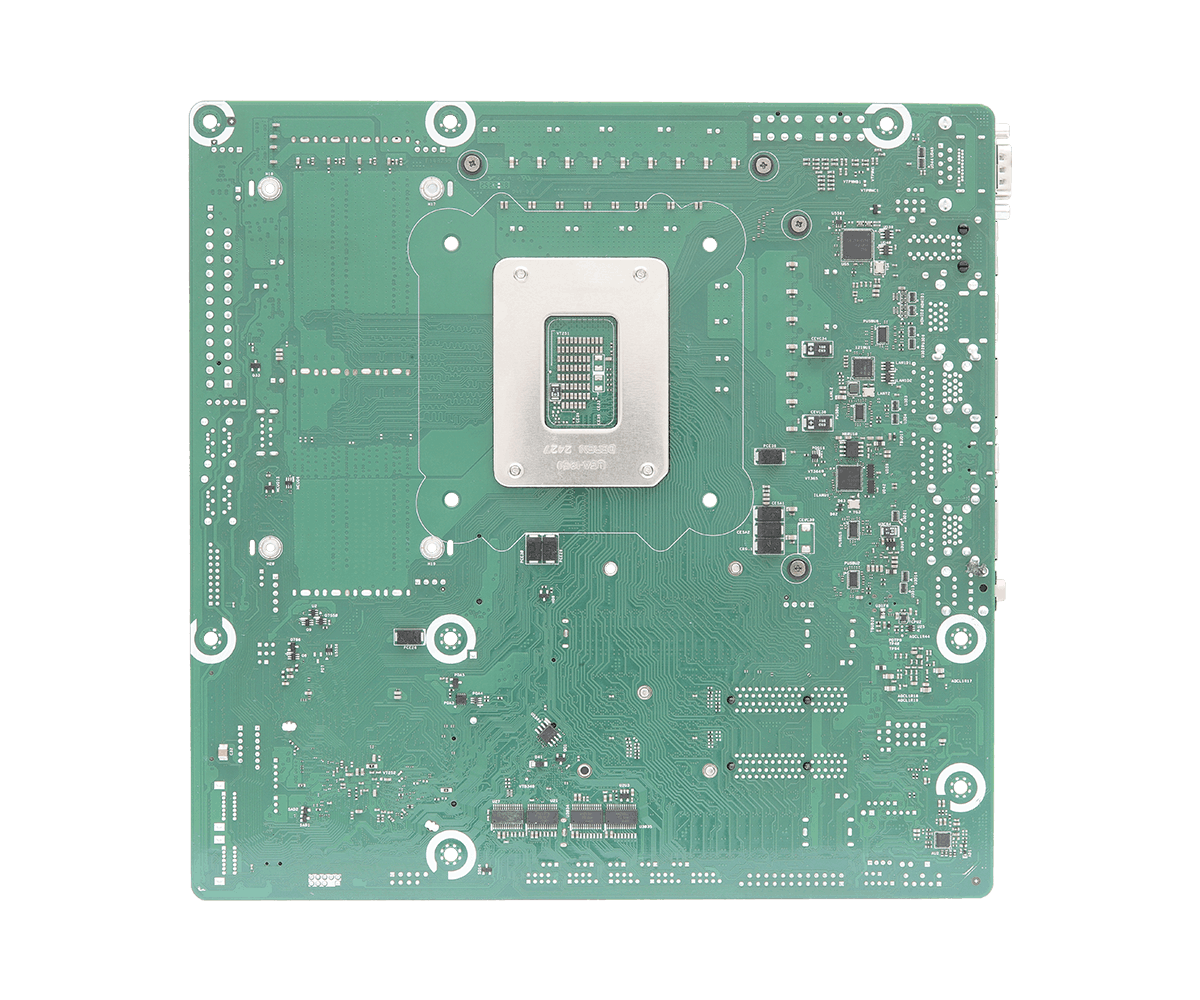

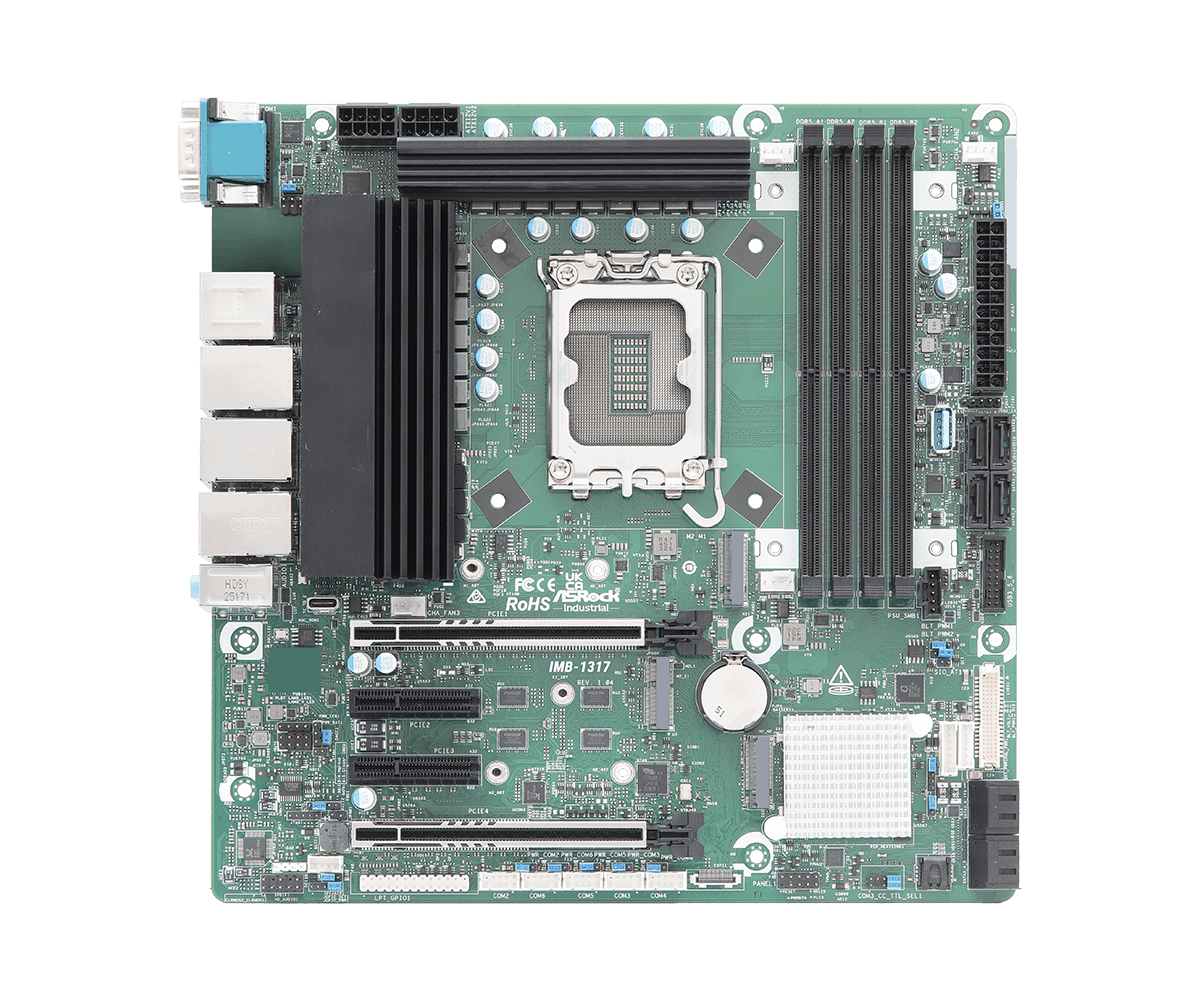

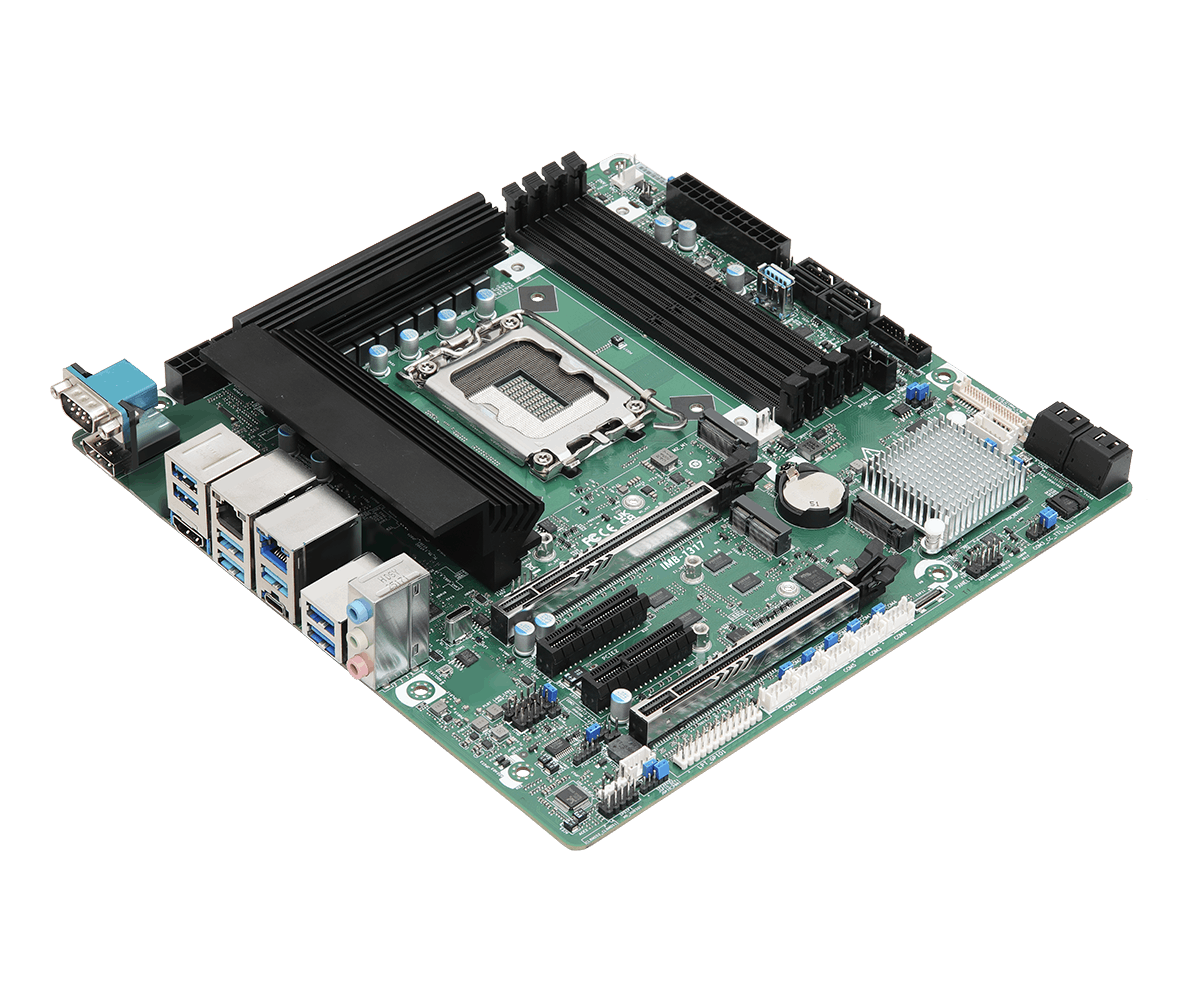

IMB-1317 Micro ATX Motherboard

  • Intel® Core™ Ultra processors (Arrow Lake-S) with Q870 chipset
  • 4 x 288-pin CU-DIMM DDR5 6400 MHz, U-DIMM DDR5 5600 MHz , up to 192GB (48GB per DIMM)
  • 1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 2 x PCIe x4 (Gen4)
  • 2 x USB4/Thunderbolt™4, 7 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 1 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.1 TMDS, 2 x DP 2.1 (2 from Type C), 1 x DP 1.4a, 1 x LVDS or eDP
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, VMD RAID 0/1/5/10
  • ATX Power (24+8+8-pin)
Datasheet
Specification

Processor System

CPU Intel® Core™ Ultra processors (Arrow Lake-S), up to 125W
Chipset Intel® Q870
Socket LGA1851
BIOS AMI SPI 256 Mbit

Form Factor

Dimensions Micro-ATX (9.6-in x 9.6-in x 1.81-in, 24.4 cm x 24.4 cm x 4.61 cm)

Memory

Technology Dual Channel DDR5 6400/5600 MHz
Capacity 192GB (48GB per DIMM)
Socket 4 x 288-pin Long-DIMM

Graphics

Controller Intel® Xᵉ LPG Graphics
HDMI HDMI 2.1 TMDS
Max resolution up to 7680x4320@60Hz
DisplayPort DisplayPort 2.1/1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDP Max resolution up to 1920 x 1200@60Hz
(Connector shared with LVDS)
MultiDisplay Quad display (Included 2 output from Type-C)

Expansion Slot

PCIe 2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support Riser card x8/x8)
2 x PCIe x4 (Gen4)
M.2 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket 1x SIM socket connected to M.2 key B

Audio

Interface Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In

Ethernet

Controller/ Speed LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

Rear I/O

HDMI 1 x HDMI 2.1 TMDS
DisplayPort 1 x DP 1.4a++
Ethernet 1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB 7 x USB 3.2 Gen2
1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output)
* For Thunderbolt support, please refer to support list.
Audio 3 (Line-In/Line-Out/Mic-In)
Serial Port COM1 (RS-232/422/485)

Internal Connector

USB 1 x USB 2.0 (1 x 2.54 pitch header)
2 x USB 3.2 Gen2 vertical Con
1 x USB4/Thunderbolt™4 vertical con. (5V/3A, supports DP 2.1 display output)
* For Thunderbolt support, please refer to support list.
COM COM2 (RS-232/422/485)
COM3 (RS-232/TTL 5V/ccTalk) (Switch by Jumper setting)
COM4, COM5, COM6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
LVDS 1 (Connector with LVDS/eDP signal, switch by BIOS)
Speaker Header 1
Thunderbolt header 1

Security

TPM TPM 2.0 onboard IC

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen5 x4 for SSD
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
SATA 8 x SATA3 (6Gb/s)
RAID Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIE or SATA)
PCIE interface: 2 x M.2 Key M
SATA interface: SATA port

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+8+8-pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 70ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package
Bulk Package

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
