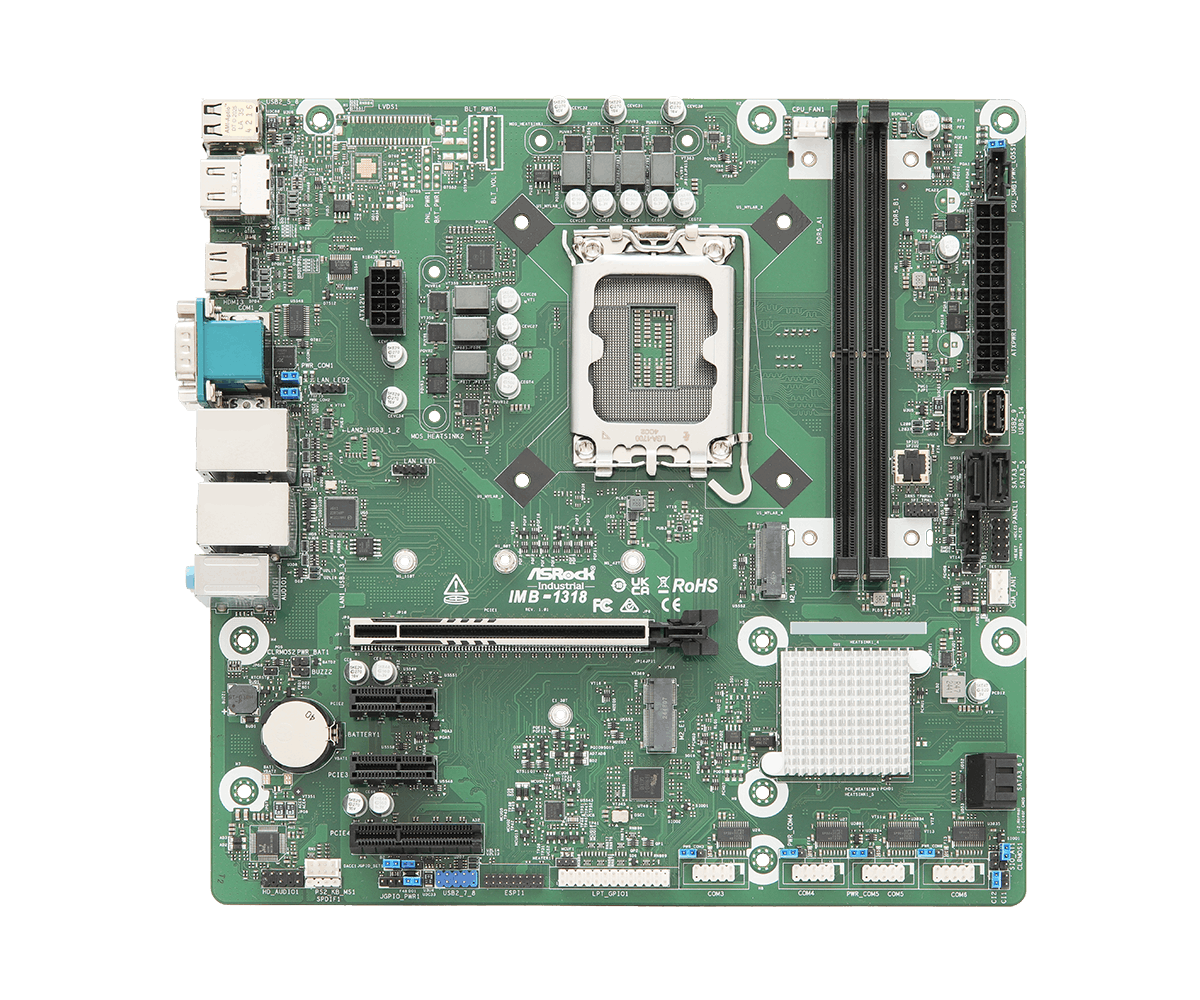

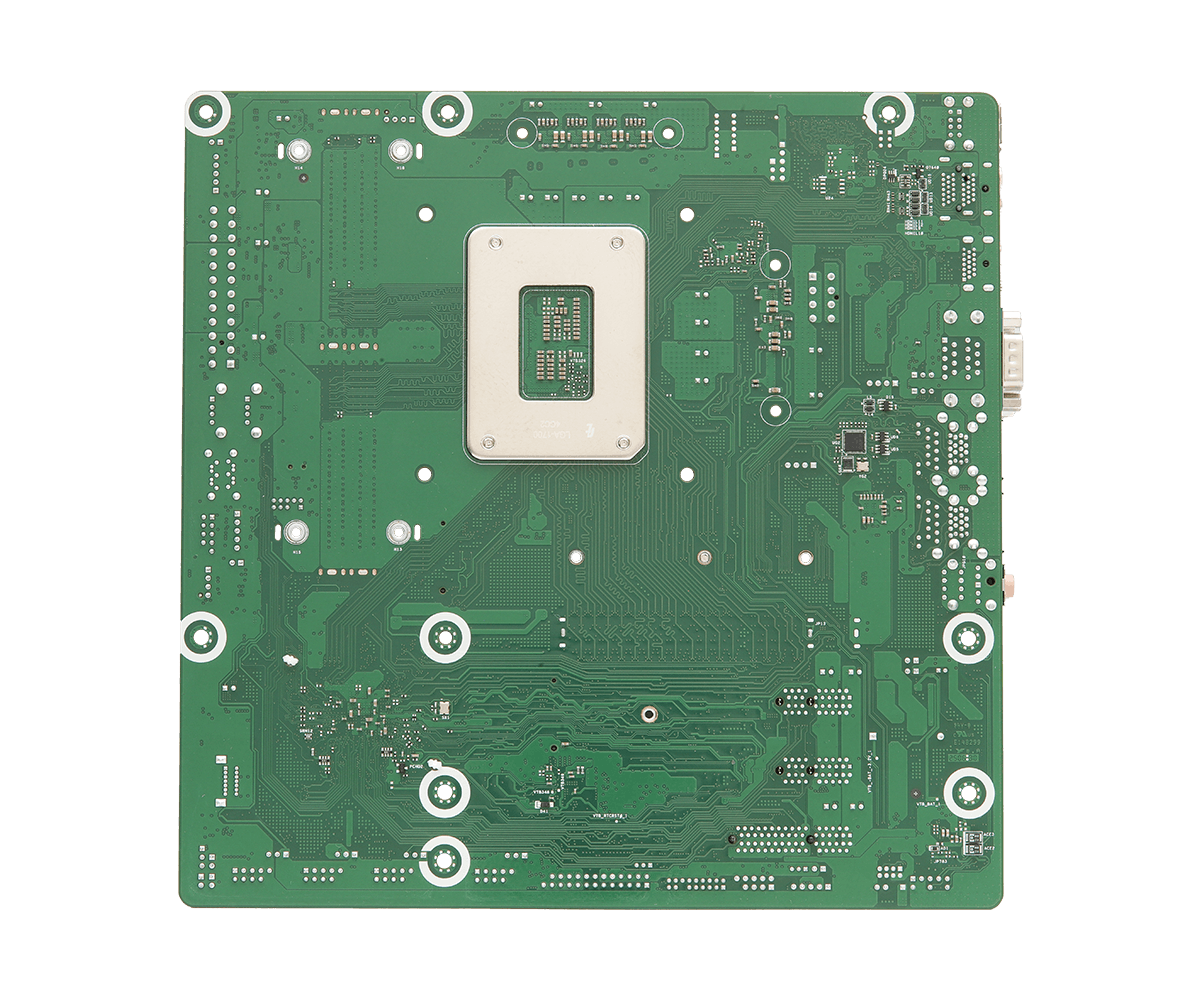

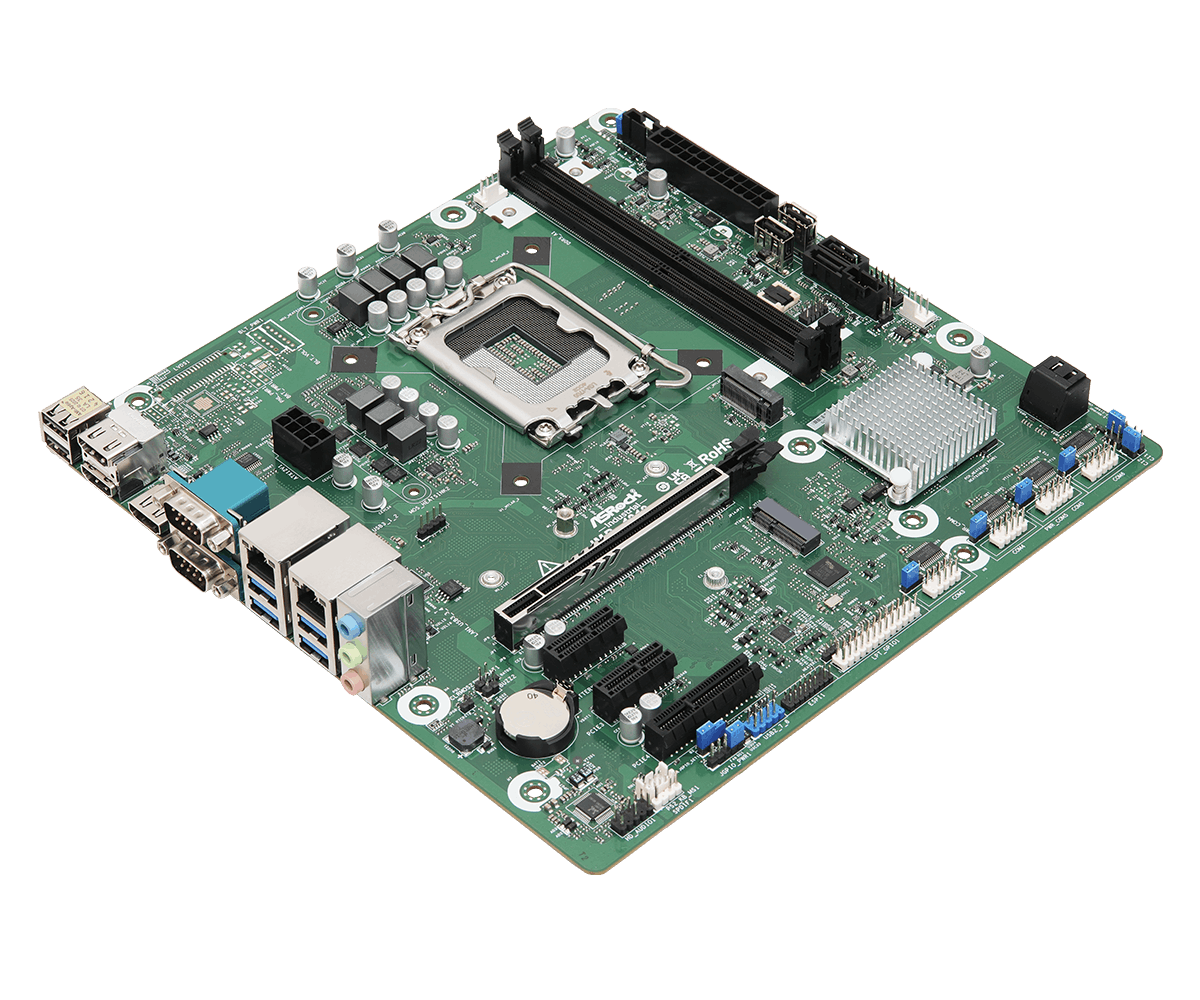

IMB-1318 Micro ATX Motherboard

Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with H610 chipset
2 x 288-pin Long-DIMM DDR5 4800/5600 MHz, up to 96GB (48 GB per DIMM)
1 x PCIe x16 (Gen5), 1 x PCIe x4 (Gen3), 2 x PCIe x1 (Gen3), 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 4 x SATA3
2 x Intel 1 Gigabit LAN
Supports Triple display, 3 x HDMI 1.4b
ATX PWR (8+24 Pin)

Datasheet

Specification

Processor System

CPU	Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
Chipset	Intel® H610
Socket	LGA 1700
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in x 1.58-in, 24.4 cm x 24.4 cm x 4.02 cm)

Memory

Technology	Dual Channel DDR5 4800/5600 MHz* *Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/faq&faq_id=90 technical FAQ
Capacity	96GB (48GB per DIMM)
Socket	2 x 288-pin Long-DIMM

Graphics

Controller	Intel® UHD Graphics
HDMI	HDMI 1.4b Max resolution up to 4096 x 2160@30Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) (BOM option)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) (BOM option)
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x16 (Gen5) 1 x PCIe x4 (Gen3) 2 x PCIe x1 (Gen3)
M.2	1 x M.2 (Key E, 2230) with CNVi for Wireless

Audio

Interface	Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In

Ethernet

Controller/ Speed	LAN1: Intel® I210AT with 10/100/1000 Mbps LAN2: Intel® I219V with 10/100/1000 Mbps
Connector	2 x RJ-45

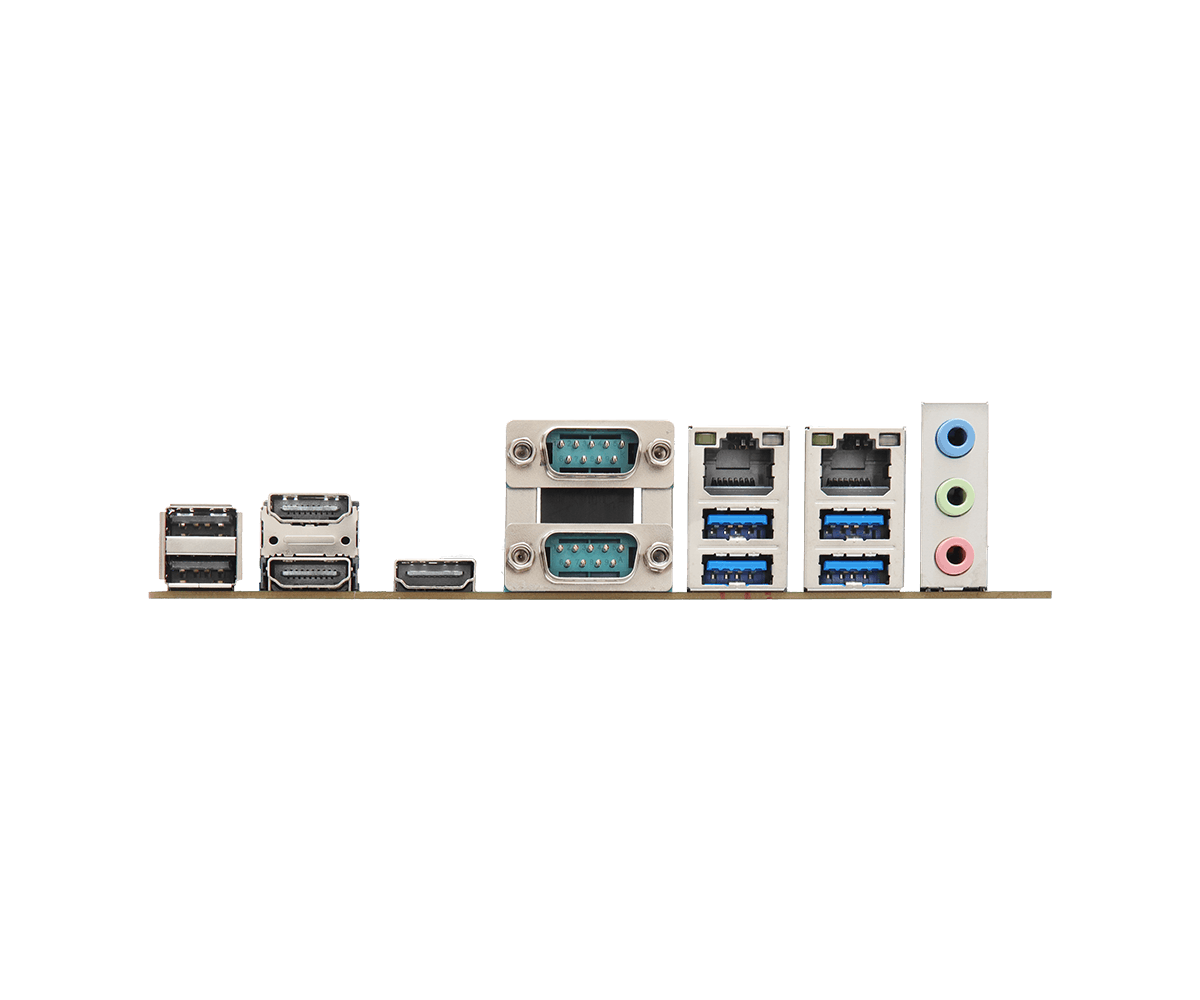

Rear I/O

HDMI	3 x HDMI 1.4b
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.2 Gen1 2 x USB 2.0
Audio	3 (Line-In/Line-Out/Mic-In)
COM	COM1 (RS-232/422/485), COM2 (RS-232)

Internal Connector

USB	4 x USB 2.0 (1 x 2.54 pitch header, 2 x USB 2.0 Type-A vertical con)
COM	COM3, COM4, COM5, COM6 (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS) (BOM option)
Speaker Header	1
PS/2	1 x PS/2 header
Thunderbolt header	1

Security

TPM	TPM Header

Storage

M.2	1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen3 x1 for SSD
SATA	4 x SATA3

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P088000AK) 2 x SCREW M3*2.5 (13G02P072010AK) 1 x 2.54mm MINI JUMPER (12G044060027AK)
Bulk Package	1 x I/O Shield (13G02P088000AK) 2 x SCREW M3*2.5 (13G02P072010AK) 1 x 2.54mm MINI JUMPER (12G044060027AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
