IMB-1011J-WV
IMB-1011J-WV

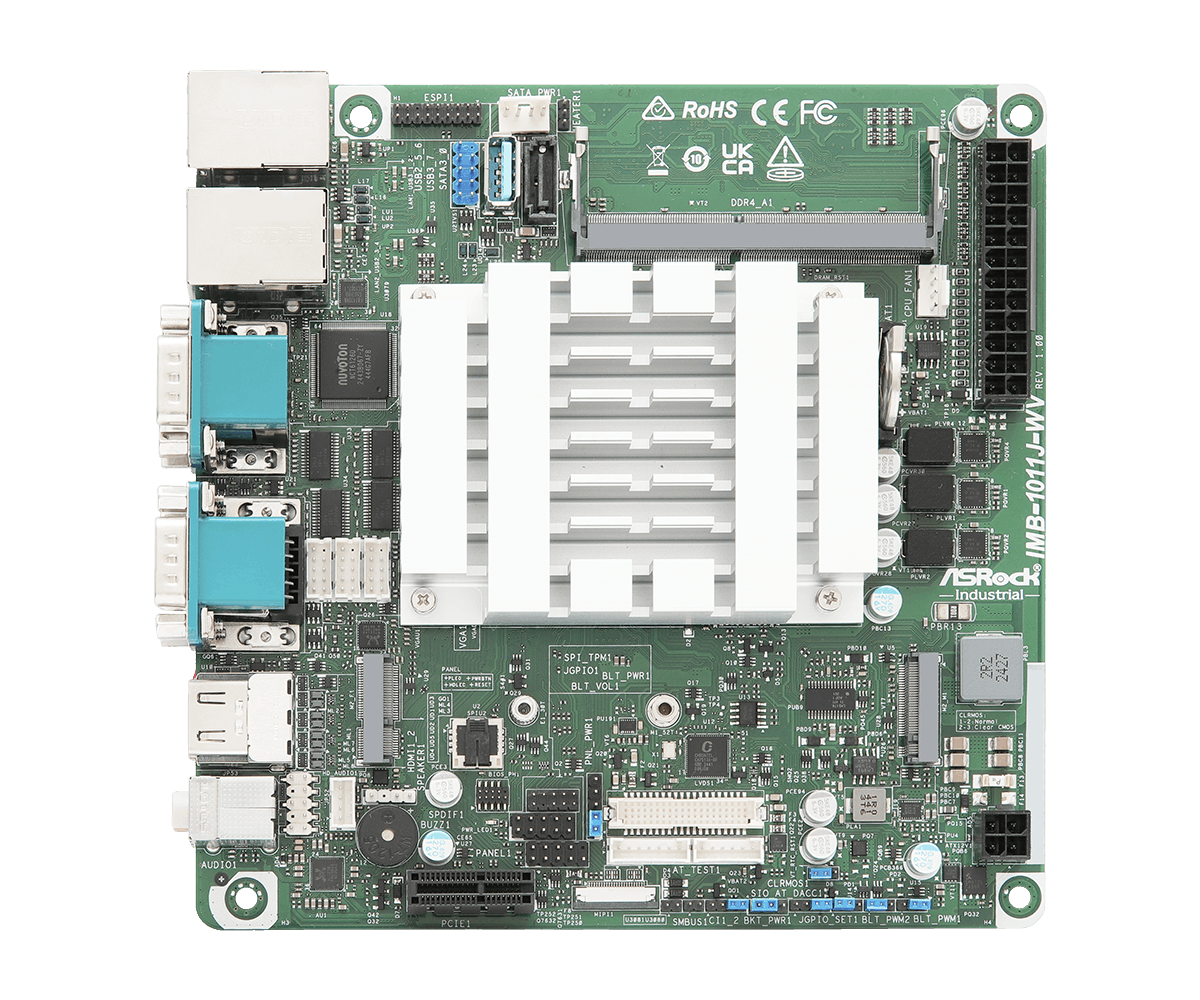

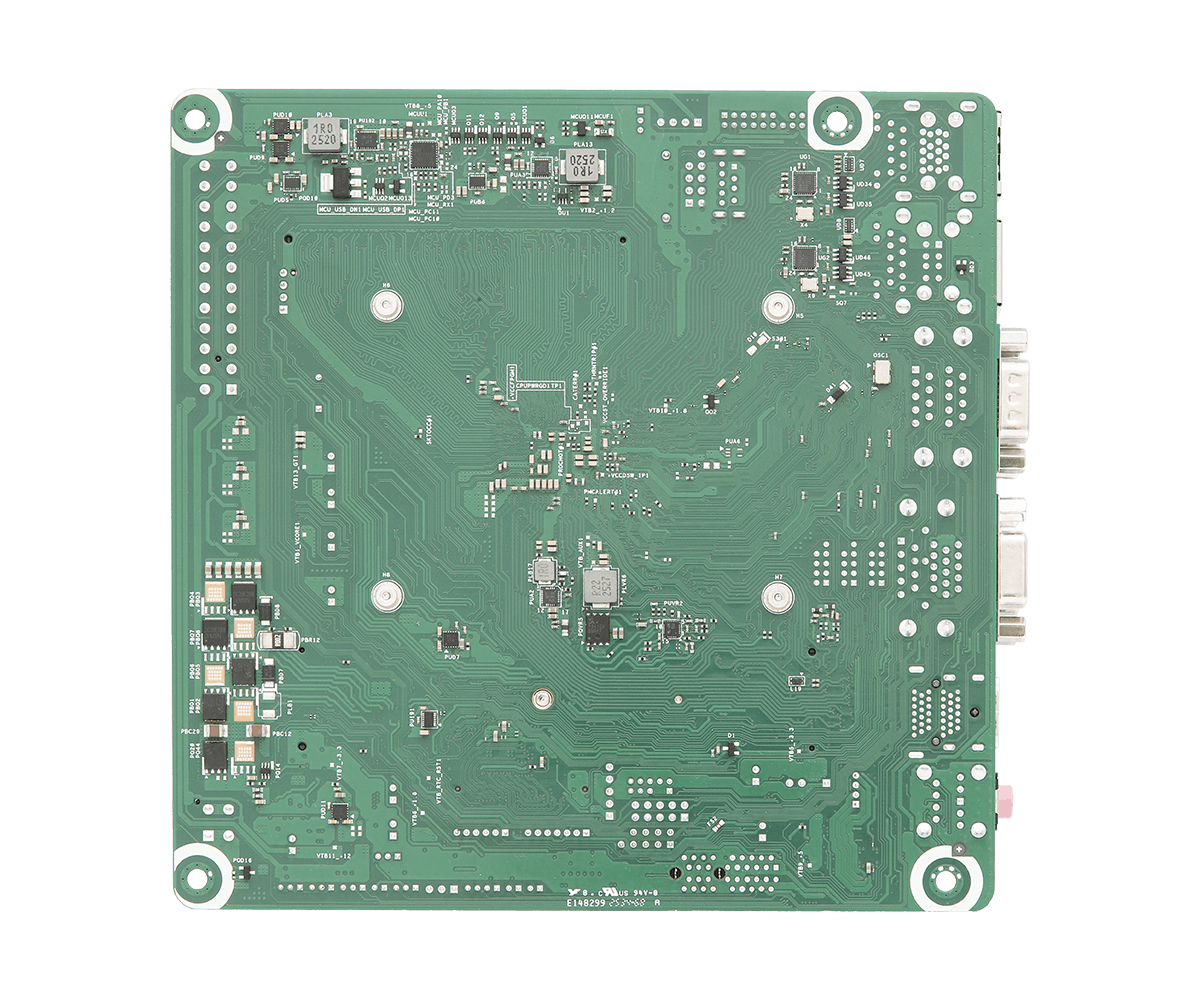

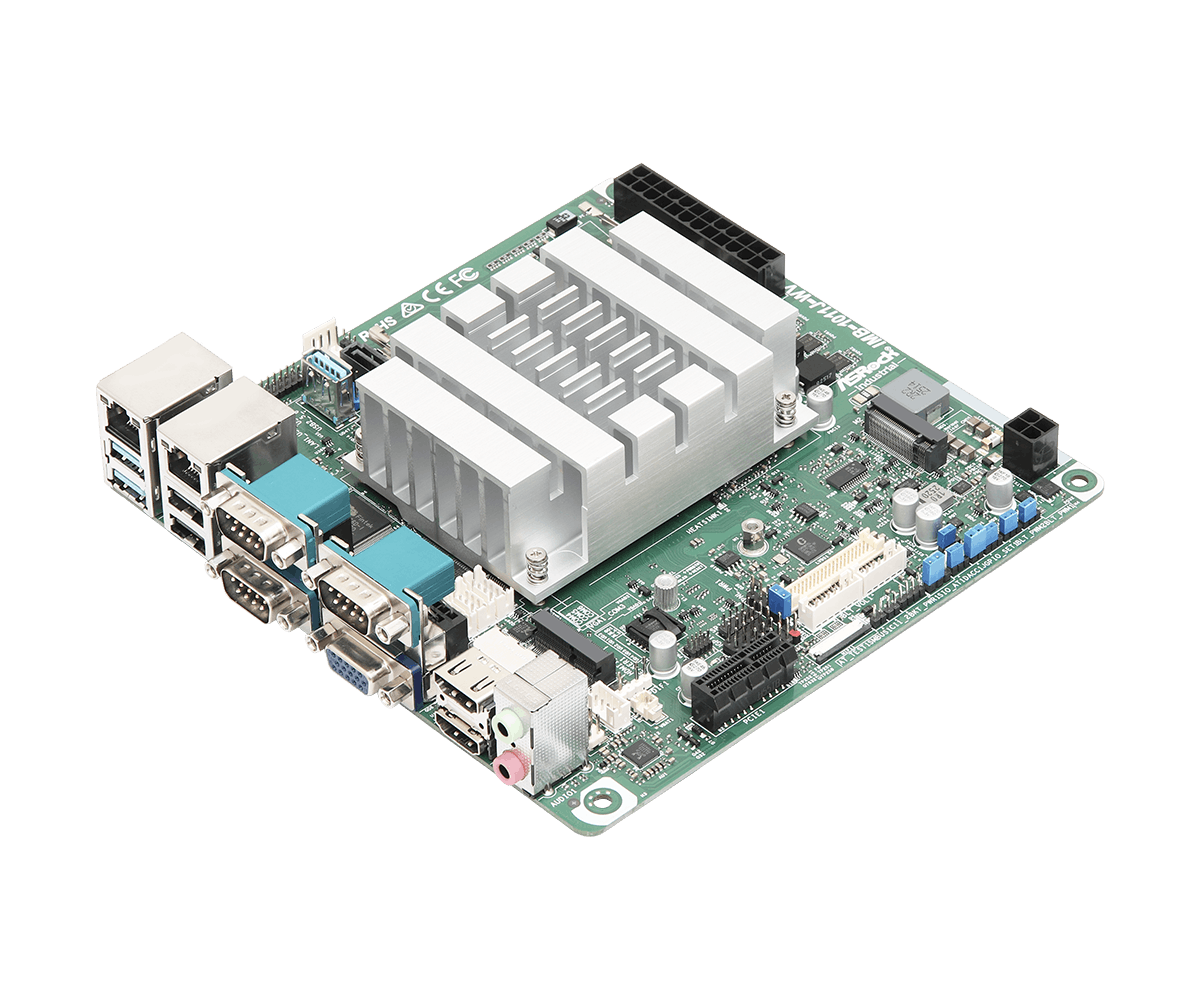

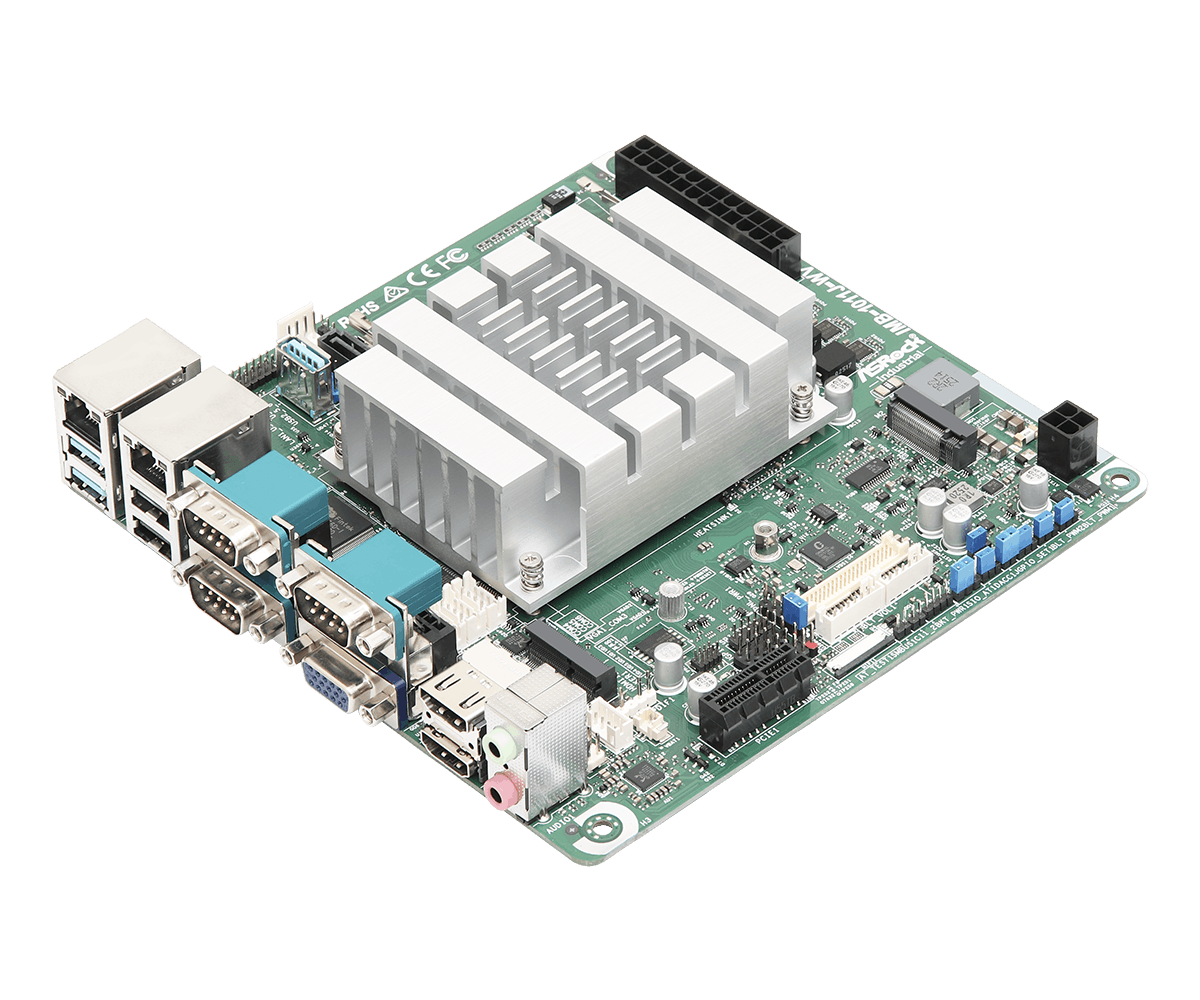

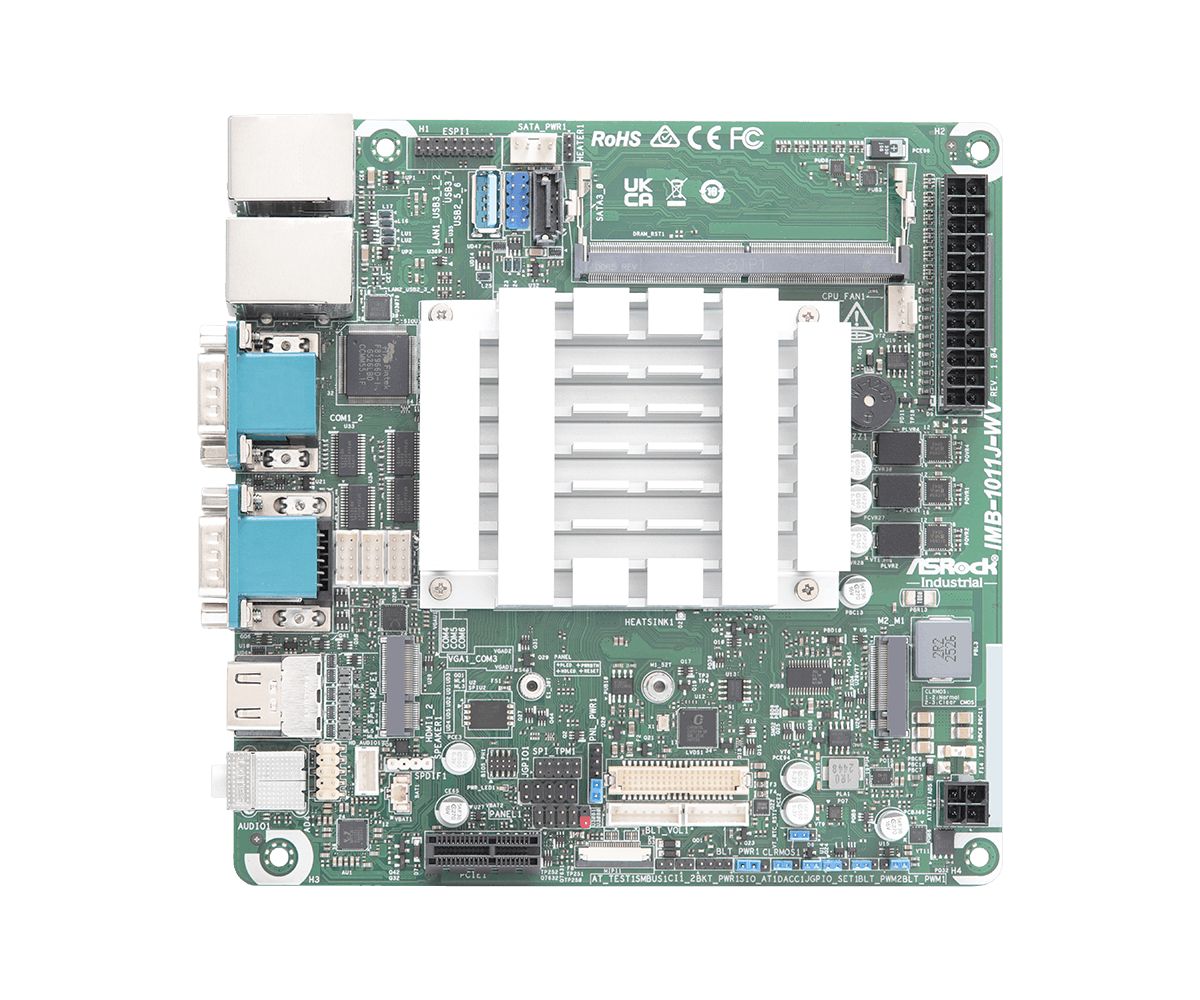

IMB-1011J-WV Mini-ITX Motherboard

  • Intel® Alder Lake-N Processors N97
  • 1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
  • 1 x PCIe x1 (Gen3), 3 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 1 x SATA3
  • 2 x Realtek 1 Gigabit LAN
  • Supports Triple display, 2 x HDMI 2.0b, 1 x VGA, 1 x LVDS or eDP
  • ATX-PWR (24+4-pin) and 9~28V DC-In co-design
Datasheet
Specification

Processor System

CPU Intel® Alder Lake-N Processors
IMB-1011J-WV (N97, QC, Max Speed Up to 3.6GHz, 12W)
*For other CPU SKUs request, please contact regional Sales for availability
BIOS AMI SPI 256 Mbit

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm)

Memory

Technology Single Channel DDR4 3200 MHz
Capacity 32GB
Socket 1 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDP Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplay Triple display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
PCIe 1 x PCIe x1 (Gen3)

Audio

Interface Realtek ALC256 HD, High Definition Audio

Ethernet

Controller/ Speed LAN1: Realtek RTL8111H with 10/100/1000 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector 2 x RJ-45

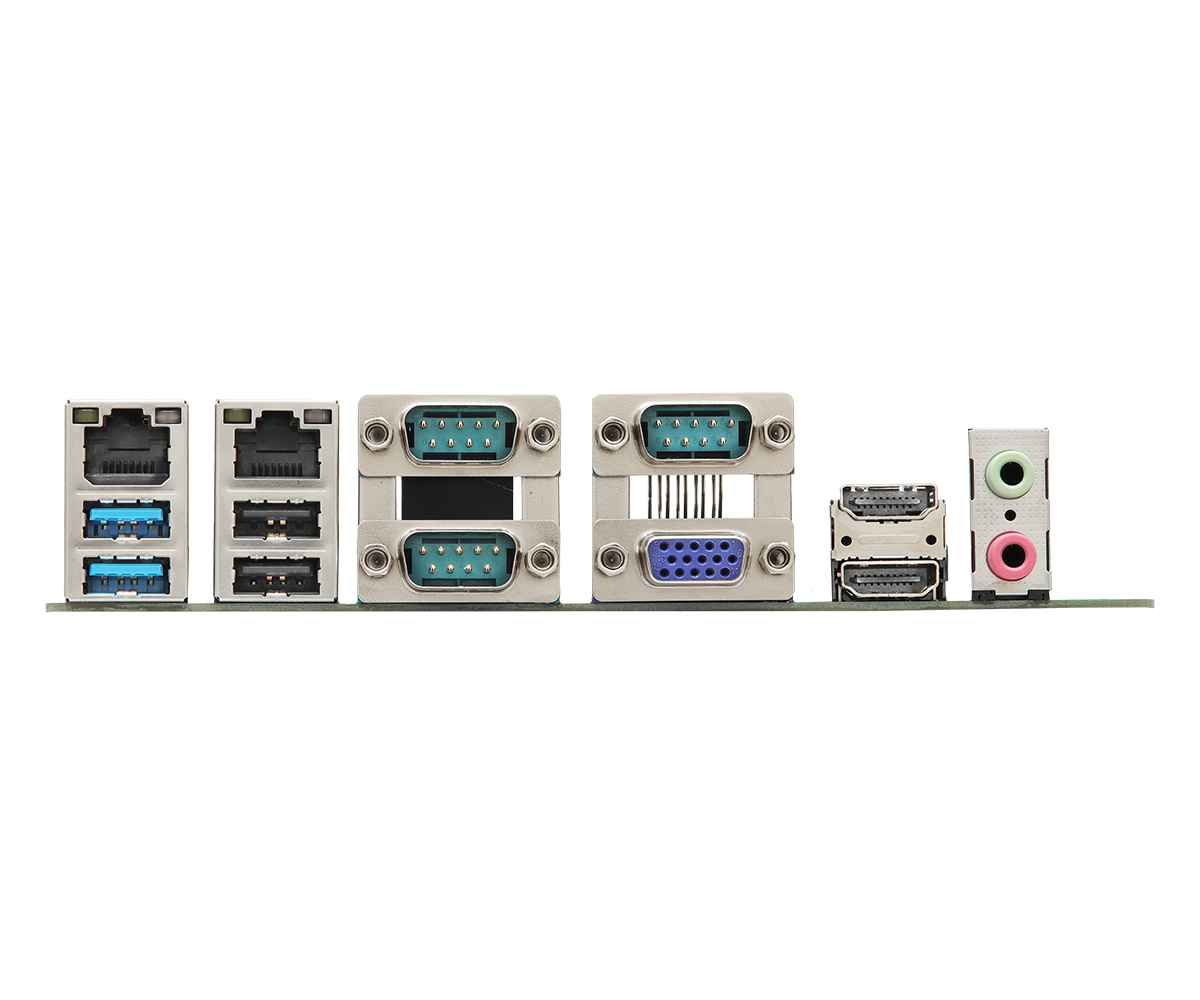

Rear I/O

HDMI 2 x HDMI 2.0b
VGA 1
Ethernet 2 x 1 Gigabit LAN
USB 2 x USB 3.2 Gen2
2 x USB 2.0
Audio 2 (Mic-In, Line-Out)
COM COM1 (RS-232/422/485)
COM2, COM3 (RS-232)

Internal Connector

USB 1 x USB 3.2 Gen2 (Type-A vertical con)
2 x USB 2.0 (1 x 2.54 pitch header
COM COM4, COM5, COM6 (RS-232)
GPIO 4 x GPI, 4 x GPO
LVDS 1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output 1
Speaker Header 1
MIPI Camera Header 1 (Optional)

Security

TPM TPM Header
Intel® PTT

Storage

M.2 1 x M.2 (Key M, 2280/3052) with PCIe Gen3 x1 and SATA3 for SSD
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX-PWR (24+4-pin) and 9~28V DC-In co-design
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 70ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 1 x I/O Shield (13G02P097000AK)
2 x SCREW M3*2.5 (13G02P072010AK)
1 x SATA Power Cable (14G000100410AK)
1 x SATA Cable (14G00010107DAK)
1 x 2.00mm MINI JUMPER (12G044200021AK)
Bulk Package 1 x I/O Shield (13G02P097000AK)
2 x SCREW M3*2.5 (13G02P072010AK)
1 x 2.00mm MINI JUMPER (12G044200021AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description Information OS Date Download
Description [Beta] COM Port driver ver:240524
Information

Size: 3116 KiB
Version: 240524
SHA1: 9089FAD87FB0323CB2546A5F3204573B05134F8F
Filename: COM(v240524).zip
Release Note

OS Win 10 x 64 Date 2025-07-18 Download
Description [Beta] VGA driver ver: 31.0.101.3677 Information

Size: 866Mib
Version:31.0.101.3677
SHA1: 4766C438DCB0B6376381BA6849E74AC964145FF0
Filename:Intel_VGA(v31.0.101.3677).zip
Release Note


OS Win 10 x 64 Date 2025-07-18 Download
Description [Beta] Intel Management Engine driver ver:16.50.0.1175v2 Information

Size: 936Mib
Version:16.50.0.1175v2
SHA1: BDAC6548220A3611EFE5B8F0C08F9BFCADAFB398
Filename:ME(v16.50.0.1175v2).zip
Release Note

OS Win 10 x 64 Date 2025-07-18 Download
Description [Beta] Intel Serial IO driver ver:30.100.2229.4_v2 Information

Size: 3120Kib
Version:30.100.2229.4_v2
SHA1: 9F8FA1B7E00FAD3AA009CE9EA4F9054AADD34E81
Filename:SerialIO(v30.100.2229.4_v2).zip
Release Note

OS Win 10 x 64 Date 2025-07-18 Download
Description [Beta] Intel HID Event Filter ver:2.2.1.386 Information

Size: 1258Kib
Version: 2.2.1.386
SHA1: 448BBCF58B800250574D673E24F794D279C4BC13
Filename:Intel HID Event Filter(v2.2.1.386).zip
Release Note

OS Win 10 x 64 Date 2025-07-18 Download
Description [Beta] INF driver ver:10.1.19222.8341 Information

Size: 4640Kib
Version:10.1.19222.8341
SHA1: 97F41A4DA88A6FA7D6876BEEE055C6482657AF0D
Filename:INF(v10.1.19222.8341).zip
Release Note

OS Win 10 x 64 Date 2025-07-18 Download
Description [Beta] Realtek Lan driver ver: 10059_06222022 Information

Size: 4891Kib
Version:10059_06222022
SHA1: 992163C384ECA58B60AD7CF7C9CC36DB2ACDD818
Filename:Realtek_LAN(v10059_06222022).zip
Release Note

OS Win 10 x 64 Date 2025-07-18 Download
Description [Beta] Realtek high definition audio driver ver:9815.1 Information

Size: 50 MiB
Version:9815.1
SHA1:38E129278FFAF4F9AAD75468D05761AC37DE29E0
Filename:Audio driver ver9815.1

OS Win 10 x 64 Date 2025-07-18 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Jumpers and Headers Setting Guide Language English Date 2025-07-18 Download
