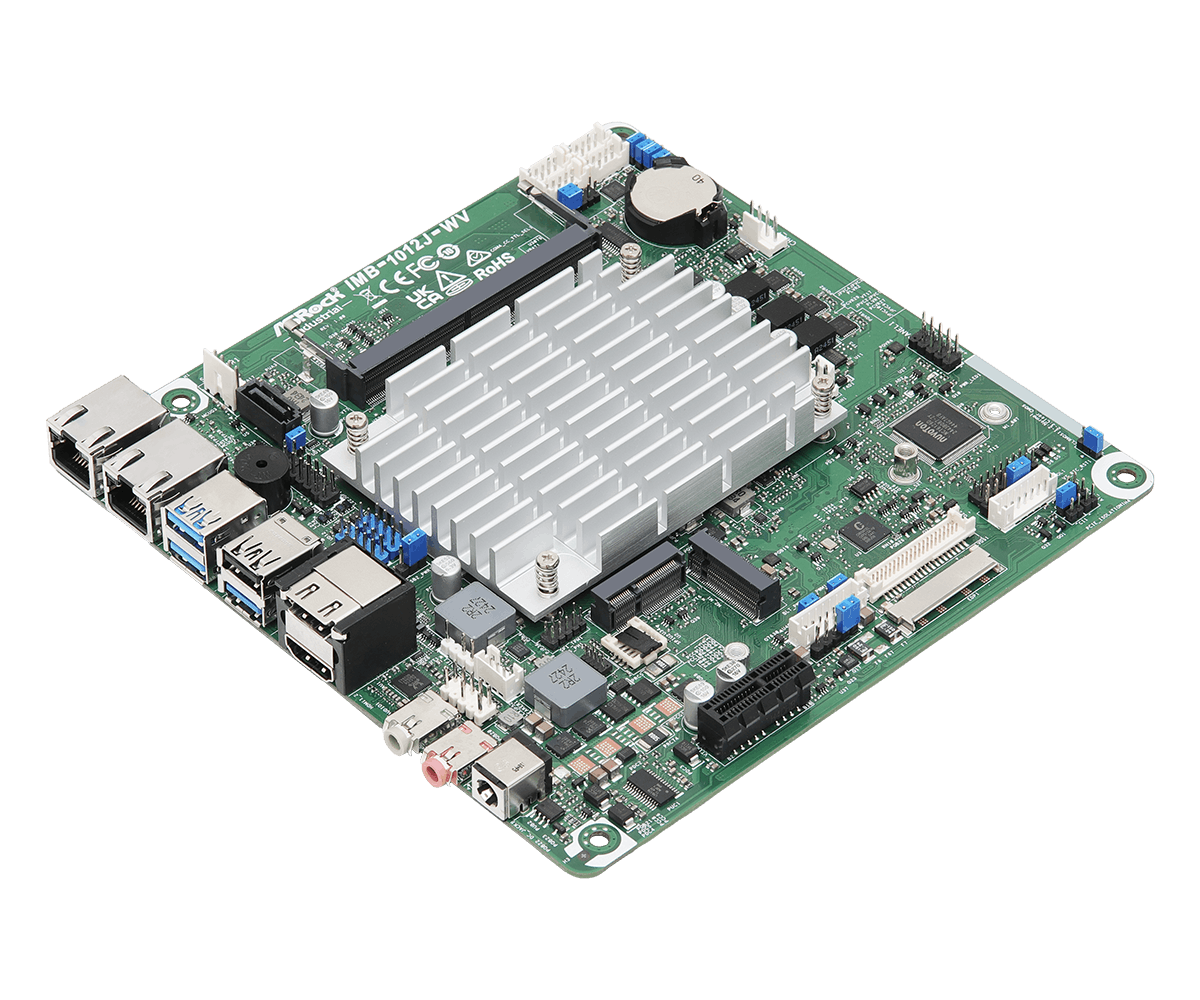

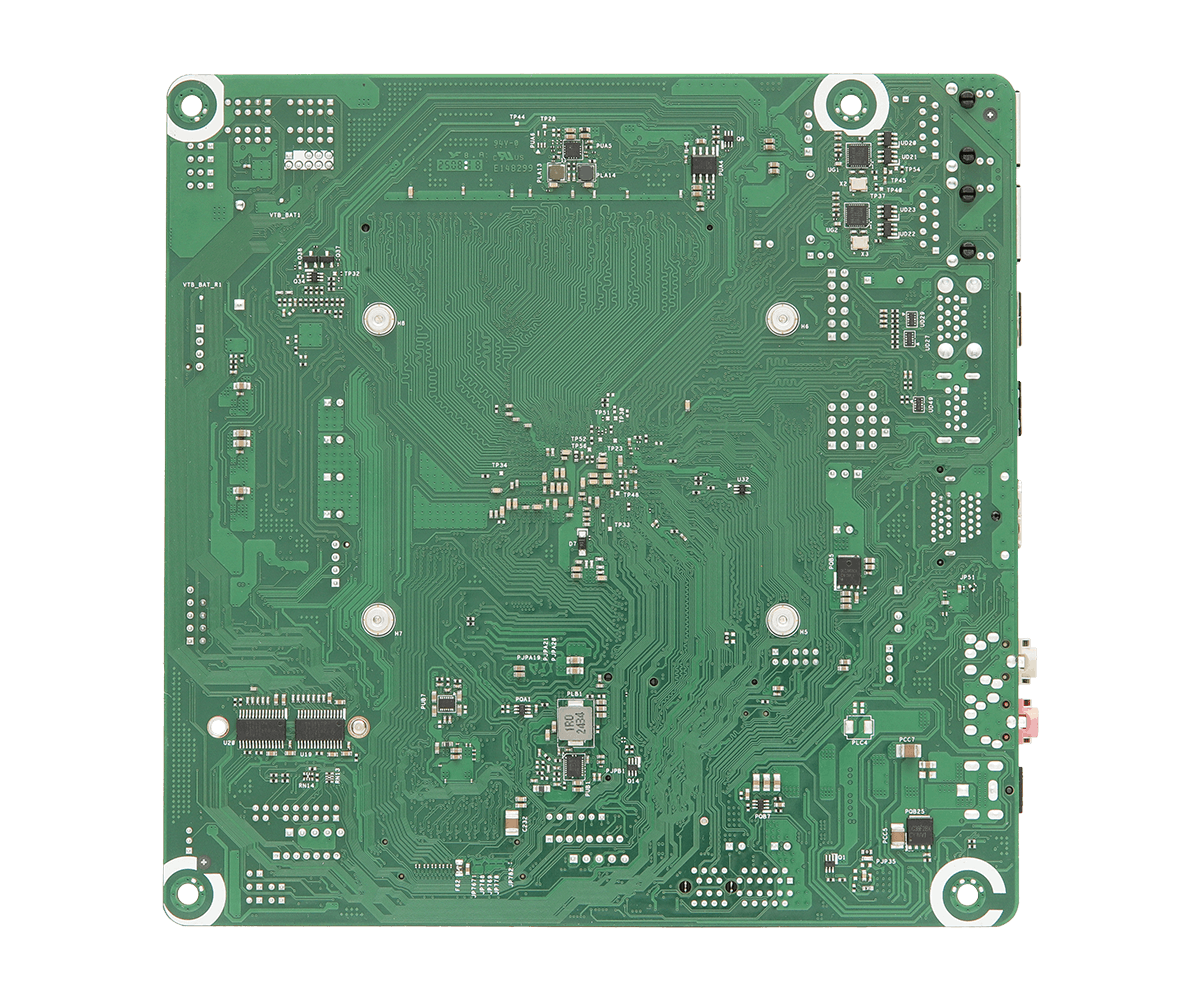

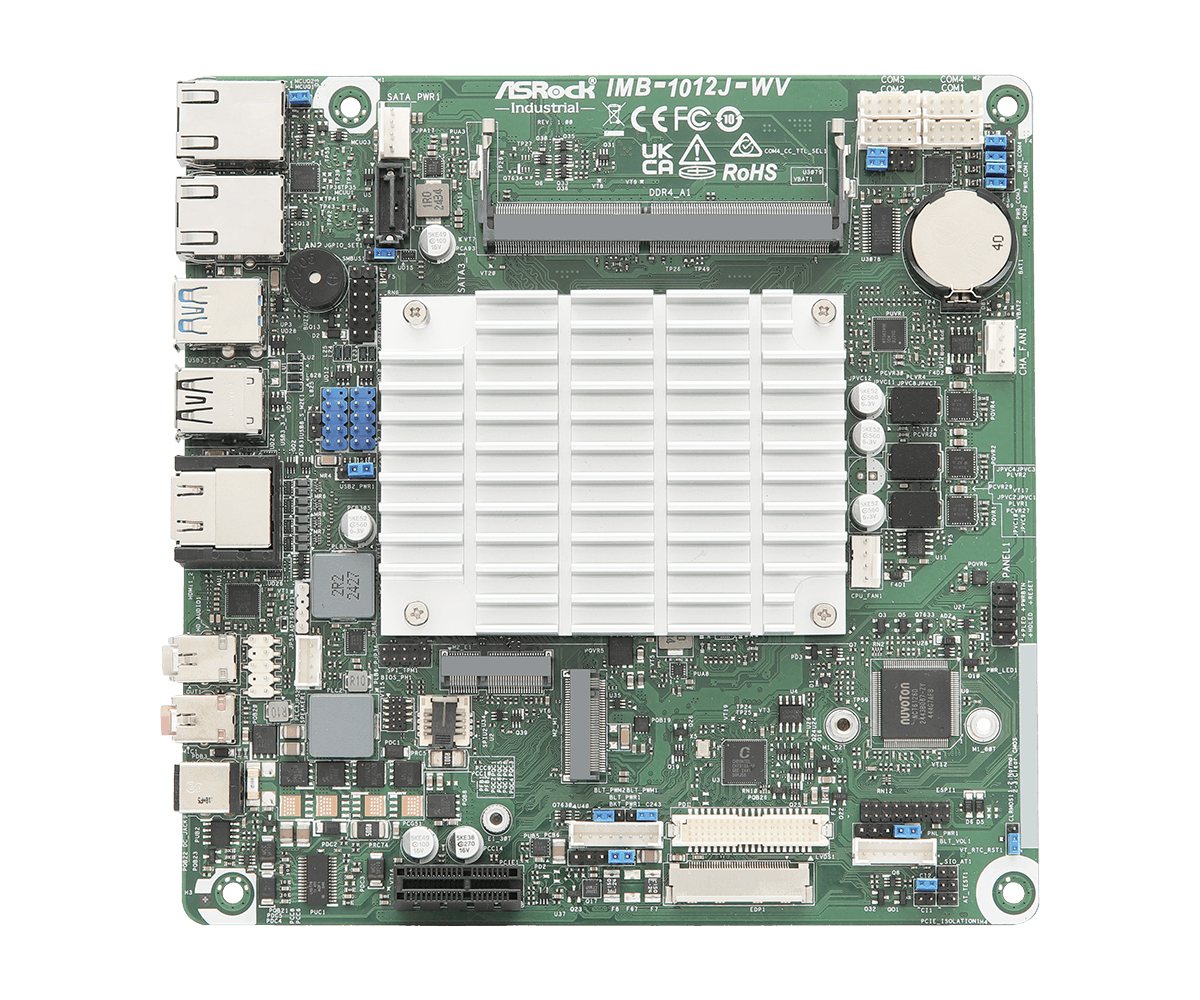

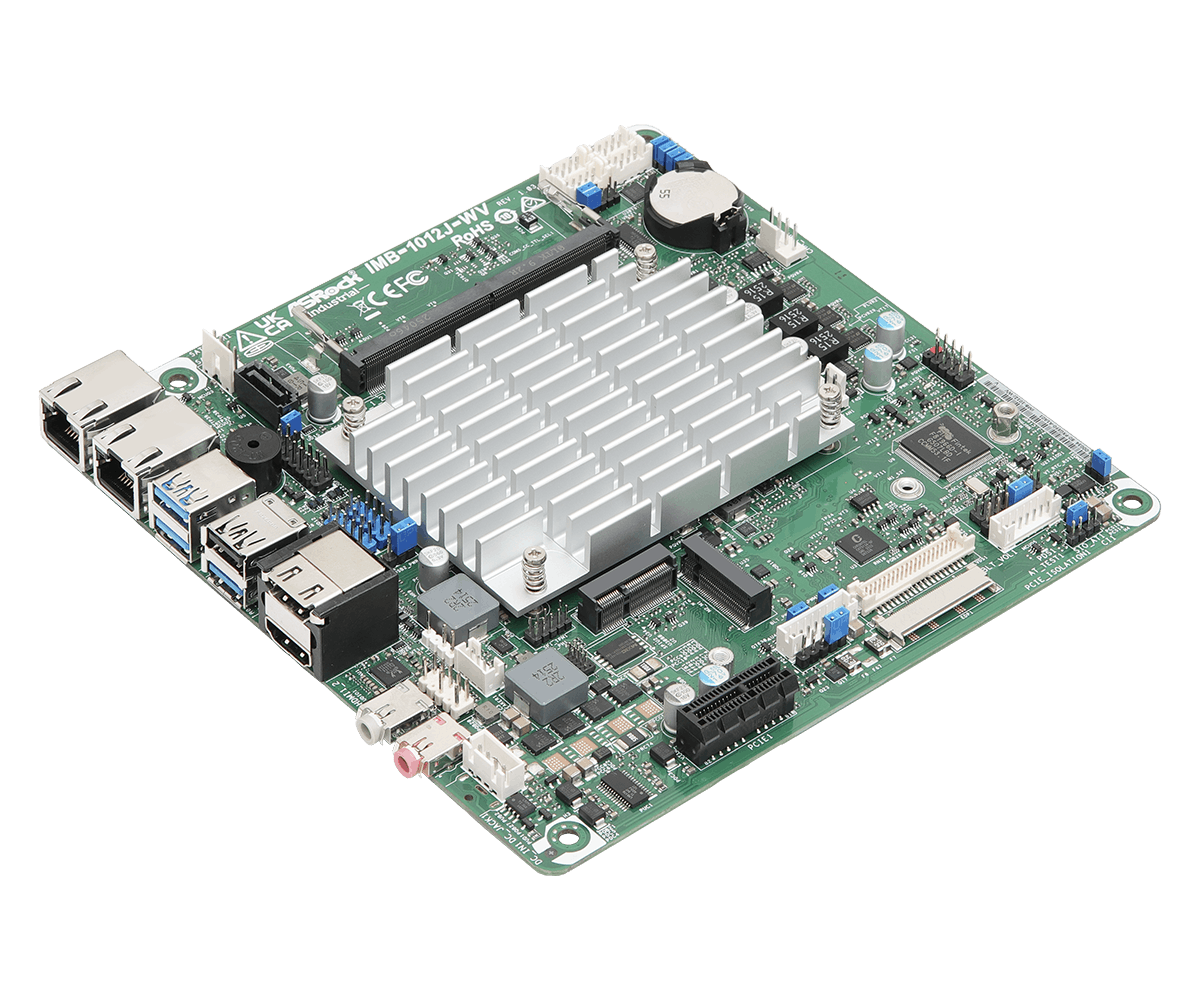

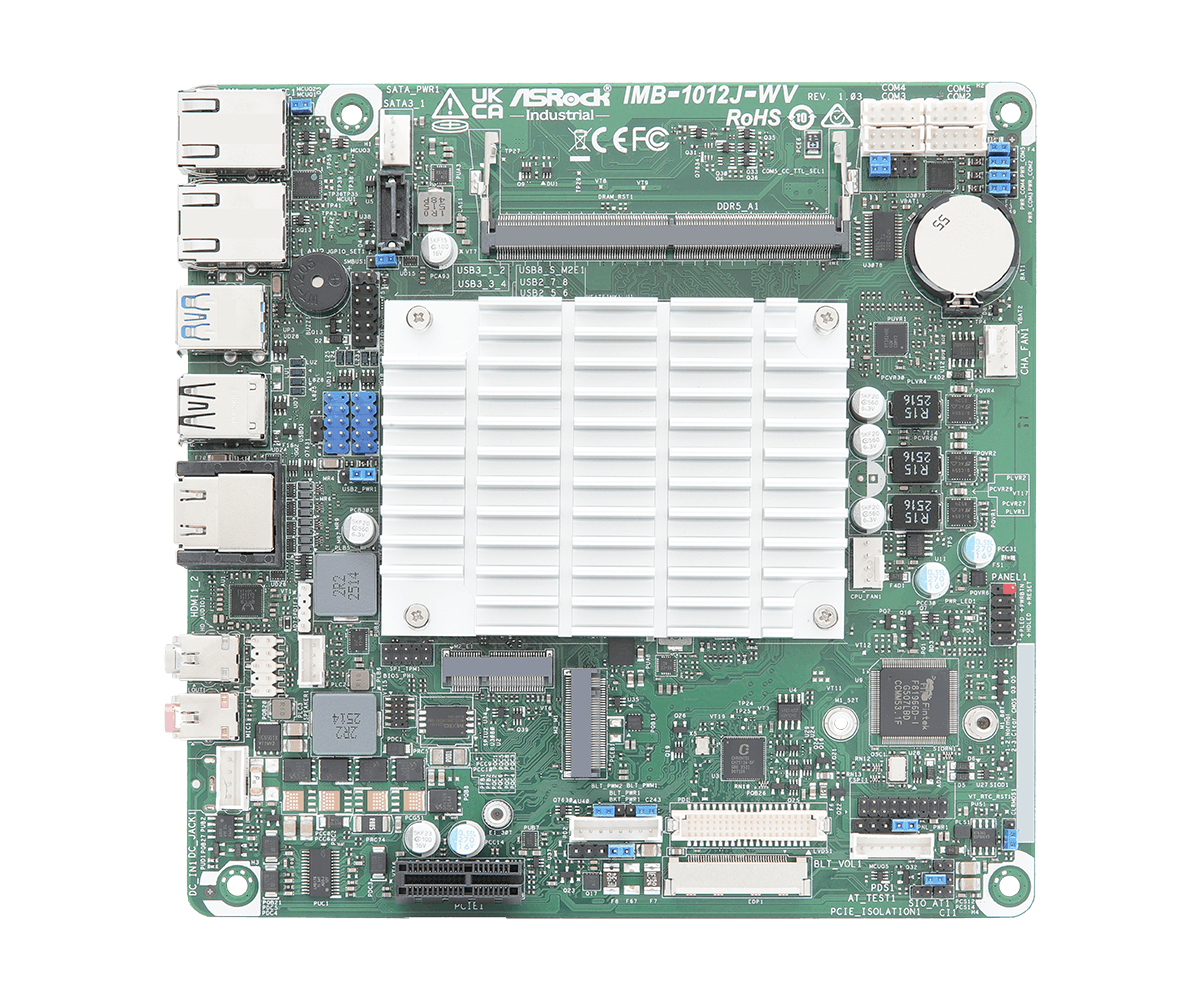

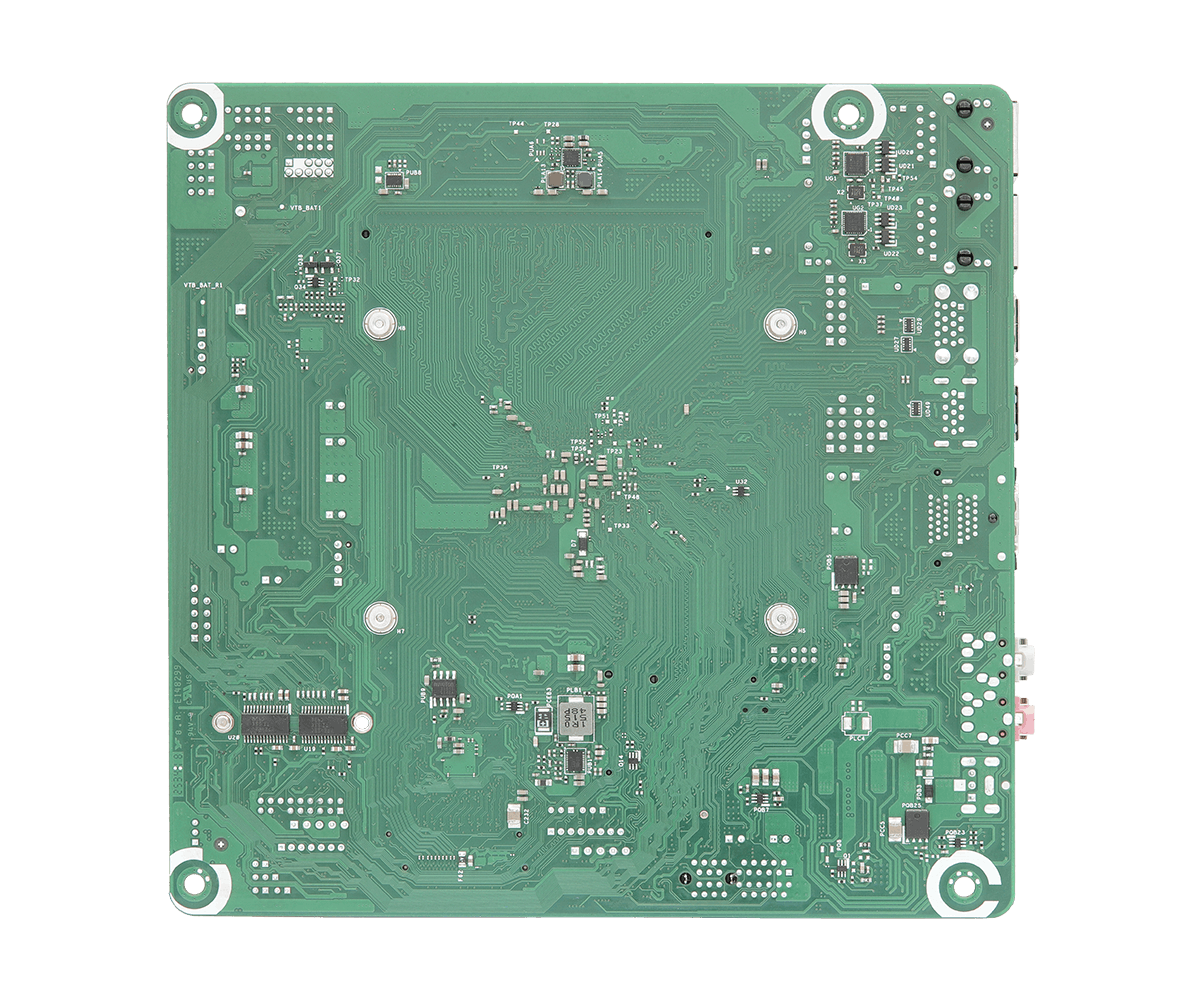

IMB-1012J-WV Mini-ITX Motherboard
- Intel® Alder Lake-N Processors N97
- 1 x 262-pin SO-DIMM DDR5 4800 MHz, up to 32GB
- 1 x PCIe x1 (Gen3), 3 x USB 3.2 Gen2, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 4 x COM, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports Triple display, 2 x HDMI 2.0b, 1 x LVDS, 1 x eDP 1.4b
- 9~28V DC-In / 12V DC-In only (BOM option)
Specification
Processor System
| CPU | Intel® Alder Lake-N Processors IMB-1012J-WV (N97, QC, Max Speed Up to 3.6GHz, 12W) *For other CPU SKUs request, please contact regional Sales for availability |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 0.9-in, 17.0 cm x 17.0 cm x 2.28 cm) |
|---|
Memory
| Technology | Single Channel DDR5 4800 MHz |
|---|---|
| Capacity | 32GB |
| Socket | 1 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| eDP | eDP 1.4b Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Triple display |
Expansion Slot
| PCIe | 1 x PCIe x1 (Gen3) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface | Realtek ALC256 HD, High Definition Audio |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8111H with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

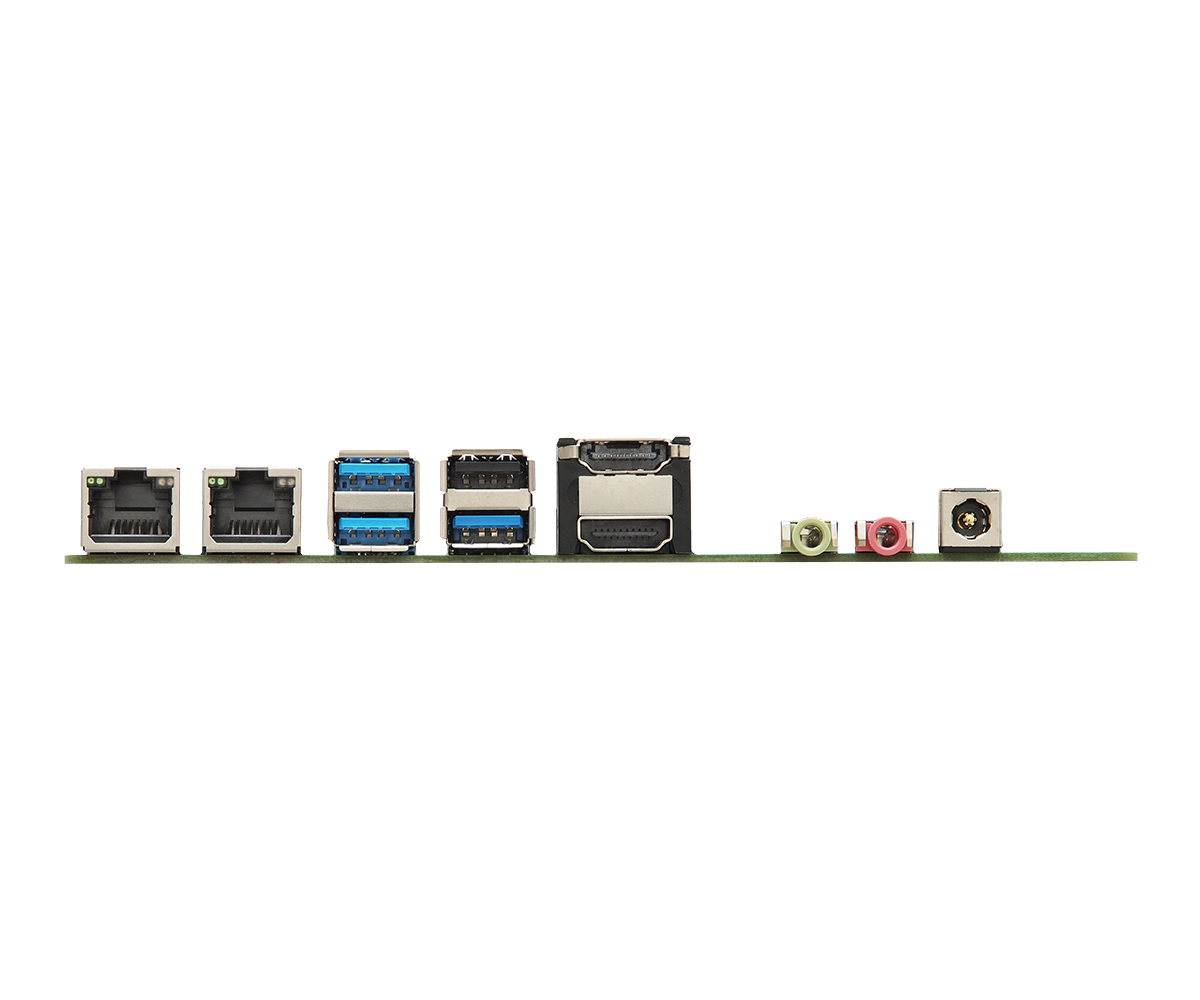

Rear I/O
| HDMI | 2 x HDMI 2.0b |
|---|---|
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 3 x USB 3.2 Gen2 1 x USB 2.0 |
| Audio | 2 (Mic-In, Line-Out) |
| DC Jack | 1 |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | COM1 (RS-232/422/485) COM2, COM3 (RS-232) COM4 (RS-232/TTL 5V/ccTalk, switch by Jumper setting) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Security
| TPM | TPM Header Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2280/3052) with PCIe Gen3 x1 and SATA3 for SSD |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9~28V DC-In / 12V DC-In only (BOM option) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 1 x I/O Shield (13G02P098000AK) 1 x I/O Shield THIN (13G02P098010AK) 2 x SCREW M3*2.5 (13G02P072010AK) 2 x COM Cable (14G000000310AK) 1 x SATA Power Cable (14G000100410AK) 1 x SATA Cable (14G00010107DAK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G02P098000AK) 1 x I/O Shield THIN (13G02P098010AK) 2 x SCREW M3*2.5 (13G02P072010AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | COM Port driver ver:220211 | Information | Size: 3101Kib |
OS | Win 10 x 64 | Date | 2025-07-18 | Download | |
| Description | Intel Management Engine driver ver:16.50.0.1175v2 | Information | Size: 936Mib |
OS | Win 10 x 64 | Date | 2025-07-18 | Download | |
| Description | Intel Serial IO driver ver:30.100.2229.4_v2 | Information | Size: 3120Kib |
OS | Win 10 x 64 | Date | 2025-07-18 | Download | |
| Description | Intel HID Event Filter ver:2.2.1.386 | Information | Size: 1258Kib |
OS | Win 10 x 64 | Date | 2025-07-18 | Download | |
| Description | Realtek Lan driver ver: 10059_06222022 | Information | Size: 4891Kib |
OS | Win 10 x 64 | Date | 2025-07-18 | Download | |
| Description | Realtek high definition audio driver ver:9815.1 | Information | Size: 50 MiB |
OS | Win 10 x 64 | Date | 2025-07-18 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.10 | Update BIOS Under / How to Update | BIOS | Description | Support AI-OOB-LITE Kit | Information | Size: 6501 KiB SHA1: 73d74ed58d00f3a78ec9fe7fed20fff9acea7621 |
Date | 2026-07-03 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | Windows | Description | Support AI-OOB-LITE Kit | Information | Size: 7271 KiB SHA1: 319f5e193ea2150a75521e1ae0f6577d6f4ce952 |
Date | 2026-07-03 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | BIOS | Description | First release | Information | Size: 6501 KiB SHA1: 6B74451E1B5E0F0FD5396A5F4D0DB09F58D48A25 |
Date | 2025-10-30 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | Windows | Description | First release | Information | Size: 7291 KiB SHA1: CEE4517CCCD0DE42B82564F45E8ADA6C58C29C7F |
Date | 2025-10-30 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2025-11-13 | Download | |
| Description | Jumpers and Headers Setting Guide | Language | English | Date | 2025-07-15 | Download |
