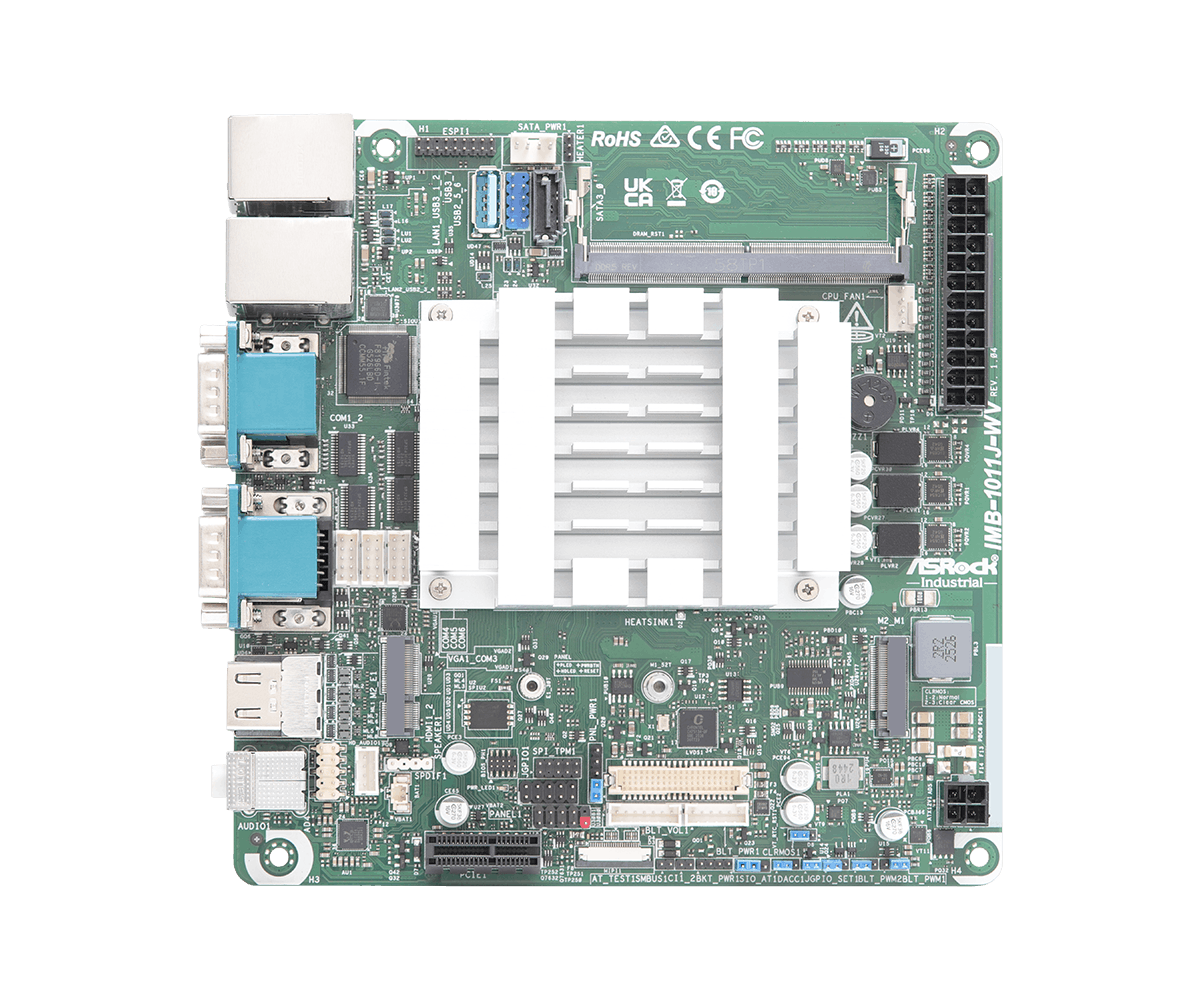

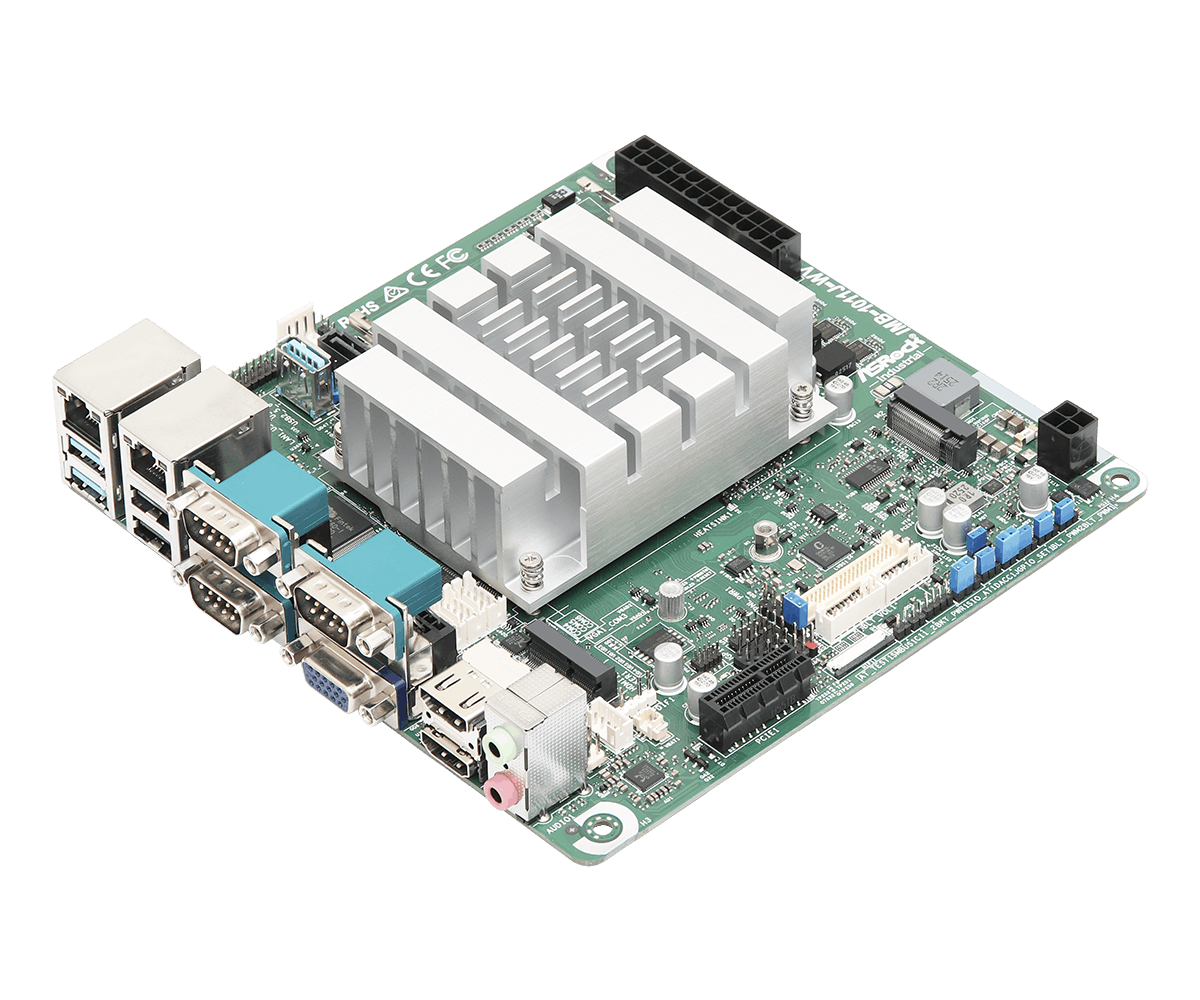

IMB-1011J-WV Mini-ITX Motherboard
- Intel® Alder Lake-N Processors N97
- 1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
- 1 x PCIe x1 (Gen3), 3 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports Triple display, 2 x HDMI 2.0b, 1 x VGA, 1 x LVDS or eDP
- ATX-PWR (24+4-pin) and 9~28V DC-In co-design
产品规格
Processor System
| CPU | Intel® Alder Lake-N Processors IMB-1011J-WV (N97, QC, Max Speed Up to 3.6GHz, 12W) *For other CPU SKUs request, please contact regional Sales for availability |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm) |
|---|
Memory
| Technology | Single Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB |
| Socket | 1 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple display |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless |
|---|---|
| PCIe | 1 x PCIe x1 (Gen3) |
Audio
| Interface | Realtek ALC256 HD, High Definition Audio |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8111H with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Rear I/O
| HDMI | 2 x HDMI 2.0b |
|---|---|
| VGA | 1 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 2 x USB 2.0 |
| Audio | 2 (Mic-In, Line-Out) |
| COM | COM1 (RS-232/422/485) COM2, COM3 (RS-232) |
Internal Connector
| USB | 1 x USB 3.2 Gen2 (Type-A vertical con) 2 x USB 2.0 (1 x 2.54 pitch header |
|---|---|
| COM | COM4, COM5, COM6 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| MIPI Camera Header | 1 (Optional) |
Security
| TPM | TPM Header Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2280/3052) with PCIe Gen3 x1 and SATA3 for SSD |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX-PWR (24+4-pin) and 9~28V DC-In co-design |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
