EOL

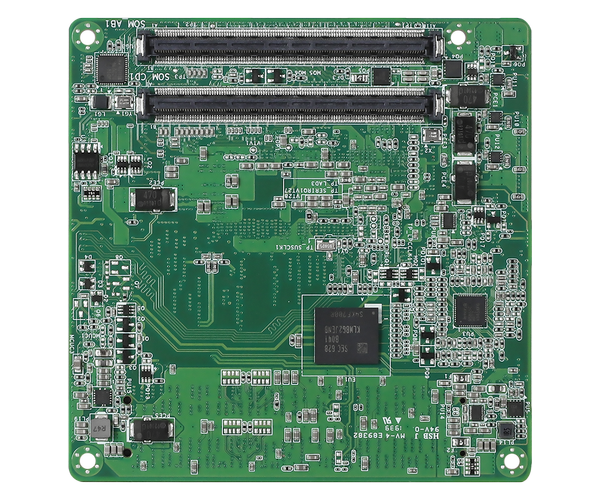

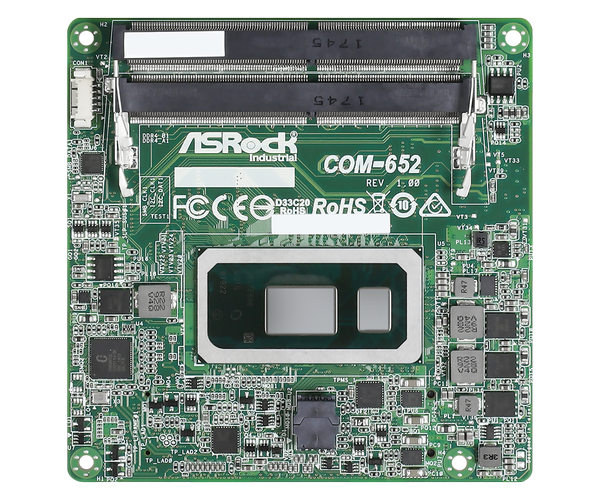

COM-652V COM Express Compact Type 6
- Intel® 8th Gen (Whiskey Lake-U) Core™ Processors i3-8145UE
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2400 MHz (16GB per DIMM)
- 8 x PCIe x1 (Gen3), 4 x USB 3.2 Gen1, 8 x USB 2.0, 3 x SATA3
- 1 x Intel Gigabit LAN
- Supports Triple Display, 2x DDI, 1 x VGA, 1 x LVDS or eDP (optional)
- TPM 2.0 onboard IC (optional)
- Supports Intel® vPro, AMT (For i7/i5 SKU), RAID 0/1
- ATX: 12V±5%/5Vsb±5%
- AT: 12V±5%
Specification
Processor System
| CPU | Intel® 8th Gen (Whiskey Lake-U) Core™ Processors i3-8145UE, DC, 2.2GHz, 15 W |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | COM Express Compact Type 6 (3.74-in x 3.74-in x 0.52-in, 9.5 cm x 9.5 cm x 1.3 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2400 MHz |
|---|---|
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® Gen9 Graphics DX 11/12 |
|---|---|
| HDMI | HDMI 1.4b Max resolution up to 4096x2160p 24Hz |
| DisplayPort | DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| eDP | eDP 1.4 Max resolution up to 3840 x 2160@60Hz(optional) |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 8 x PCIe x1 (Gen3) |
|---|
Ethernet
| Controller/ Speed | 1 x Intel® I219V with 10/100/1000 Mbps |
|---|
Front I/O
| HDMI | DD1 support HDMI/DP or VGA (optional) |
|---|---|
| DisplayPort | DDI2 support HDMI/DP |
| USB | 4 x USB 3.1 Gen1, 8 x USB 2.0 |
| VGA | 1 |
| LVDS | 1 (optional) |
| eDP | 1 (optional) |
| GPIO(Phoenix) | 4 x GPI, 4 x GPO |
| Ethernet | 1 |
Storage
| SATA | 3 x SATA3 (6Gb/s) |
|---|---|
| RAID | Intel® SATA RAID 0/1 |
| eMMC | 32GB (Optional) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX: 12V±5%/5Vsb±5% AT: 12V±5% |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Others
| TPM | TPM 2.0 onboard IC (optional) |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
