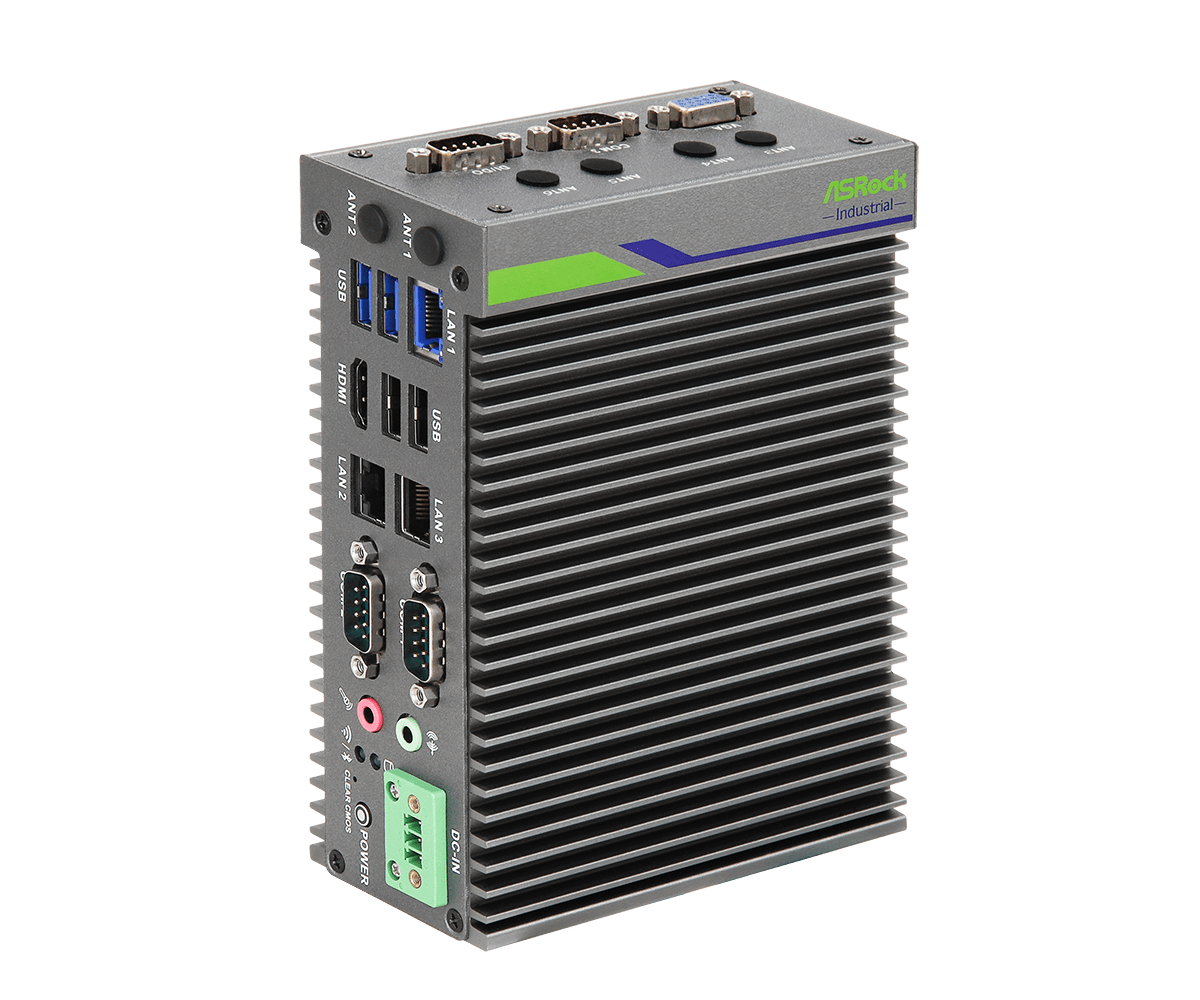

iEP-5010G Series Industrial IoT Controller
- Powerful Intel® Atom x6425RE Processor (Elkhart Lake)
- Fan-less and Rugged Design
- Wide Temperature Operation (-40 °C to 70 °C)
- 6-36VDC Wide Range Power Inputs
- Most Flexible IOs and Expansion for Industrial Applications
- Intel® TCC and TSN Support for Real-Time Computing

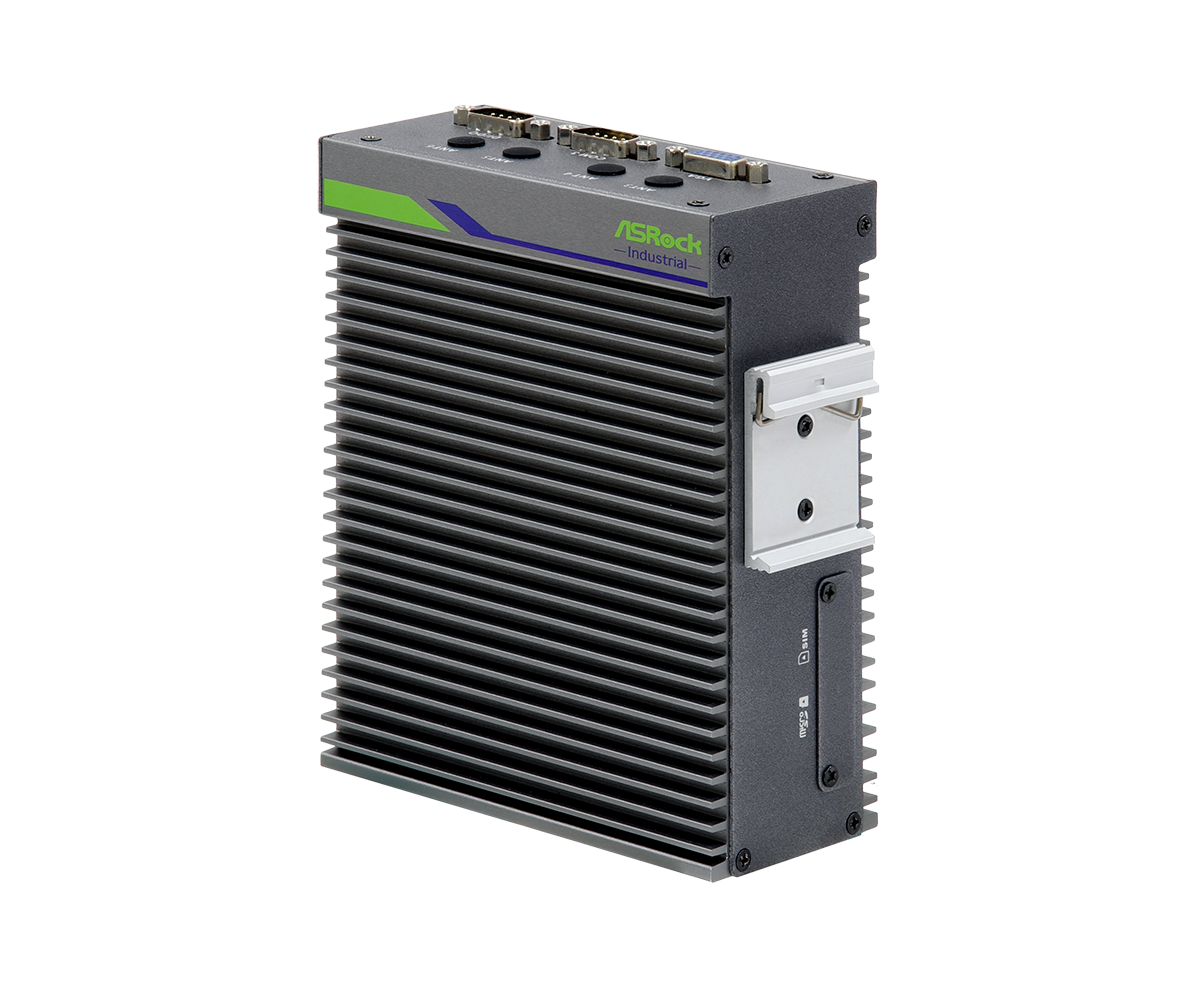

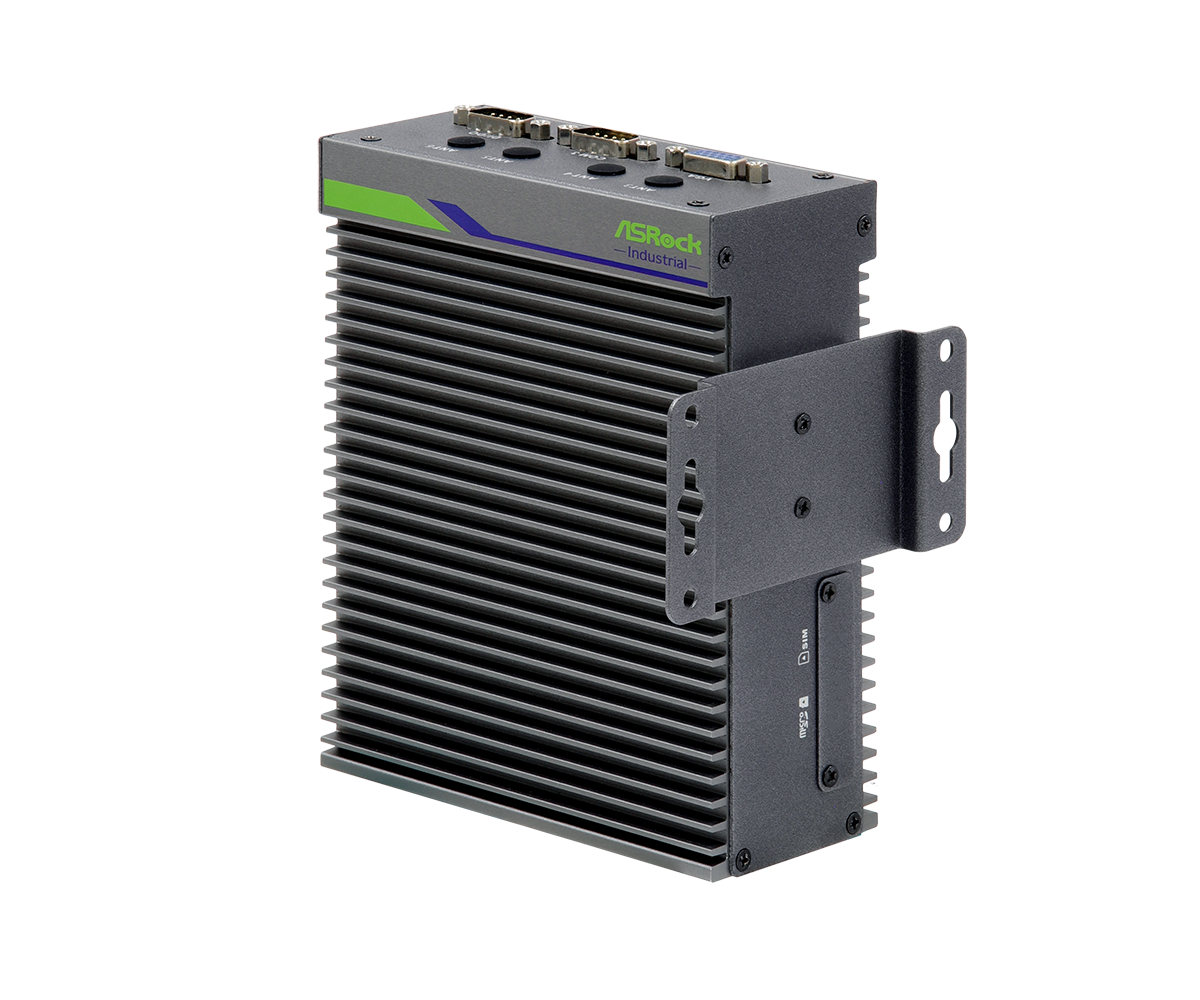

- DIN Rail or Wall Mount Options
- 4 x Intel 1G LAN (2 Support IEEE 802.3AF PoE Ports)
- 1 x Intel 2.5G LAN
- Support Intel® IN-Band ECC
- Support Wireless Time-Sensitive Networking (WTSN)
- Developed according to IEC 62443-4-1 Standard
- Certified for IEC 62443-4-2 Cybersecurity Security
- Certified for Intel® FDO
- Certified on Red Hat Enterprise Linux 9.2 - 9.x
- TAA Compliant
Overview
Specification
Processor System
| CPU | iEP-5010G Series : Intel Atom® x6425RE, 4C, 1.9GHz, 12W iEP-5011G Series : Intel Atom® x6214RE, 2C, 1.4GHz, 6W |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB (16GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphicse |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
Expansion Slot
| M.2 | 1 x M.2 (Key B, 3042/3052) with PCIe Gen3x1 and USB 3.2 for 4G LTE/5G 1 x M.2 (Key E, 2230) with PCIe Gen3x1 and USB 2.0 for Wireless |
|---|---|
| RF& Antenna | 6 x SMA connector hole reserved, support for Basic SKU 4 x SMA connector hole reserved, support for PoE/5LAN SKU |
Audio
| Interface | Realtek ALC897, High Definiton Audio |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN/TCC LAN2/LAN3: Intel® I210IT with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU) |
|---|---|
| Connector | RJ-45 |

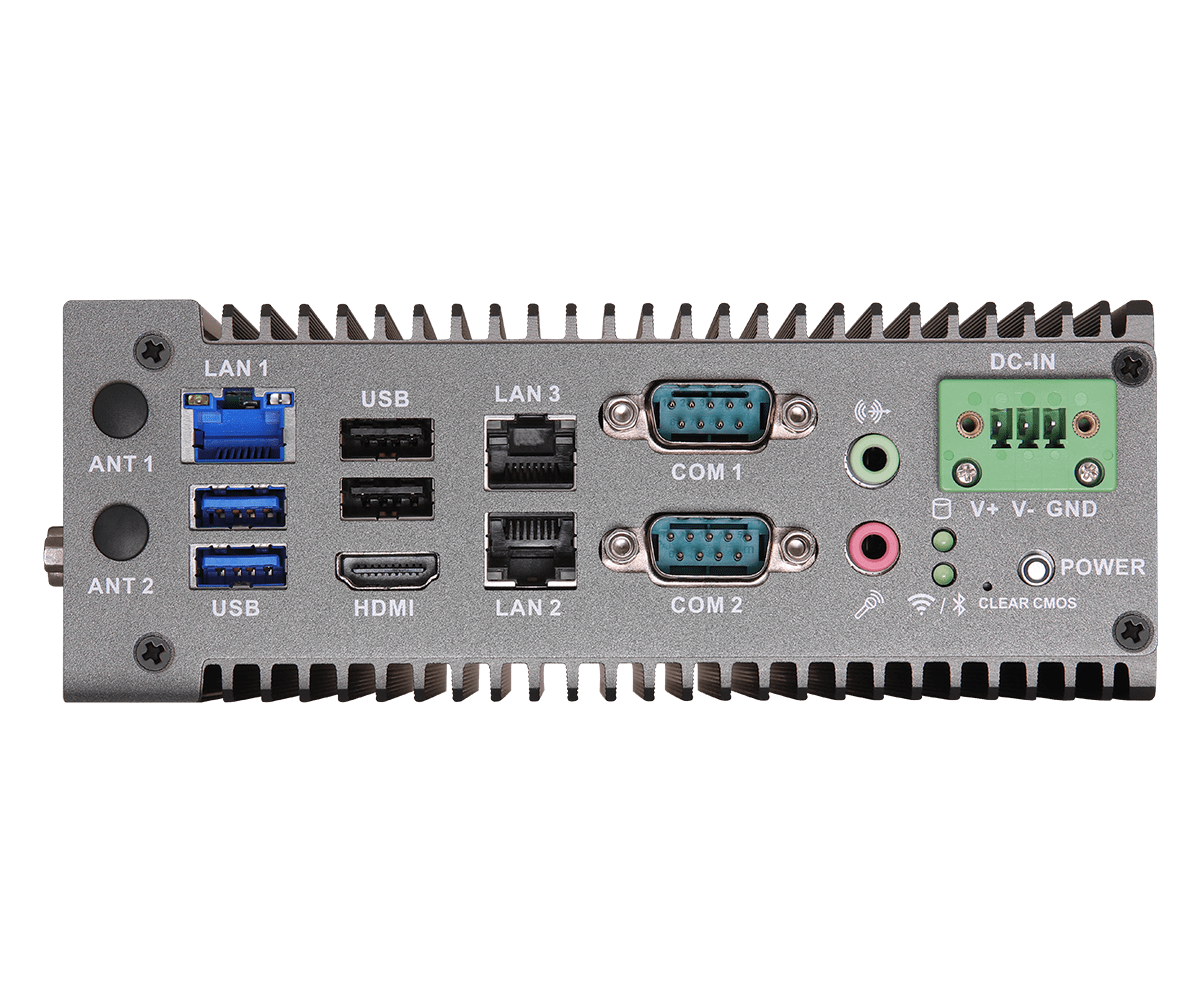

Front I/O
| Audio | 1 x Mic-in 1 x Line-out |
|---|---|
| COM | 2 x RS-232/422/485 |
| Ethernet | 1 x 2.5G LAN 2 x 1G LAN |
| HDMI | 1 x HDMI 2.0b |
| USB | 2 x USB 3.2 Gen2 2 x USB 2.0 |
| LED | 1 x SATA / NVMe Storage LED 1 x Wi-Fi / BT LED |
| DC-IN | 1 x 3-pin Phoenix type |
| Clear CMOS | 1 |
| Power Button | 1 (with LED) |
Rear I/O
| SIM Card | 1 x Nano SIM Card slot |
|---|---|
| Micro SD Card | 1 x Micro SD card slot (SD Card specification version 3.01) |

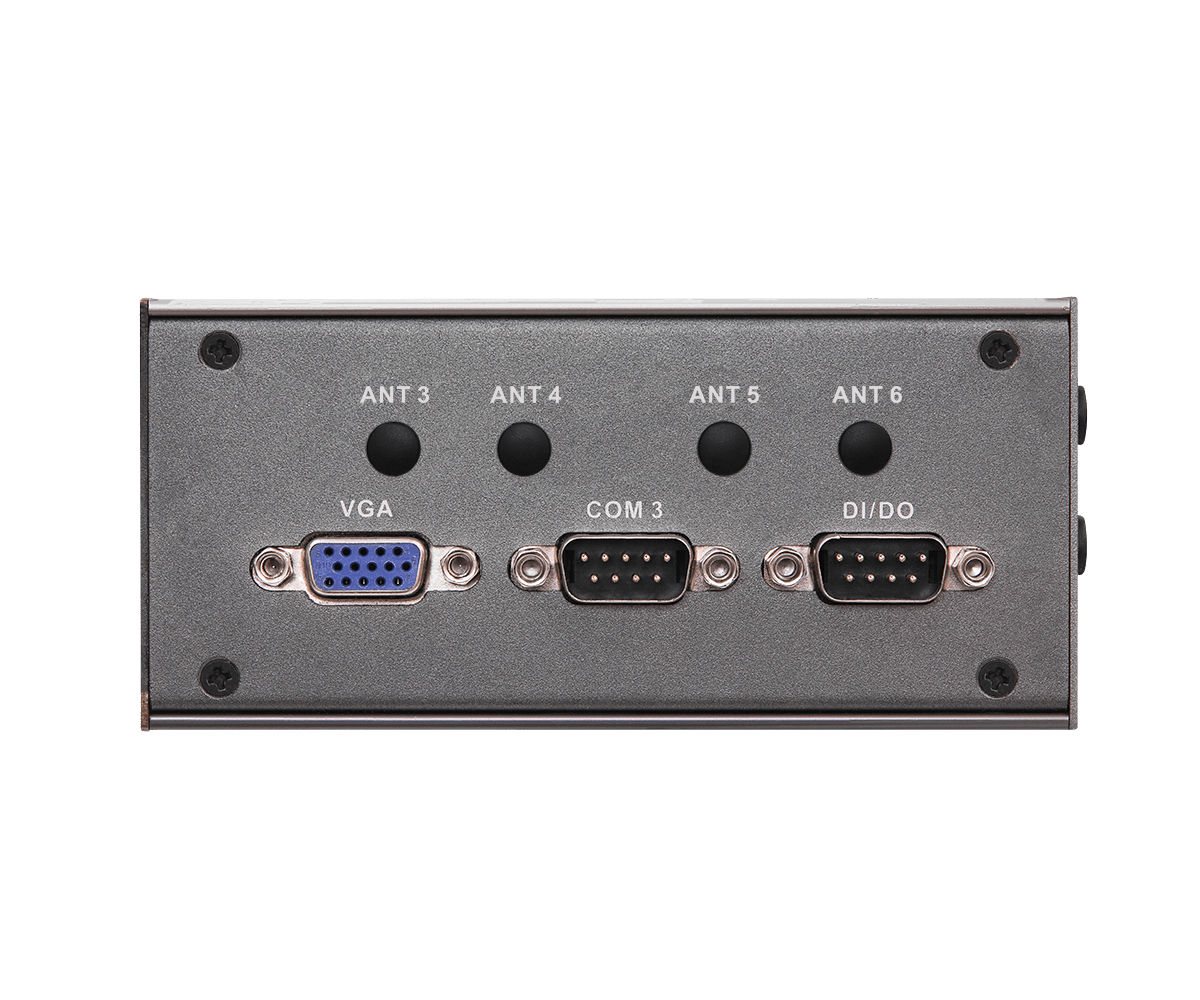

Top I/O
| COM | 1 x RS-232/422/485 |
|---|---|
| VGA | 1 |
| Digital I/O | 4DIs/4DOs |
| Ethernet | 2 x 1G LAN for PoE/5LAN SKU |
| LED | 2 x PoE LED |
Storage
| M.2 | 1 x M.2 (Key M, 2280) with PCIe Gen3x2 and SATA3 |
|---|---|
| SATA | 1 x 2.5" SATA3 SSD (6Gb/s) for Basic SKU (By request) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| DC Input | For Basic/5LAN SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection |
|---|
Environment
| Operating Temp | For Basic/5LAN SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s |
|---|---|
| Storage Temp | -40°C ~ 85°C (-40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
Mechanical
| Construction | Aluminum |
|---|---|
| Dimensions (L x W x H) | 58 x 125 x 157 mm |
| Mounting | DIN-Rail , Wall Mount (By Request) |
| Weight | Basic SKU: 1.45 kg PoE SKU: 1.75kg 5LAN SKU: 1.65kg |
Standards and Certifications
| Safety | EN 62368-1 (LVD) |
|---|---|
| EMC | EN 61000-6-2/-6-4 (CE) FCC Part 15B Class A |
| EMS | IEC 61000-4-2, ESD protection Level 4 : Contact +/-8 KV, Air +/-15 |
| Shock | IEC 60068-2-27, Operating 100 G, half sine 11 ms duration with SSD |
| Vibration | IEC 60068-2-64, Operating: 5 Grms, 5-500 Hz, 3 axes with SSD |
| OS | Red Hat Enterprise Linux 9.2 - 9.x |
| Industrial Cybersecurity | IEC 62443-4-1 IEC 62443-4-2 |
| Others | Intel® FDO |
Others
| OS Support | Windows 10, Liunux |
|---|---|
| Real-Time Enablement | TSN, TCC support under Linux |
| TPM | TPM2.0 |
| Packing List | 3 x M2*2 Screw Package 1 x Sink for Memory 1 x Sink for M.2 2280 support 1 x 3-pin phoenix connector 1 x System QIG |
| Optional Items | (1) 19V/65W Power Adapter for Basic/5LAN SKU (2) 19V/120W Power Adapter for PoE SKU (3) 2.5" HDD bracket kits for Basic SKU (4) Thermal Kits for support 4G LTE/5G module (5) Antenna/SMA Cable for support Wi-Fi module (6) Antenna/SMA Cable for support 4G LTE/5G module (7) DIN Rail Kit (8) Wall Mount Kit |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
