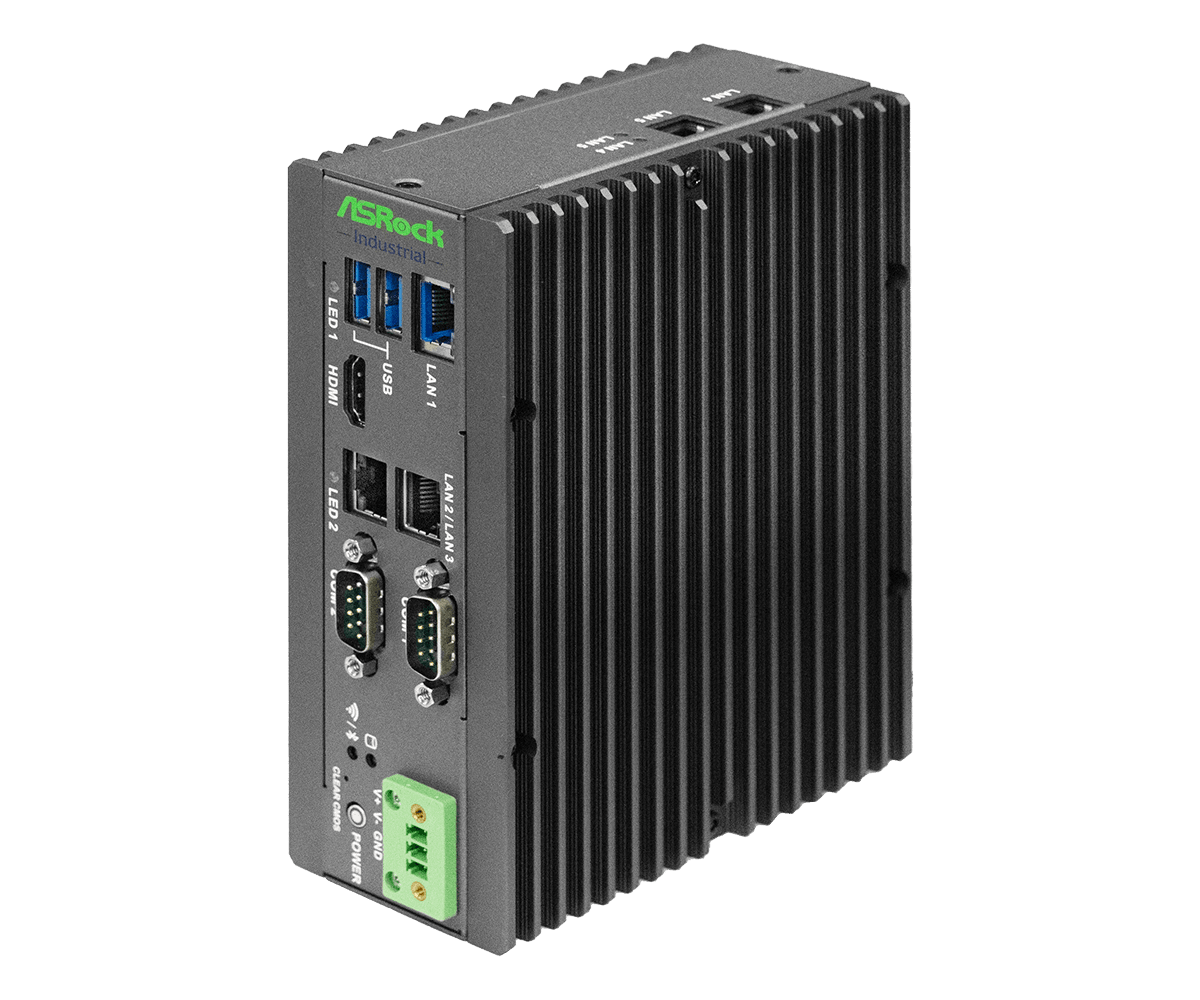

iEP-5010G-DCN Industrial IoT Controller
- Powerful Intel® Atom x6425RE Processor (Elkhart Lake)
- Fan-less and Rugged Design
- Wide Temperature Operation (-40 °C to 70 °C)
- 6-36VDC Wide Range Power Inputs
- Intel® TCC and TSN Support for Real-Time Computing
- 4 x Intel 1G LAN , 1 x Intel 2.5G LAN
- Support Intel® IN-Band ECC
- Support Wireless Time-Sensitive Networking (WTSN)
- Developed according to IEC 62443-4-1 Standard
- Certified for IEC 62443-4-2 SL3 Cybersecurity Security
- Certified for UL C1D2, ATEX Zone2, IECEx
- EIA-364-65A Class IIIA compliance and G3 conformal coating
Specification
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB (16GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphicse |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
Ethernet
| Controller/ Speed | LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN/TCC LAN2/LAN3: Intel® I210IT with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps |
|---|---|
| Connector | RJ-45 |

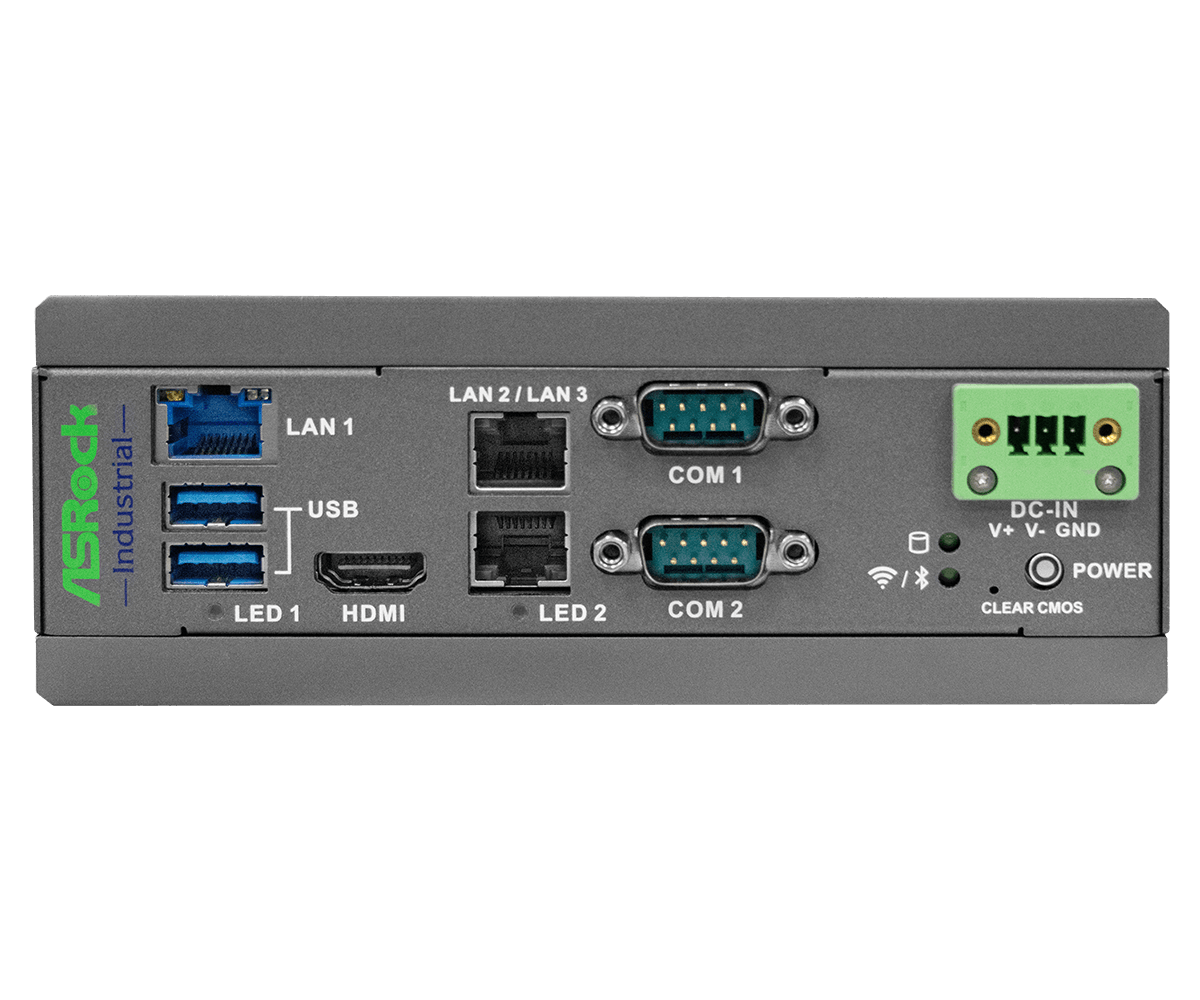

Front I/O
| COM | 2 x RS-232/422/485 |
|---|---|
| Ethernet | 1 x 2.5G LAN 2 x 1G LAN |
| HDMI | 1 x HDMI 2.0b |
| USB | 2 x USB 3.2 Gen2 |
| LED | 1 x NVMe Storage LED 2 x Programmable LED |
| DC-IN | 1 |
| Clear CMOS | 1 |
| Power Button | 1 (with LED) |

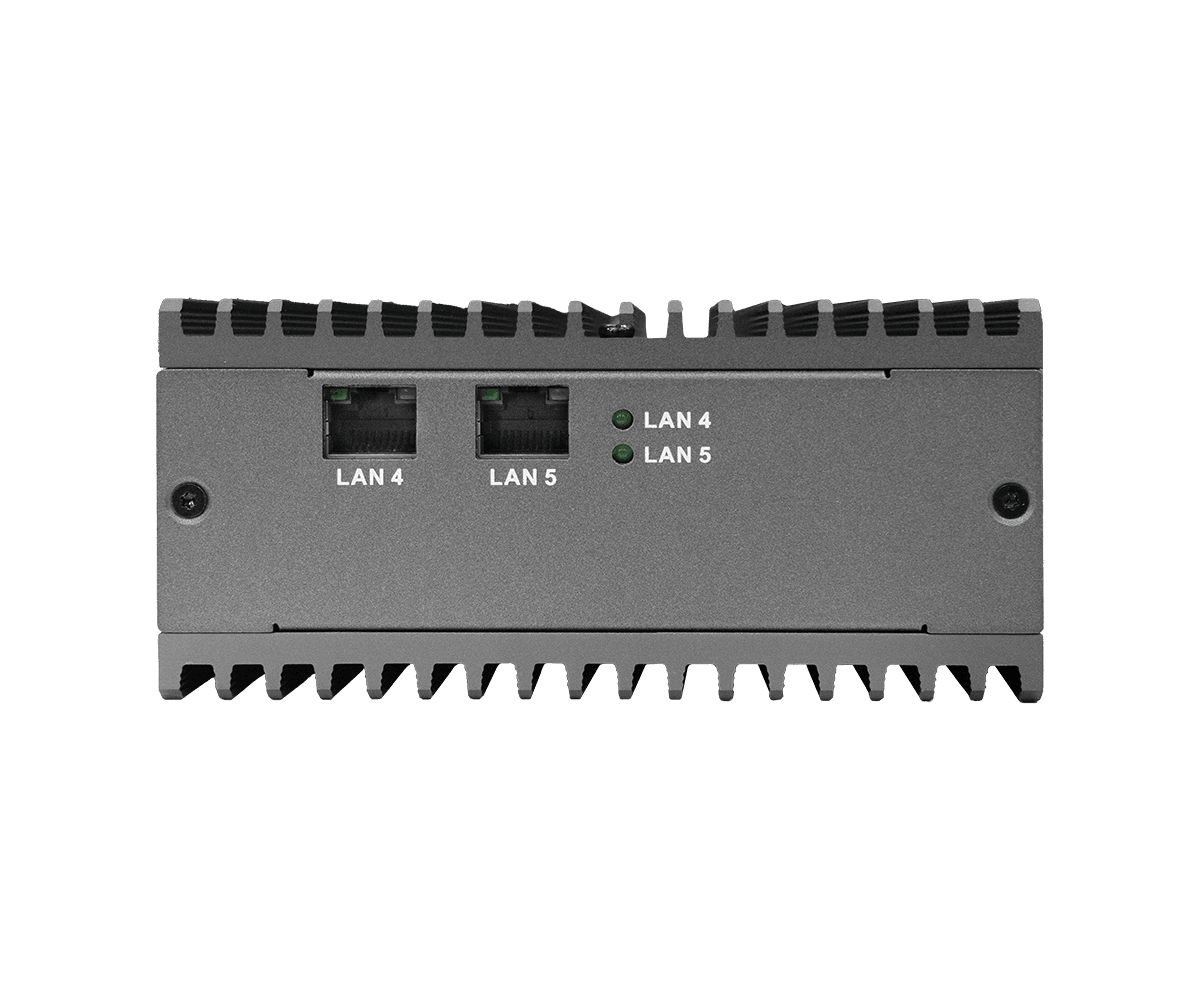

Top I/O
| Ethernet | 2 x 1G LAN |
|---|---|
| LED | 2 x LAN LED |
Storage
| M.2 | 1 x M.2 (Key M, 2280) with PCIe Gen3x2, 128G |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| DC Input | 6V~36V DC - OVP, UVP, OCP, plus 80V surge protection |
|---|
Environment
| Operating Temp | -40°C ~ 70°C (-40°F~158°F) with airflow 0.5~0.8m/s |
|---|---|
| Storage Temp | -40°C ~ 85°C (-40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
Mechanical
| Construction | Aluminum |
|---|---|
| Dimensions (L x W x H) | 58 x 125 x 157 mm |
| Mounting | DIN-Rail , Wall Mount (By Request) |
| Weight | 1.3 kg |
Standards and Certifications
| Safety | UL/ cUL 610101-1, UL/ cUL 61616-2-201 CB IEC 610101-1, IEC 61010-20-201 IECEx UL C1D2 ATEX Zone 2 |
|---|---|
| EMC | EN 61000-6-2/-6-4 (CE) FCC Part 15B Class A |
| EMS | IEC 61000-4-2, ESD protection Level 4 : Contact +/-6 KV, Air +/-15 |
| Shock | IEC 60068-2-27, Operating 100 G, half sine 11 ms duration with SSD |
| Vibration | IEC 60068-2-64, Operating: 5 Grms, 5-500 Hz, 3 axes with SSD |
| Industrial Cybersecurity | IEC 62443-4-1 IEC 62443-4-2 SL3 |
| Others | Altitude: +3000m EIA-364-65A, Class IIIA |
Others
| OS Support | Windows 10, Liunux 22.04 LTS |
|---|---|
| Real-Time Enablement | TSN, TCC support under Linux |
| TPM | TPM2.0 |
| Packing List | 3 x M2*2 Screw Package 1 x 3-pin phoenix connector 1 x System QIG |
| Optional Items | (1) 19V/65W Power Adapter (2) DIN Rail Kit (3) Wall Mount Kit |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2026-05-13 | Download | |
| Description | Quick Installation Guide | Language | English | Date | 2026-05-13 | Download |
Ordering Information
Ordering Information
| Model Name | Part Number | Description | |||
|---|---|---|---|---|---|
| Model Name | iEP-5010G-DCN | Part Number | 90PXGGC0-00000000 | Description | Barebone (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM & SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD. |
| Model Name | ADAPTER 65W 19V | Part Number | 04G266000002AI | Description | FSP/FSP065-RBBN3/9NA065789 |
| Model Name | 14G110000212AK | Part Number | US AC PWR CORD | Description | L: 1.5M BLACK |
| Model Name | 14G110000111AK | Part Number | EU AC PWR CORD EU | Description | L: 1.5M BLACK |
| Model Name | 13G020761000AI | Part Number | DIN RAIL KITS | Description | DIN RAIL x1 SCREW x2 |
| Model Name | 13G020760000AI | Part Number | WALL MOUNT KITS | Description | WALL MOUNT x1 SCREW x4 |
