iEP-5000G Series Industrial IoT Controller
- Powerful Intel Atom® x6425RE Processor
- Fan-less and Rugged Design
- Wide Temperature Operation (-40 °C to 70 °C)
- 6-36VDC Wide Range Power Inputs
- Most Flexible IOs and Expansion for Industrial Applications
- Intel® TCC and TSN Support for Real-Time Computing
- DIN Rail or Wall Mount Options
- Support Wireless Time-Sensitive Networking (WTSN)
- Certified on Ubuntu 22.04 LTS
- Certified on Red Hat Enterprise Linux 9.2 - 9.x
- TAA Compliant
Overview
Specification
Processor System
| CPU | iEP-5000G Series : Intel Atom® x6425RE, 4C, 1.9GHz, 12W iEP-5001G Series : Intel Atom® x6212RE, 2C, 1.5GHz, 6W |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB (16GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphicse |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
Expansion Slot
| M.2 | 1 x M.2 (Key B, 3042/3052) with PCIe Gen3x1 and USB 3.2 for 4G LTE/5G 1 x M.2 (Key E, 2230) with PCIe Gen3x1 and USB 2.0 for Wireless |
|---|---|
| RF& Antenna | 6 x SMA connector hole reserved for Basic SKU 4 x SMA connector hole reserved for PoE/5LAN SKU |
Audio
| Interface | Realtek ALC897, High Definiton Audio |
|---|
Ethernet
| Controller/ Speed | LAN1/LAN2/LAN3: Maxlinear GPY215 with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU) |
|---|---|
| Connector | RJ-45 |

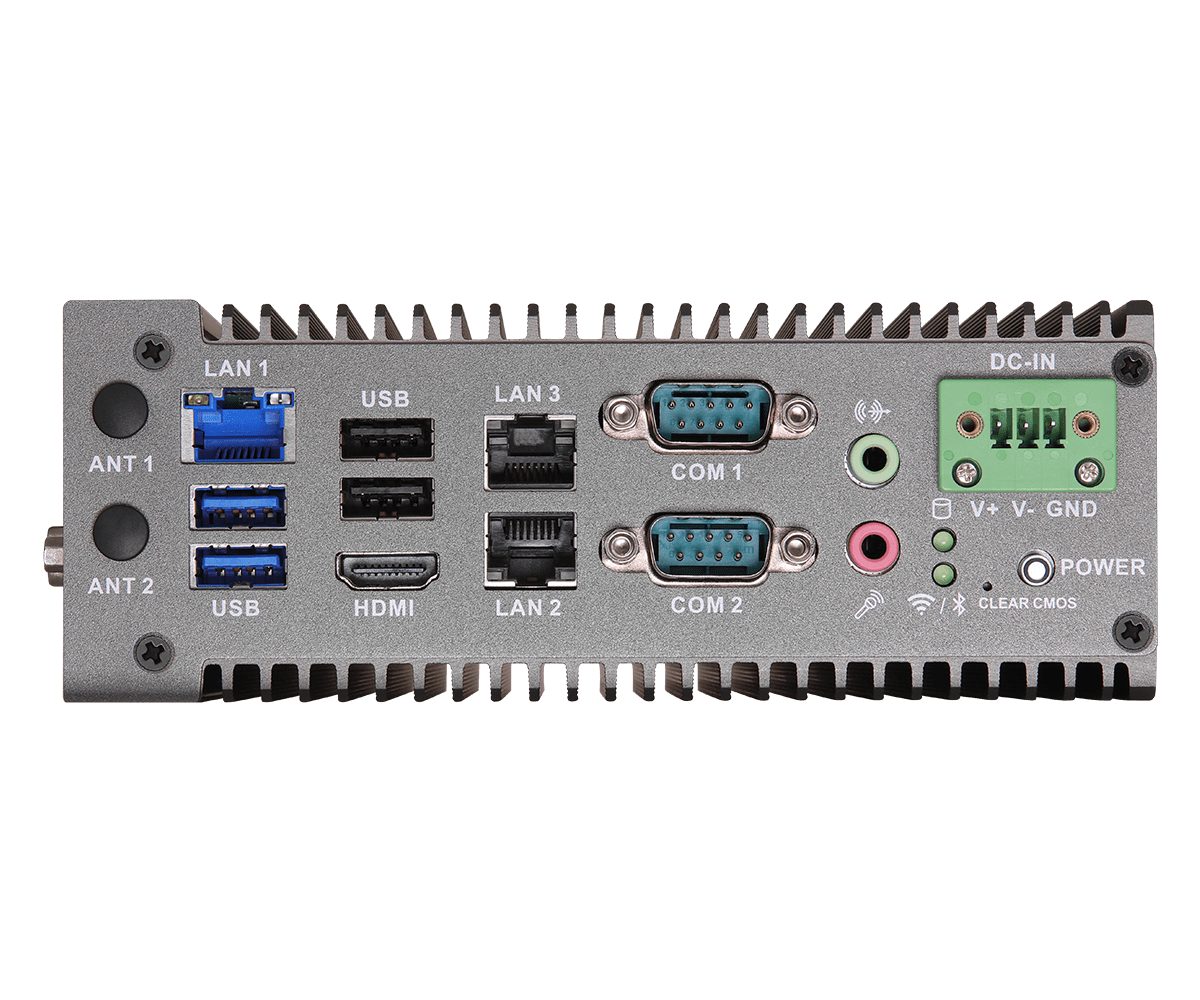

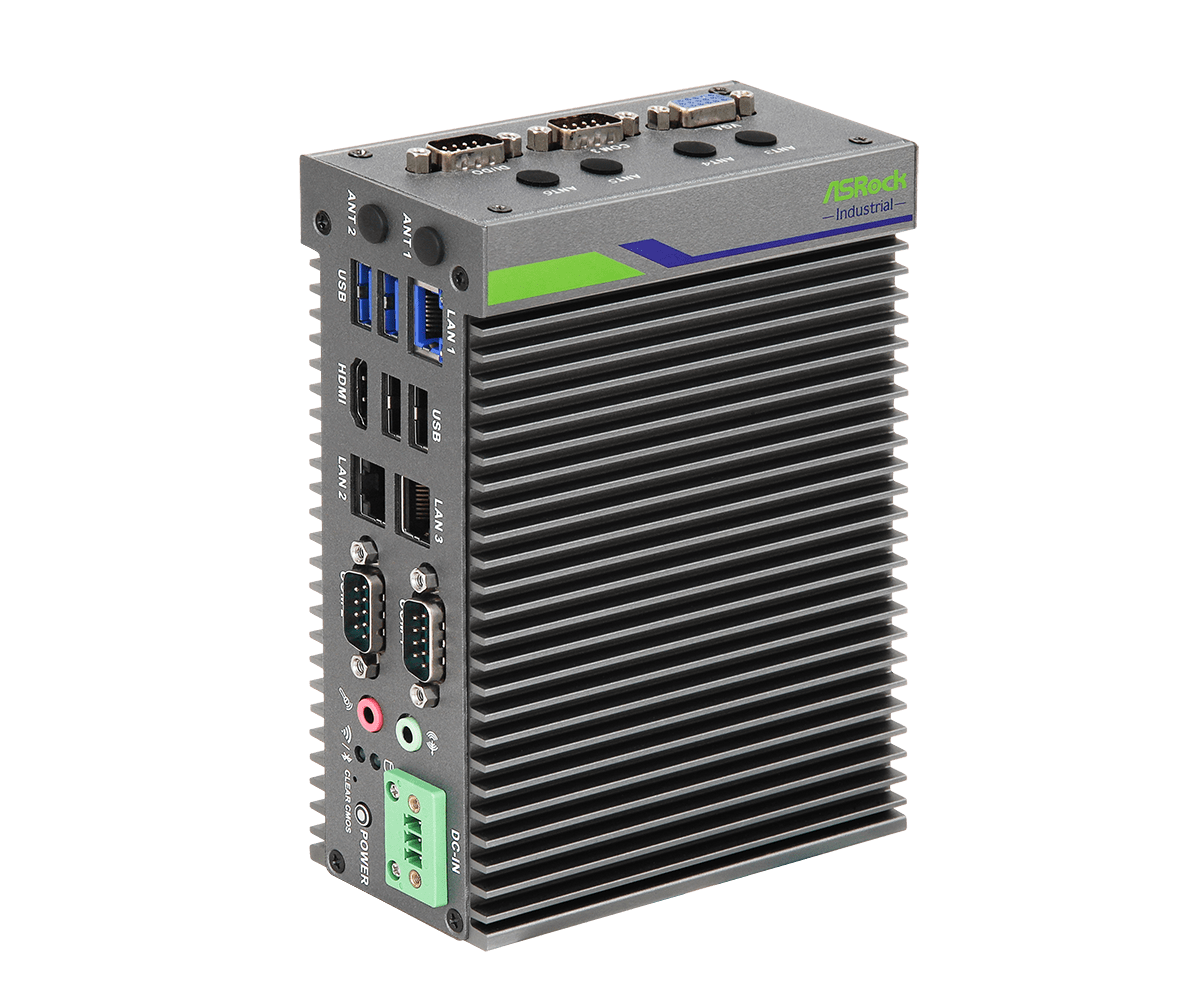

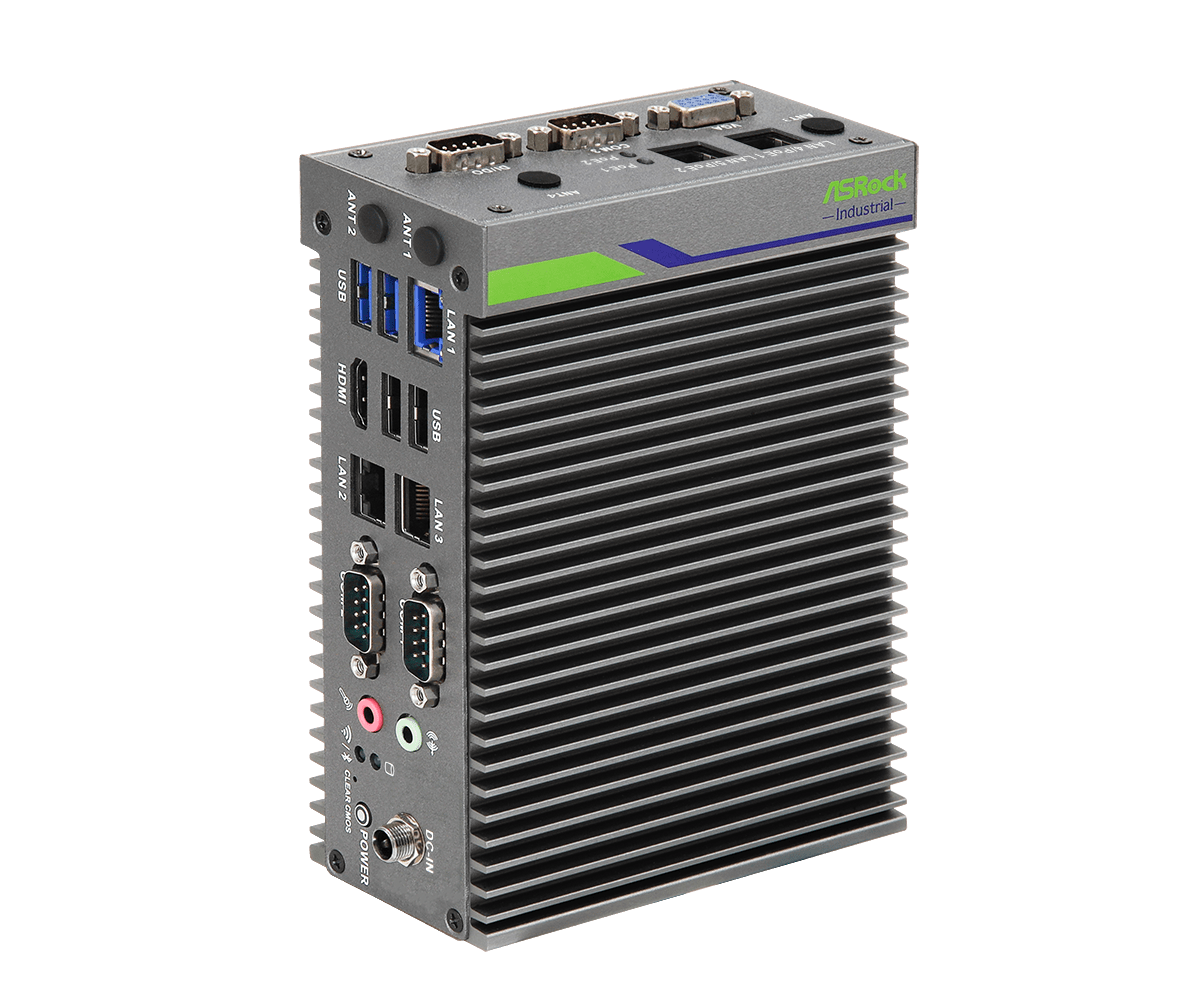

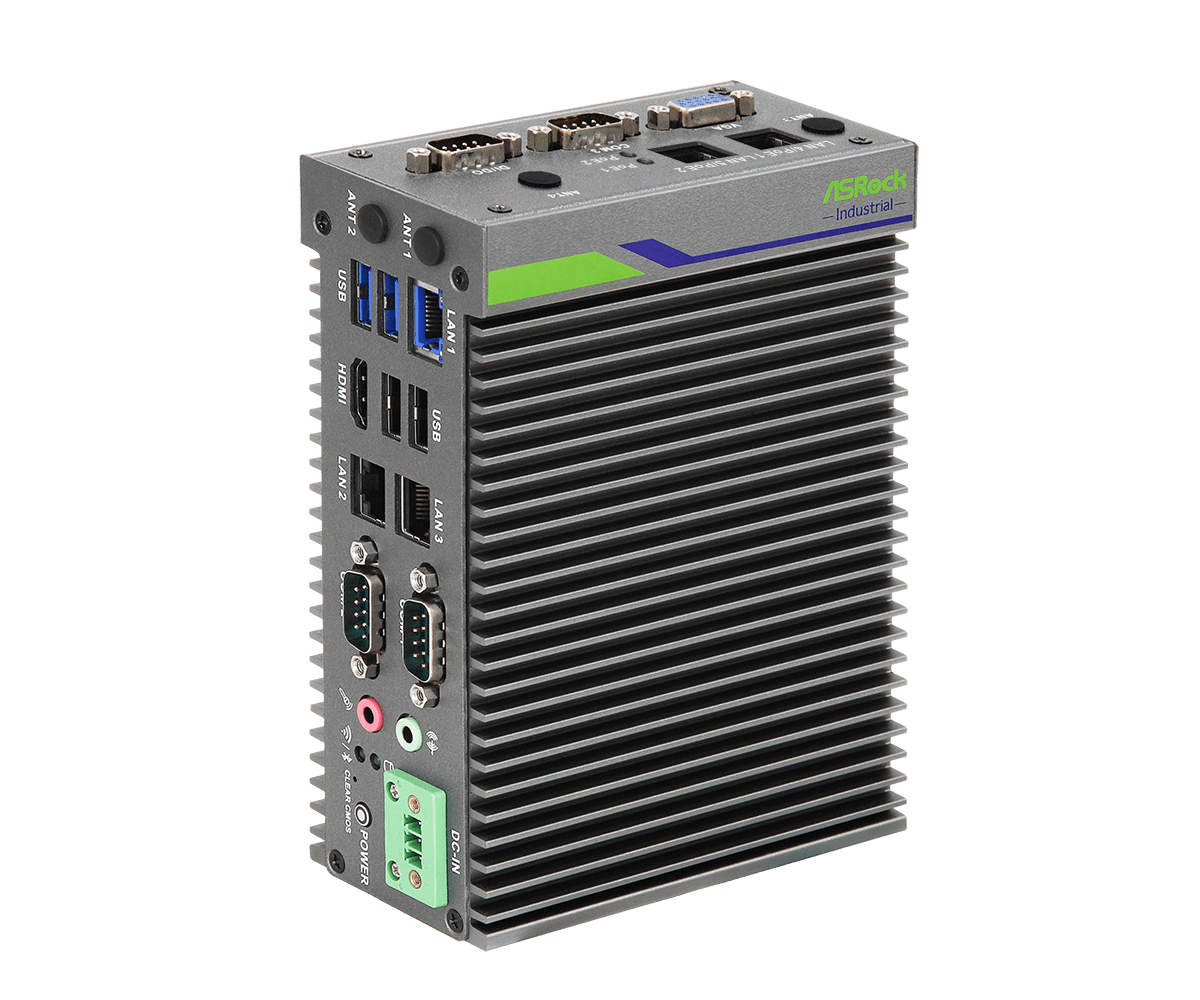

Front I/O
| Audio | 1 x Mic-in 1 x Line-out |
|---|---|
| COM | 2 x RS-232/422/485 |
| Ethernet | 3 x 1G LAN |
| HDMI | 1 x HDMI 2.0b |
| USB | 2 x USB 3.2 Gen2 2 x USB 2.0 |
| LED | 1 x SATA/NVMe Storage LED 1 x Wi-Fi/BT LED |
| DC-IN | 1 x DC Jack (For iEP-500XG-00X) 1 x 3-pin Phoenix type (For iEP-500XG-01X) |
| Clear CMOS | 1 |
| Power Button | 1 (with LED) |
Rear I/O
| SIM Card | 1 x Nano SIM Card slot |
|---|---|
| Micro SD Card | 1 x Micro SD card slot (SD Card specification version 3.01) |

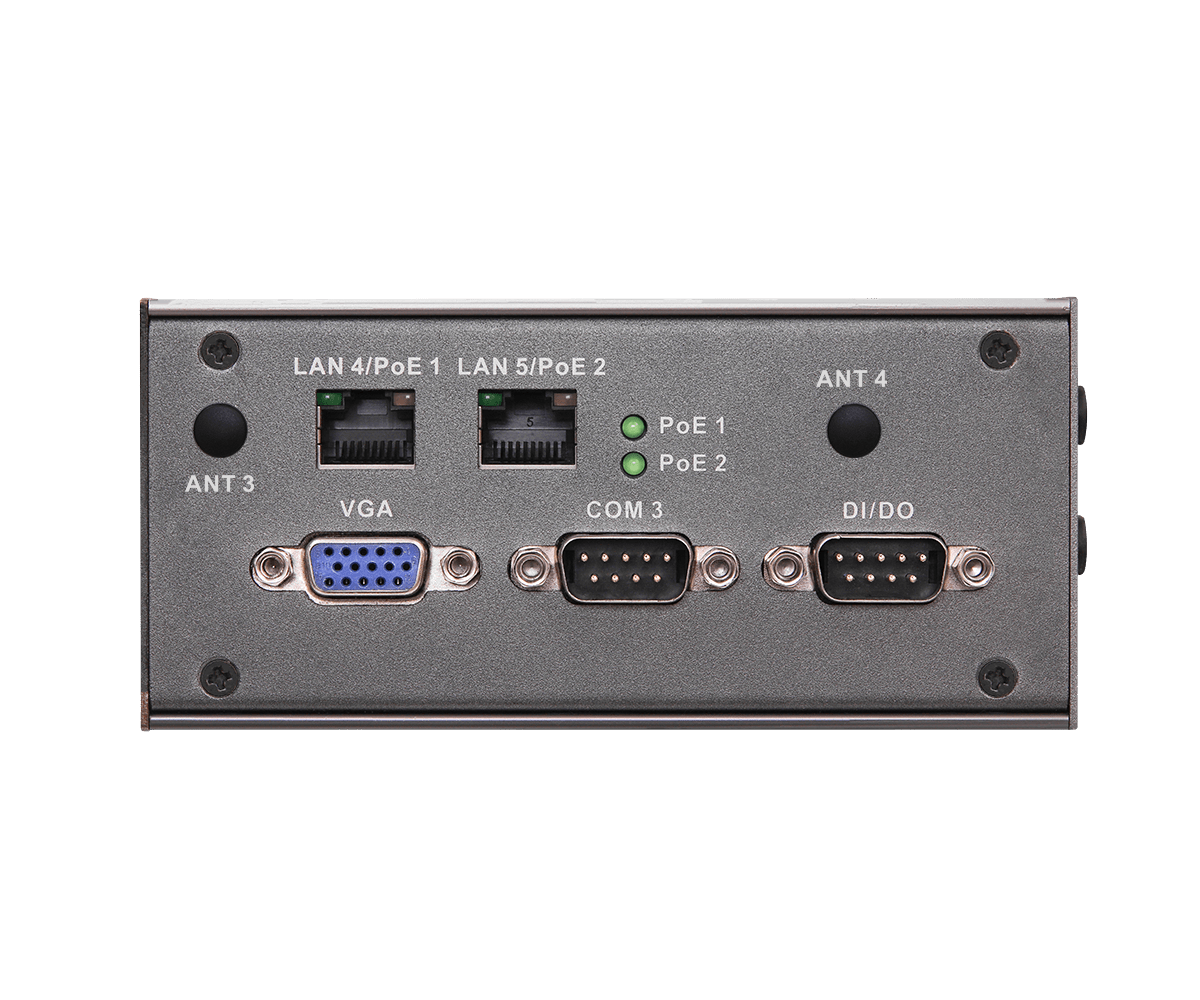

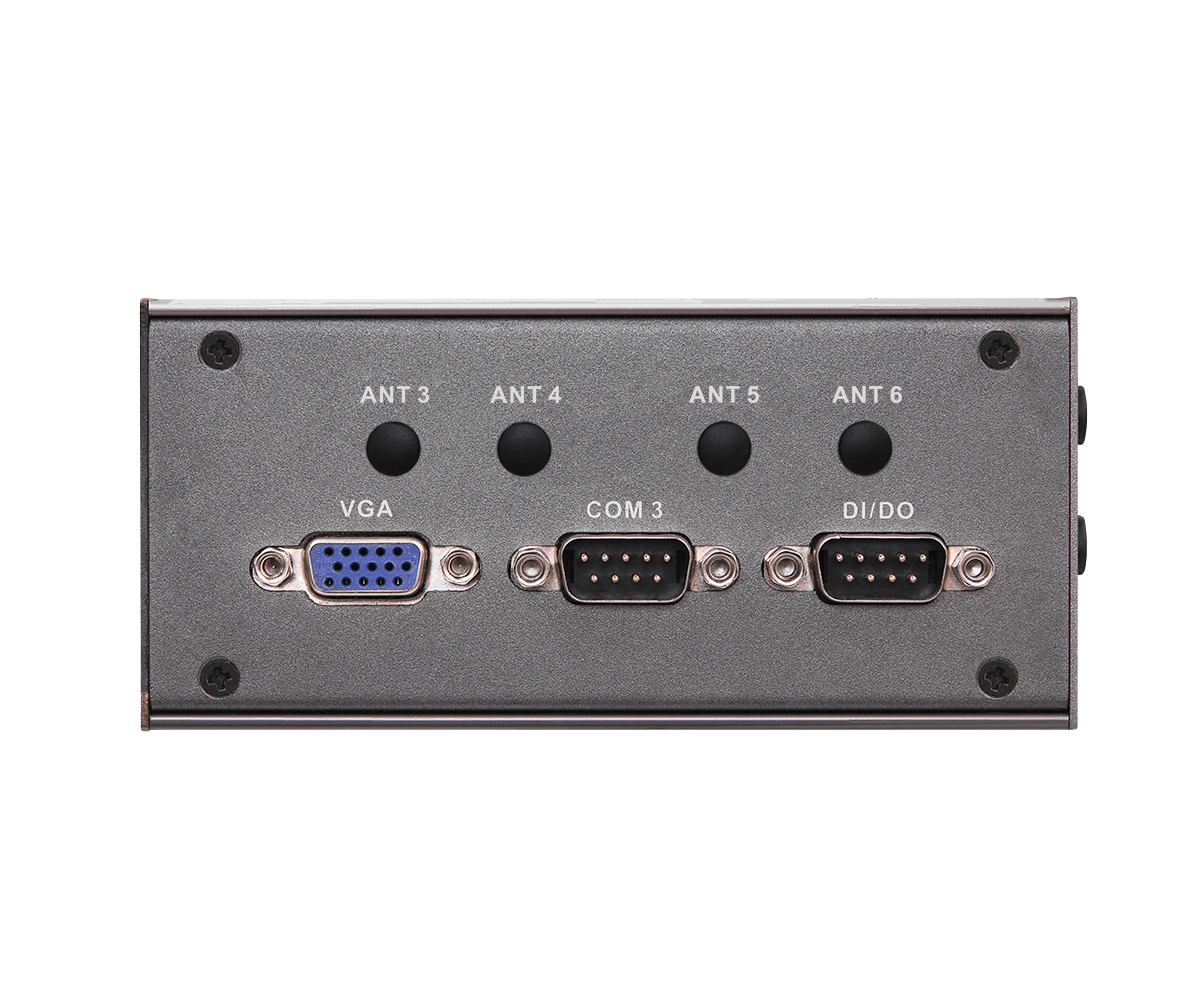

Top I/O
| COM | 1 x RS-232/422/485 |
|---|---|
| VGA | 1 |
| Digital I/O | 4DIs/4DOs |
| Ethernet | 2 x 1G LAN for PoE/5LAN SKU |
| LED | 2 x PoE LED |
Storage
| M.2 | 1 x M.2 (Key M, 2280) with PCIe Gen3x2 and SATA3 |
|---|---|
| SATA | 1 x 2.5" SATA3 SSD (6Gb/s) for Basic SKU (By request) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | For Basic/5LAN SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection |
|---|
Environment
| Operating Temp | For Basic/5LAN SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s |
|---|---|
| Storage Temp | -40°C ~ 85°C (-40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
Mechanical

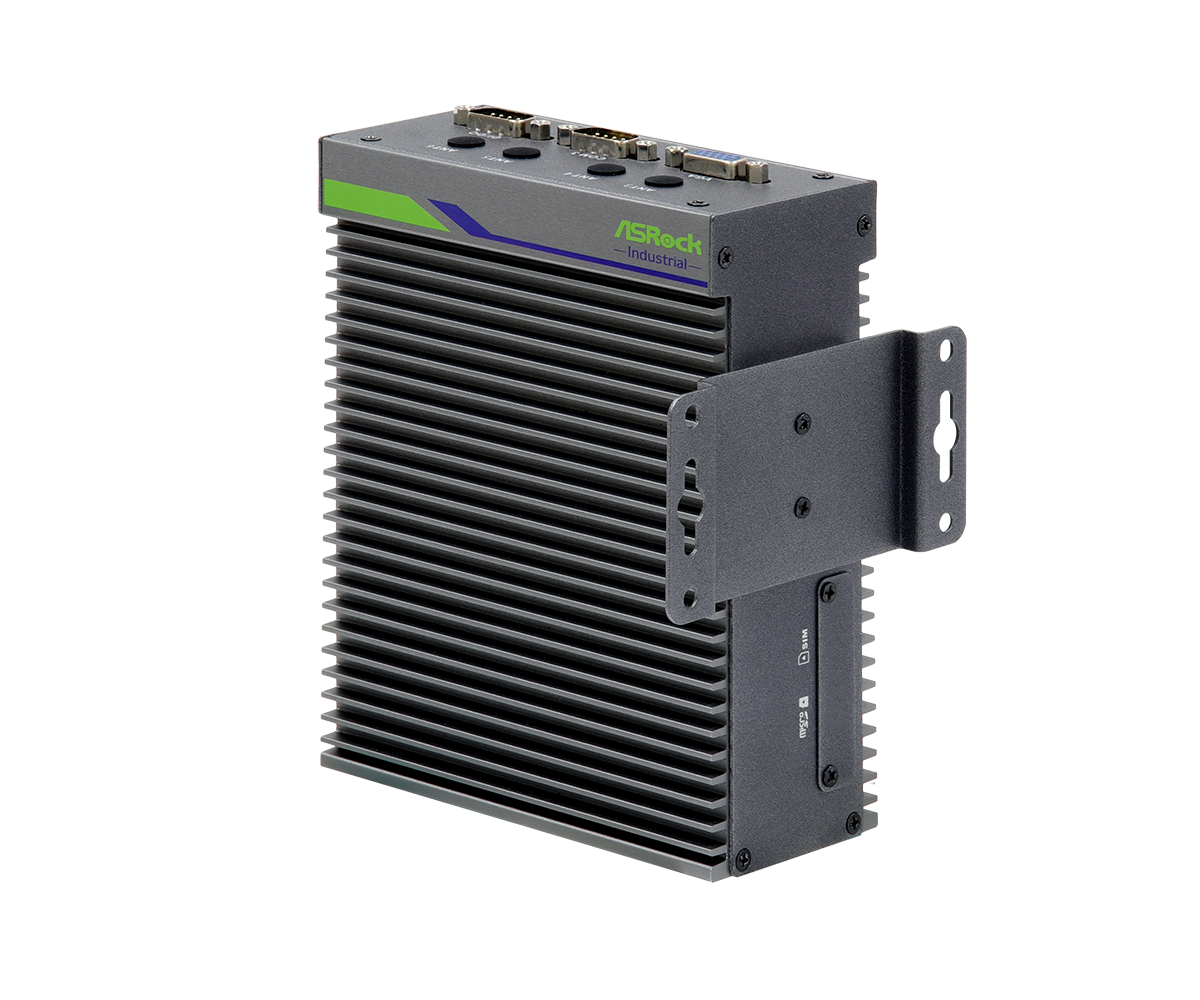

| Construction | Aluminum |
|---|---|
| Dimensions (L x W x H) | 58 x 125 x 157 mm |
| Mounting | DIN-Rail , Wall Mount (By Request) |
| Weight | Basic SKU: 1.45 kg PoE SKU: 1.75kg 5LAN SKU: 1.65kg |
Standards and Certifications
| Safety | EN 62368-1 (LVD) |
|---|---|
| EMC | EN 61000-6-2/-6-4 (CE) FCC Part 15B Class A |
| EMS | IEC 61000-4-2, ESD protection Level 4 : Contact +/-8 KV, Air +/-15 |
| Shock | IEC 60068-2-27, Operating 100 G, half sine 11 ms duration with SSD |
| Vibration | IEC 60068-2-64, Operating: 5 Grms, 5-500 Hz, 3 axes with SSD |
| OS | Ubuntu 22.04 LTS Red Hat Enterprise Linux 9.2 - 9.x |
Others
| OS Support | Windows 10, Liunux |
|---|---|
| Real-Time Enablement | TSN, TCC support under Linux |
| TPM | TPM2.0 |
| Packing List | 1 x 19V/65W Power Adapter (for Basic SKU with DC Jack only) 3 x M2*2 Screw Package 1 x Sink for Memory 1 x Sink for M.2 2280 support 1 x 3-pin phoenix connector (for system with DC-IN phoenix type only) 1 x System QIG |
| Optional Items | (1) 19V/65W Power Adapter for Basic/5LAN SKU (2) 19V/120W Power Adapter for PoE SKU (3) 2.5" HDD bracket kits for Basic SKU (4) Thermal Kits for support 4G LTE/5G module (5) Antenna/SMA Cable for support Wi-Fi module (6) Antenna/SMA Cable for support 4G LTE/5G module (7) DIN Rail Kit (8) Wall Mount Kit |
