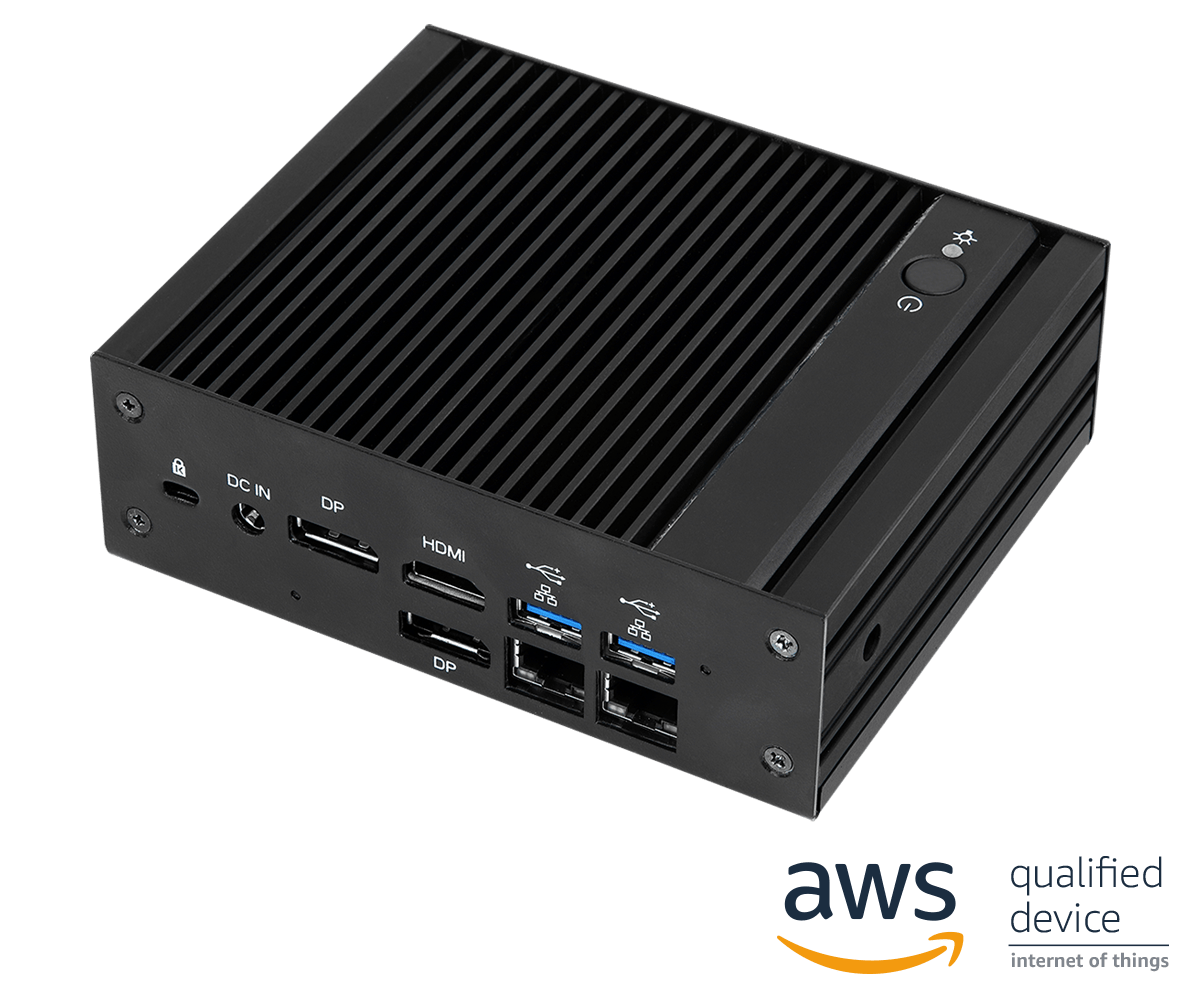

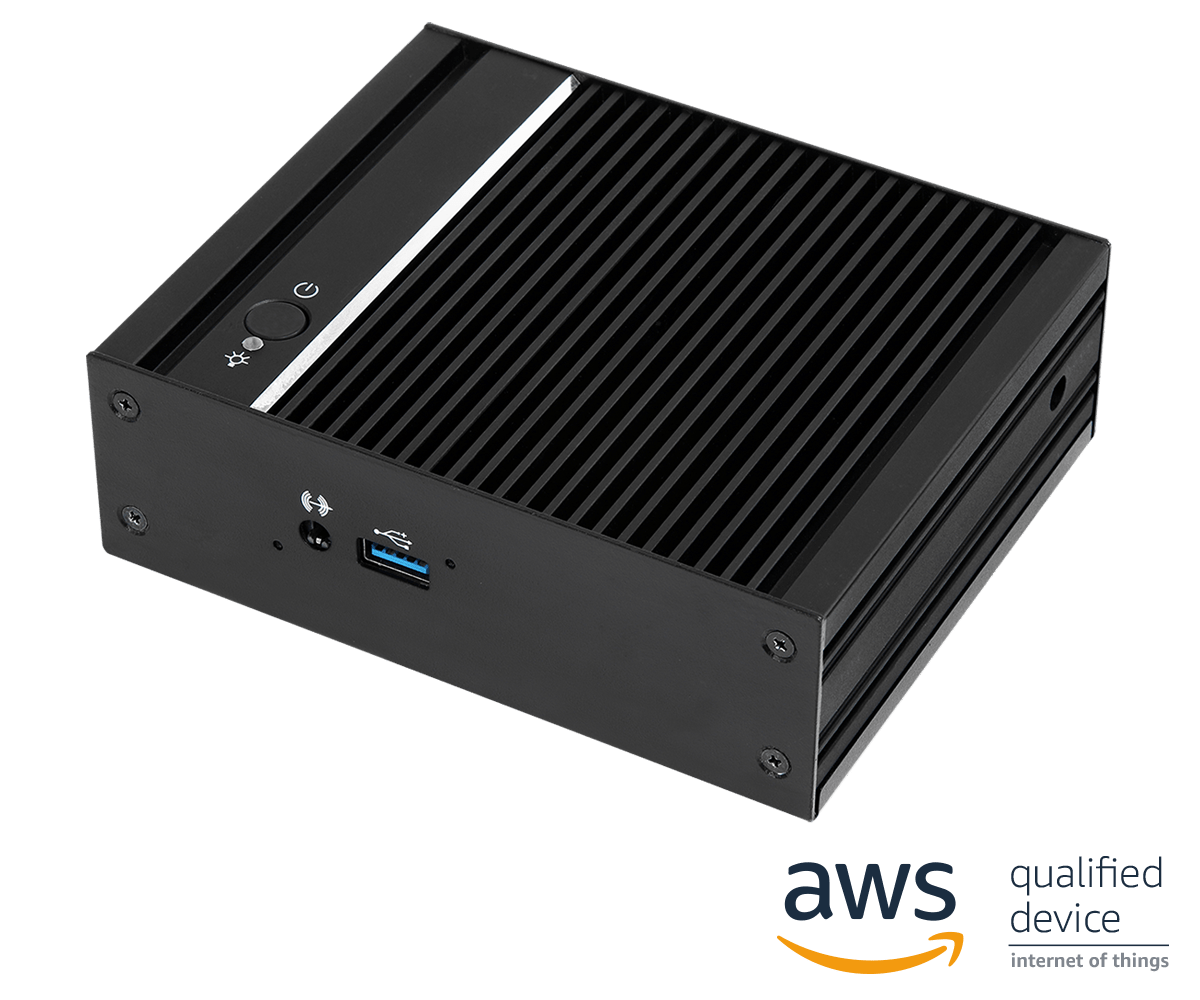

iBOX-420-DL Fanless Embedded BOX PC

Processor System

CPU	Intel®Apollo Lake Soc Processor N4200,QC,up to 2.50 GHz
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Memory

Technology	Dual Channel DDR3L 1866 MHz
Capacity	16 GB (8 GB per DIMM)
Socket	2 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
HDMI	HDMI 1.4b Max resolution up to 4096 x 2160@24Hz
DisplayPort	DisplayPort 1.2a , DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2	1 x Key E(2230)with PCIex1 and USB2.0 for wireless

Audio

Interface	Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed	2 x Realtek RTL8111G with 10/100/1000 Mbps

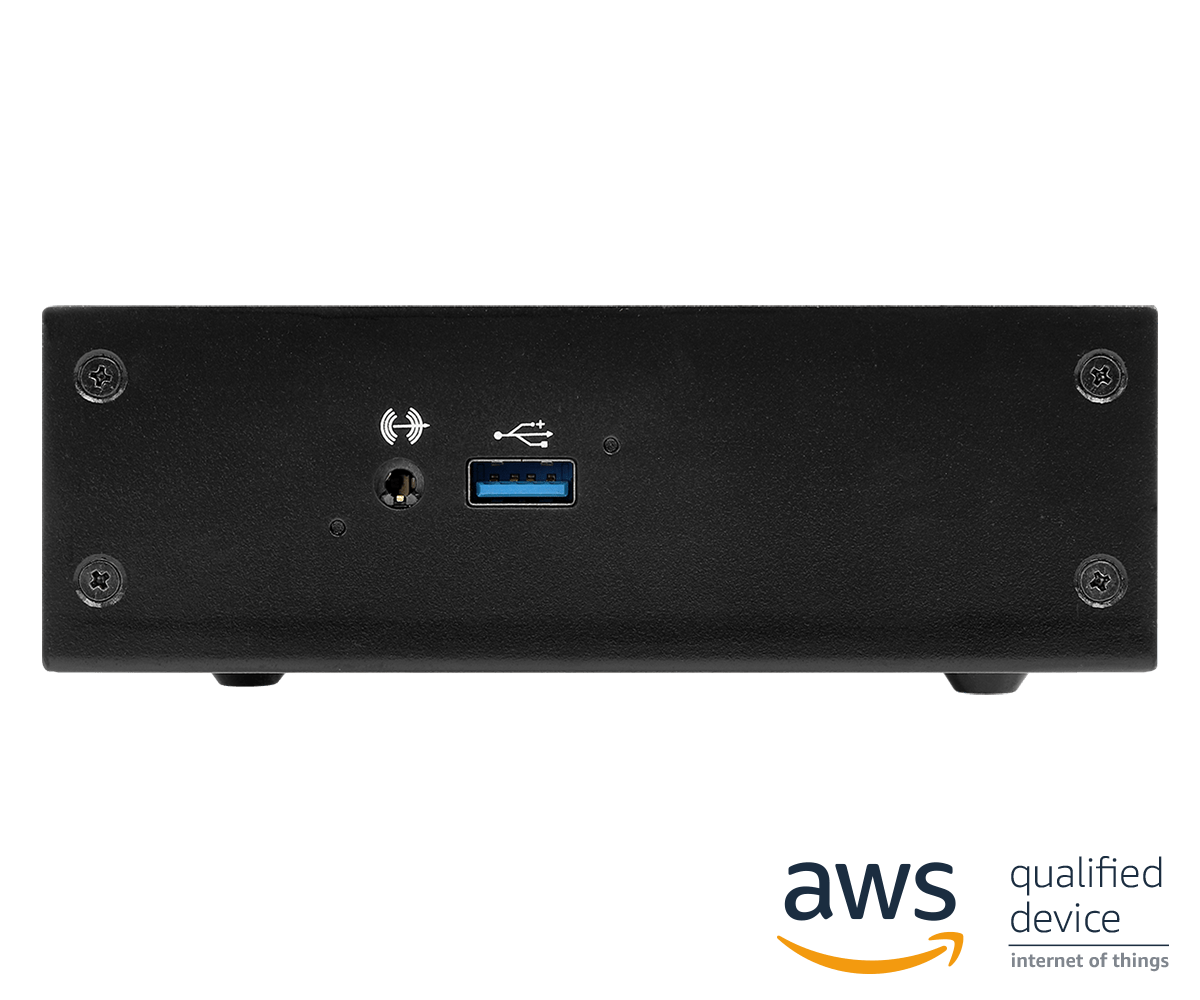

Front I/O

USB	1 x USB3.1(Gen1)
Audio	1 (Mic-in or Line-out)

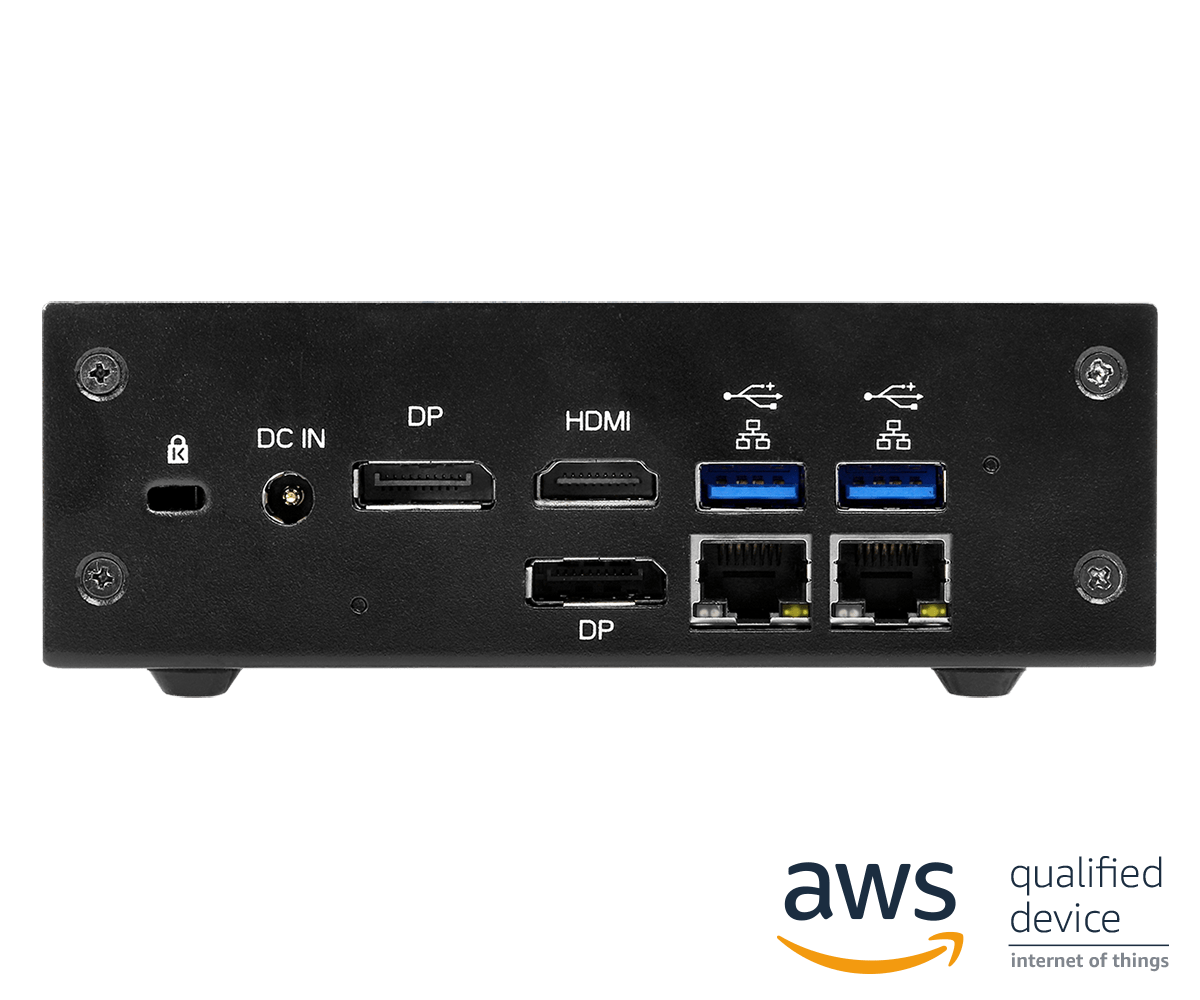

Rear I/O

HDMI	1 x HDMI 1.4b
DisplayPort	2 x DP 1.2a
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 3.1 (Gen1)
DC Jack	1

Storage

M.2	1x Key M(2242/2260) with PCIex1 and SATA3 for SSD
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	1 x 12V/60W Power Adapter
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 50ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	VESA mounting bracket
Dimensions (L x W x H)	135 x 110 x 44.5mm
Weight	Net Weight: 0.7kg

Others

OS Support	Windows 10
Certifications	CE, FCC Class A
Packing List	1 x 12V/60W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
