Intel® Elkhart Lake SoC Processors
iBOX-250J (J6412, QC, Max Speed Up to 2.6GHz, 10W)
Chipset
SoC
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
32 GB (16GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel® Gen 11 Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
VGA
Max resolution up to 1920x1200@60Hz
MultiDisplay
Dual Display
Audio
Interface
Realtek ALC233/256 HD, High Definition Audio
Ethernet
Controller/ Speed
LAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
Connector
2 x RJ-45

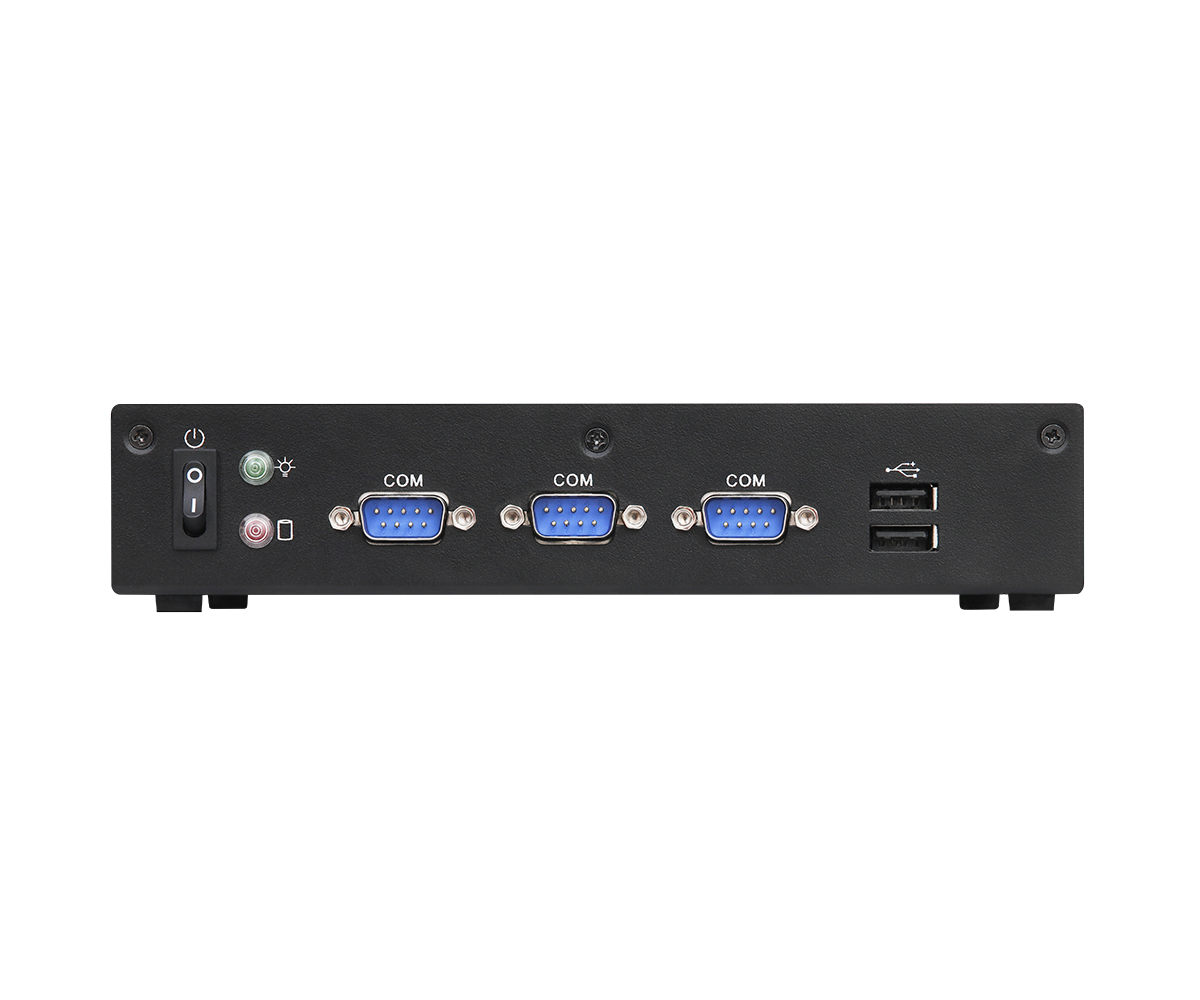

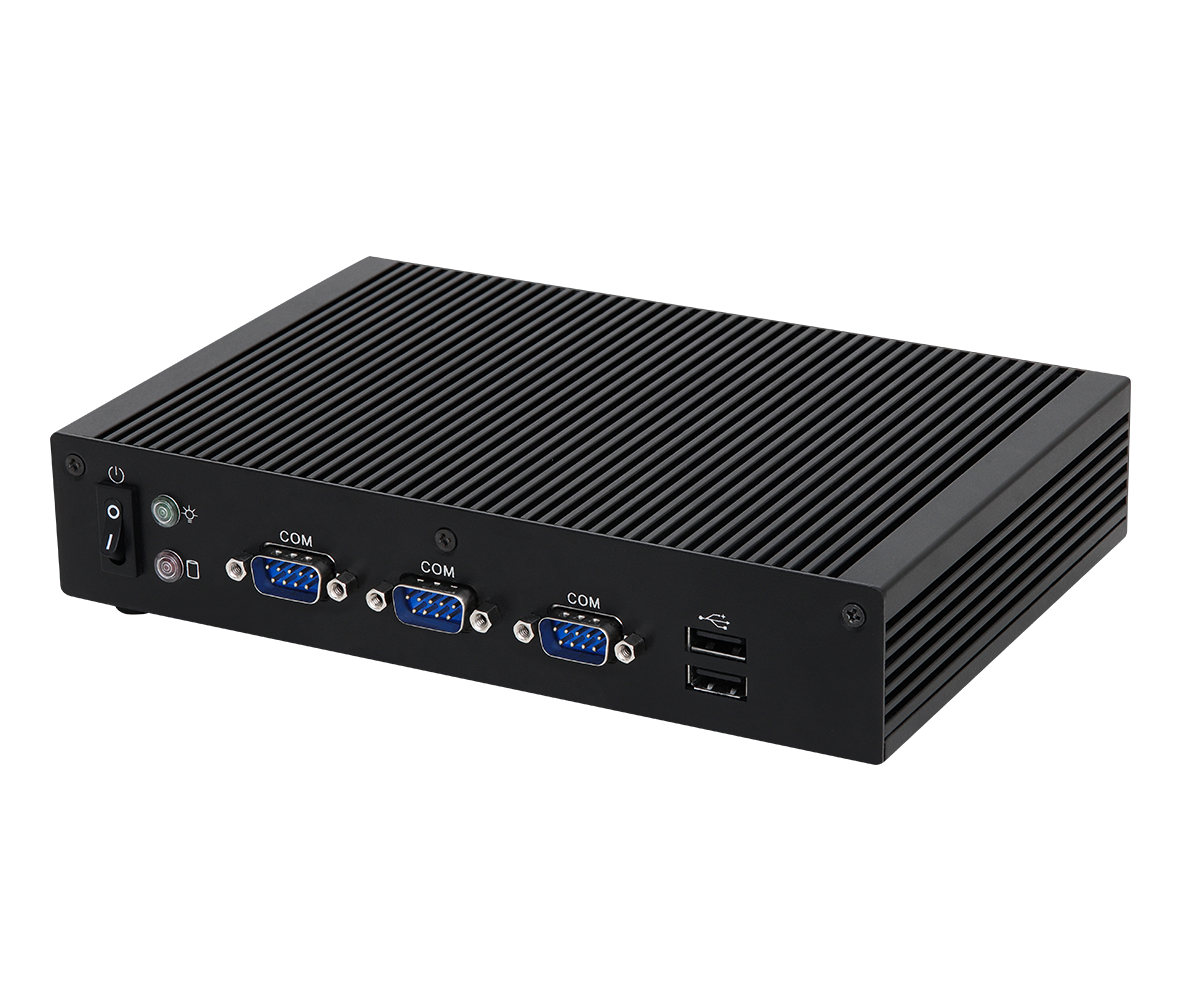

Front I/O
USB
2 x USB 2.0
COM
3 x COM (RS-232)

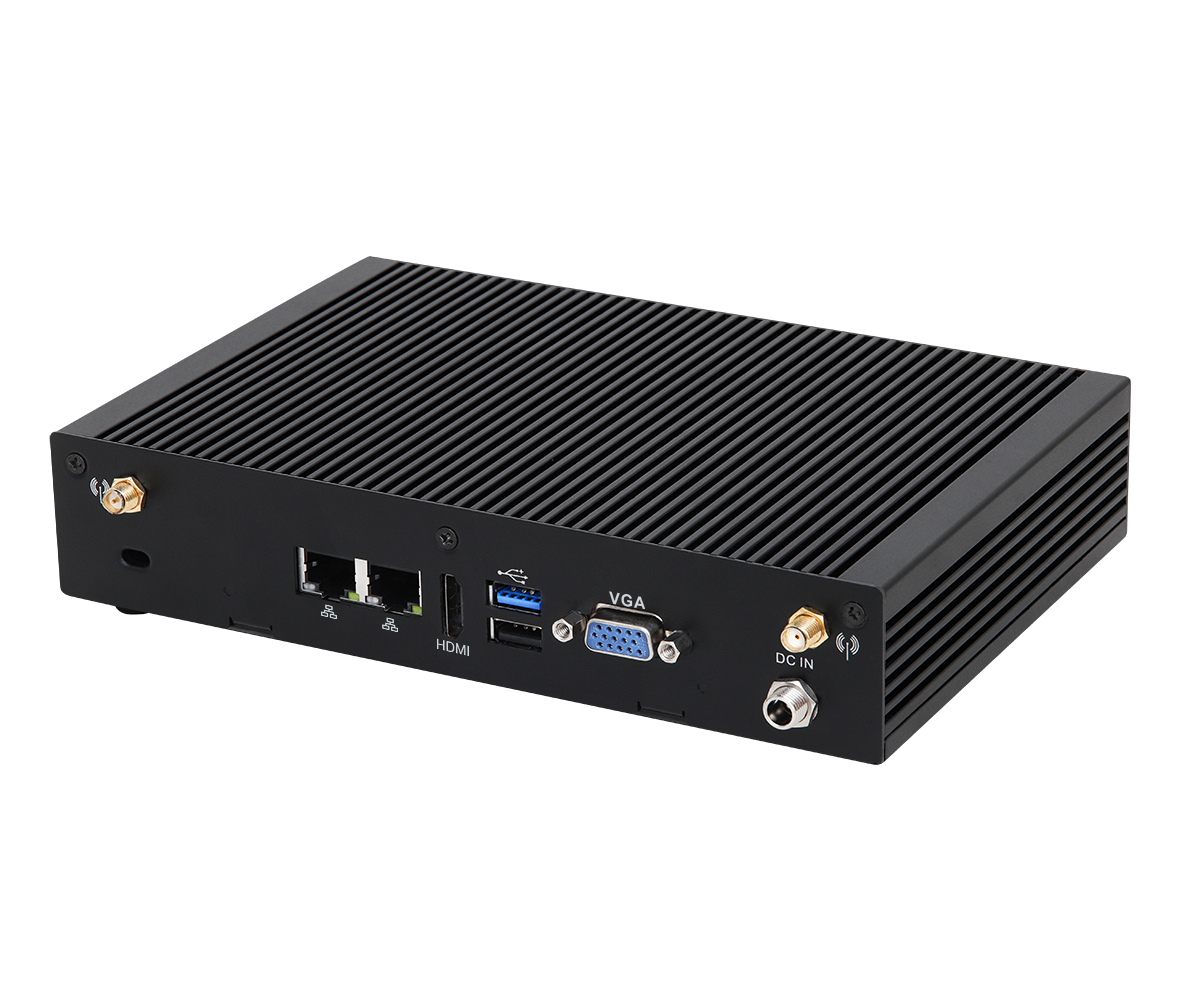

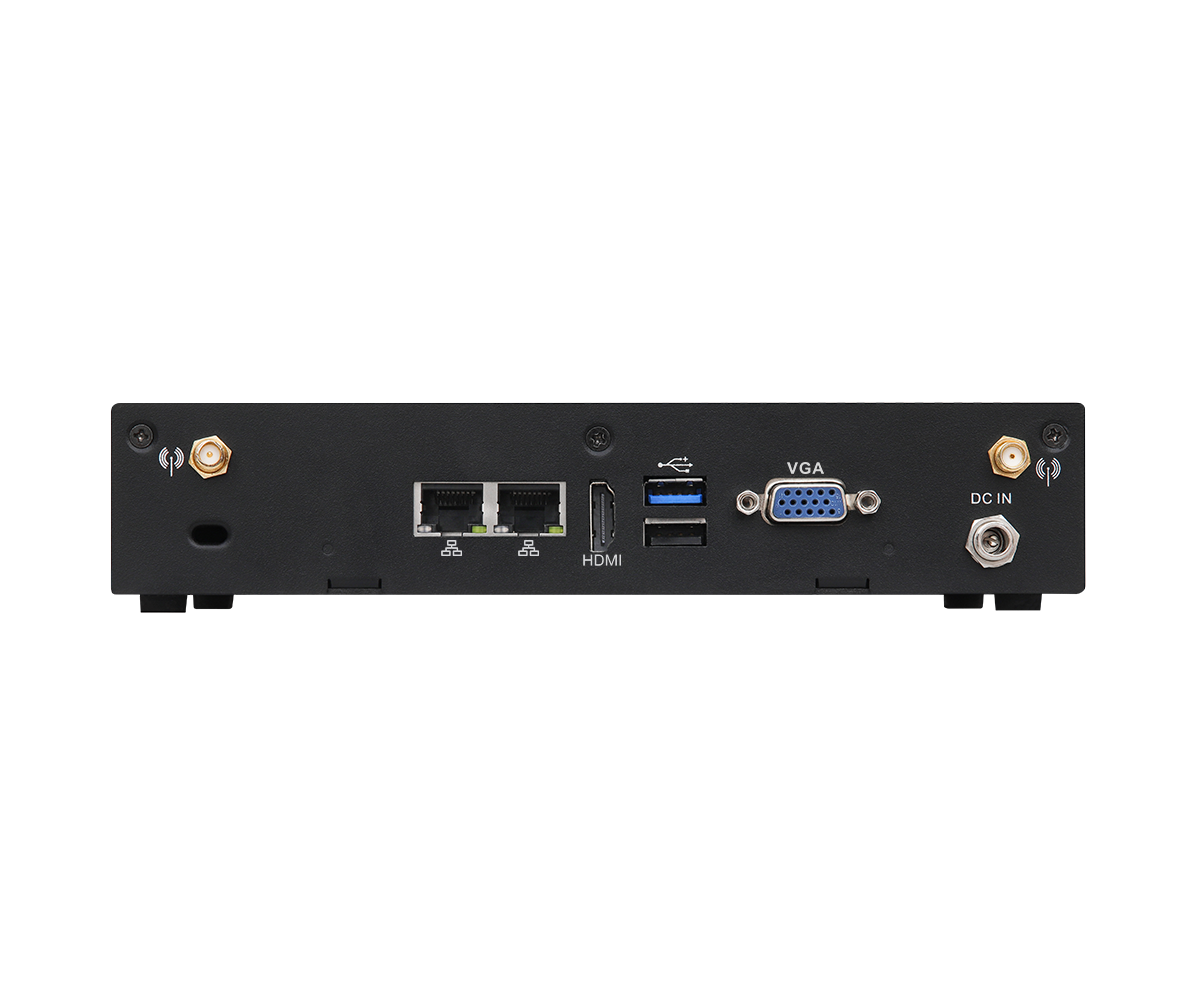

Rear I/O
HDMI
1 x HDMI 2.0b
VGA
1
Ethernet
2 x 2.5 Gigabit LAN
USB
1 x USB 3.2 Gen2, 1 x USB 2.0
Storage
M.2
1 x M.2 (Key M, 3042/3060/2280) with PCIe x1 for SSD
SATA
1 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
9~36V DC-In
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
-20ºC ~ 50ºC (With extended temp. peripherals)
Storage Temp
-40° C – 85° C
Operating Humidity
10% ~ 90%
Storage Humidity
10% ~ 90%
Mechanical
Construction
Aluminum housing
Mounting
VESA mount/Wall mount/Din-rail
Dimensions (L x W x H)
200 x 134.5 x 39mm (7.87" x 5.3" x 1.54")
Weight
Net Weight:1.3kg
Others
OS Support
Windows 10/11
Certifications
CE, FCC
Packing List
1 x 19V/65W Power Adapter
1 x Wall mount kit
TPM
TPM 2.0 onboard IC
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
