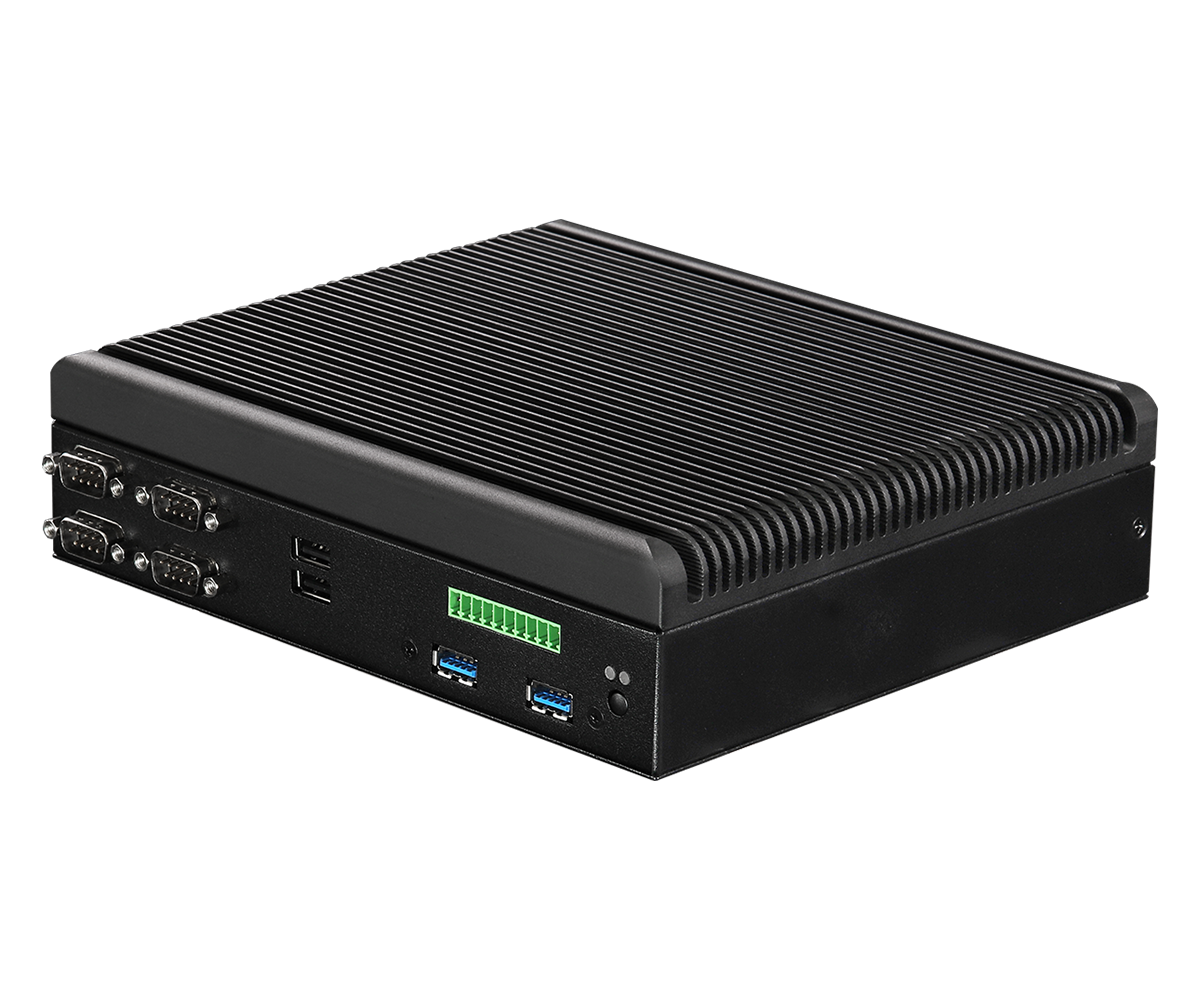

iBOX-350 Fanless Embedded BOX PC

Processor System

CPU	Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors -iBOX-350P (i7-8665UE, QC, up to 4.40 GHz) -iBOX-350M (i5-8365UE, QC, up to 4.10 GHz) -iBOX-350V (i3-8145UE, DC, up to 3.90 GHz)
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® UHD Graphics 620
DisplayPort	DisplayPort 1.2a, DP++ Max resolution up to 4096 x 2304@60Hz
MultiDisplay	Dual Display

Expansion Slot

M.2	1 x Key E (2230)with PCIe x1, CNVI and USB 2.0 for Wireless

Ethernet

Controller/ Speed	iBOX-350P/M LAN1: 1 x Intel® I210 with 10/100/1000 Mbps LAN2:1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro iBOX-350V LAN1: 1 x Intel® I210 with 10/100/1000 Mbps LAN2:1 x Intel® I219V with 10/100/1000 Mbps
Connector	2 x RJ-45

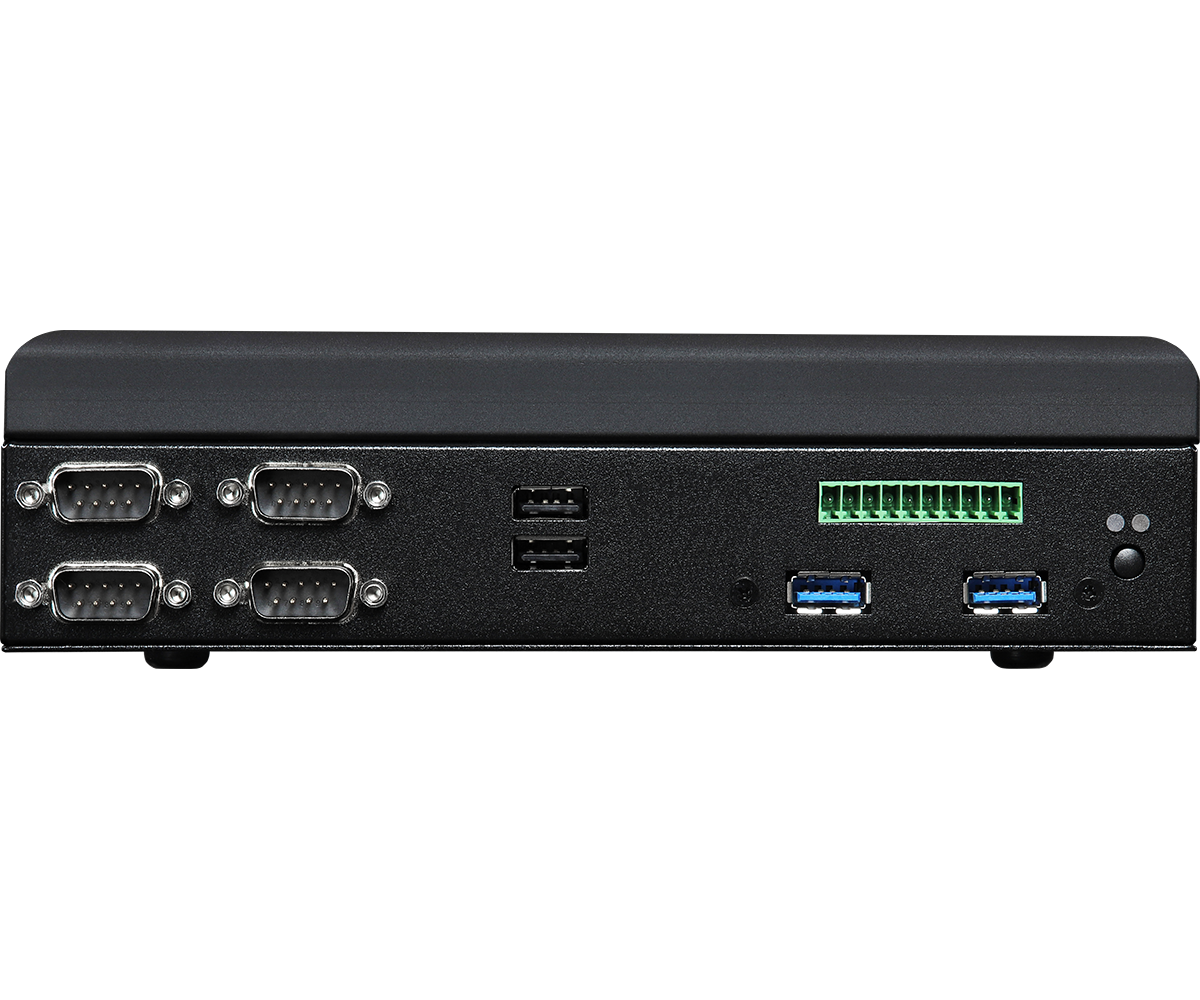

Front I/O

USB	2 x USB 3.2 (Gen1), 2 x USB 2.0
COM	1 x COM (RS232/422/485), 3 x COM (RS232)
GPIO(Phoenix)	1 (4 x GPI, 4 x GPO)

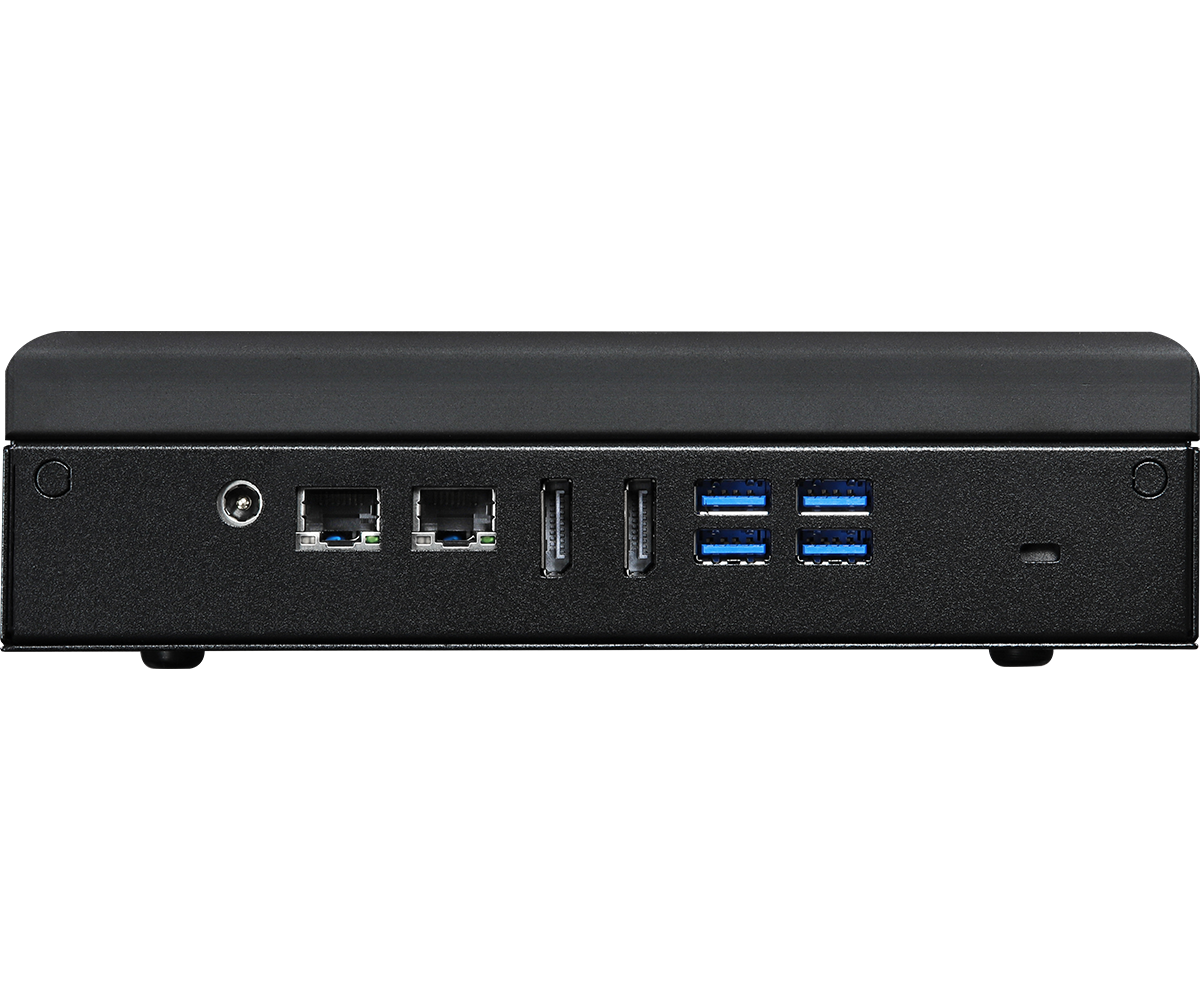

Rear I/O

DisplayPort	2 x DP 1.2a, DP++
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.2 (Gen2)
DC Jack	1

Storage

M.2	1 x Key M (2242/2280)with PCIex4 and SATA3 for SSD 1 x Key M (2242)with SATA3 for SSD
SATA	1 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	1 x 12V/96W AC-DC power brick adapter
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 50ºC
Storage Temp	-40° C – 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	VESA mounting bracket
Dimensions (L x W x H)	208 x 178.6 x 62.9mm
Weight	Net Weight:2.4kg

Others

OS Support	Windows 10
TPM	TPM 2.0 onboard IC (iBOX-350P、iBOX-350M)
Certifications	CE, FCC Class A
Packing List	1 x 12V/96W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
