iBOX-260J

iBOX-260J Fanless Embedded BOX PC

  • Intel® Alder Lake-N Processors
  • 1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
  • 2 x USB3.2 Gen2, 2 x USB2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 3 x COM, 1 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA
  • 1 x 19V/65W AC-DC power brick adapter
  • 200 x 134.5 x 39mm (7.87" x 5.3" x 1.54"), Fanless Barebone
Specification

Processor System

CPU Intel® Alder Lake-N SoC Processors
iBOX-260J (N97, QC, Max Speed Up to 3.6GHz, 12W)
Chipset SoC
BIOS AMI SPI 256 Mbit

Memory

Technology Single Channel DDR4 3200 MHz
Capacity 32GB
Socket 1 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort DP 1.4a
Max resolution up to 4096 x 2160@60Hz
VGA Max resolution up to 1920x1200@60Hz
MultiDisplay Triple Display

Audio

Interface Realtek ALC256 HD, High Definition Audio

Ethernet

Controller/ Speed LAN1: Intel® I226V with 10/100/1000/2500 Mbps
LAN2: Intel® I210AT with 10/100/1000 Mbps
Connector 2 x RJ-45

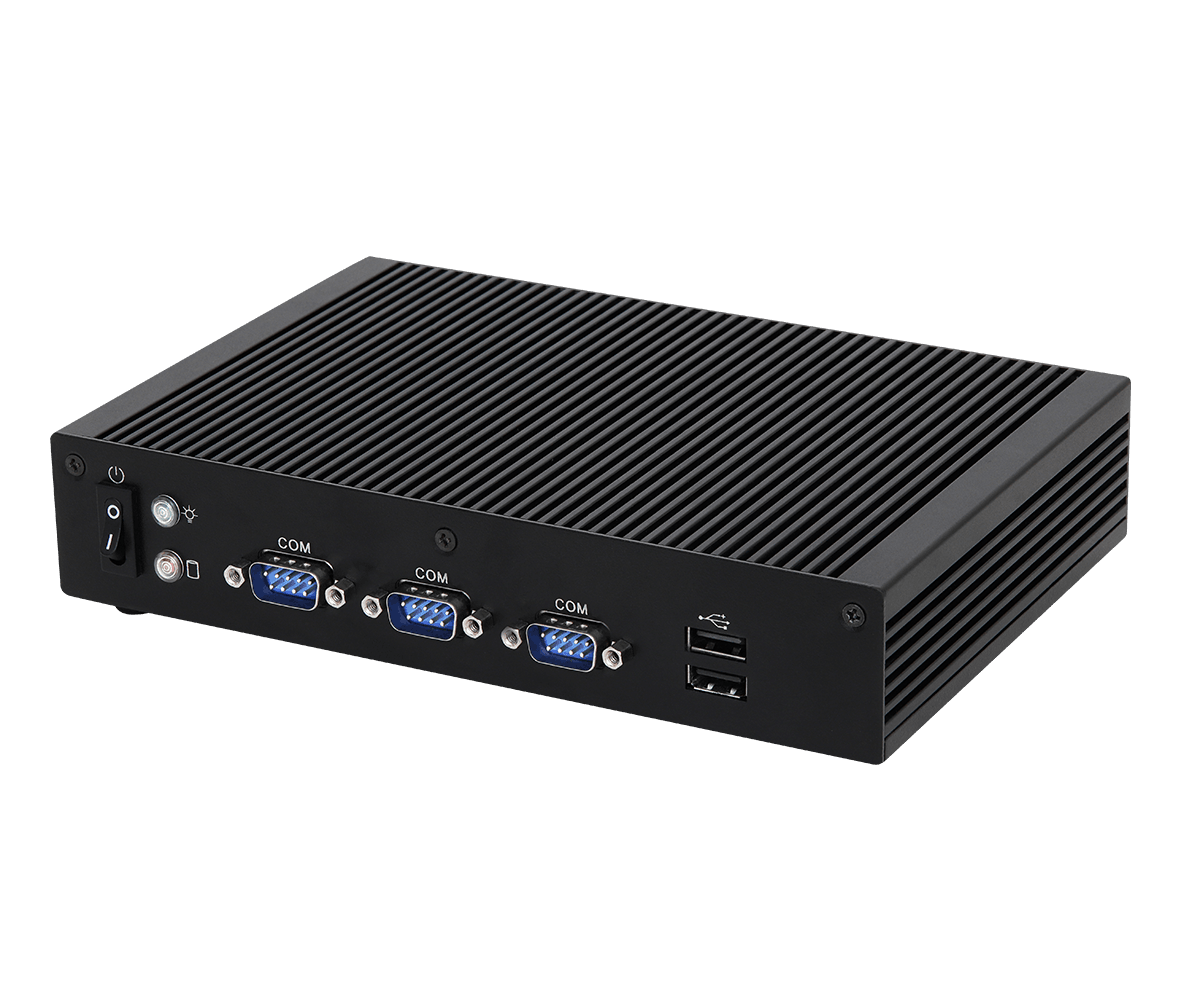

Front I/O

USB 2 x USB 2.0
COM 3 x COM (RS-232)

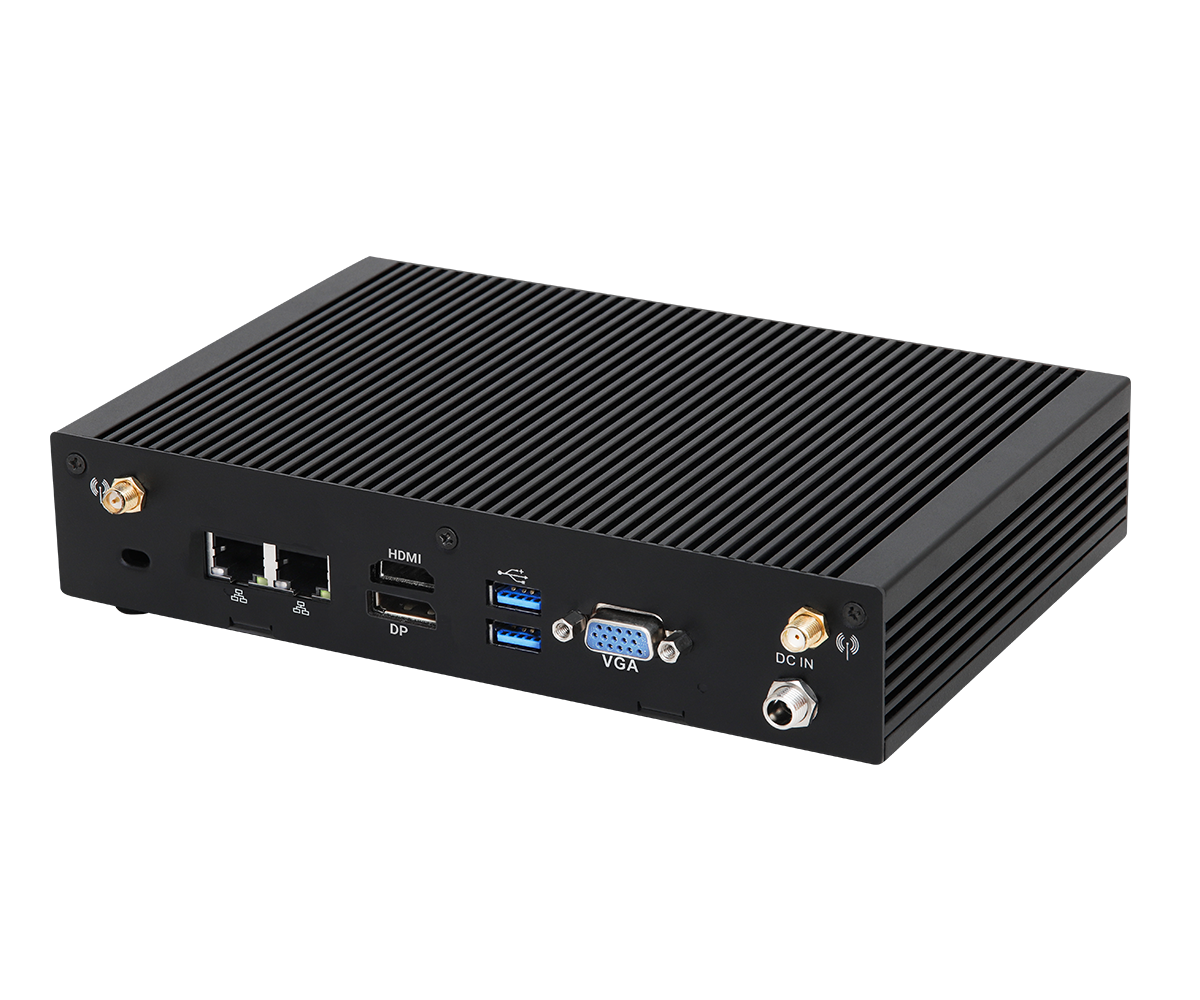

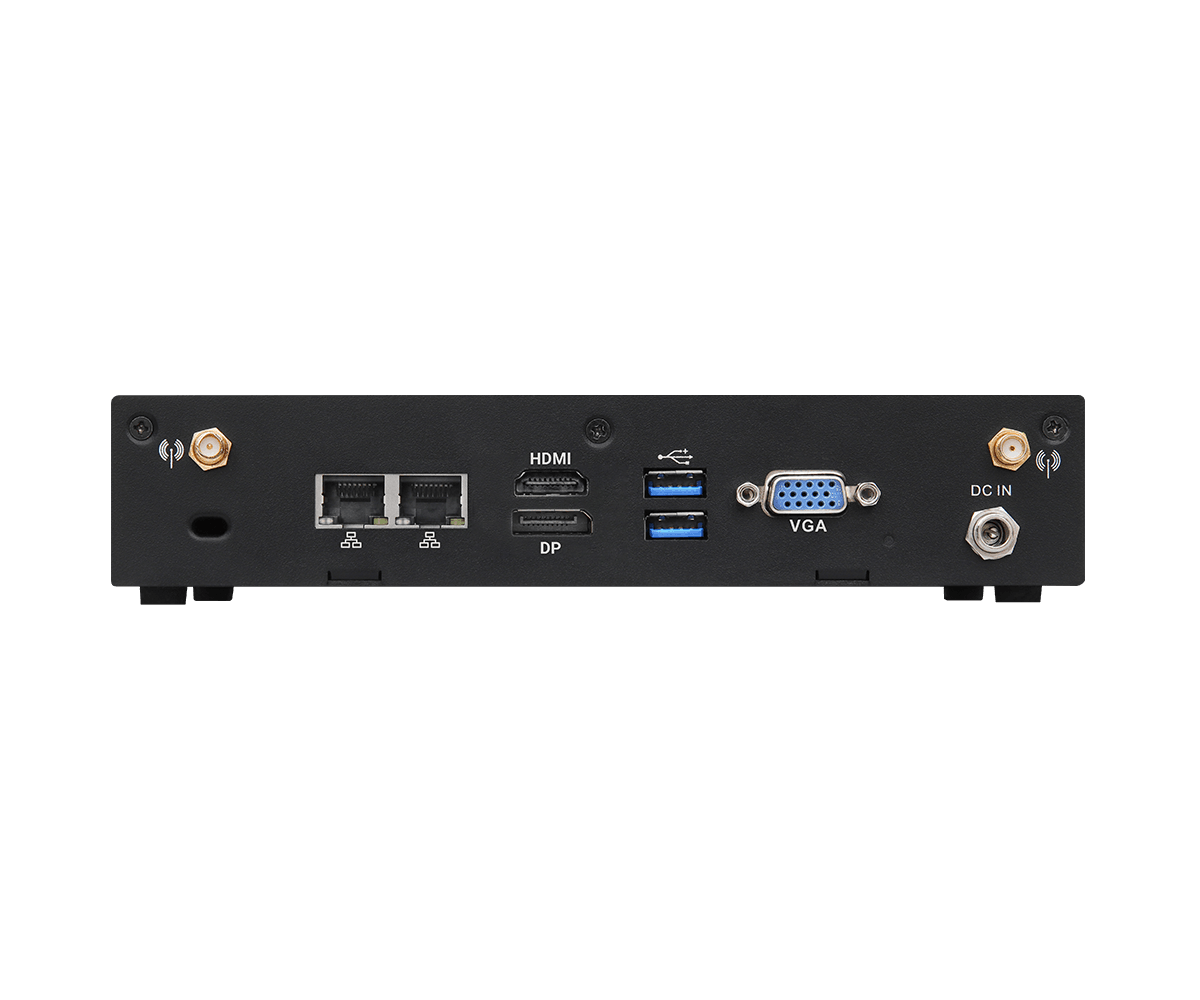

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a
VGA 1
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe x1 or SATA3 for SSD
1 x M.2 (Key B, 3042) with PCIe x1
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 9~36V DC-In
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 50ºC (With extended temp. peripherals)
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mount/Wall mount/Din-rail
Dimensions (L x W x H) 200 x 134.5 x 39mm (7.87" x 5.3" x 1.54")
Weight Net Weight:1.3kg

Others

OS Support Windows 10/11
Certifications CE, FCC
Packing List 1 x 19V/65W Power Adapter
1 x Wall mount kit
TPM TPM 2.0 onboard IC

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
