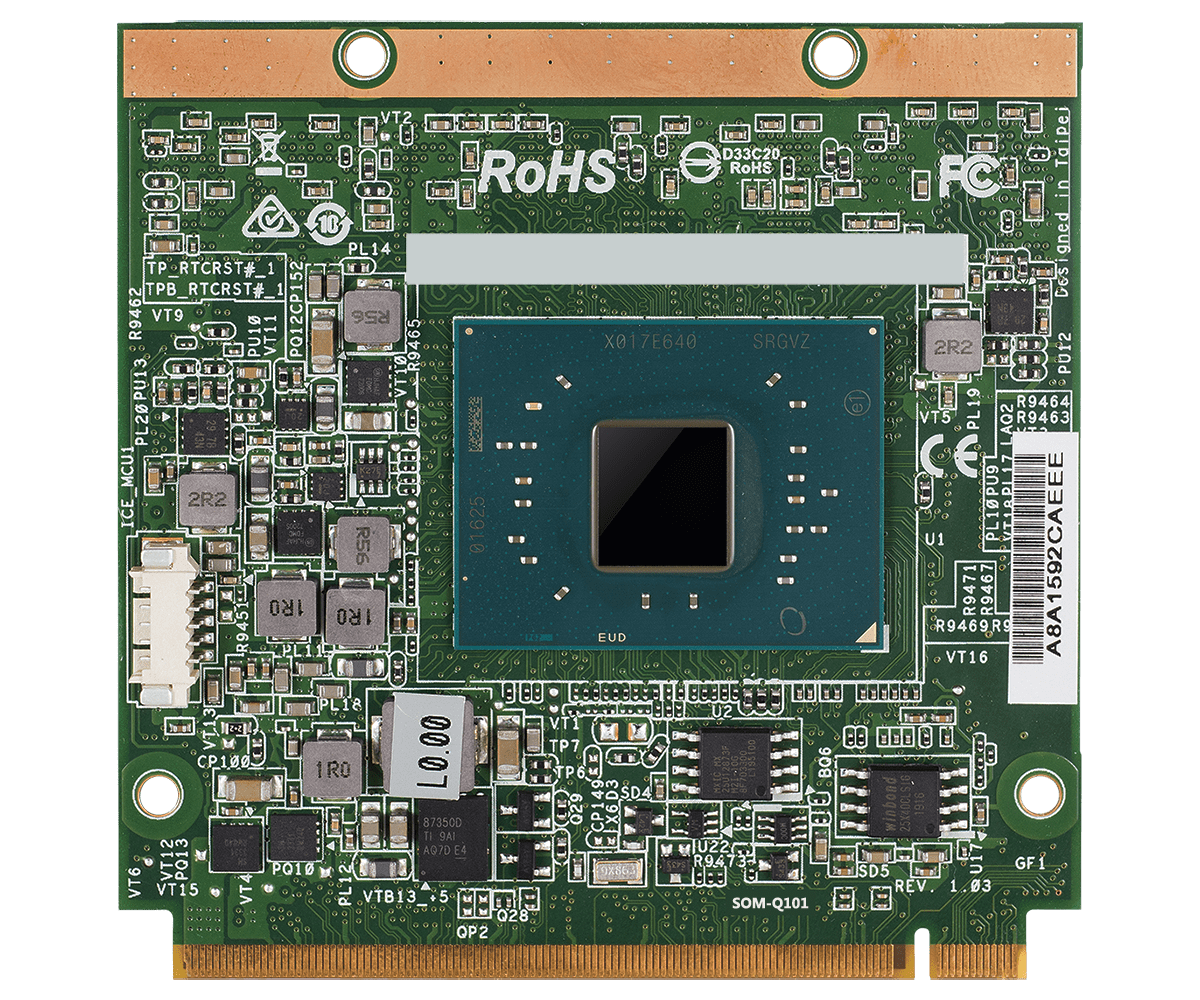

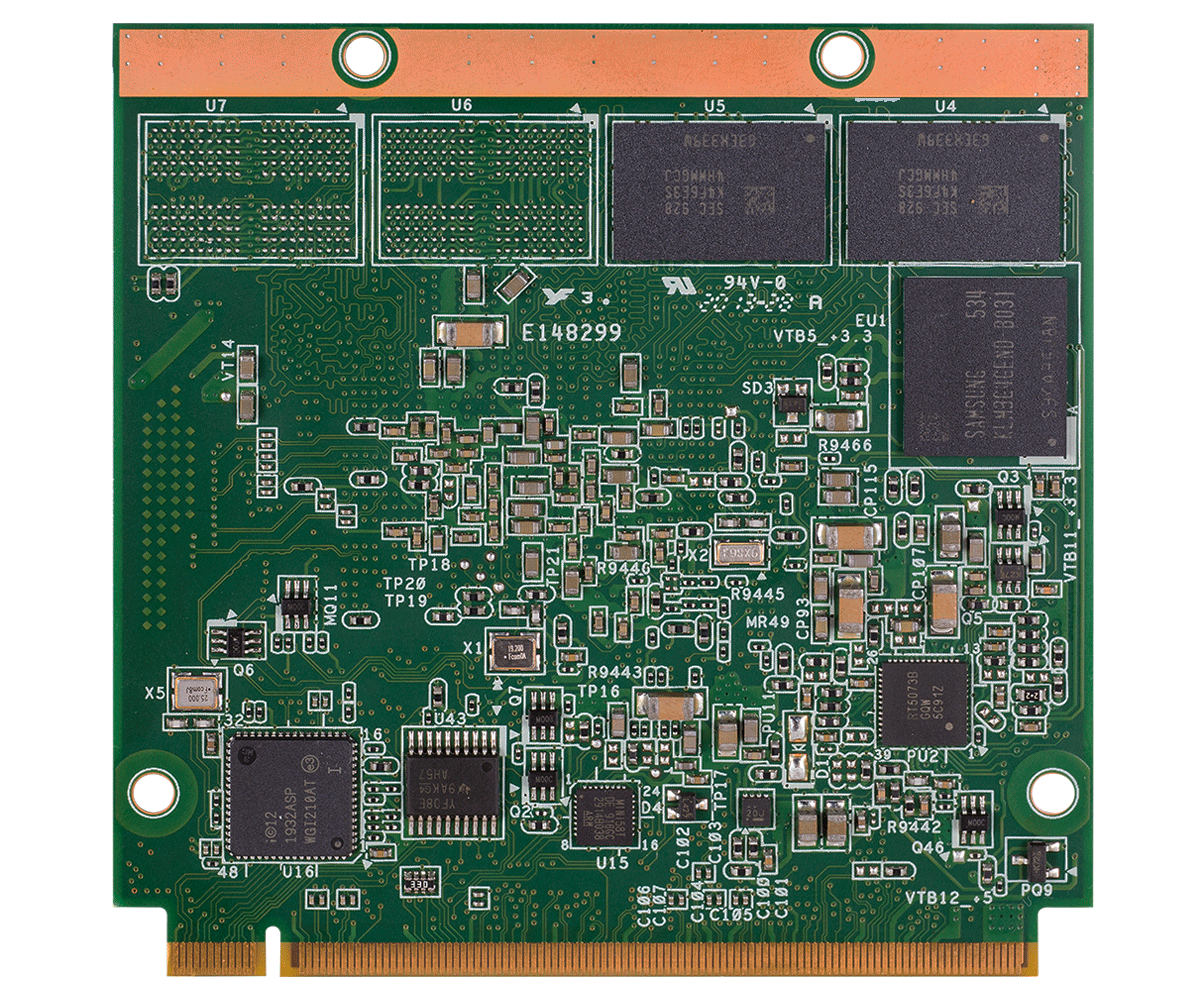

SOM-Q101D QSeven Motherboard
- Intel® Apollo Lake - I SoC Processor N4200
- support LPDDR4 2400MHz, single/Dual/Quad channel, up to 4GB
- 1 x eDP channel, 1x DDI0 channel
- 2 x USB 3.0 signals, 6 x USB 2.0 signals, 1x TX/RX signal
- 1 x Intel LAN I210-IT
Specification
Processor System
| CPU | Intel® Apollo Lake - I , N4200 |
|---|---|
| Chipset | integrated SoC |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | Qseven (70x70x6.45mm) |
|---|
Memory
| Technology | Single / Dual / Quad Channel LPDDR4,2400MHz |
|---|---|
| Capacity | 4 GB |
Graphics
| Controller | Intel® HD Graphics 505 |
|---|---|
| DisplayPort | DDI0 signal support DP++ |
| eDP | eDP signal support (4 Lanes) |
| MultiDisplay | Dual Display |
Expansion Slot
| PCI | 4x PCIEx1 Gen2 signal |
|---|
Audio
| Interface | Intel® HD Audio integrated in SoC On carrier MB (ALC233 ) |
|---|
Ethernet
| Controller/ Speed | 1 x Intel® I210 IT, with 10/100/1000 Mbps |
|---|
Internal Connector
| USB | 2 x USB 3.0 signal 6 x USB 2.0 signal |
|---|---|
| COM | TX/RX signal(1 UART signal) |
Storage
| SATA | 2 x SATA3 (6Gb/s) signal to Carrier board |
|---|---|
| eMMC | on board 32GB |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
