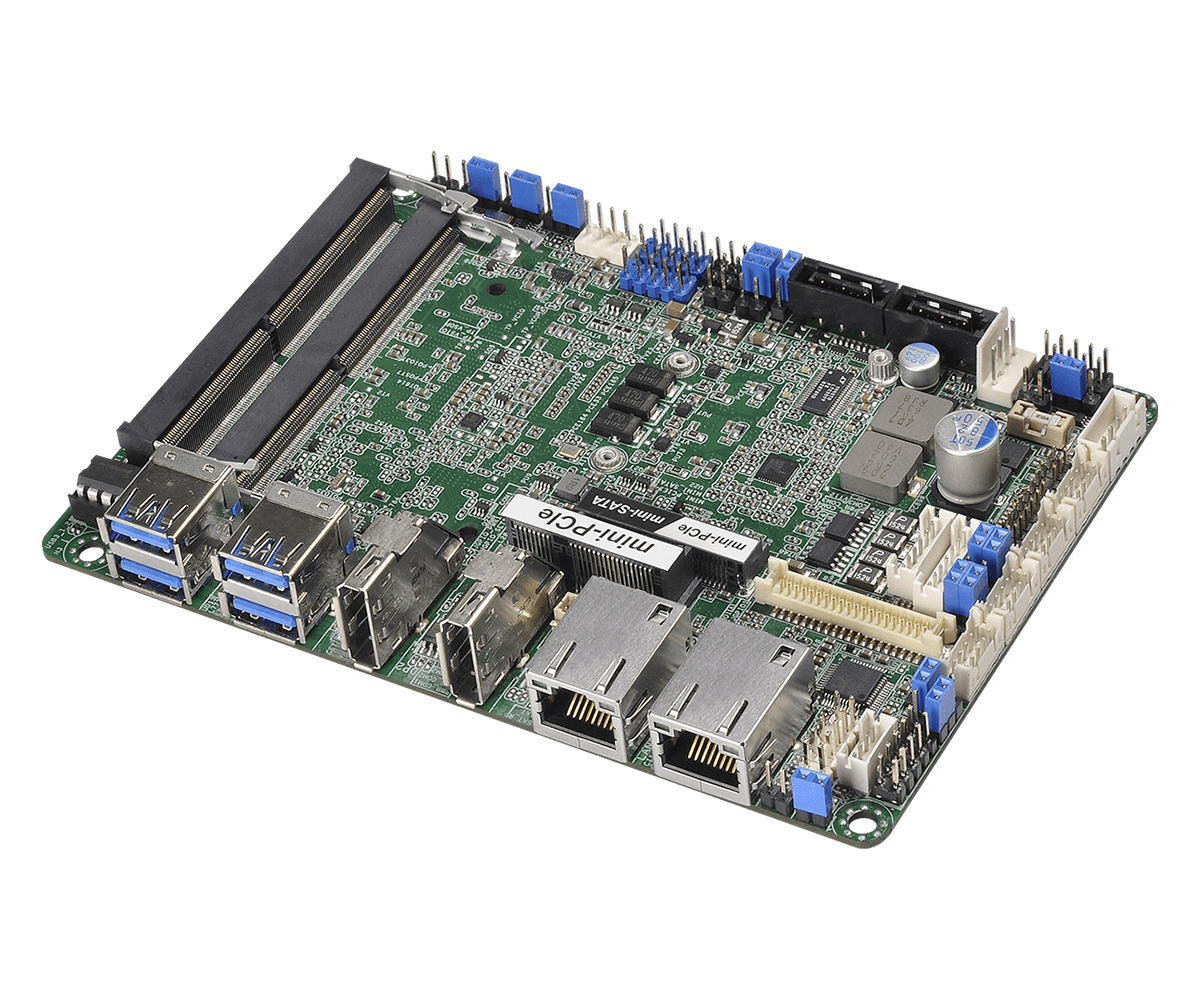

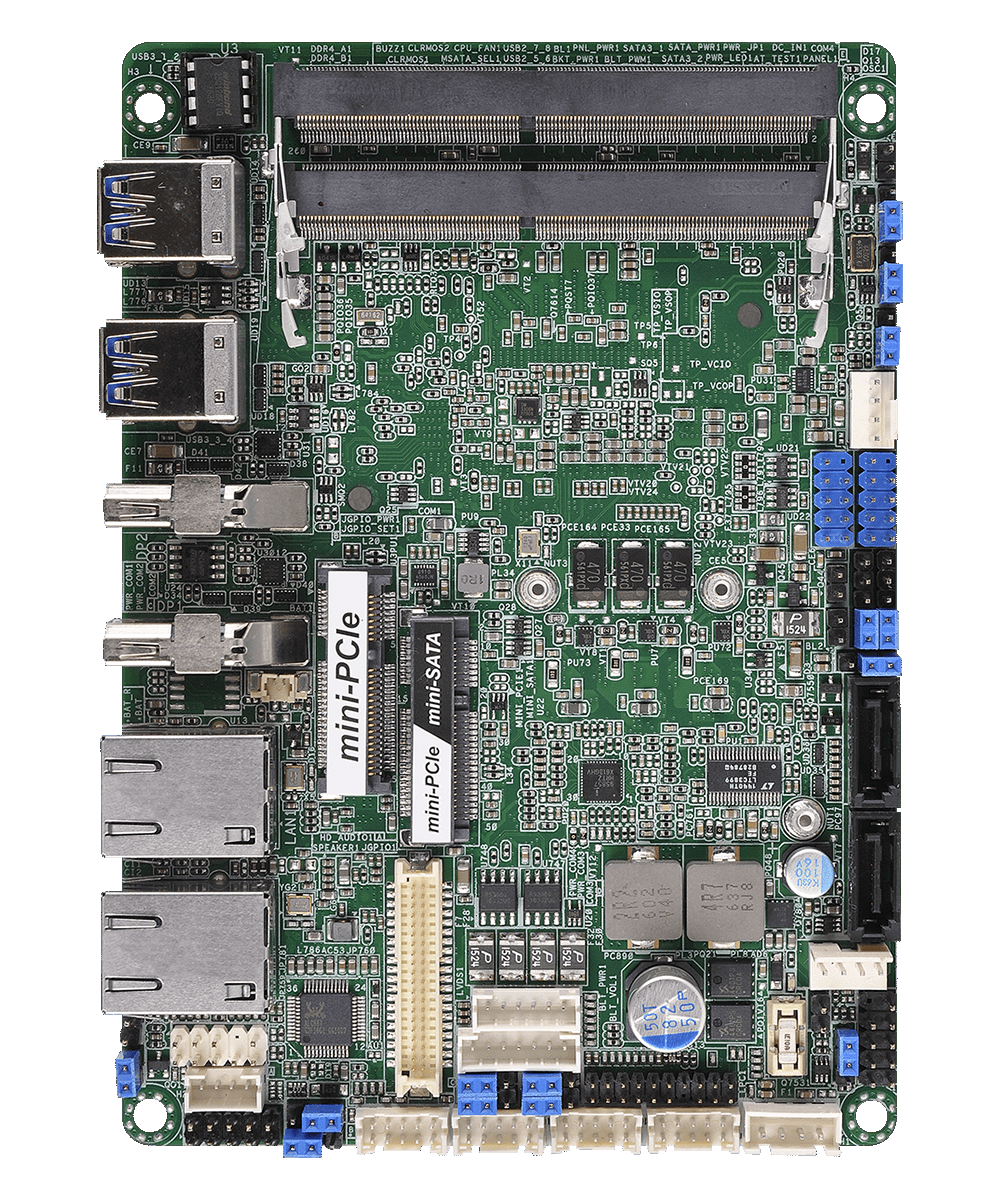

SBC-331V SBC 3.5

Processor System

CPU	Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors -SBC-331V (i3-6100U, QC, 2.30GHz, 15W)
Chipset	MCP
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
DisplayPort	DisplayPort 1.2 Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920x1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

mini-PCIe	1 x Full size with PCIe x1 and USB 2.0
mini-PCIe/mSATA	1 x Full size with SATA3 and USB 2.0

Audio

Interface	Realtek ALC888S, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed	SBC-331V LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Intel® I210AT with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

DisplayPort	2 x DP1.2
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.1 Gen2

Internal Connector

USB	4 x USB 2.0 (2x 2.54 pitch header)
COM	1 x COM (RS-232/422/485) 3 x COM (RS-232)
GPIO	4 x GPI, 4 x GPO
TPM	TPM Header
LVDS	1
SATA PWR Output	1

Storage

mSATA	1 x Half size with SATA3 and USB 2.0 colay with mini-PCIe
SATA	2 x SATA3 (6Gb/s)
RAID	Intel® SATA RAID 0/1

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~36V (DC In)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x AL PLATE 102.22*147.01mm (13G070252020AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
