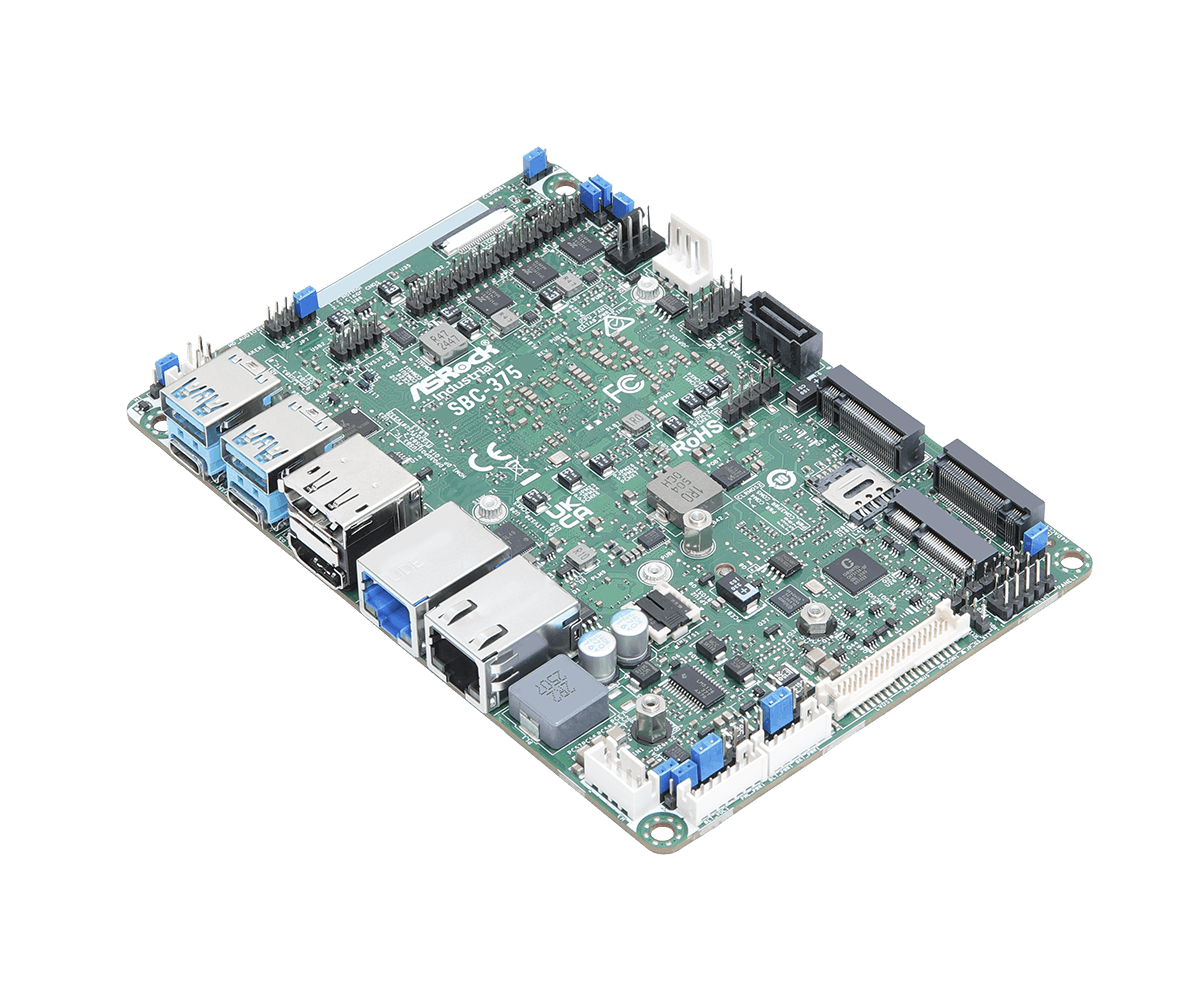

SBC-375 SBC 3.5

Intel® Core™ Ultra processors (Meteor Lake-H)
1 x 262-pin SO-DIMM DDR5 5600 MHz, up to 48GB
1 x PCIe x1 (Gen3), 2 x USB 3.2 Gen2x2, 2 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 3 x COM, 1 x SATA3
1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
Supports Quad display, 1 x HDMI 2.1 TMDS, 3 x DP 1.4a (2 from Type-C), 1 x LVDS or eDP
TPM 2.0 onboard IC
Supports Intel® vPro, VMD RAID 0/1
12~36V DC-In PWR/ 12V DC-In only (BOM option)

Datasheet

Specification

Processor System

CPU	Intel® Core™ Ultra processors (Meteor Lake-H) SBC-375P (Ultra7 155H, 6P+8E) SBC-375M (Ultra5 125H, 4P+8E)
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	3.5"SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm)

Memory

Technology	Single Channel DDR5 5600 MHz
Capacity	48GB
Socket	1 x 262-pin SO-DIMM

Graphics

Controller	Intel® Arc™ Graphics
HDMI	HDMI 2.1 TMDS Max resolution up to 4096 x 2160@60Hz
DisplayPort	DP 1.4a Max resolution up to 4096 x 2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Quad display (Included 2 output from Type-C)

Expansion Slot

PCIe	1 x PCIe x1 Gen3 (supports up to 10W)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC256 HD, High Definition Audio.

Ethernet

Controller/ Speed	LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I210AT with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

HDMI	1 x HDMI 2.1 TMDS
DisplayPort	1 x DP 1.4a
Ethernet	1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN
USB	2 x USB 3.2 Gen2 2 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output)

Internal Connector

USB	4 x USB 2.0 (2 x 2.00mm pitch header)
COM	COM1, COM2, COM3 (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1
MIPI Camera Header	1

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD 1 x M.2 (Key M, 2242) with PCIe Gen4 x4 for SSD
SATA	1 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1 *supported by PCIE interface PCIE interface: M.2 Key B + M.2 Key M1/2 or 2M.2 Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~36V DC-In with 4-pin wafer PWR cable 12V DC-In only (BOM option)
Power On	AT/ATX Supported - AT : Directly PWR on as po wer input ready - ATX : Press button to PWR on after po wer input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40°C ~ 85°C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x Heat Spreader for SBC-375 (13G07P037010AI) 4 x SCREW M2*2,D=5 (13G020302031AK) 2 x COM Cable (14G000000340AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK)
Bulk Package	4 x SCREW M2*2,D=5 (13G020302031AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

OS:

Description	Information	OS	Date	Download
Description	[Beta] RST Driver ver:20.0.0.1037.5	Information	Size: 9314 KiB Version: 20.0.0.1037.5 SHA1: 6B7FAA0A0054FB36E6384CF00EBF09B42F0425D0 Filename: RST Driver(20.0.0.1037.5).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] Wifi Driver ver: SBHWFW00291_23.0.6.4	Information	Size: 46 MiB Version: 23.0.6.4 SHA1: 96236C354A03B59E551D0BDB05271F4DA6E553F6 Filename: WIFI Driver(SBHWFW00291_23.0.6.4_win64).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] HD Audio Driver ALC256_9638.1_UAD_2024_0205_134726	Information	Size: 8289 KiB Version: v9638.1 SHA1: B6A248183B92BAFF20E13A7F770F0166F76439B7 Filename: Realtek_Audio(v9638.1_UAD_WHQL).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] VGA Driver ver: 101.5590	Information	Size: 245 MiB Version: 101.5590 SHA1: 33400B3B7617C719DD230E1BDDC5153F642E7226 Filename: Intel_VGA(101.5590).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] GNA ver: 03.05.00.1574	Information	Size: 55Kib Version: 03.05.00.1574 SHA1: C3C267508E25C2AF66C4C9B96DD80F9A178CE128 Filename: GNA(v03.05.00.1574).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] Intel HID Event Filter ver: 2.2.2.5 PV	Information	Size: 47Mib Version: 2.2.2.5 PV SHA1: 868D0FA0EE7BC76E40908FD81D265548B95203C7 Filename: Intel HID Event Filter ver(v2.2.2.5 PV).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] NPU driver ver: 31.0.100.1688	Information	Size: 146Mib Version: 31.0.100.1688 SHA1: 84013051297DF4E70EA4D0DB89E0EA1C046D14FF Filename: npudrive(v31.0.100.1688).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] PMT ver: 3.1.2.2	Information	Size: 156Kib Version: 3.1.2.2 SHA1: 0CFB2A60D9091639E10A682E401AF22E7A51DE7A Filename: PMT(v3.1.2.2).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] Intel Serial IO driver ver: 30.100.2318.58	Information	Size: 2623Kib Version: 30.100.2318.58 SHA1: D264D7CBC00DB1DD42B73E182801236CFDE7C2C2 Filename: Intel Serial IO driver ver(v30.100.2318.58).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] Intel Management Engine driver ver: 2344.5.41.0_Corporate	Information	Size: 311Mib Version: 2344.5.41.0_Corporate SHA1: 2FCE2503C758A03FEF4958BC1D7CE749CE2ADF49 Filename: Intel Management Engine driver ver(v2344.5.41.0_Corporate).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] Bluetooth driver ver: sbhbtw91668_23.0.1.1	Information	Size: 16Mib Version:sbhbtw91668_23.0.1.1 SHA1: C069F7429317B47147D09021344E903257B00DEF Filename:Intel Bluetooth Driver(vsbhbtw91668_23.0.1.1).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] Intel I226LM/I210AT Lan driver ver: v29.1	Information	Size: 24 MiB Version: v29.1 SHA1: 7971E9E79311A16F43054CF49F3888F8C0743902 Filename: Intel I226 I210 LAN Driver(v29.1).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China
Description	[Beta] Chipset Driver ver: 10.1.19627.8423-Public-MUP	Information	Size: 5172Kib Version:10.1.19627.8423-Public-MUP SHA1: 6F13EB23B92CB4E3C2244C6A98048DAF7A3D2808 Filename:Chipset(v10.1.19627.8423-Public-MUP).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2024-07-18	Download	Global China

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description	Language	Date	Download
Description	Jumpers and headers setting guide	Language	English	Date	2024-07-17	Download	Global China
