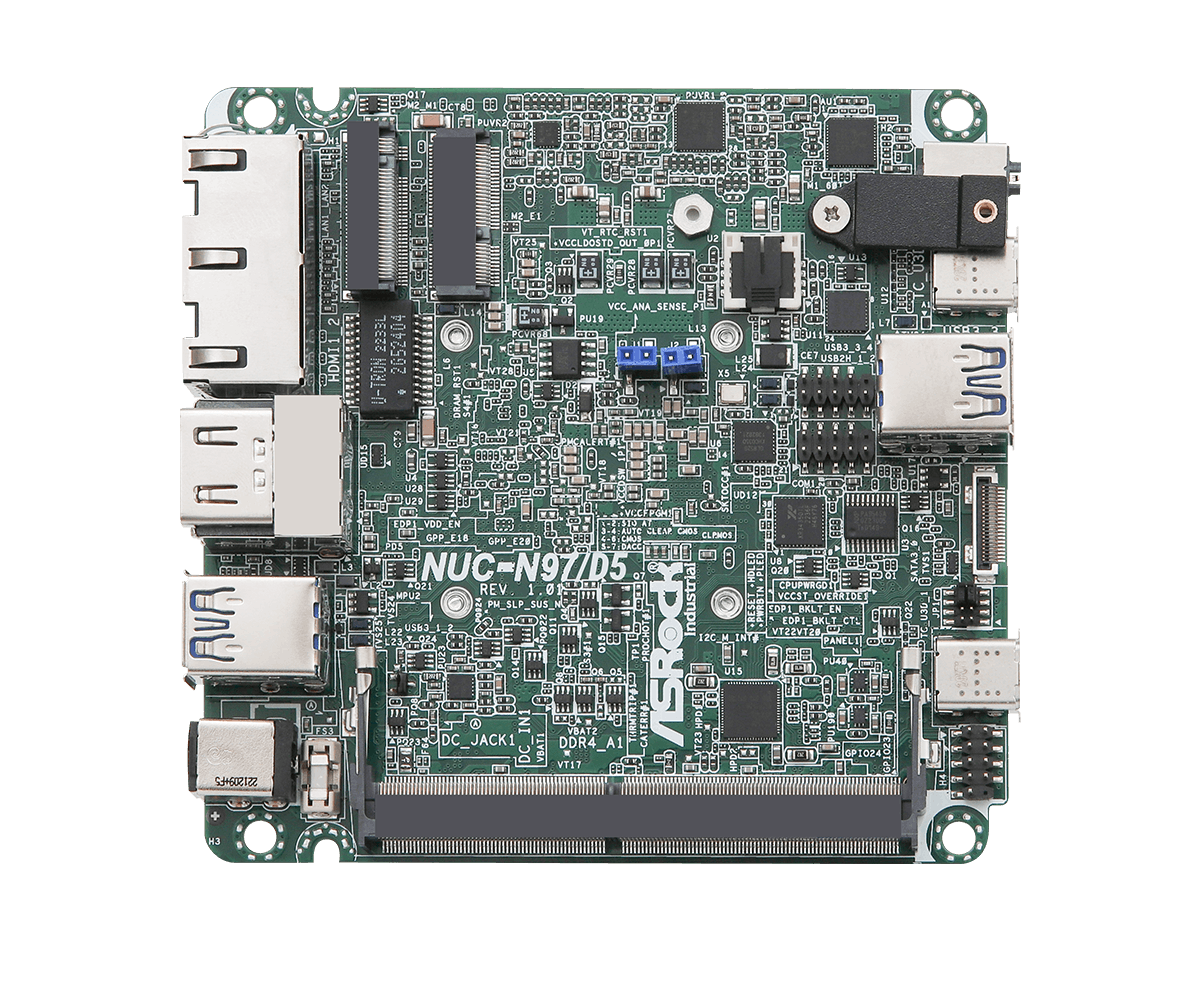

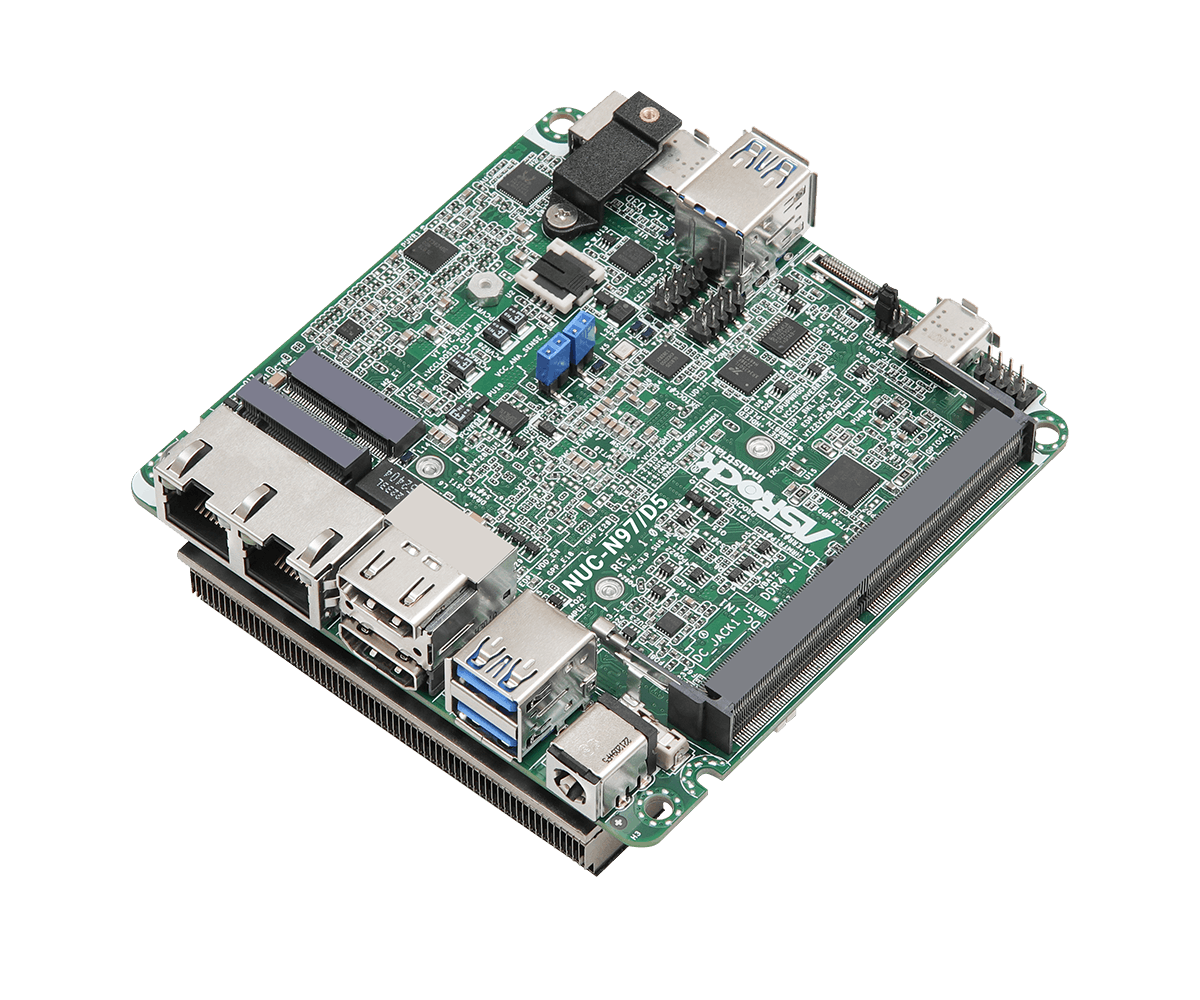

NUC-N97/D5 NUC Motherboard

  • Intel® Alder Lake-N Processors N97
  • 1 x 262-pin SO-DIMM DDR5 4800 MHz , up to 32GB
  • 6 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
  • 2 x Realtek 2.5 Gigabit LAN
  • Supports Triple display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)
  • TPM 2.0 onboard IC
  • 9V~24V DC-In
Datasheet
Specification

Processor System

CPU Intel® Alder Lake-N Processors N97
Chipset MCP
BIOS AMI SPI 256 Mbit

Form Factor

Dimensions NUC (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm)

Memory

Technology Single Channel DDR5 4800 MHz
Capacity 32GB
Socket 1 x 262-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Triple-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0

Audio

Interface Realtek ALC256, High Definition Audio.

Ethernet

Controller/ Speed LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

Front I/O

USB 2 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, 5V/3A, Supports DP 1.4a display output)
Audio 1 (headphone & microphone jack)

Rear I/O

HDMI 2 x HDMI 2.0b
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1

Internal Connector

USB 2 x USB 2.0 (1 x 2.00 pitch header)
COM 1 x COM(RS232/422/485)

Security

TPM TPM 2.0 onboard IC

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 9V~24V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 70ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Bulk Package 2 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=5.5mm (13G020195070AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x COM Cable (14G000000340AK)
1 x SATA Data/Power Cable (14G000104503AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
