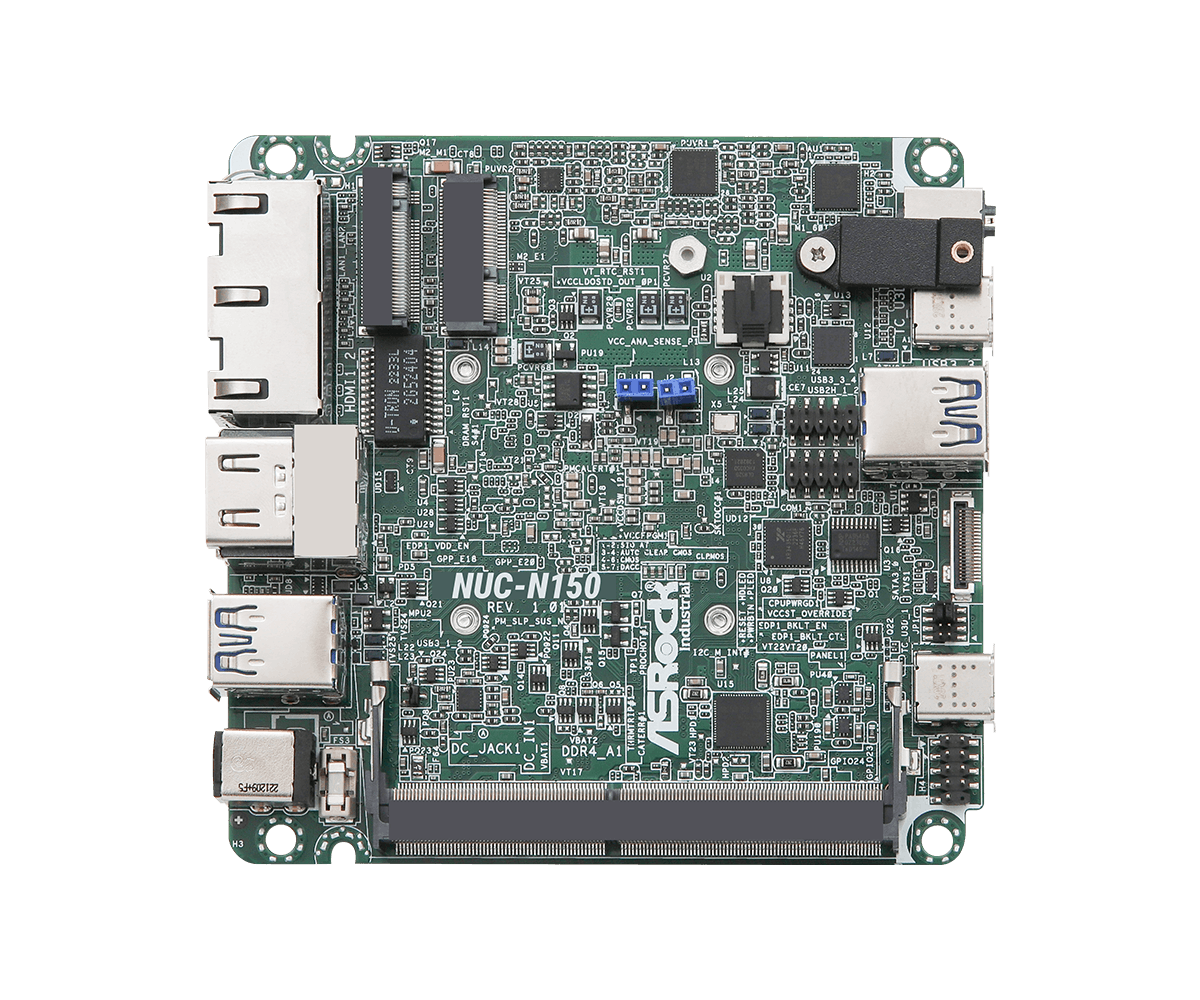

NUC-N150 NUC Motherboard
- Intel® Twin Lake Processors N150
- 1 x 260-pin SO-DIMM DDR4 3200 MHz , up to 32GB
- 6 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 2 x Realtek 2.5 Gigabit LAN
- Supports Triple display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)
- TPM 2.0 onboard IC
- 9V~19V DC-In
Specification
Processor System
| CPU | Intel® Twin Lake Processors N150 |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | NUC (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm) |
|---|
Memory
| Technology | Single Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB |
| Socket | 1 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Triple-Display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 |
|---|
Audio
| Interface | Realtek ALC256, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Front I/O
| USB | 2 x USB 3.2 Gen2 (Type-A) 2 x USB 3.2 Gen2 (Type-C, 5V/3A, Supports DP 1.4a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |
Rear I/O
| HDMI | 2 x HDMI 2.0b |
|---|---|
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.00 pitch header) |
|---|---|
| COM | 1 x COM(RS232/422/485) |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9V~19V DC-In Jack |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Bulk Package | 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=5.5mm (13G020195070AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x COM Cable (14G000000340AK) 1 x SATA Data/Power Cable (14G000104503AK) |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | WIFI Driver_v24.0.2.1 | Information | Size: 42Mib |
OS | Win 11 x 64 | Date | 2026-08-20 | Download | |
| Description | Intel HID Event Filter ver:2.2.2.17 | Information | Size: 1926 Kib |
OS | Win 11 x 64 | Date | 2026-08-20 | Download | |
| Description | [Beta] HD Audio Driver(10007.1_WHQL) | Information | Size: 77 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-08-04 | Download | |
| Description | [Beta] INF driver ver:10.1.20398.8776 | Information | Size: 90 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-08-04 | Download | |
| Description | Bluetooth driver ver: v24.0.1.1 | Information | Size: 35Mib |
OS | Win 11 x 64 | Date | 2026-03-20 | Download | |
| Description | Realtek Lan driver ver: 10059_06222022 | Information | Size: 4891Kib |
OS | Win 11 x 64 | Date | 2025-12-18 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.00 | Update BIOS Under / How to Update | BIOS | Description | First release | Information | Size: 6747 KiB SHA256: 9e5e97ff0b11d694b49e0be523812ed85ef38d446a8d485be5db840840c18b89 |
Date | 2026-08-13 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | Windows | Description | First release | Information | Size: 7517 KiB SHA256: c2815e1cefda377513da3a00ddcd2881c7cae46d8e30fab5dae3ab4d7a97c28f |
Date | 2026-08-13 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | Jumpers and Headers Setting Guide | Language | English | Date | 2026-08-04 | Download |
