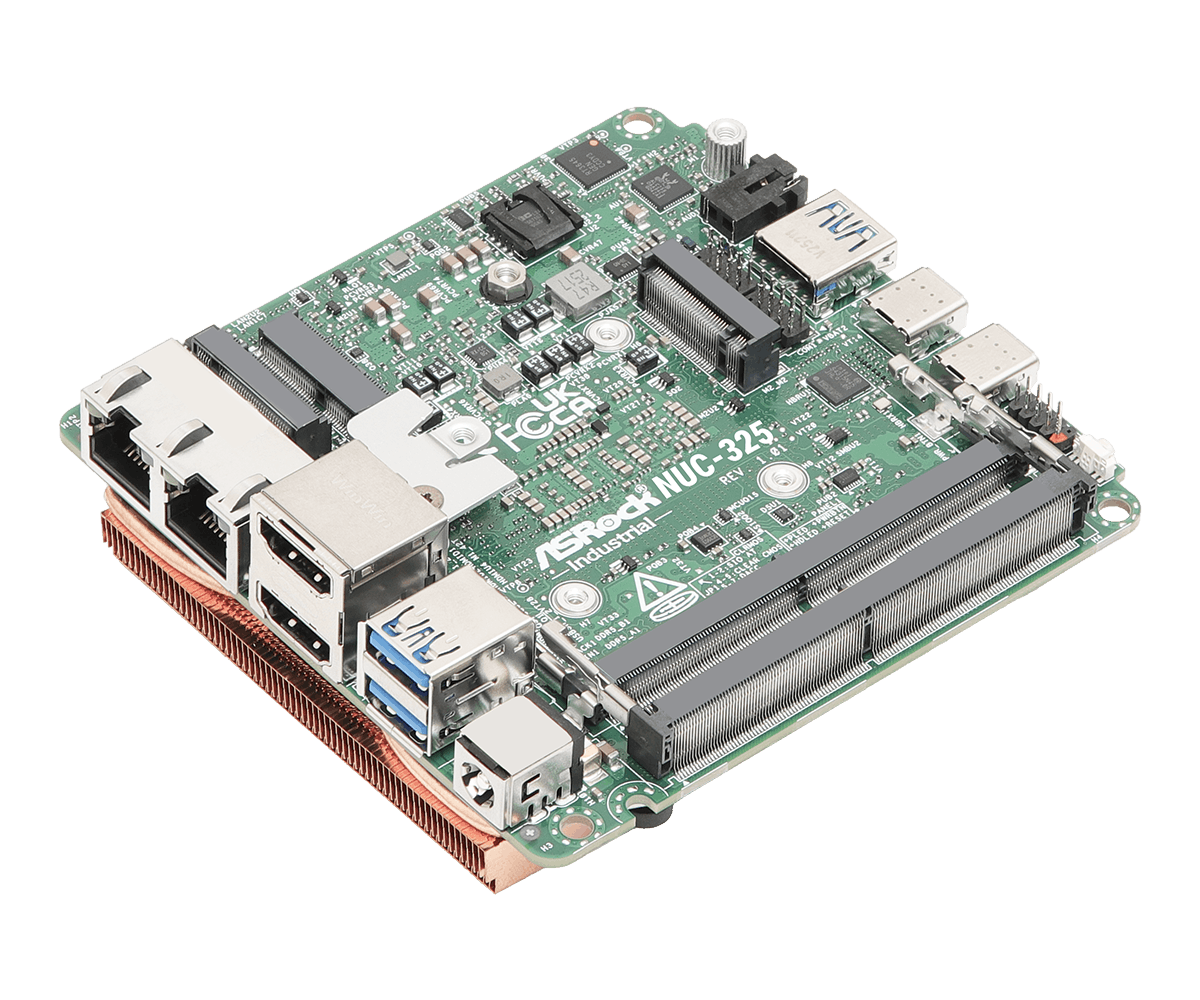

NUC-325 NUC Motherboard
- Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
- 2 x 262-pin SO-DIMM DDR5 7200/6400MHz up to 128GB (64GB per DIMM)
- 1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E, 1 x COM
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
- Intel® PTT
- Supports Intel® vPro Essentials, VMD RAID 0/1
- 12V~24V DC-in

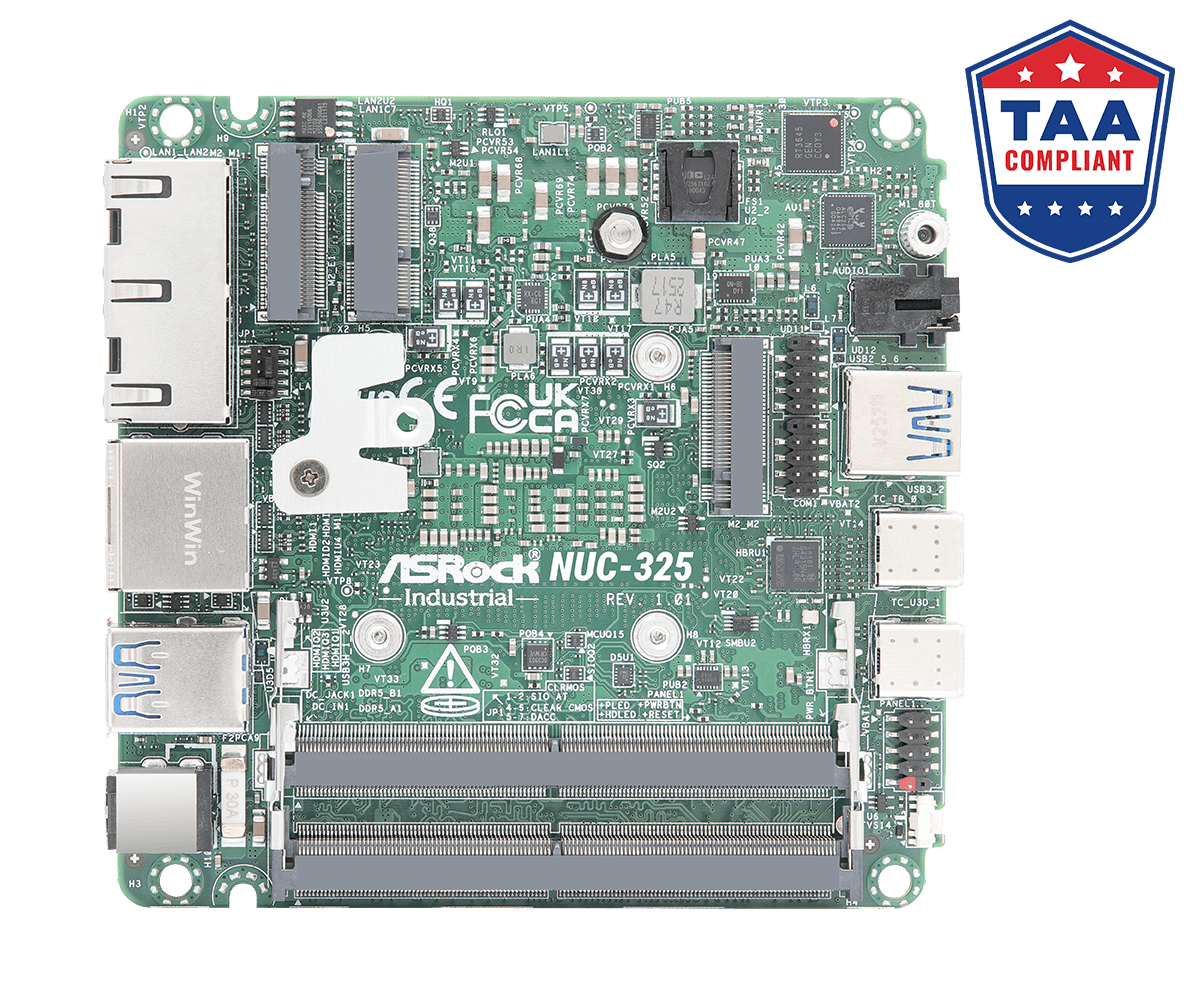

- TAA Compliant
Specification
Processor System
| CPU | Intel® Core™ Ultra Series 3 Processors (Panther Lake-H) NUC-325 (Ultra 5 325, 4P+4LPE) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 6400 MHz (Ultra 5 325) |
|---|---|
| Capacity | 128GB (64 GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® Graphics |
|---|---|
| HDMI | HDMI 2.1 Max resolution up to 7680x4320@60Hz |
| DisplayPort | DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
|---|
Audio
| Interface | Realtek ALC256, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I226V with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

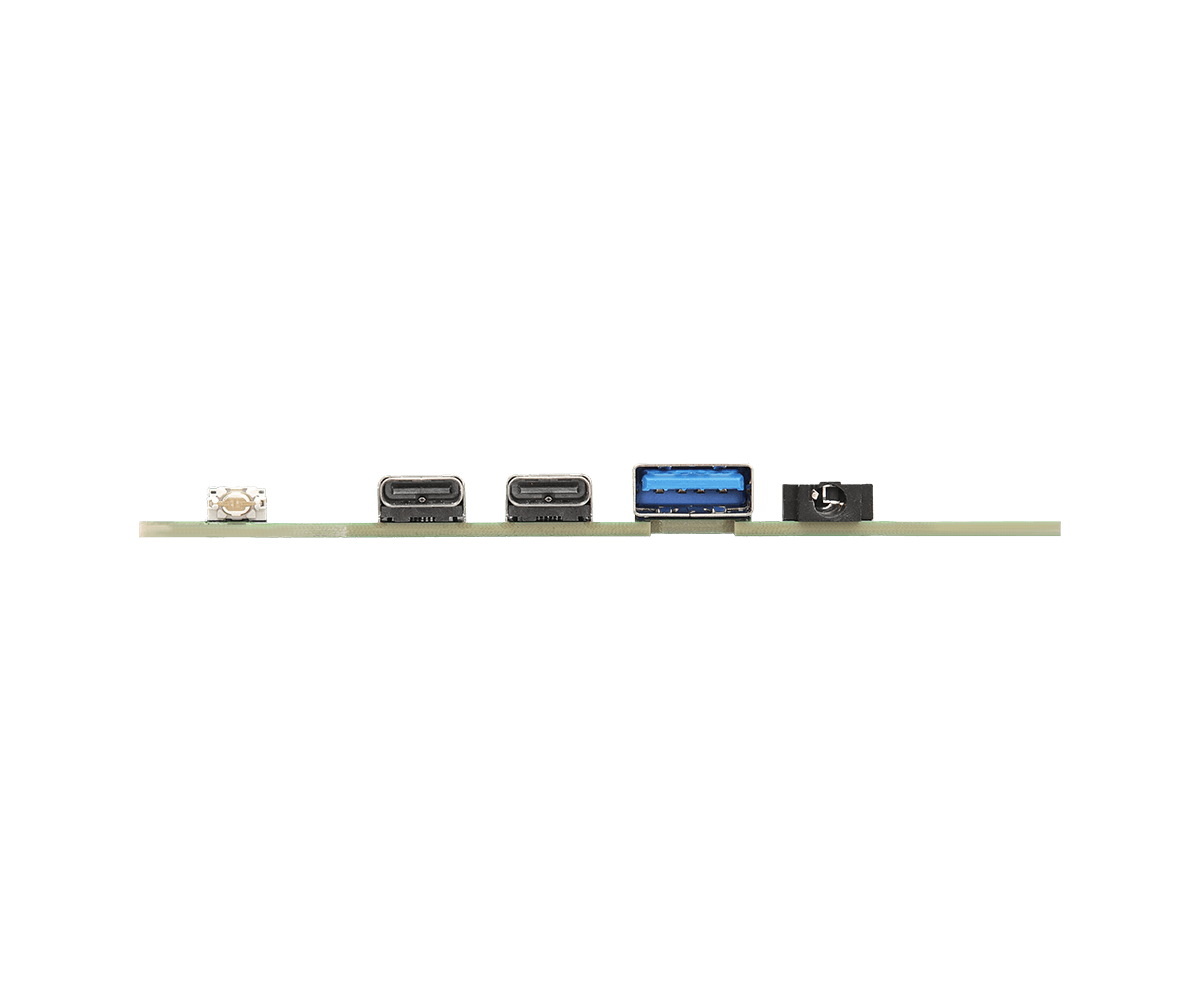

Front I/O
| USB | 1 x USB 3.2 Gen2 (Type-A) 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) 1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list. |
|---|---|
| Audio | 1 (headphone & microphone jack) |

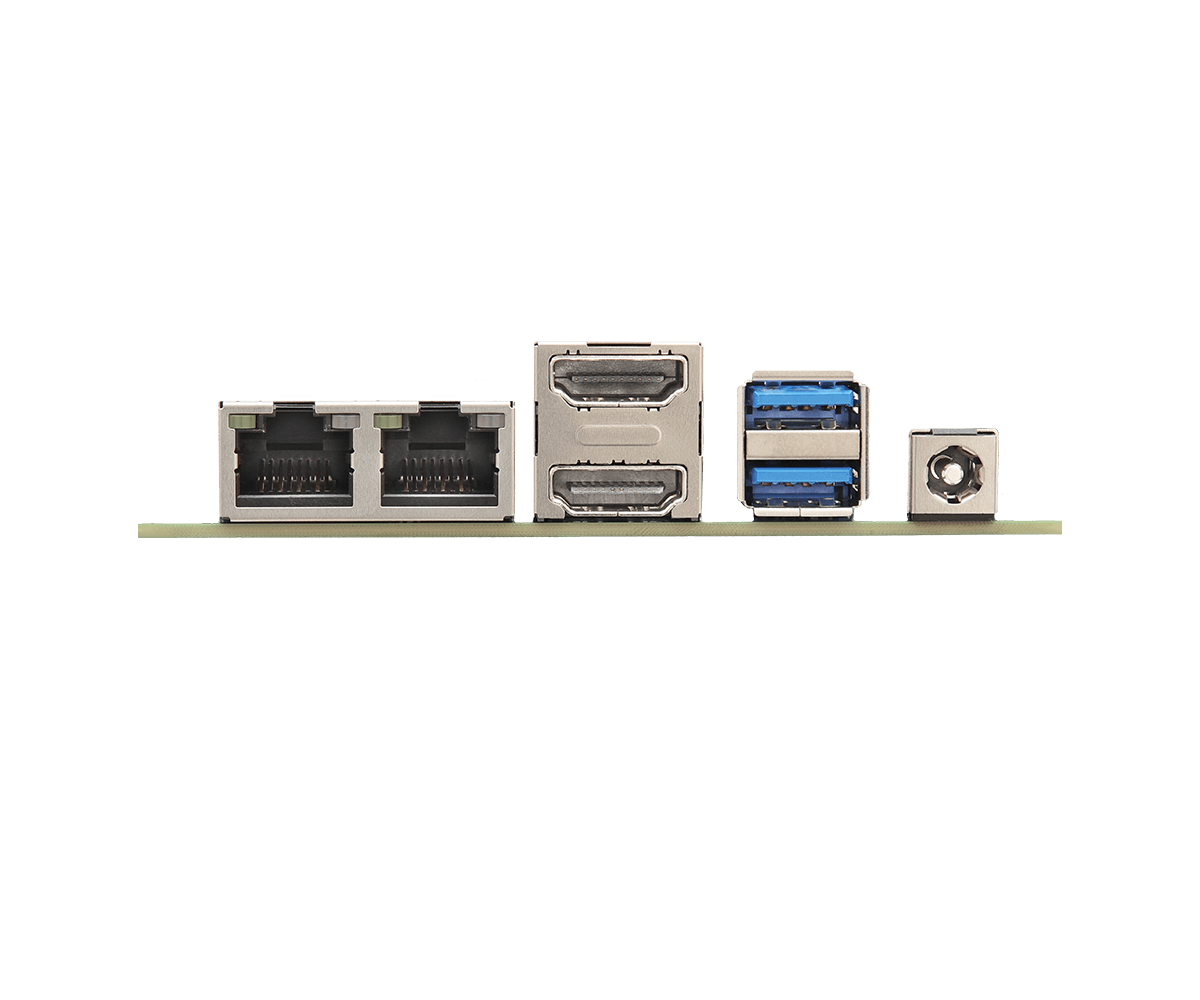

Rear I/O
| HDMI | 2 x HDMI 2.1 |
|---|---|
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.00 pitch header) |
|---|---|
| COM | 1 x COM (RS-232/RS-422/RS-485) |
Security
| TPM | Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen5 x4 for SSD |
|---|---|
| RAID | Intel® VMD RAID 0/1 **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V~24V DC-In Jack |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
