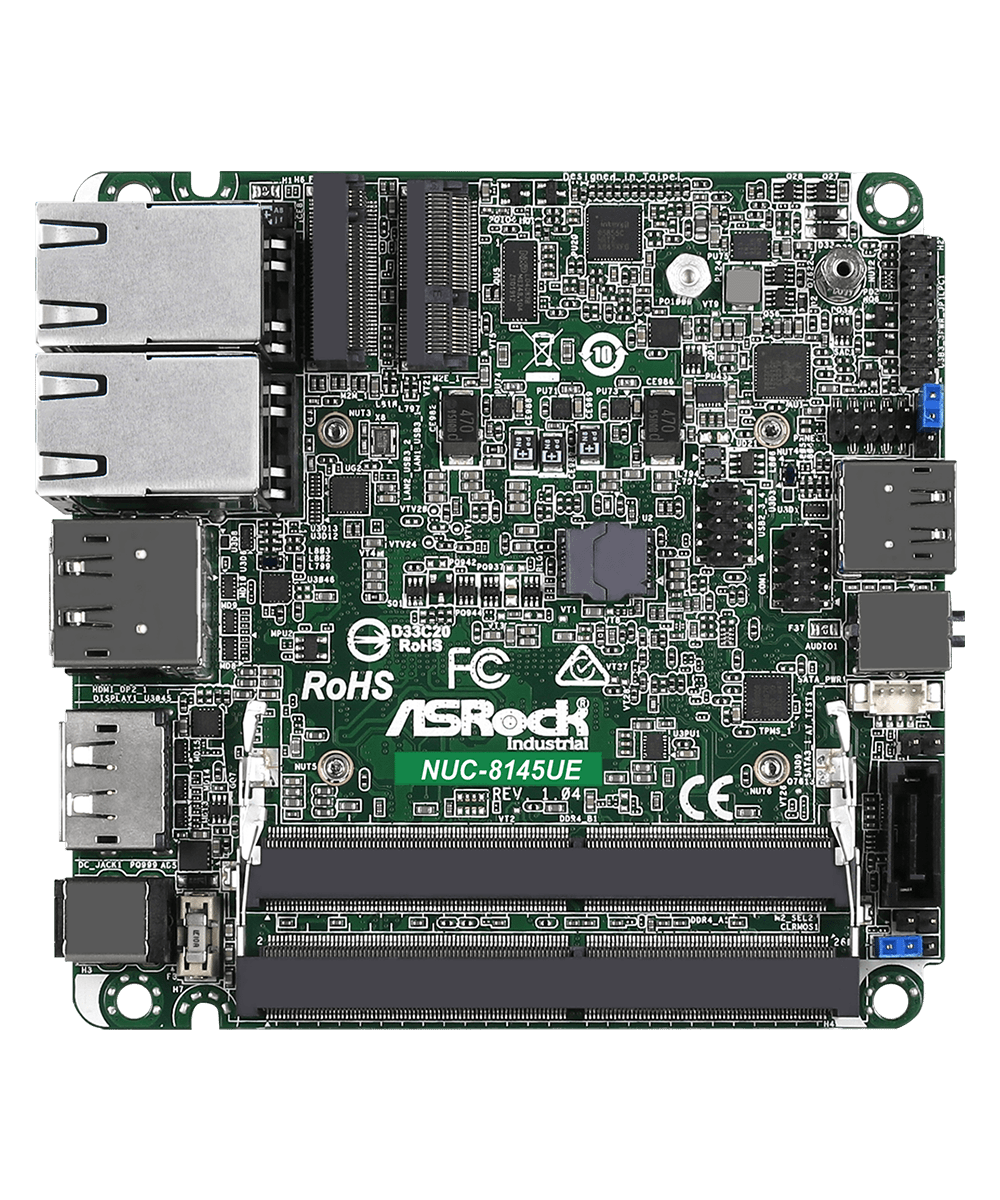

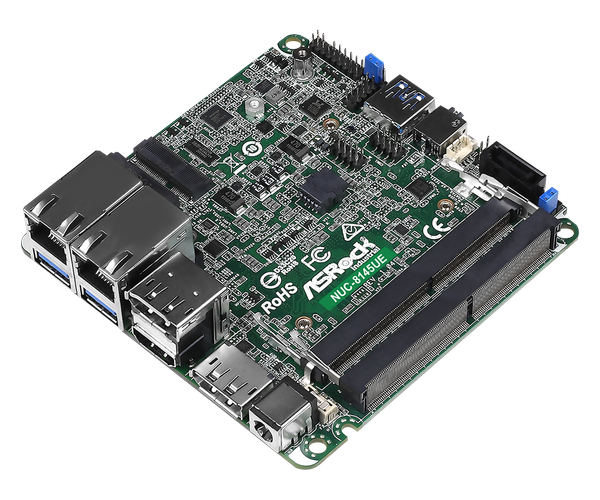

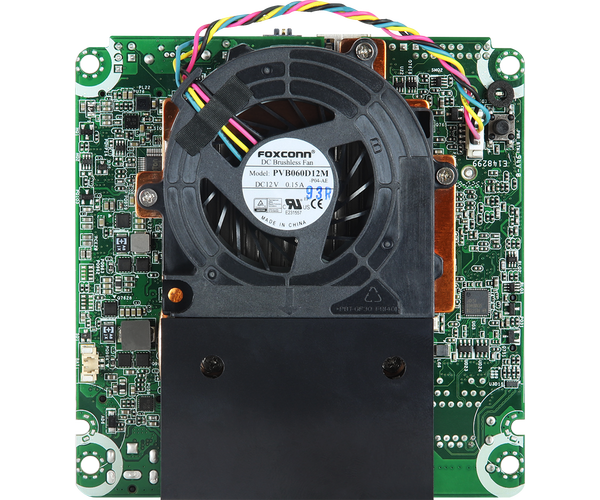

NUC-8145UE NUC Motherboard

Processor System

CPU	Intel® 8th Gen(Whiskey lake-U)Core™ Processors NUC-8145UE(i3-8145UE DC, 2.2 GHz, 15W)
Chipset	MCP
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
HDMI	HDMI 1.4 Max resolution up to 4096 x 2160@24Hz
DisplayPort	DisplayPort 1.2a, Max resolution up to 4096x2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2	1 x Key E(2230) with PCIex1 and USB2.0 for Wireless

Audio

Interface	Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

Front I/O

USB	1 x USB3.2 (Gen2)
Audio	1 (Mic-in or Line-out)

Rear I/O

HDMI	1 x HDMI 1.4
DisplayPort	2 xDP 1.2a
Ethernet	2 x 1 Gigabit LAN
USB	2x USB3.2(Gen2)
DC Jack	1

Internal Connector

USB	2 x USB2.0 (1 x 2.00 pitch header)
COM	1 x COM (RS232/422/485)
TPM	TPM2.0 on board IC
SATA PWR Output	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD *M.2 Key M 2280(optional support, by bracket)
SATA	1 x SATA3(6Gb/s)
RAID	Intel® SATA RAID 0/1

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	12V DC-in(DC Jack)
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Bulk Package	2 x SCREW M2,D=5 (13G020302031AK) 1 x NUT M2 H=6.5mm (13G020295030AK) 1 x NUT M2 H=3.35mm (13G020295030AK) 1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK) 1 x SATA Data/Power Cable (14G000103111AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
