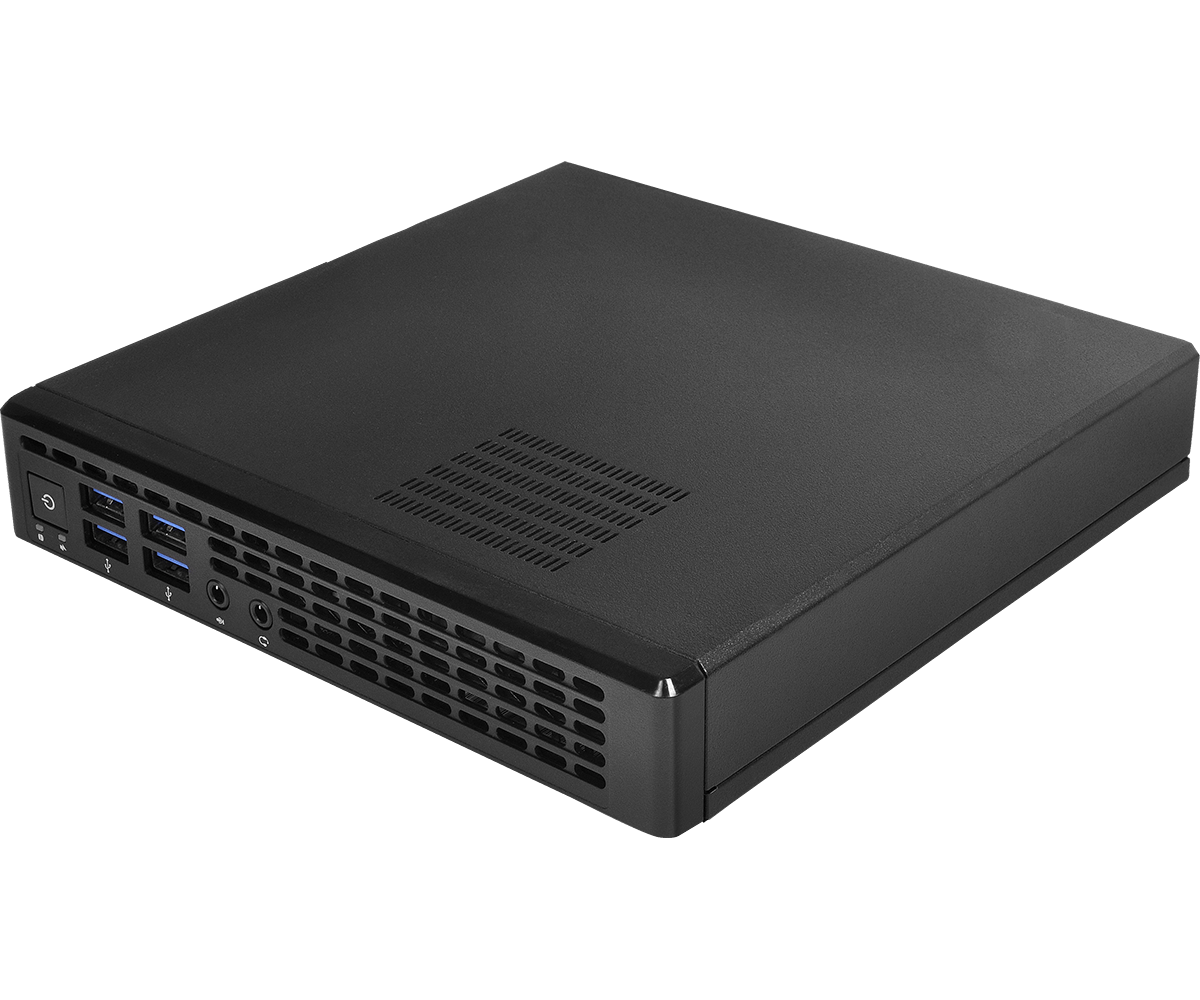

Jupiter-H110 Faned Embedded BOX PC
- Intel® 7th/6th Gen LGA1151 Processors, up to 65W
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
- 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M,
- 1 x COM, 1 x SATA3
- 1 x Realtek 1 Gigabit LAN
- Supports dual display, 1 x HDMI 1.4, 1 x DP 1.4a, 1 x VGA
- 1 x 19V/90W AC-DC power brick adapter
- 178 x 178 x 34mm
- Faned Barebone
Specification
Processor System
| CPU | Intel® 7th/ 6th (Kabylake-S/Skylake-S) Gen Core™ Processors up to 65W |
|---|---|
| Chipset | Intel® H110 |
| Socket | LGA1151 |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | 178 x 178 x 34mm |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz |
|---|---|
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® HD Graphics |
|---|---|
| HDMI | HDMI 1.4a Max resolution up to 4096x2160@24Hz |
| DisplayPort | DisplayPort 1.2a Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| MultiDisplay | Dual Display |
Expansion Slot
| M.2 | 1 x M.2 (KEY E, 2230) with PCIe x1 and USB 2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio |
|---|
Ethernet
| Controller/ Speed | 1 x Realtek RTL8111GN with 10/100/1000 Mbps |
|---|---|
| Connector | 1 x RJ-45 |

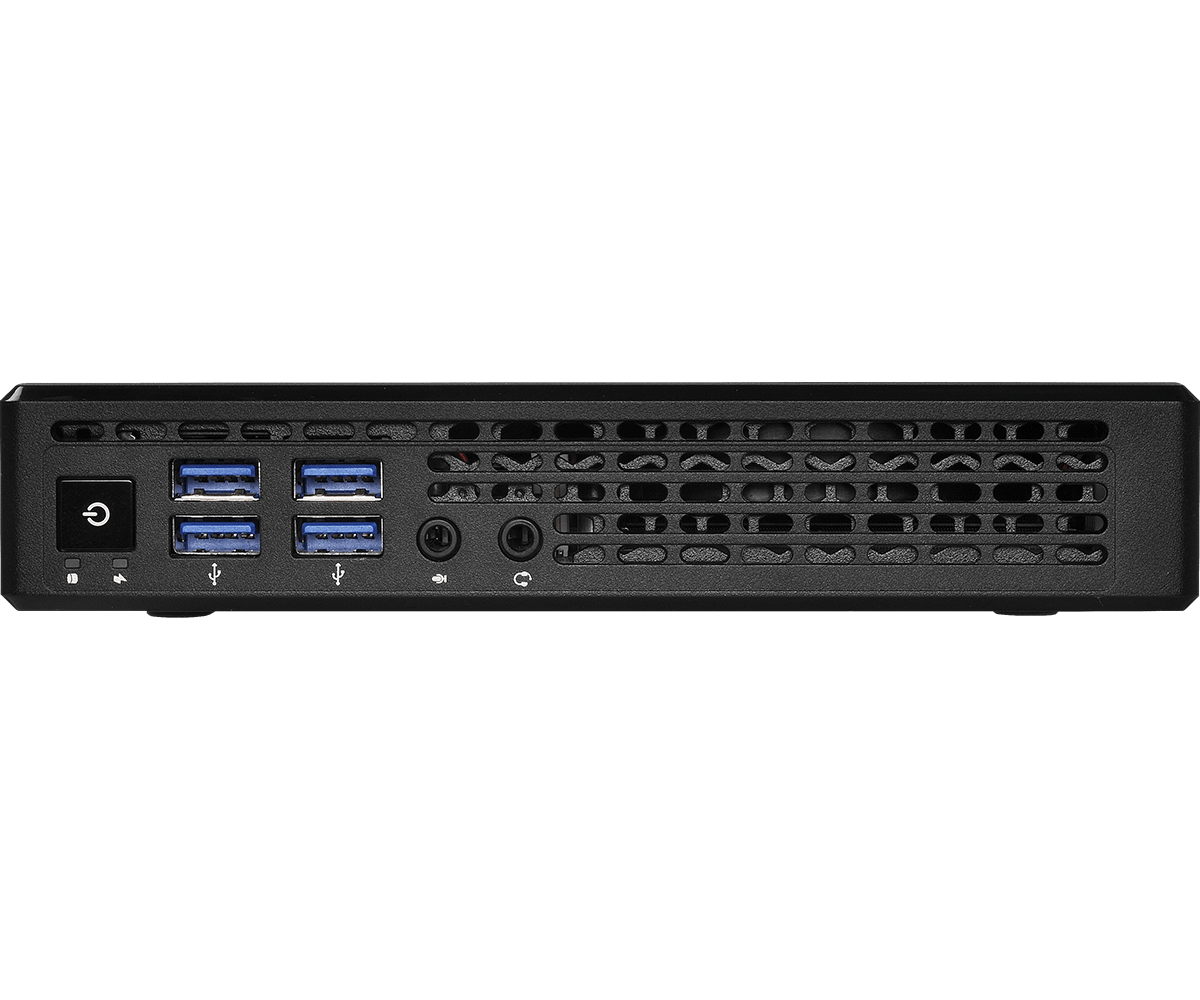

Front I/O
| USB | 4 x USB 3.1 (Gen1) |
|---|
Rear I/O
| HDMI | 1 x HDMI 1.4a |
|---|---|
| DisplayPort | 1 x DP 1.2a |
| VGA | 1 |
| Ethernet | 1 x Realtek 1 Gigabit LAN |
| USB | 4 x USB 2.0 |
| COM | 1 x COM (RS-232) |
| DC Jack | 1 |
Storage
| M.2 | 1 x Key M (2280)with PCIe x4 and SATA3 for SSD |
|---|---|
| SATA | 1 x SATA3 (6.0Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 1 x 19V/90W AC-DC power brick adapter |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 50ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% |
Mechanical
| Construction | Front Panel - Plastic / Base - Metal |
|---|---|

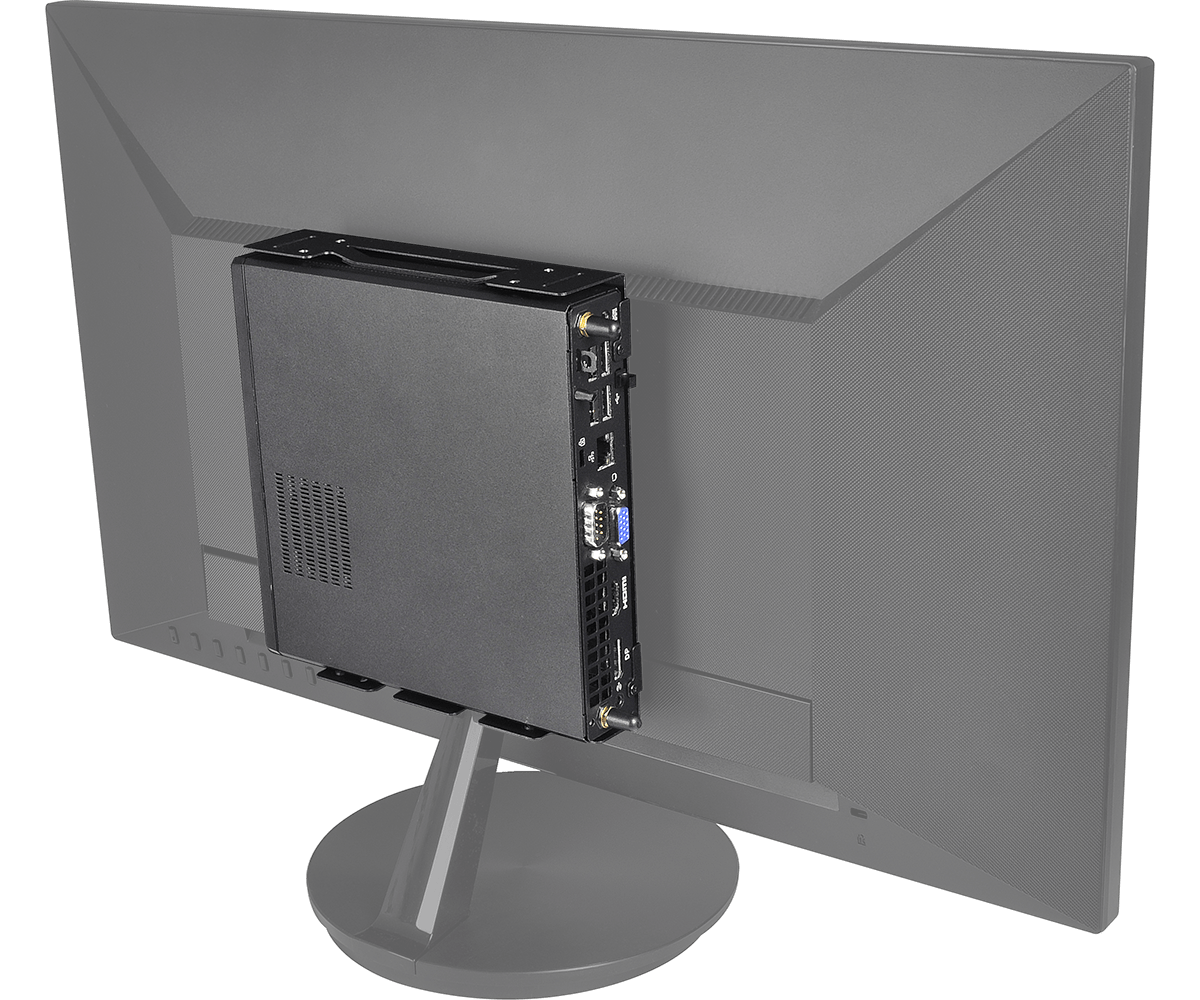

| Mounting | VESA mounting bracket |
| Dimensions (L x W x H) | 178 x 178 x 34mm |
| Weight | Net Weight:1.0Kg |
Others
| OS Support | Windows 7, Windows 10 |
|---|---|
| Certifications | CE, FCC Class A |
| Packing List | 1 x 19/90W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
