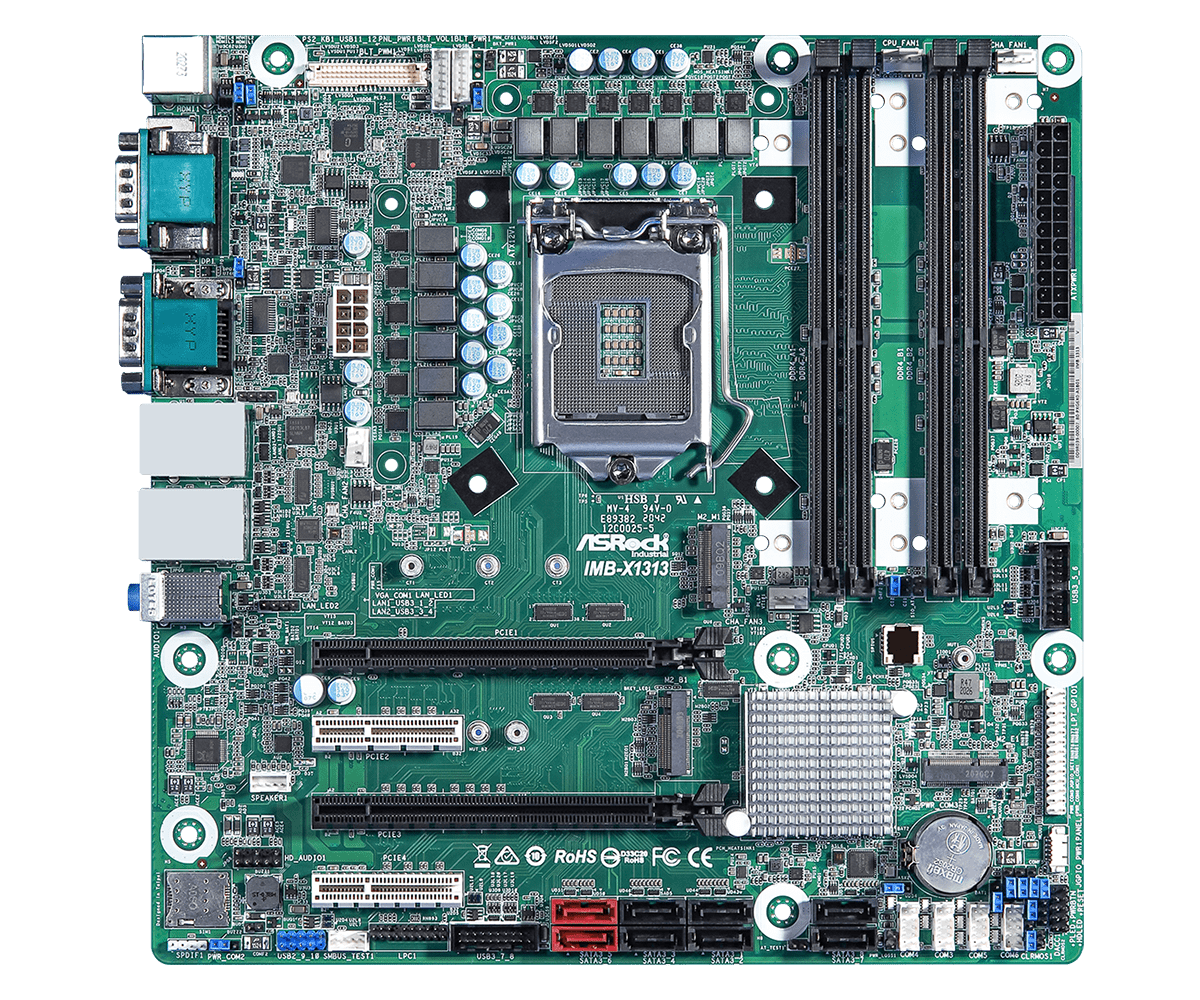

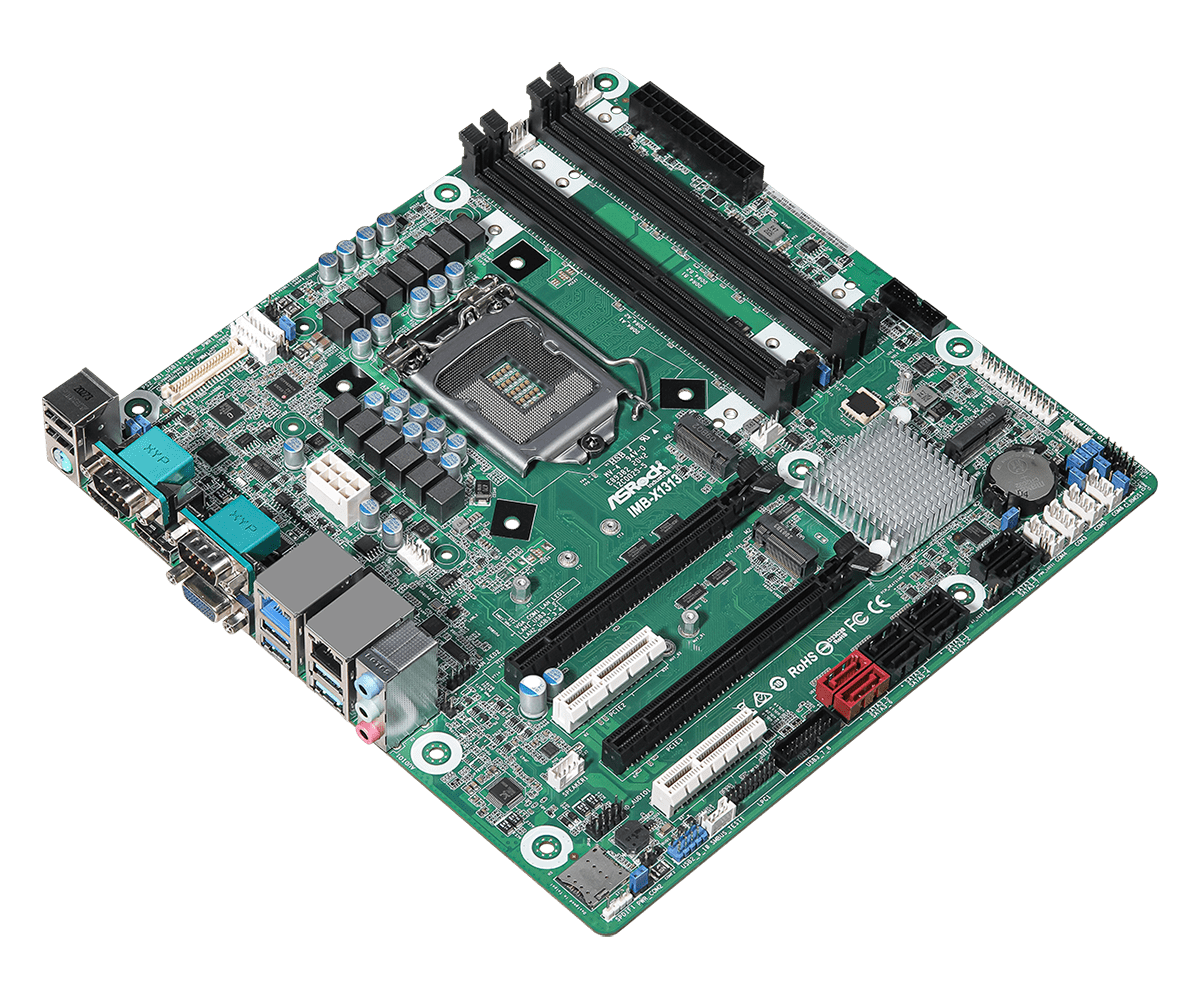

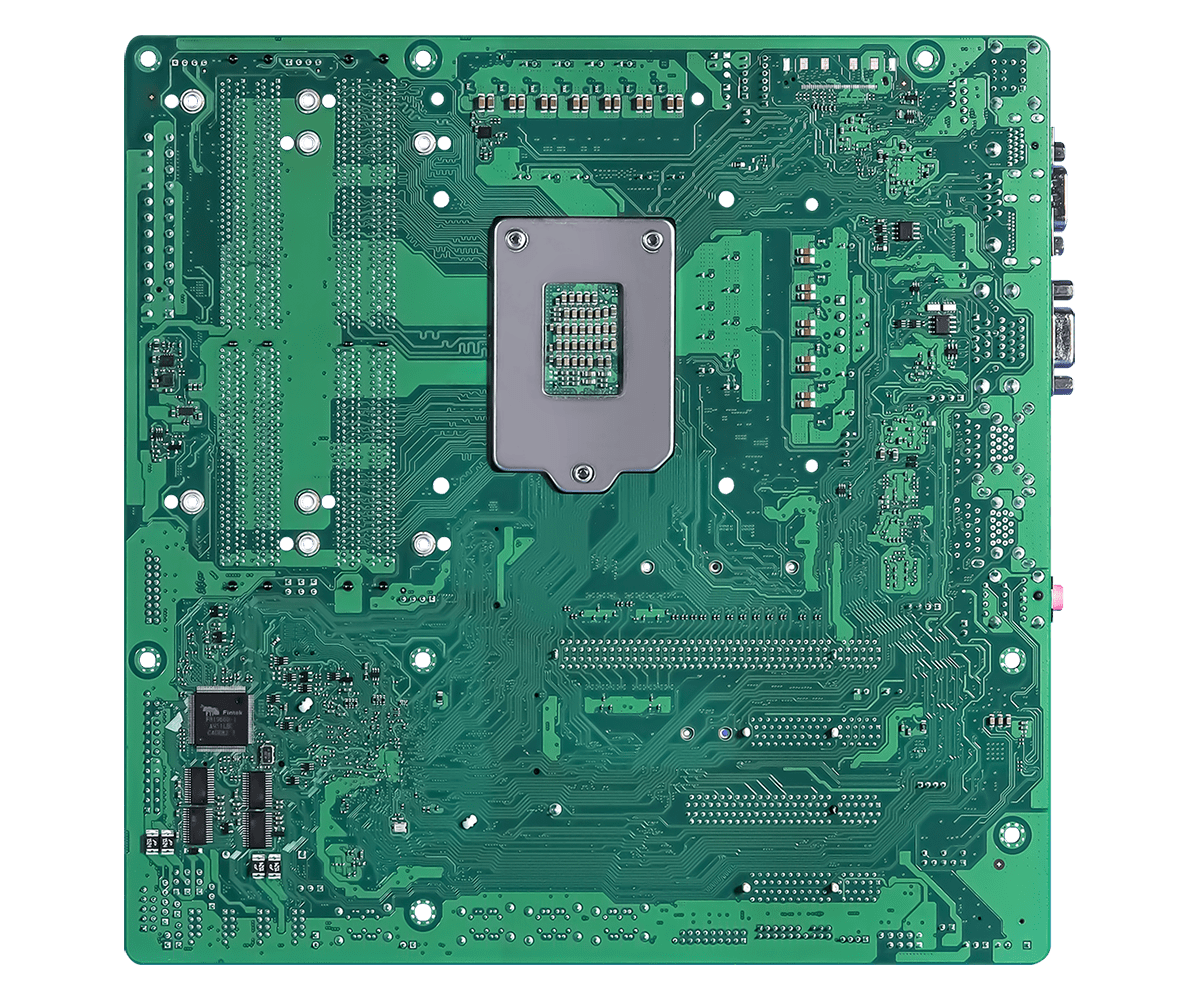

IMB-X1313 Micro ATX Motherboard

Processor System

CPU	Intel® 10th Gen (Cometlake-S) Core™ Processors, Up to 125 W
Chipset	Intel® W480E
Socket	LGA1200
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR4 2933 / 2666 / 2400 MHz, (ECC memory supported by CPU) - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity	128GB
Socket	4 x 288-pin Long-DIMM

Graphics

Controller	Intel® UHD Graphics
HDMI	HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096 x 2160@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay	Triple Display
eDP	eDP 1.4, Max resolution up to 4096 x 2304@60Hz

Expansion Slot

PCIe	2 x PCIe Gen3 Slots (PCIE1 / PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3)) (PCIE1: Support riser card x8 / x8, x8 / x4 / x4) 2 x PCIe x4 Gen3
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB2.0 and SIM for 4G / 5G
SIM Socket	1 x SIM socket connected to M.2 Key B

Audio

Interface	Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In

Ethernet

Controller/ Speed	LAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro
Connector	2 x RJ-45

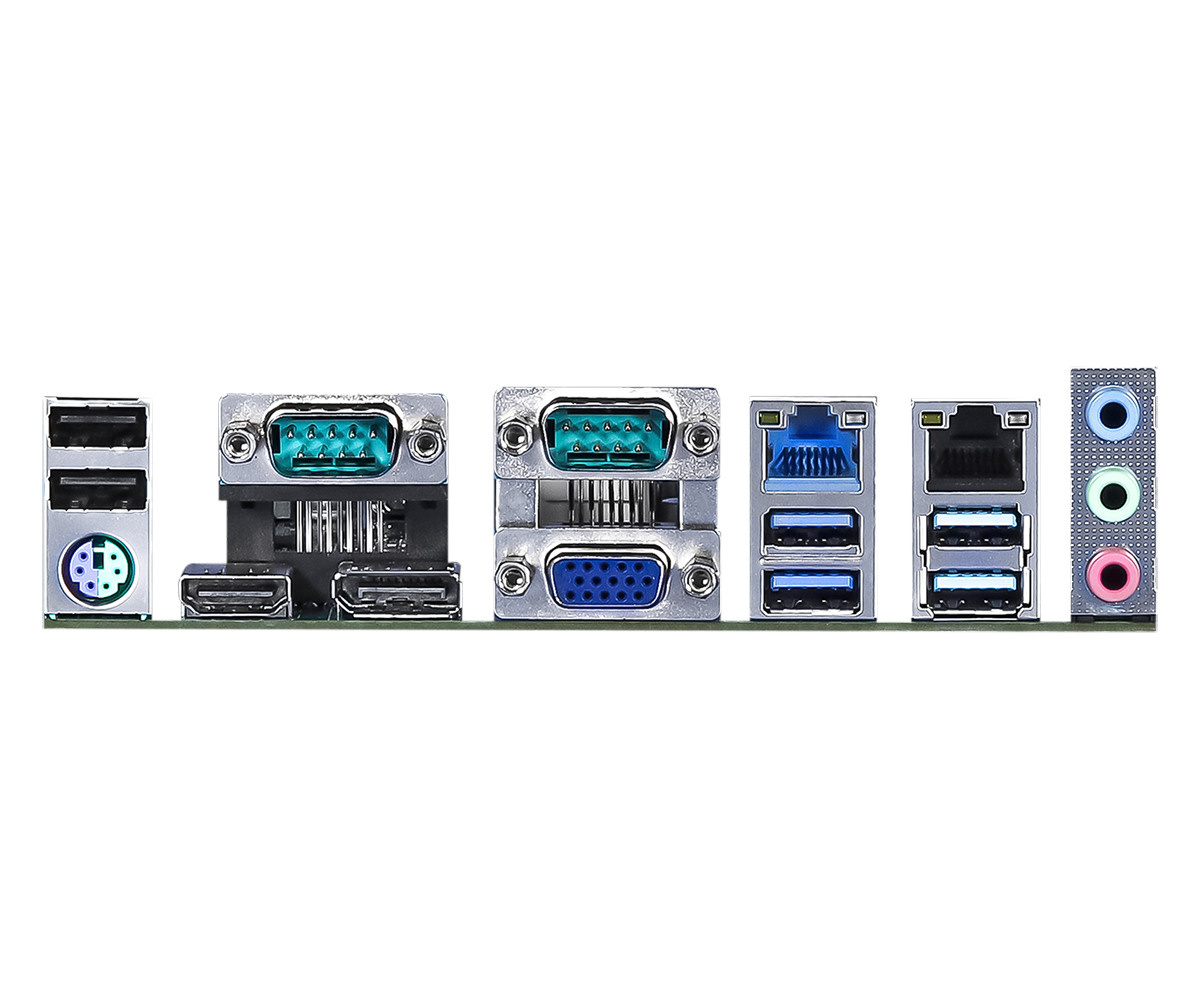

Rear I/O

HDMI	1 x HDMI 2.0a
DisplayPort	1 x DP 1.2
VGA	1
Ethernet	1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB	4 x USB 3.2 Gen2, 2 x USB 2.0
Audio	3 ( Line-In, Line-Out, Mic-In)
COM	2 x COM (RS-232/422/485)
PS2	1

Internal Connector

USB	4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header) 2 x USB 2.0 (1 x 2.54 pitch header)
COM	4 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM 2.0 onboard
LVDS	1
Speaker Header	1
eDP	1 (BOM Option support)

Storage

M.2	1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 and PCIe x4 for SSD * Shared with SATA3_1 / SATA3_2 Ports - When using M.2 PCIe x4 SSD, both SATA3_1 and SATA_2 Ports are disabled - When using M.2 SATA SSD, only SATA3_1 Port is disabled, and SATA3_2 Port is available
SATA	8 x SATA3 (6Gb/s) *Only SATA3_1 ~ SATA3_6 Ports support RAID function
RAID	Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020643000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020643000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
