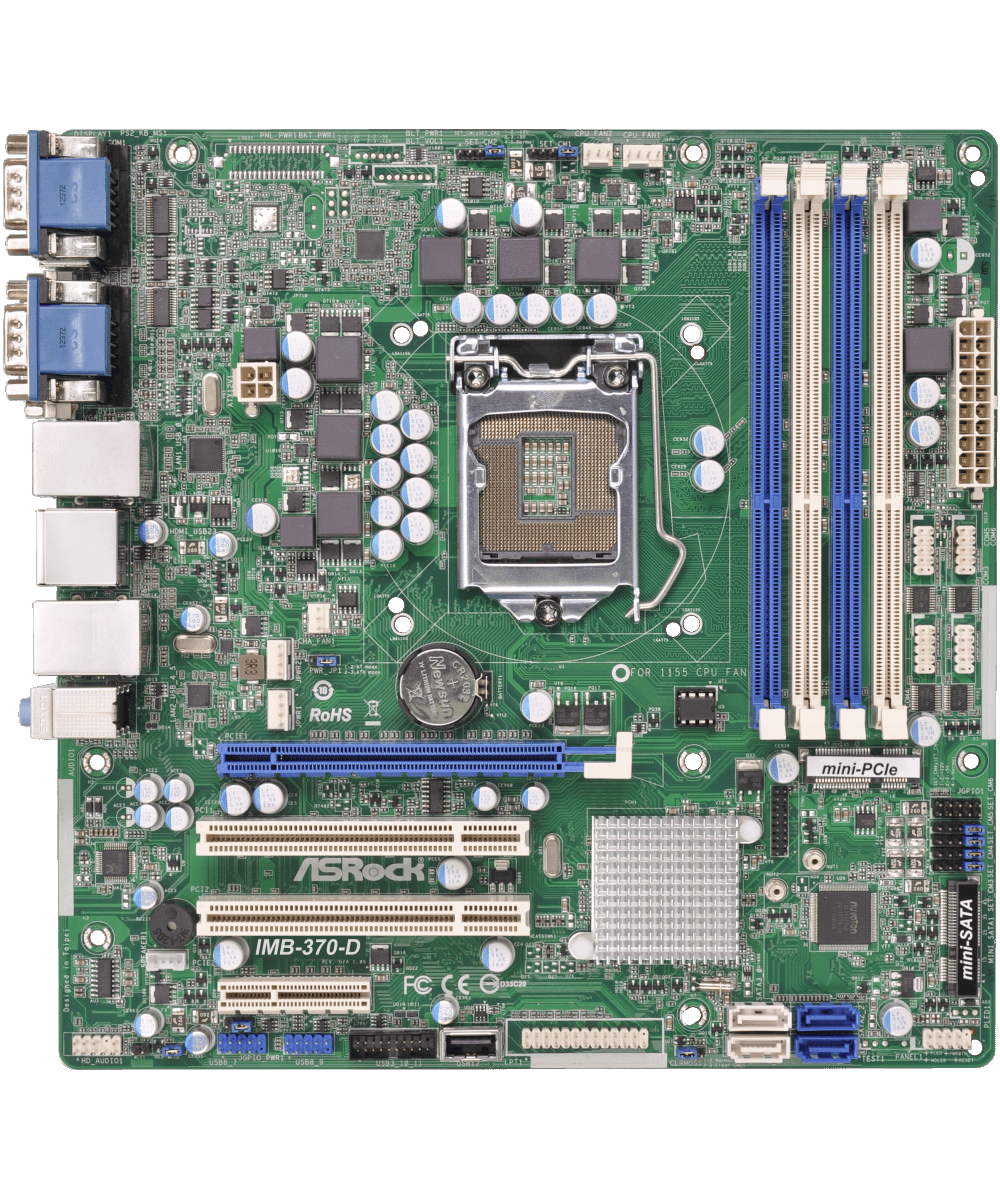

IMB-370-D Micro ATX Motherboard

Processor System

CPU	Socket LGA1155 for Intel Core i7 / i5 / i3 / Celeron (Sandy Bridge and Ivy Bridge)
Chipset	Intel® Q77
BIOS	UEFI

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Capacity	32GB
Socket	4 x Long DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
MultiDisplay	Yes
DVI	Supports max resolution 1920 x 1200
DisplayPort	Supports max resolution 2560 x 1600

Expansion Slot

PCIe	1 (x16) (IVY Bridge: Gen3; Sandy Bridge: Gen2)+ 1 (x4)
PCI	2
mini-PCIe	1 x Half size with PCIe x1

Ethernet

Controller/ Speed	LAN1:Intel 82583V with 10/100/1000 Mbps LAN2: Intel 82579LM with 10/100/1000 Mbps
Connector	2 x RJ-45

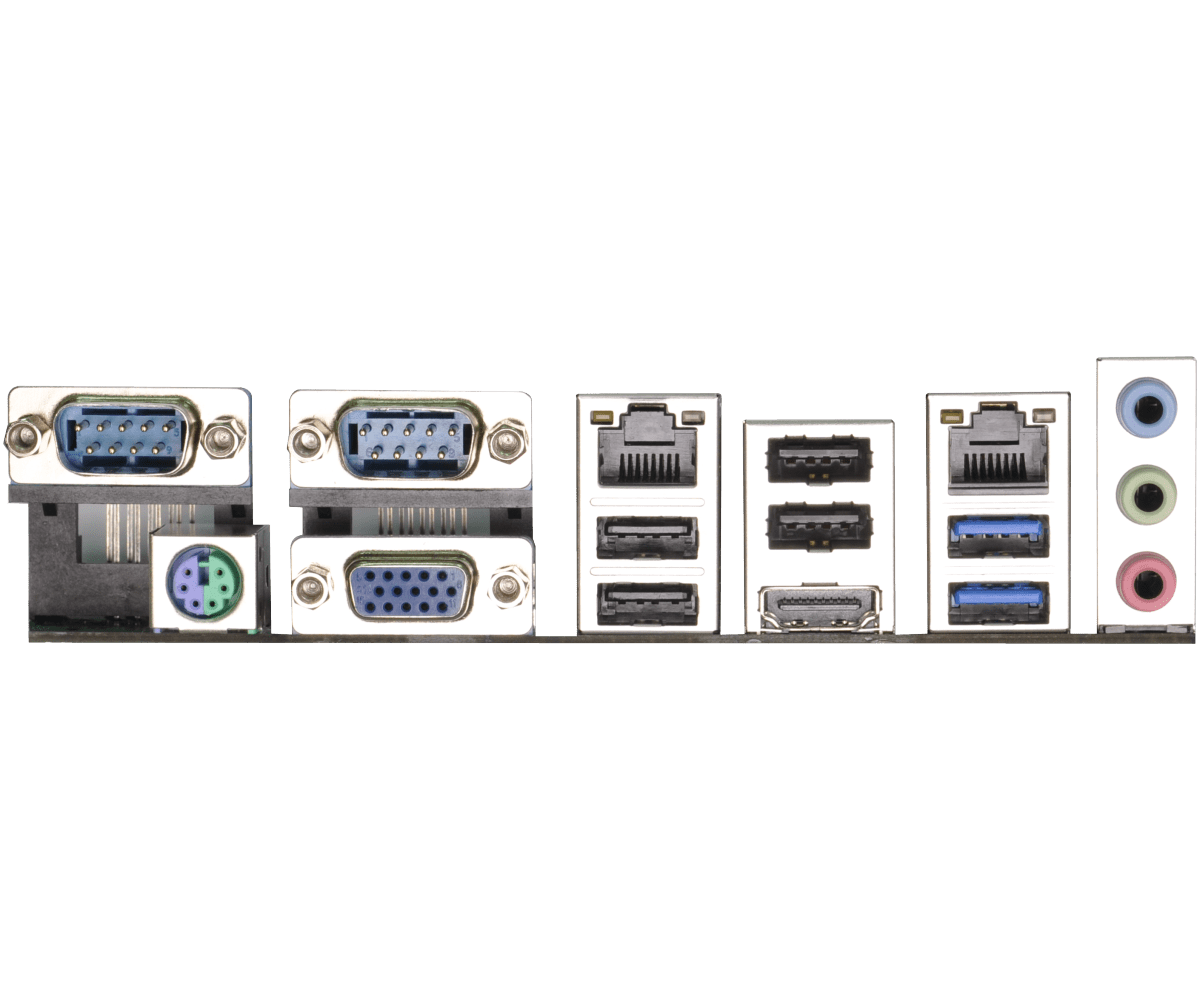

Rear I/O

HDMI	1
DVI	1 (DVI-I)
Ethernet	2
USB	6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant)
Audio	3 (Mic-in, Line-in, Line-out)
COM	2 x COＭ (RS-232/422/485)
PS2	1 (Combo)
DisplayPort	1

Internal Connector

USB	6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant) 1 Vertical Type A USB Connector
COM	4 x COM (RS-232)
Parallel	1
GPIO	4 x GPI + 4 x GPO
Speaker Header	1
SATA PWR Output	2

Storage

mSATA	1 x Full size with SATA2 and USB 2.0
SATA	2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (20+4-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
