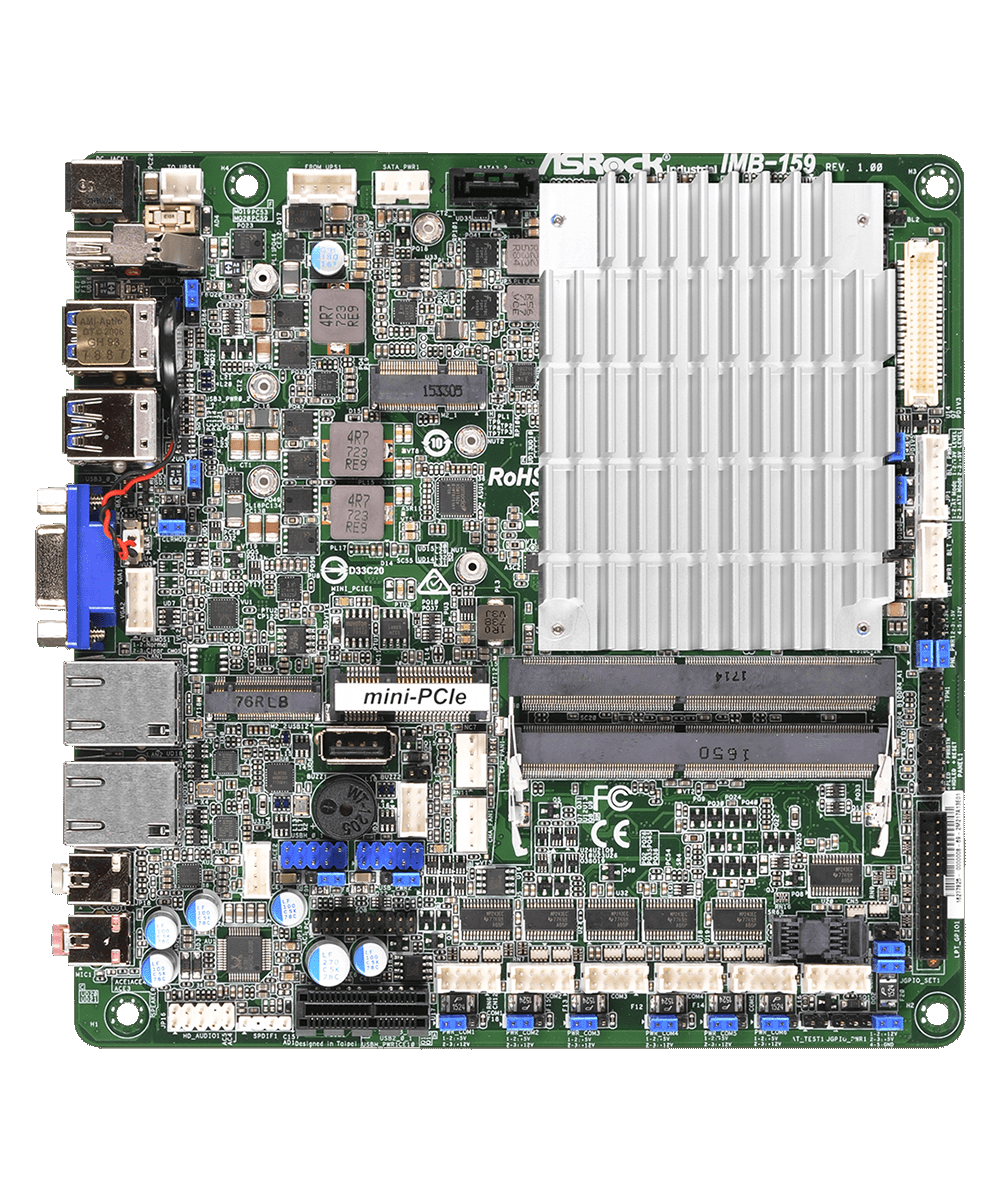

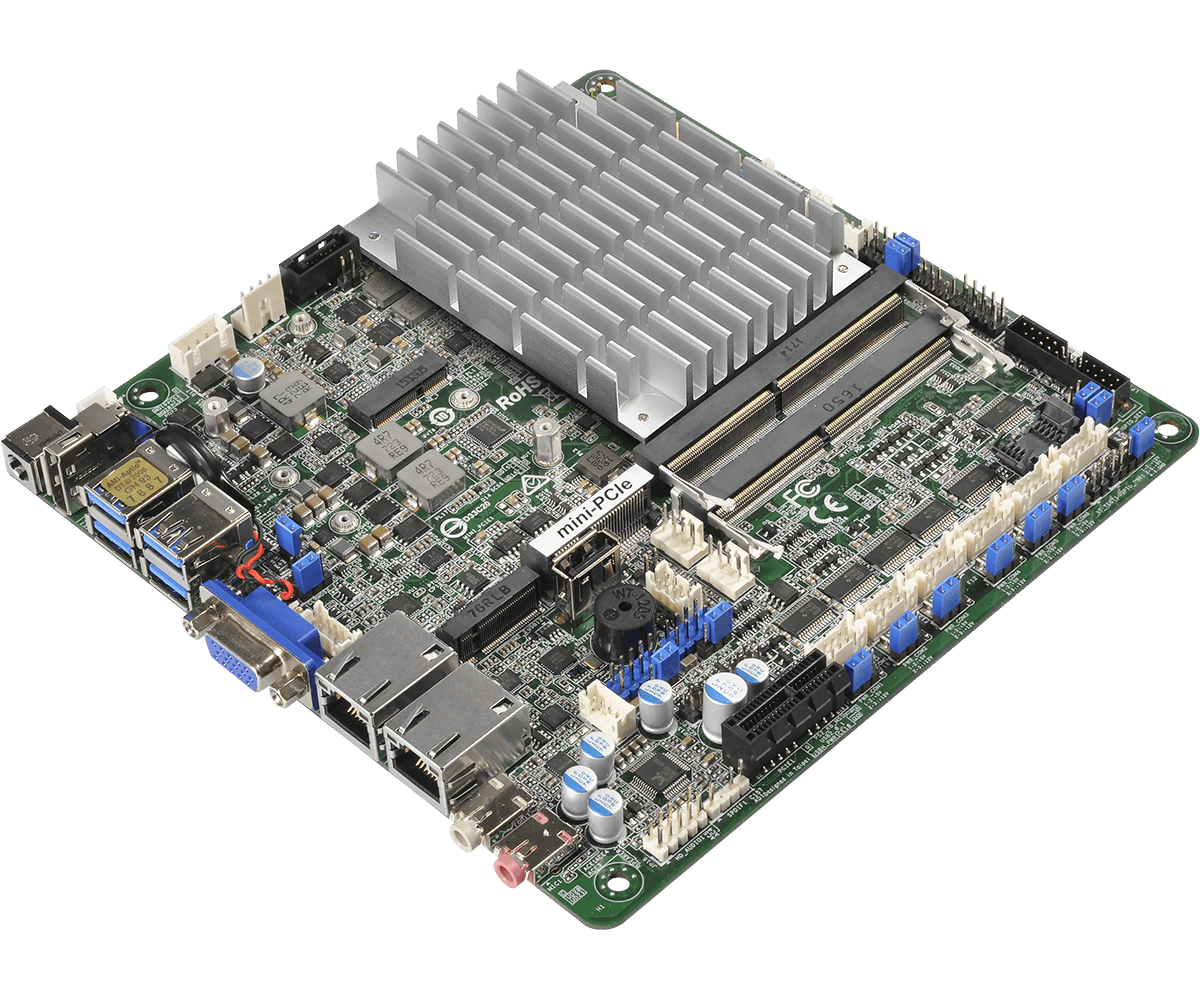

IMB-159NR Mini-ITX Motherboard

Processor System

CPU	Intel® Gemini Lake Refresh SoC Processor N4120, QC, 1.10GHz, 6W
Chipset	SoC

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	8GB
Socket	2 x SO-DIMM

Graphics

VGA	Supports max resolution up to 1920 x 1200
LVDS	Dual Channel 24-bit, max resolution up to 1920 x 1200@60Hz (Shared with eDP, auto detect)
MultiDisplay	Triple Display
eDP	Max resolution up to 4096 x 2160@60Hz (Shared with LVDS, auto detect)
DisplayPort	Max resolution up to 4096 x 2160@60Hz
Controller	Intel HD Graphics

Expansion Slot

PCIe	1 x PCIe x1
mini-PCIe	1 x Full / Half size with PCIe x1 and shared USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB 2.0 for Wireless

Ethernet

Controller/ Speed	2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps

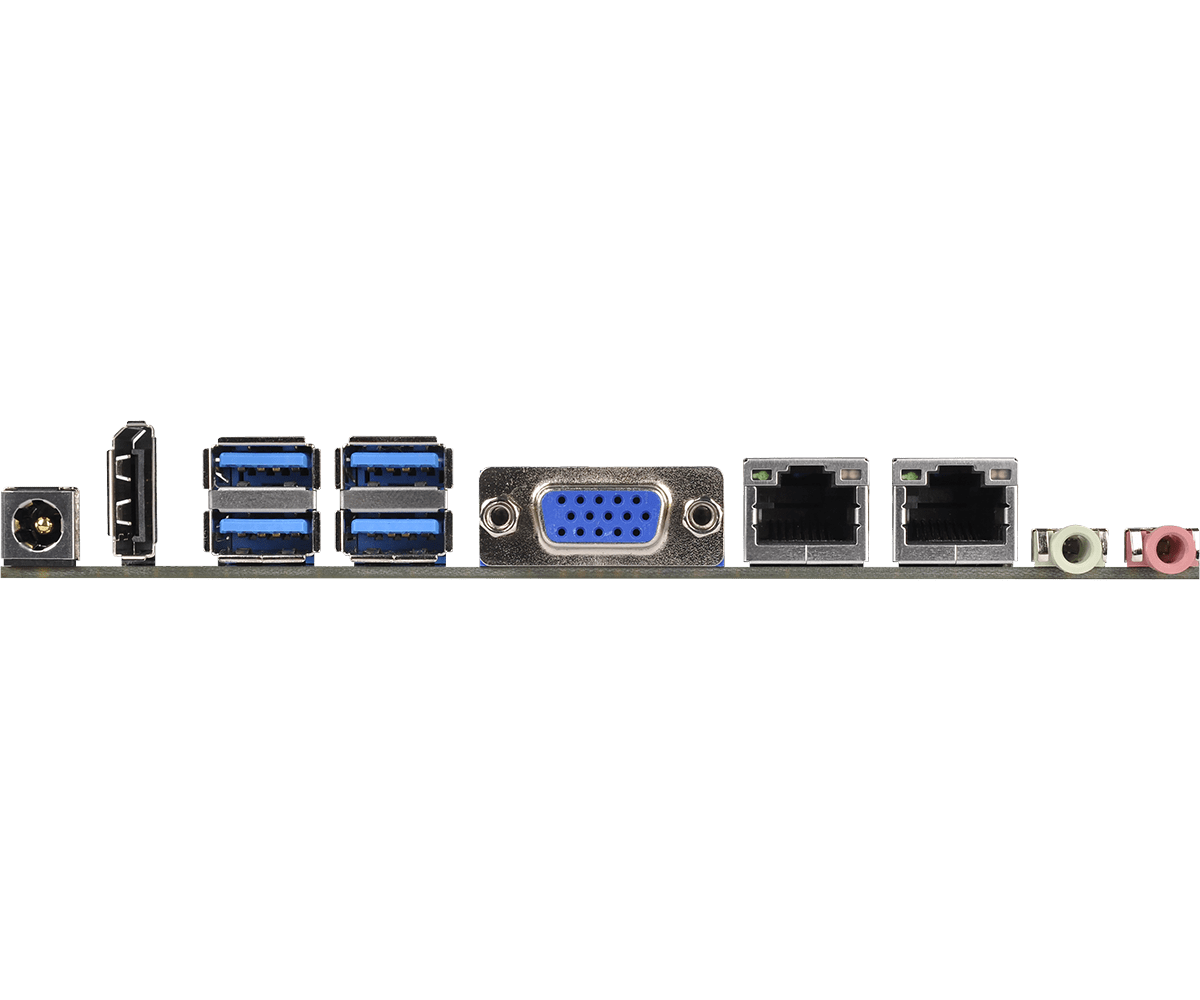

Rear I/O

VGA	1
Ethernet	2
USB	4 x USB 3.0, 2 x USB 2.0
Audio	2 (Mic-in, Line-out)
DisplayPort	1
DC Jack	1

Internal Connector

USB	5 x USB 2.0 (2 x header, 1 x Type A)
COM	4 x COM (RS-232), 2 x COM (RS-232/422/485)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO
TPM	1 x Header
LVDS	1 (shared with eDP, auto detect)
VGA	1 (shared with VGA Con.)
eDP	1 (shared with LVDS, auto detect)
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with SATA3 for SSD
SATA	1 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V / 19V~28V DC-in
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020551000AK) 1 x I/O Shield THIN (13G020551010AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020551000AK) 1 x I/O Shield THIN (13G020551010AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
