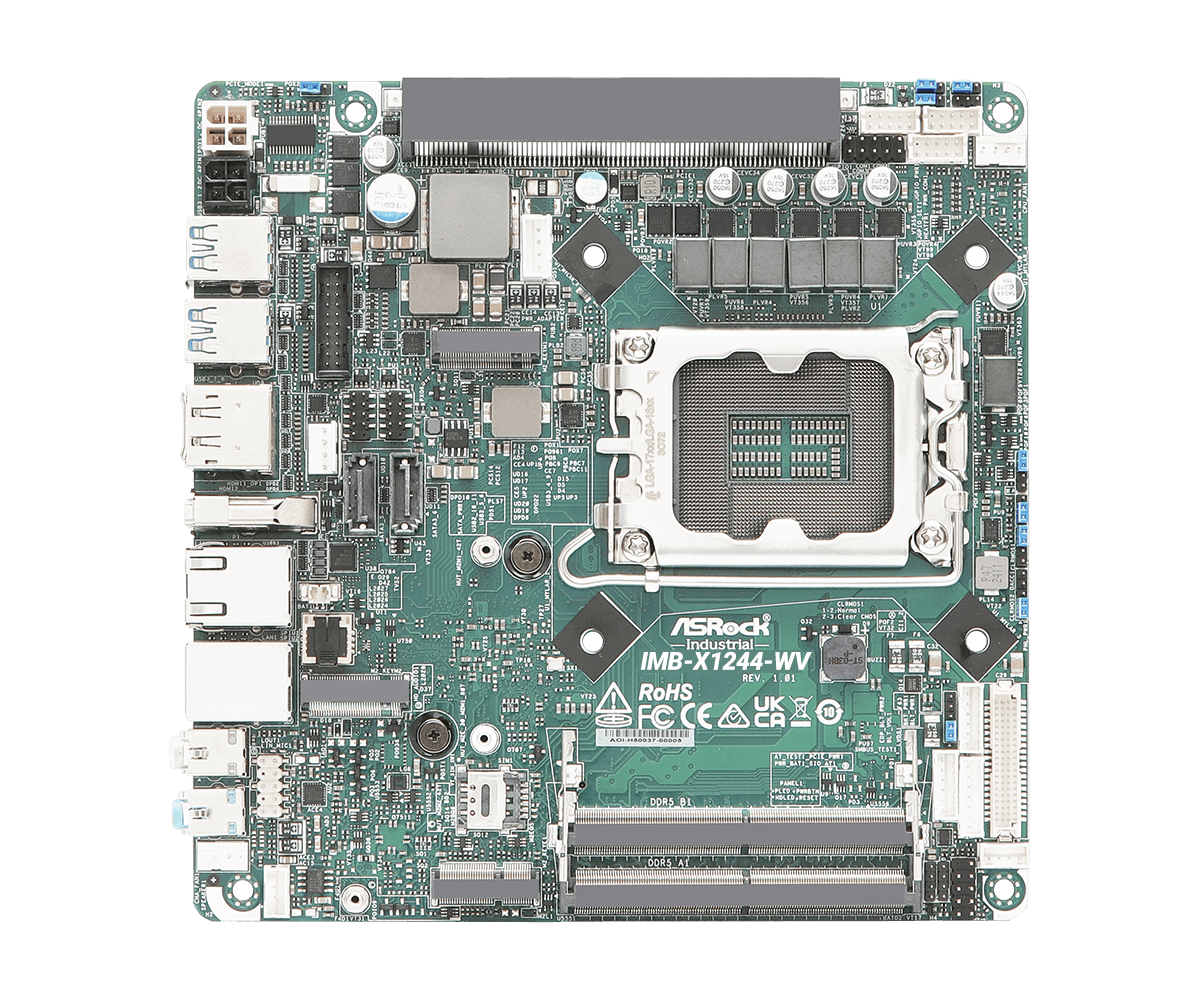

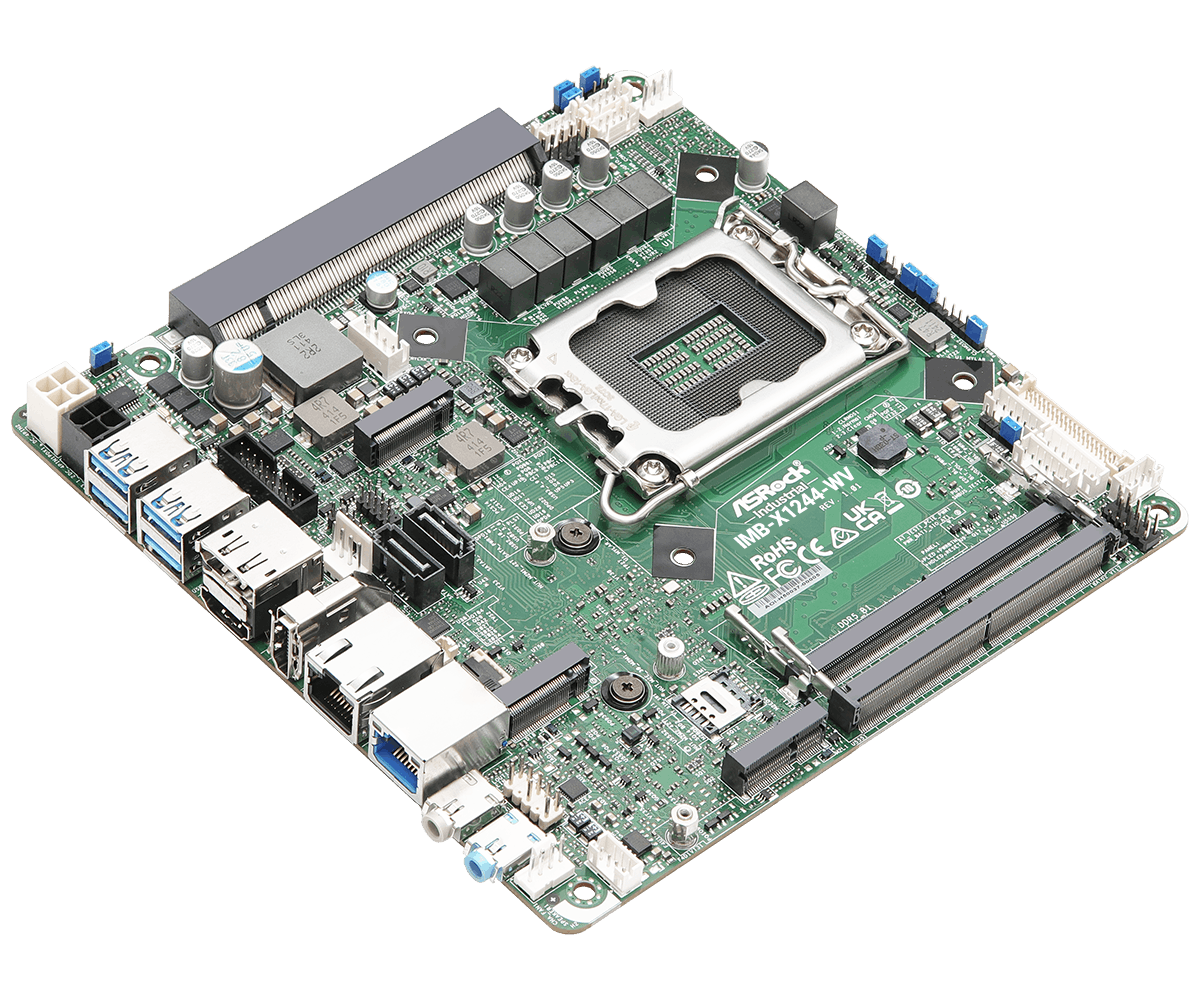

IMB-X1244-WV Mini-ITX Motherboard
- Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
- 2 x 262-pin ECC/non-ECC SO-DIMM DDR5 4800/5600 MHz , up to 96GB (48GB per DIMM)
- 1 x Right Angle PCIe x16 (Gen4)
- 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 3 x COM, 2 x SATA3
- 1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDS, 1 x eDP 1.4b
- TPM 2.0 onboard IC
- Supports Intel® vPro, VMD RAID 0/1
- 12~28V DC-In
Specification
Processor System
| CPU | Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W |
|---|---|
| Chipset | Intel® W680 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.0-in, 17.0 cm x 17.0 cm x 2.6 cm) |
|---|
Memory
| Technology | Dual Channel ECC/non-ECC DDR5 4800/5600 MHz* *Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/faq&faq_id=90 technical FAQ *If motherboard ambient temp. is over 55ºC, the memory thermal solution should be added to avoid thermal issue |
|---|---|
| Capacity | 96 GB (48 GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| eDP | eDP 1.4b Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad Display |
Expansion Slot
| PCIe | 1 x Right Angle PCIe x16 (Gen4, Support riser card x8/x8) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G |
| SIM Socket | 1 x Socket connected to M.2 Key B |
Audio
| Interface | Realtek ALC897, High Definition Audio. Line-out,Line-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226V with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports vPro |
|---|---|
| Connector | 2 x RJ-45 |
Rear I/O
| HDMI | 2 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.4a++ |
| Ethernet | 1 x 2.5 Gigabit LAN 1 x 1 Gigabit LAN |
| USB | 4 x USB 3.2 Gen2 |
| Audio | 2 (Line-in, Line-out or Mic-in, Line-out (optional)) |
Internal Connector
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 header) 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | COM1, COM3 (RS-232/422/485) COM4 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD 1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD* *Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS) |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
| RAID | Intel® VMD RAID 0/1 **supported by identical interface (PCIe or SATA) PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M SATA interface: SATA port |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12~28V DC-In with 4-pin wafer PWR cable |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 1 x I/O Shield (13G02P066000AK) 1 x I/O Shield THIN (13G02P066010AK) 4 x SCREW M2*2,D=5 (13G020302031AK) 1 x SATA Power Cable (14G000100410AK) 2 x COM Cable (14G000000310AK) 2 x SATA Cable (14G00010107DAK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G02P066000AK) 1 x I/O Shield THIN (13G02P066010AK) 4 x SCREW M2*2,D=5 (13G020302031AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
