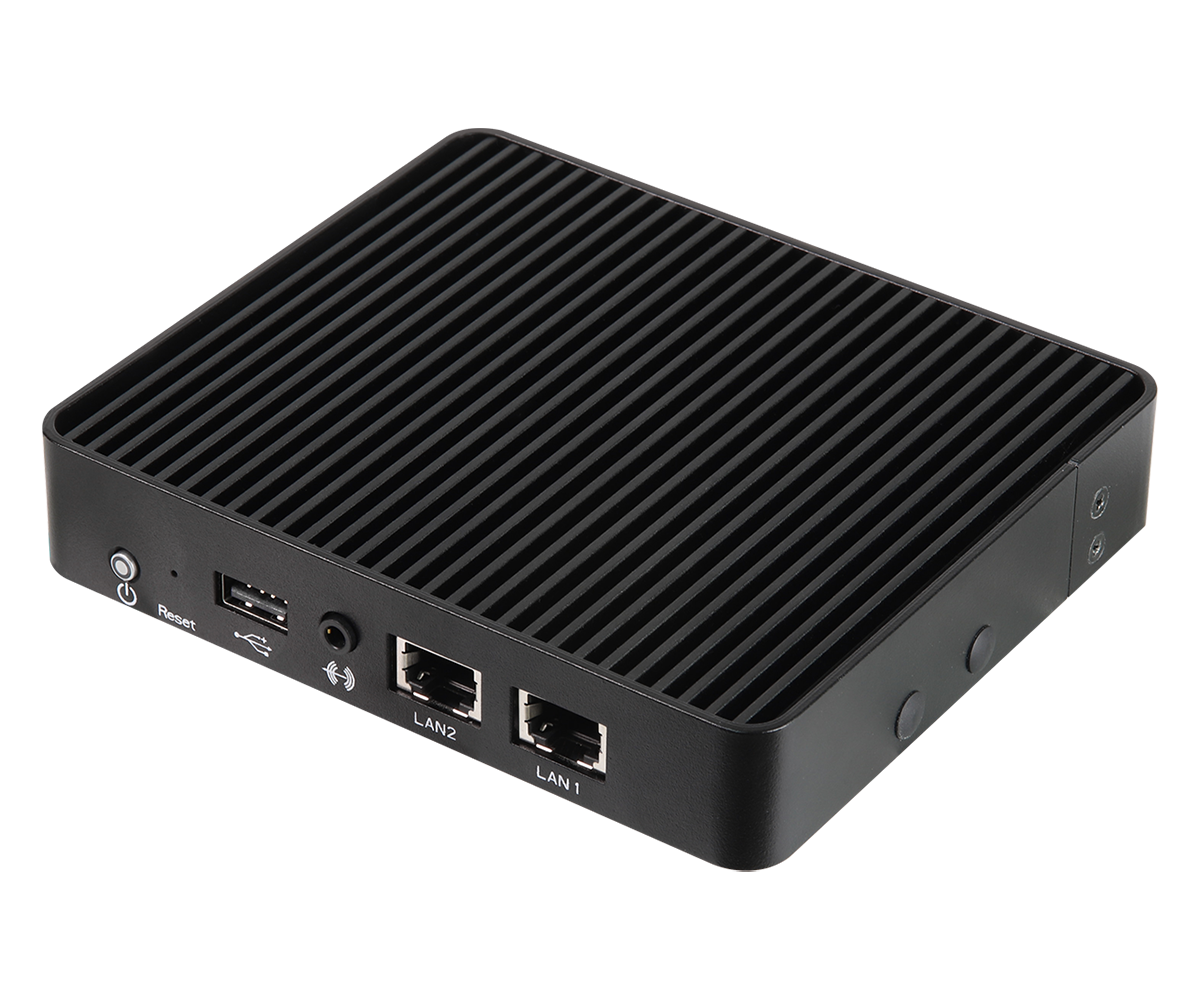

uBOX-115 Fanless Embedded BOX PC

Processor System

CPU	Intel®Apollo Lake SoC Processor - uBOX-115J (J3455, QC, up to 2.30 GHz) - uBOX-115D (N4200, QC, up to 2.50 GHz) - uBOX-115L (N3350, DC, up to 2.40 GHz)
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	135 x 116 x 25.4mm

Memory

Technology	Dual Channel DDR3L 1866 MHz
Capacity	16 GB (8GB per DIMM)
Socket	2 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
HDMI	HDMI 1.4b Max resolution up to 4096 x 2160@24Hz
MultiDisplay	Dual Display

Expansion Slot

M.2	1 x M.2 (KEY E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket	1 x Socket connected to M.2 Key_B

Audio

Interface	Realtek ALC233, High Definition Audio,Line-out,Mic-in

Ethernet

Controller/ Speed	2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector	2 x RJ-45

Front I/O

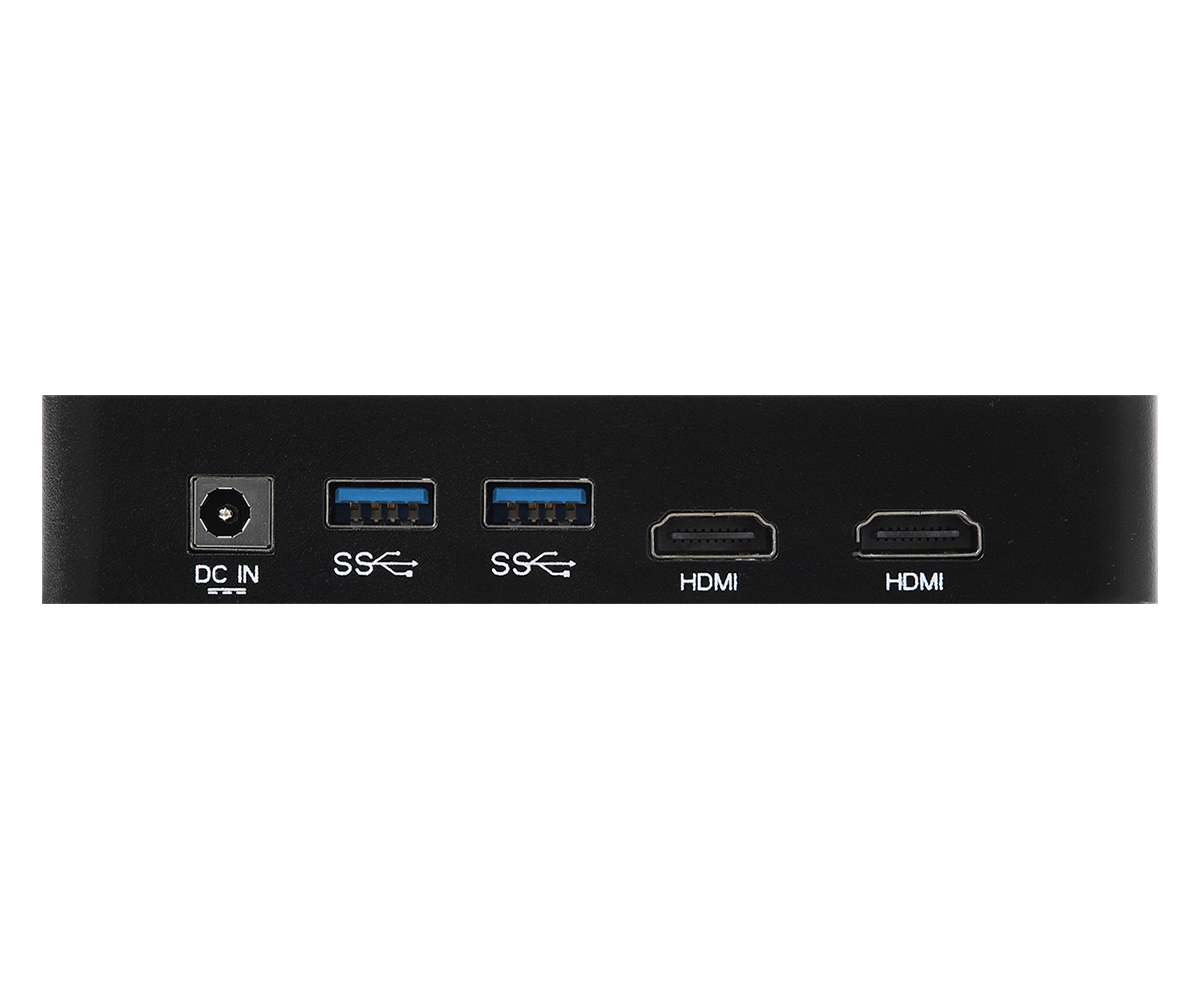

HDMI	2 x HDMI 1.4b
USB	2 x USB 3.1 (Gen1)
DC Jack	1
Audio	1 (Mic-in or Line-out)

Rear I/O

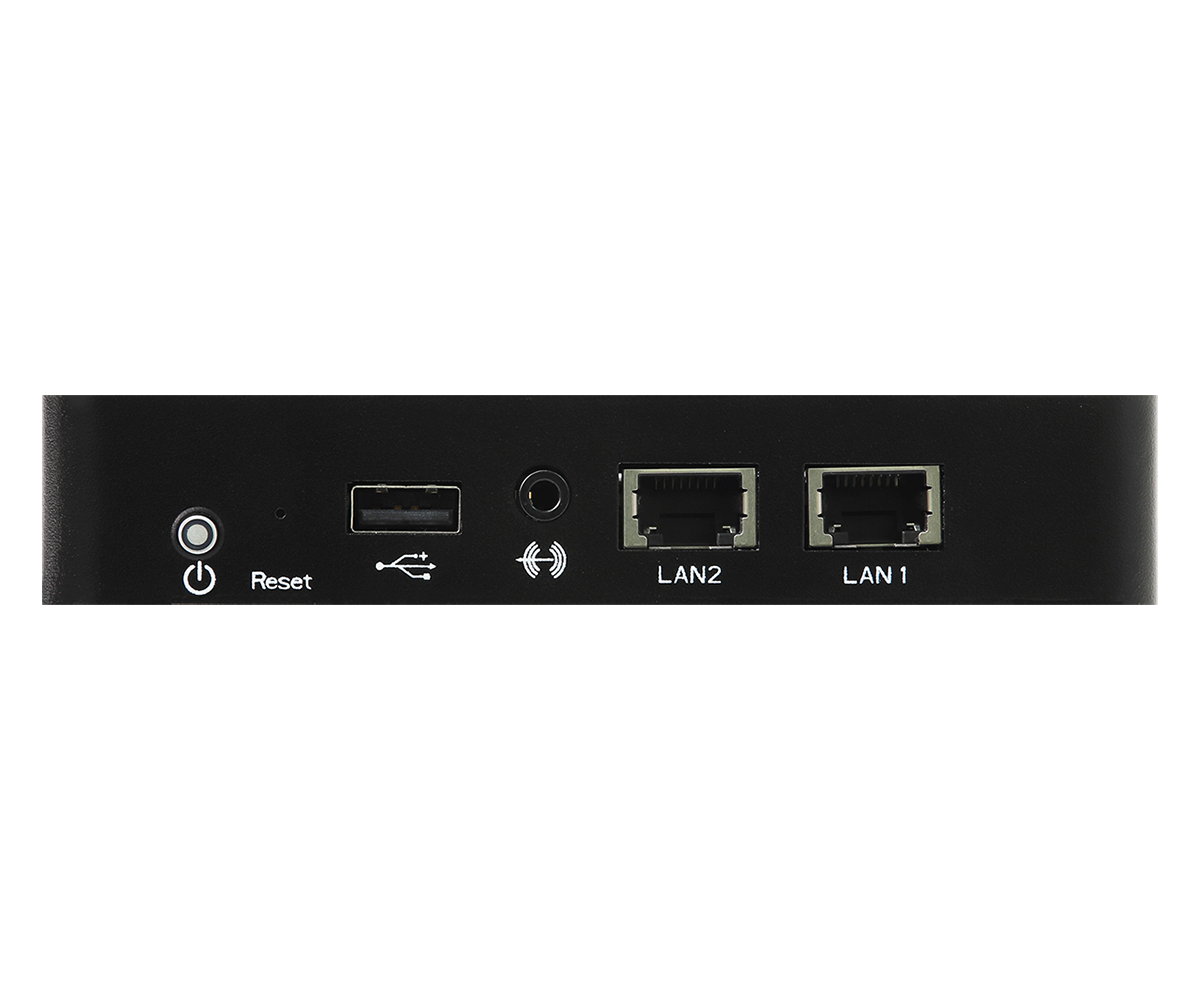

Ethernet	2 x 1 Gigabit LAN
USB	1 x USB 2.0

Storage

M.2	1 x M.2 (KEY B, 3042) with USB 2.0 + SATA/PCIe x2 + SIM for 4G
eMMC	32GB/64GB

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	1 x 12V/60W Power Adapter
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 50ºC
Storage Temp	-40° C – 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	N/A
Dimensions (L x W x H)	135 x 116 x 25.4mm
Weight	Net Weight:0.5kg

Others

OS Support	Windows 10
Certifications	CE, FCC Class A
Packing List	1 x 12V/60W Power Adapter 1 x VESA mounting bracket 1 x Screw Package 1 x Product DVD
